PC Power Supply

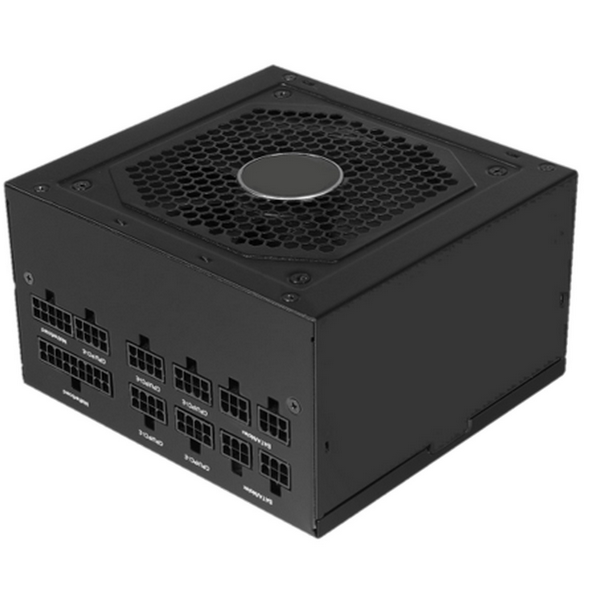

GPX1000W 850W 750W Gold ATX3.1 Modular (2026)
• 80 Plus Gold efficiency certification
• Fully modular cable design
• ATX 3.1 & PCI-E 5.1 compliance
• 12V-2x6 connector for safe GPU power
• Low ripple noise (5V & 3.3V ≤30mV) for stability
• Compact 150 × 140 × 86 mm dimensions
• Whisper-quiet 120mm FDB cooling fan
• Aggressive low-load efficiency ≥70% at 2% load
• Extended hold-up time up to 17ms
• Fully modular cable design
• ATX 3.1 & PCI-E 5.1 compliance
• 12V-2x6 connector for safe GPU power
• Low ripple noise (5V & 3.3V ≤30mV) for stability
• Compact 150 × 140 × 86 mm dimensions
• Whisper-quiet 120mm FDB cooling fan
• Aggressive low-load efficiency ≥70% at 2% load
• Extended hold-up time up to 17ms
Instructions
The GPX Series offers fully modular ATX 3.1 power supplies with 80 Plus Gold efficiency. Available in 1000W, 850W, and 750W models, they deliver stable, eco-conscious performance with low ripple, quiet cooling, and modern GPU support, making them ideal for gaming and professional systems.
| Output Cabling | |||
| ATX 24 pin (20+4) | 1x (500 mm) | 1x (550 mm) | 1x (550 mm) |
| ATX12V ( 4+4 )pin | 2x (600 mm) | 2x (650 mm) | 2x (650 mm) |
| ATX3.1 12V-2x6 | 1x (600 mm) | 1x (600 mm) | 1x (600 mm) |
| PCI-e (6+2)pin | 2x (550+150 mm) | 1x (550 mm) | 1x (550 mm) |
| PATA (P+P+P+P) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) |
| SATA (SL+SL+SL+SL) | 2x (500+150+150+150 mm) | 2x (500+150+150+150 mm) | 2x (500+150+150+150 mm) |
| Cooling | 120 mm (FDB)/Non-Stop | ||
| Operating Temperature | 0 - 40 C | ||
| Dimensions (mm) | |||
| Length | 140mm | 140mm | 140mm |
| Width | 150mm | 150mm | 150mm |
| Height | 86mm | 86mm | 86mm |
specification
| Spec | GPX1000S5-B | GPX850S5-B | GPX750S5-B |
| Wattage | 1000W | 850W | 750W |
| Efficiency | Gold | ||
| Input Voltage | 100-240 Vac | 100-240 Vac | 100-240 Vac |
| Input Current | 12A Max. | 10A Max. | 10A Max. |
| 80 PLUS Label | 115V Bronze | ||
| Efficiency (115V) | 2% Load: >70% | ||
| 20% Load: >87% | |||
| 50% Load: >90% | |||
| 100% Load: >87% | |||
| Hold-up time | ≥17ms (80%) | ||
| MTBF | >100000 hours | ||
| OutPut Voltage | Output Maxinum Current | ||
| +3.3V | 20A | 20A | 20A |
| +5V | 20A | 20A | 20A |
| +12V | 83.3A | 70.8A | 62.5A |
| -12V | 0.3A | 0.3A | 0.3A |
| +5Vsb | 3A | 3A | 3A |
| Combined Power +5V&+3.3V | 110W | 110W | 110W |
| Ripple & Noise | 12V ≤40mV, +5V/+3.3V ≤30mV | ||
