PC Power Supply

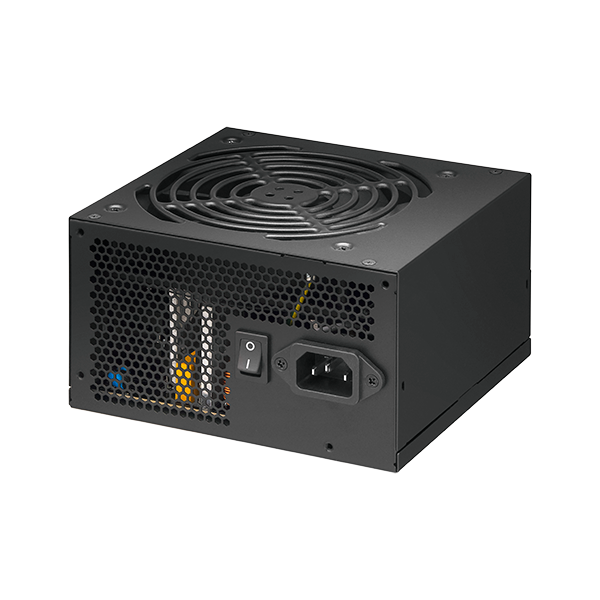

HPQ 850W 750W 650W 550W Gold ATX3.1 Non-Modular (2026)
• 80 Plus Gold efficiency
• Non-modular cable design for cost efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V-2x6 connector for safe GPU power
• Low ripple output (≤120mV on 12V)
• Tight voltage regulation (±5%)
• Compact 150 × 140 × 86 mm dimensions
• Built with 120mm FDB cooling fan
• Aggressive low-load efficiency ≥70% at 2% load
• Non-modular cable design for cost efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V-2x6 connector for safe GPU power
• Low ripple output (≤120mV on 12V)
• Tight voltage regulation (±5%)
• Compact 150 × 140 × 86 mm dimensions
• Built with 120mm FDB cooling fan
• Aggressive low-load efficiency ≥70% at 2% load
Instructions
The YCC HPQ (Gold) Series delivers non-modular ATX 3.1 power with 80 Plus Gold efficiency. Available in 850W, 750W, 650W, and 550W models, it ensures stable performance, eco-conscious low-load efficiency, and quiet cooling. Built with Japanese capacitors, it offers durability and reliability for gaming and professional systems.
| Output Cabling | HPQ850S-G | HPQ750S-G | HPQ650S-G | HPQ550S-G |
| ATX 24 pin (20+4) | 1x (500 mm) | 1x (500 mm) | 1x (500 mm) | 1x (550 mm) |
| ATX12V 8Pin+( 4+4 )pin | 1x (650+150 mm) | 1x (650+150 mm) | 1x (650+150 mm) | 2x (650+150 mm) |
| ATX3.1 _ 12V-2x6 | 1x (600 mm) | 1x (600 mm) | 1x (600 mm) | 1x (600 mm) |
| PCI-e (6+2)+(6+2)pin | 2x (550+150 mm) | 2x (550+150 mm) | 1x (550+150 mm) | 1x (550+150 mm) |
| SATA (SL+SL+SL+SL+P) | 2x (450+150+150+150+150 mm) | 2x (450+150+150+150+150 mm) | 1x (450+150+150+150+150 mm) | 1x (450+150+150+150+150 mm) |
| Cooling | 120 mm (FDB) | |||
| Dimensions (mm) | ||||
| Length | 140mm | 140mm | 140mm | 140mm |
| Width | 150mm | 150mm | 150mm | 150mm |
| Height | 86mm | 86mm | 86mm | 86mm |
specification
| Spec | HPQ850S-G | HPQ750S-G | HPQ650S-G | HPQ550S-G |
| Wattage | 850W | 750W | 650W | 550W |
| Efficiency | Gold | |||
| Input Voltage | 100-240 Vac | 100-240 Vac | 100-240 Vac | 100-240 Vac |
| Input Current | 12A Max. | 10A Max. | 10A Max. | 8A Max. |
| 80 PLUS Label | 115V Bronze | |||
| Efficiency (115V) | 2% Load: >70% | |||
| 20% Load: >87% | ||||
| 50% Load: >90% | ||||
| 100% Load: >87% | ||||
| Hold-up time | ≥17ms (80%) | |||
| MTBF | >100000 hours | |||
| OutPut Voltage | Output Maxinum Current | |||
| +3.3V | 20A | 20A | 20A | 20A |
| +5V | 20A | 20A | 20A | 20A |
| +12V | 70.8A | 62.5A | 54A | 54A |
| -12V | 0.3A | 0.3A | 0.3A | 0.3A |
| +5Vsb | 3A | 3A | 3A | 3A |
| Combined Power +5V&+3.3V | 120W | 120W | 120W | 120W |
| Ripple & Noise | 12V ≤120mV, +5V/+3.3V ≤50mV | |||
