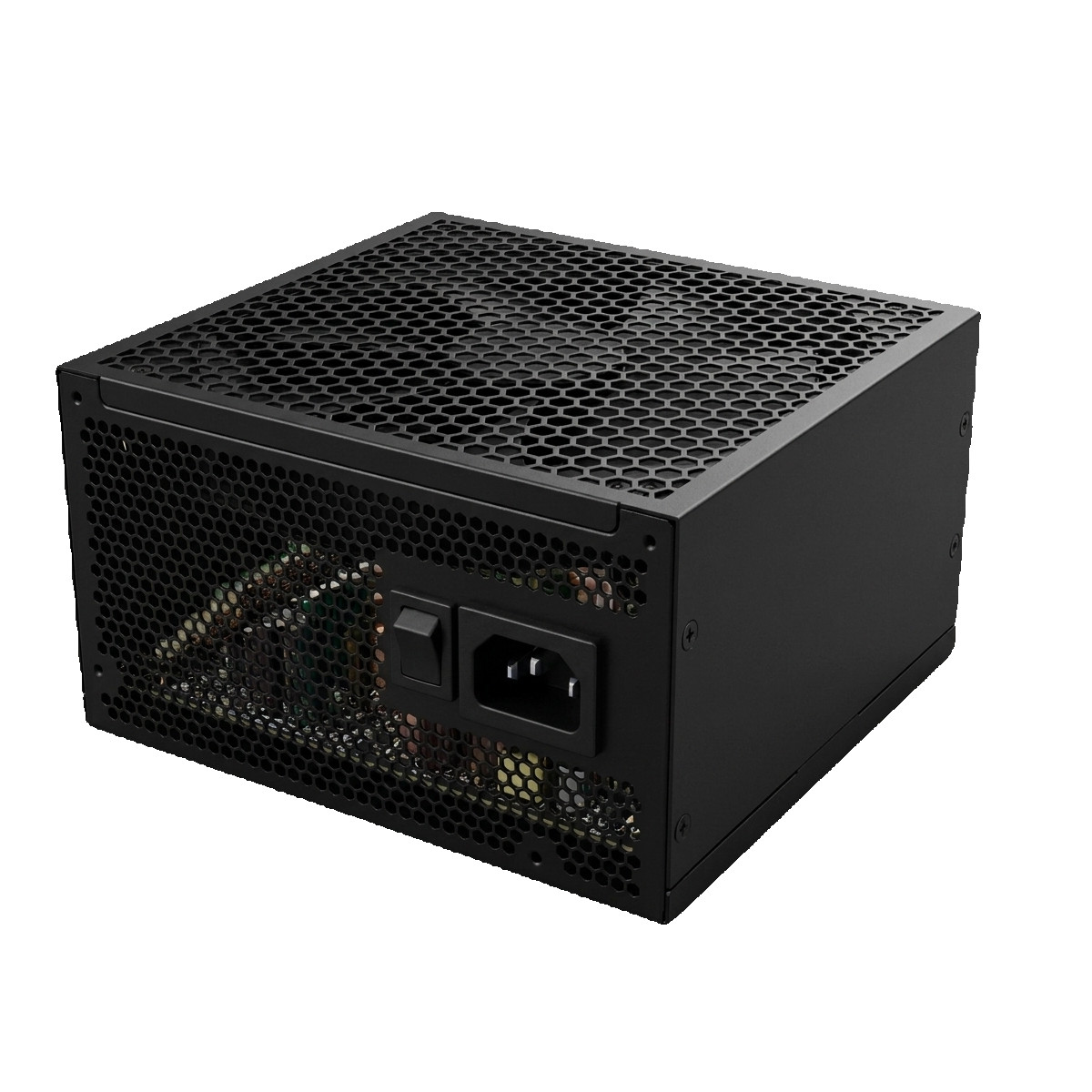

CSA 1200W 1000W 850W 750W Platinum ATX3.1 Modular (2026)
Features：
• Universal 100–240V input voltage
• Modular output cabling design
• 80 Plus Platinum efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V 2x6 connector for safer GPU power
• Advanced 120mm FDB cooling fan
• Extended 17ms hold-up time at 80% load
• Compact 150 × 140 × 86mm dimensions
• Aggressive low-load efficiency ≥70% at 2% load
• Universal 100–240V input voltage
• Modular output cabling design
• 80 Plus Platinum efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V 2x6 connector for safer GPU power
• Advanced 120mm FDB cooling fan
• Extended 17ms hold-up time at 80% load
• Compact 150 × 140 × 86mm dimensions
• Aggressive low-load efficiency ≥70% at 2% load
Instructions
The CSA1200S-P delivers fully modular ATX 3.1 power with 80 Plus Platinum efficiency. It ensures stable, eco-conscious performance with low ripple, quiet cooling, and modern GPU support, making it ideal for gaming and professional systems.
| Output Cabling | CSA1200S-P | CSA1000S-P | CSA850S-P | CSA750S-P |
| ATX 24 pin (20+4) | 1x (550 mm) | 1x (550 mm) | 1x (550 mm) | 1x (550 mm) |
| ATX12V /EPS12V ( 4+4 )pin | 2x (650 mm) | 2x (650 mm) | 2x (650 mm) | 2x (650 mm) |
| ATX3.1 12V-2x6 | 2x (600 mm) | 2x (600 mm) | 1x (600 mm) | 1x (600 mm) |
| PCI-e (6+2)pin | 1x (550 mm) | 1x (550 mm) | 1x (550 mm) | 1x (550 mm) |
| PCI-e (6+2)+(6+2)pin | 1x (550+150 mm) | 1x (550+150 mm) | 1x (550+150 mm) | 1x (550+150 mm) |
| PATA (P+P+P+P) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) |
| SATA (SL+SL+SL+SL) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) | 1x (500+150+150+150 mm) |
| Cooling | 120 mm (FDB) | 120 mm (FDB) | 120 mm (FDB) | 120 mm (FDB) |
| Dimensions (mm) | ||||
| Length | 140mm | 140mm | 140mm | 140mm |
| Width | 150mm | 150mm | 150mm | 150mm |
| Height | 86mm | 86mm | 86mm | 86mm |
specification
| Spec | CSA1200S-P | CSA1000S-P | CSA850S-P | CSA750S-P |
| Wattage | 1200W | 1000W | 850W | 750W |
| Efficiency | Platinum | Platinum | Platinum | Platinum |
| Input Voltage | 100-240 Vac | 100-240 Vac | 100-240 Vac | 100-240 Vac |
| Input Current | 15A Max. | 13.0 – 6.5 A | 10.0 – 5.0 A | 10.0 – 5.0 A |
| 80 PLUS Label | 115V Platinum | 115V Platinum | 115V Platinum | 115V Platinum |
| Efficiency (115V) | 2% Load: >70% | |||
| 20% Load: >90% | ||||
| 50% Load: >92% | ||||
| 100% Load: >89% | ||||
| Hold-up time | ≥17ms (80%) / 12ms (100%) | |||
| MTBF | >100000 hours | |||
| OutPut Voltage | Output Maxinum Current | |||
| +3.3V | 20A | 20A | 20A | 20A |
| +5V | 20A | 20A | 20A | 20A |
| +12V | 100A | 83.3A | 70.8A | 62.5A |
| -12V | 0.3A | 0.3A | 0.3A | 0.3A |
| +5Vsb | 3A | 3A | 3A | 3A |
| Combined Power +5V&+3.3V | 110W | 110W | 110W | 110W |
| Ripple & Noise | 12V ≤40mV, +5V/+3.3V ≤30mV | |||
