PC Power Supply

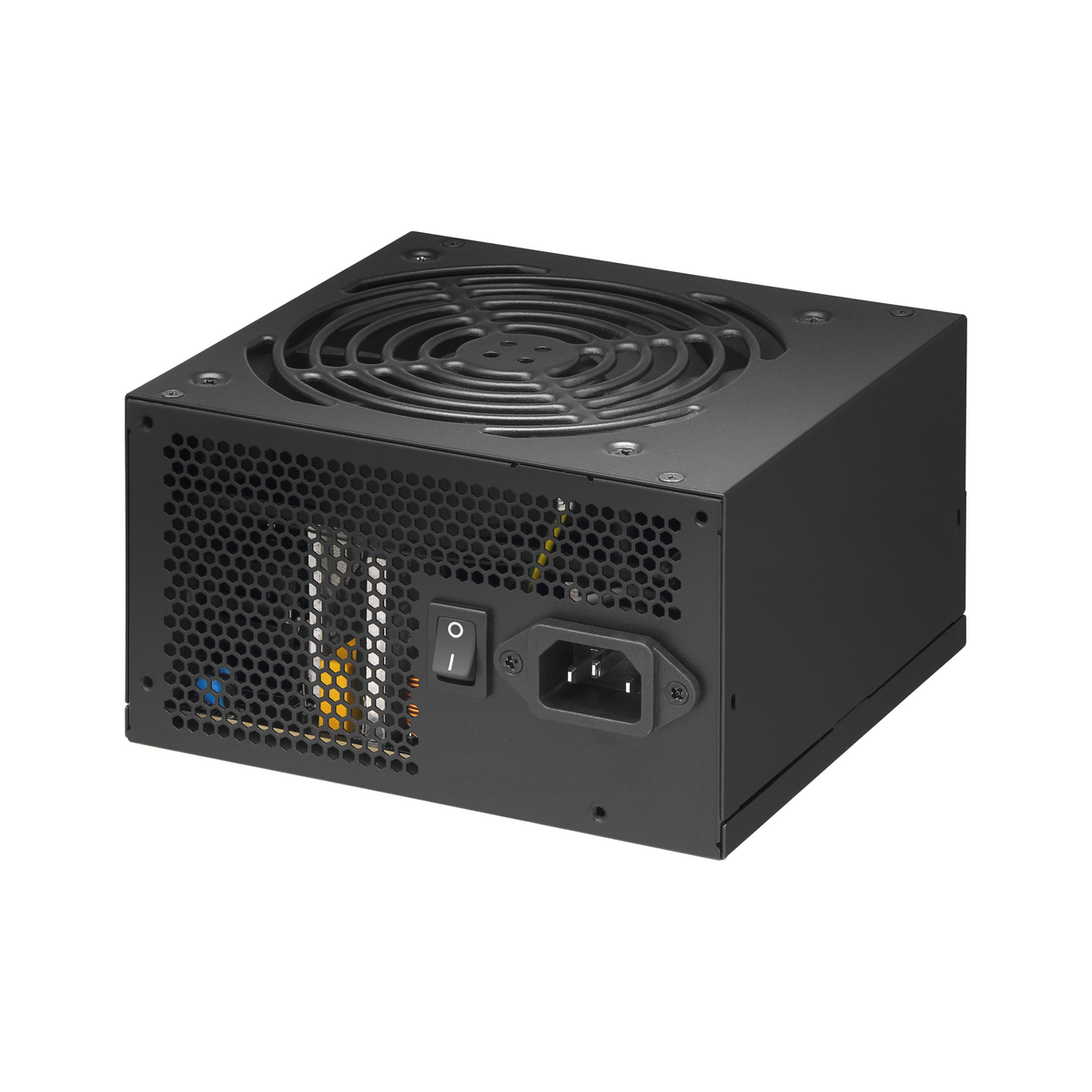

GPG 750W 650W 550W Bronze ATX3.1 Non-Modular (2026)
• Universal 100–240V input voltage
• Non-modular output cabling design
• 80 Plus Bronze efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V 2x6 connector for safer GPU power
• Advanced 120mm FDB cooling fan
• Extended 16ms hold-up time at 80% load
• Compact 150 × 140 × 86mm dimensions
• Aggressive low-load efficiency ≥70% at 2% load
• Non-modular output cabling design
• 80 Plus Bronze efficiency
• ATX 3.1 & PCI-E 5.1 compliance
• 12V 2x6 connector for safer GPU power
• Advanced 120mm FDB cooling fan
• Extended 16ms hold-up time at 80% load
• Compact 150 × 140 × 86mm dimensions
• Aggressive low-load efficiency ≥70% at 2% load
specification
| Model | GPG750S | GPG650S | GPG550S |
| Wattage | 750W | 650W | 550W |
| Input Voltage | 100–240 Vac | 100–240 Vac | 100–240 Vac |
| Input Current | 12A–5A | 10A–5A | 8A–4A |
| Hold-up Time | 16ms @ 80% Load | 16ms @ 80% Load | 16ms @ 80% Load |
| +3.3V | 22A | 20A | 20A |
| +5V | 22A | 20A | 20A |
| +12V | 62.5A | 54A | 45.8A |
| -12V | 0.3A | 0.3A | 0.3A |
| +5Vsb | 2.5A | 2.5A | 2.5A |
| 5V & 3.3V Total Power | 120W | 110W | 110W |
| Regulation | ±5% | ±5% | ±5% |
| Ripple & Noise | 12V ≤120mV, +5V/+3.3V ≤50mV | 12V ≤120mV, +5V/+3.3V ≤50mV | 12V ≤120mV, +5V/+3.3V ≤50mV |
| Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
| ATX 20+4 | 12V-2X6 | 4+4 PIN | PCIE 6+2 | SATA | Molex(Peripheral) | Floppy | |
| 1 | 1 | 2 | 2 | 6 | 2 | - |
- Dimension：150(W)x140(L)x86(H)mm
- 120mm Cooling Fan
