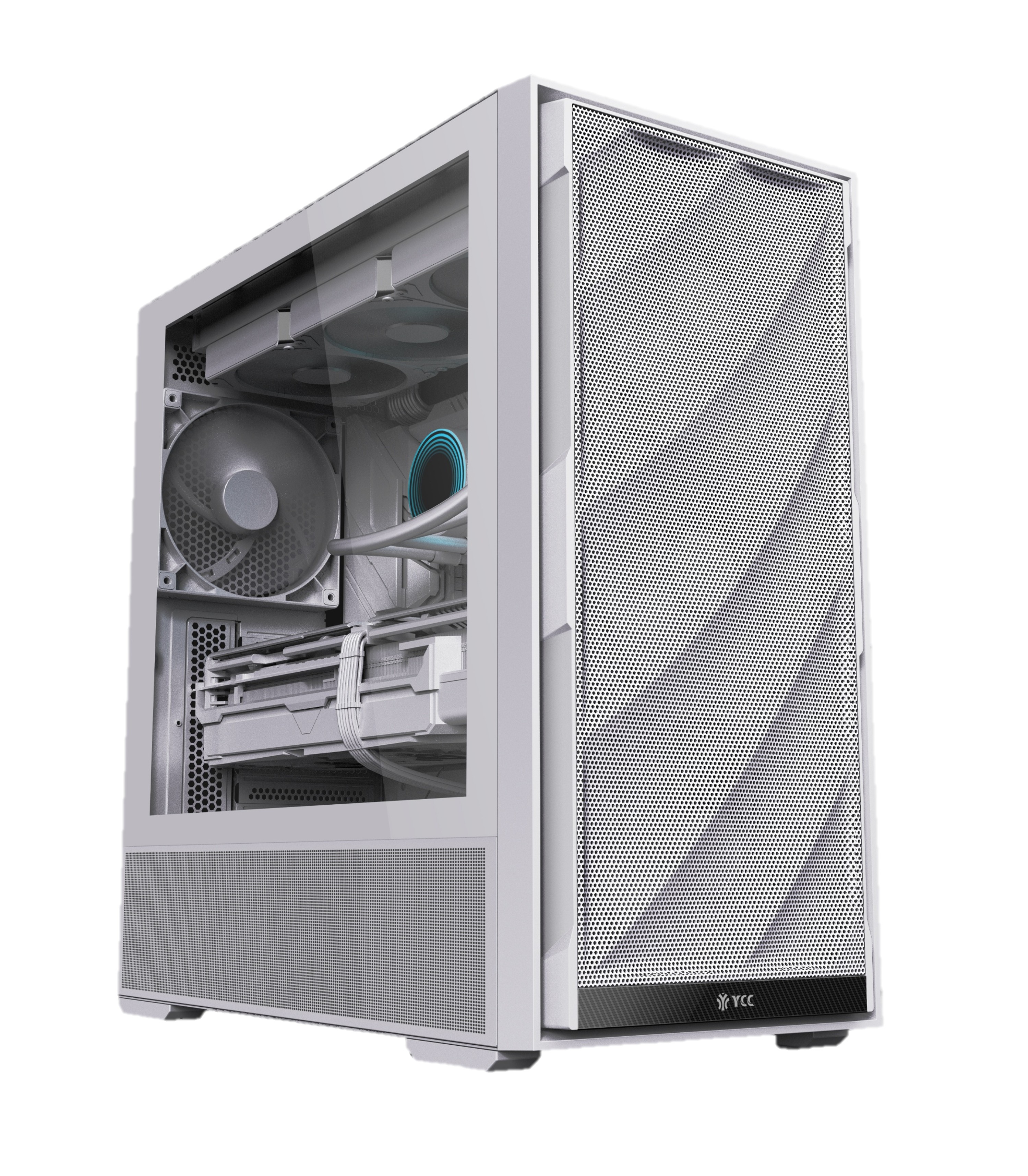

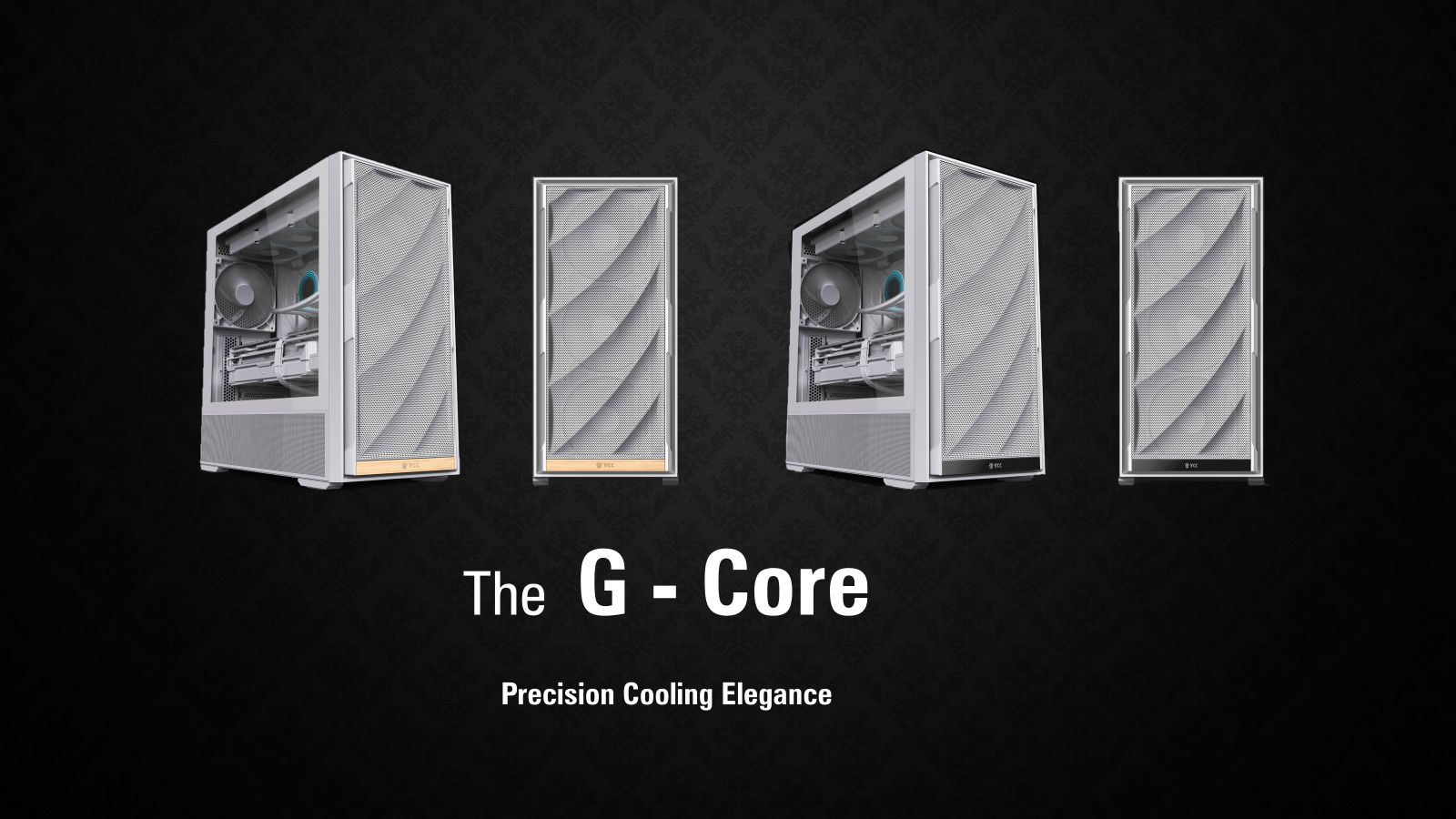

G-Core / YCH-2530W/YCH-2531W (White) Series
• ATX PC Case,
• MB supports E-ATX, ATX, M-ATX, ITX
• Up to 10 ARGB Cooling Fans (12cm / 14cm),
• 360mm / 280mm /240 mm Radiator Support
• Tempered Glass Gaming PC Case with Type-C

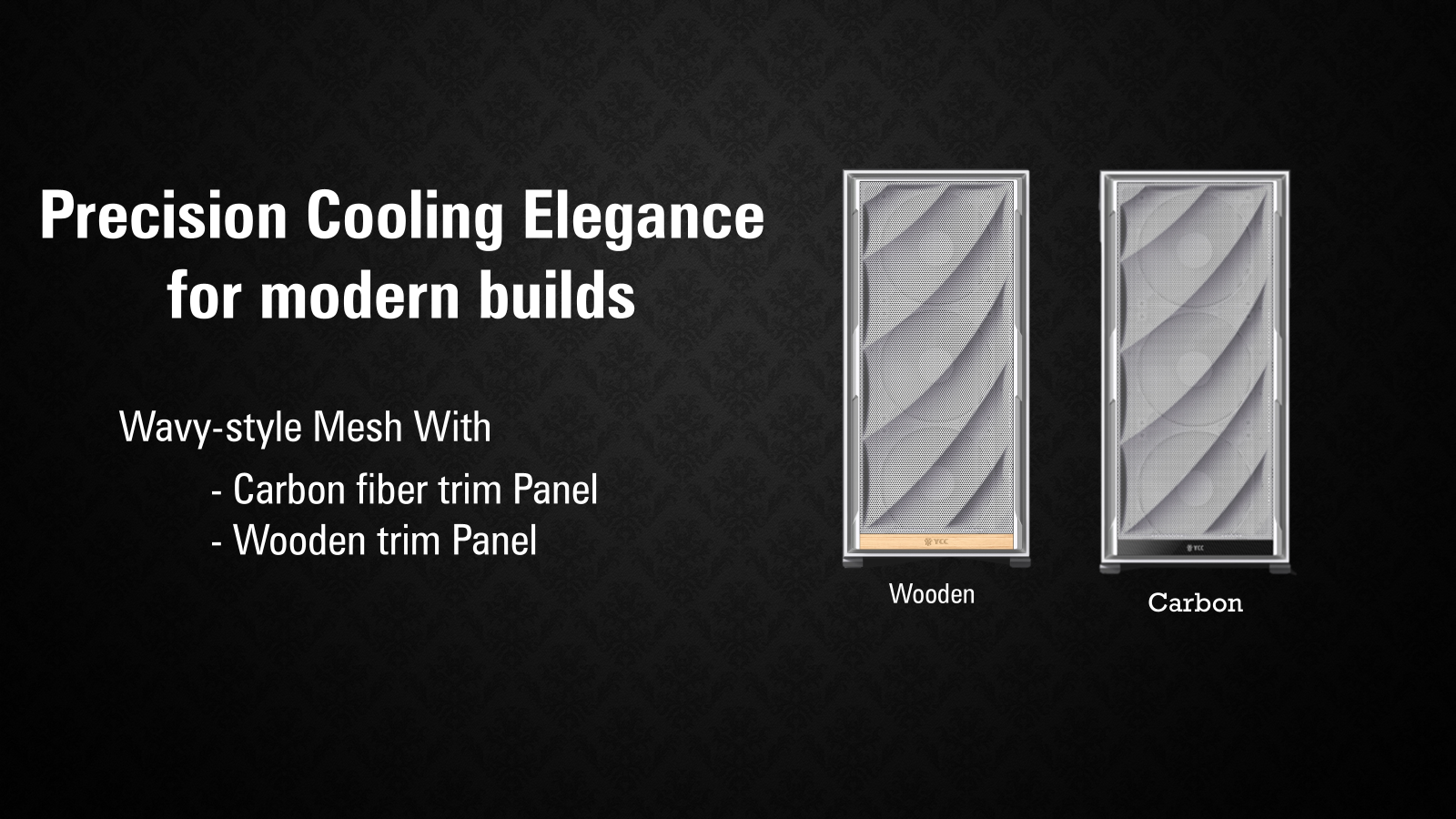

• Wave-shaped Mech Panel
• White Color Tower Computer Case
• MB supports E-ATX, ATX, M-ATX, ITX
• Up to 10 ARGB Cooling Fans (12cm / 14cm),
• 360mm / 280mm /240 mm Radiator Support
• Tempered Glass Gaming PC Case with Type-C
• Wave-shaped Mech Panel
• White Color Tower Computer Case
Instructions
.png) .png) .png) .png) .png) .png) .png) .png) .png) .png) |
specification
| Case Size | mid-Tower |
| Dimensions | L470 × W225 × H480 mm |
| Case Colors | White |

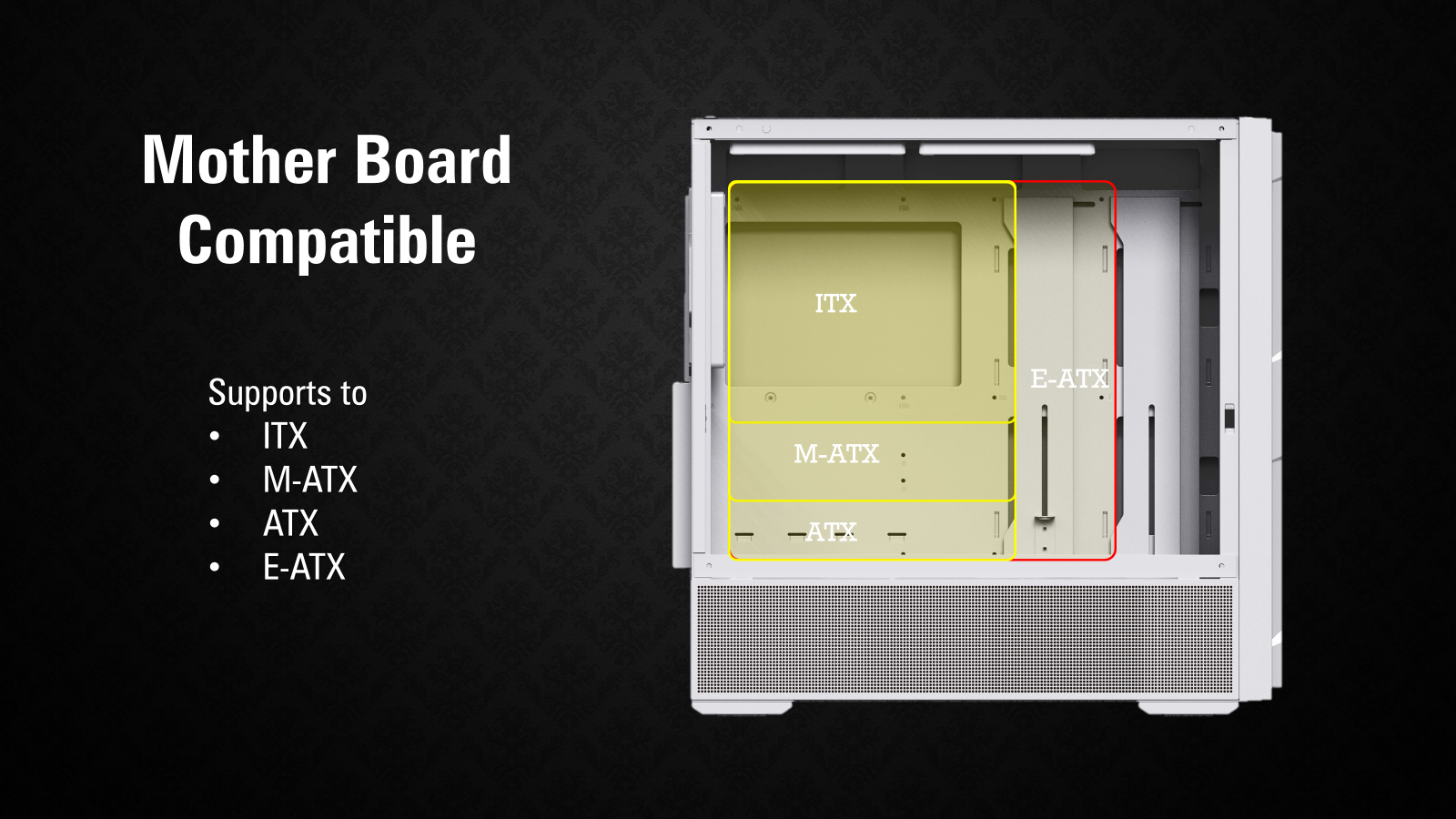

| Motherboard Compatibility | E-ATX, ATX、M-ATX、ITX |
| Drive Bay & HDD Slot | 2 x 2.5” / 3.5” |

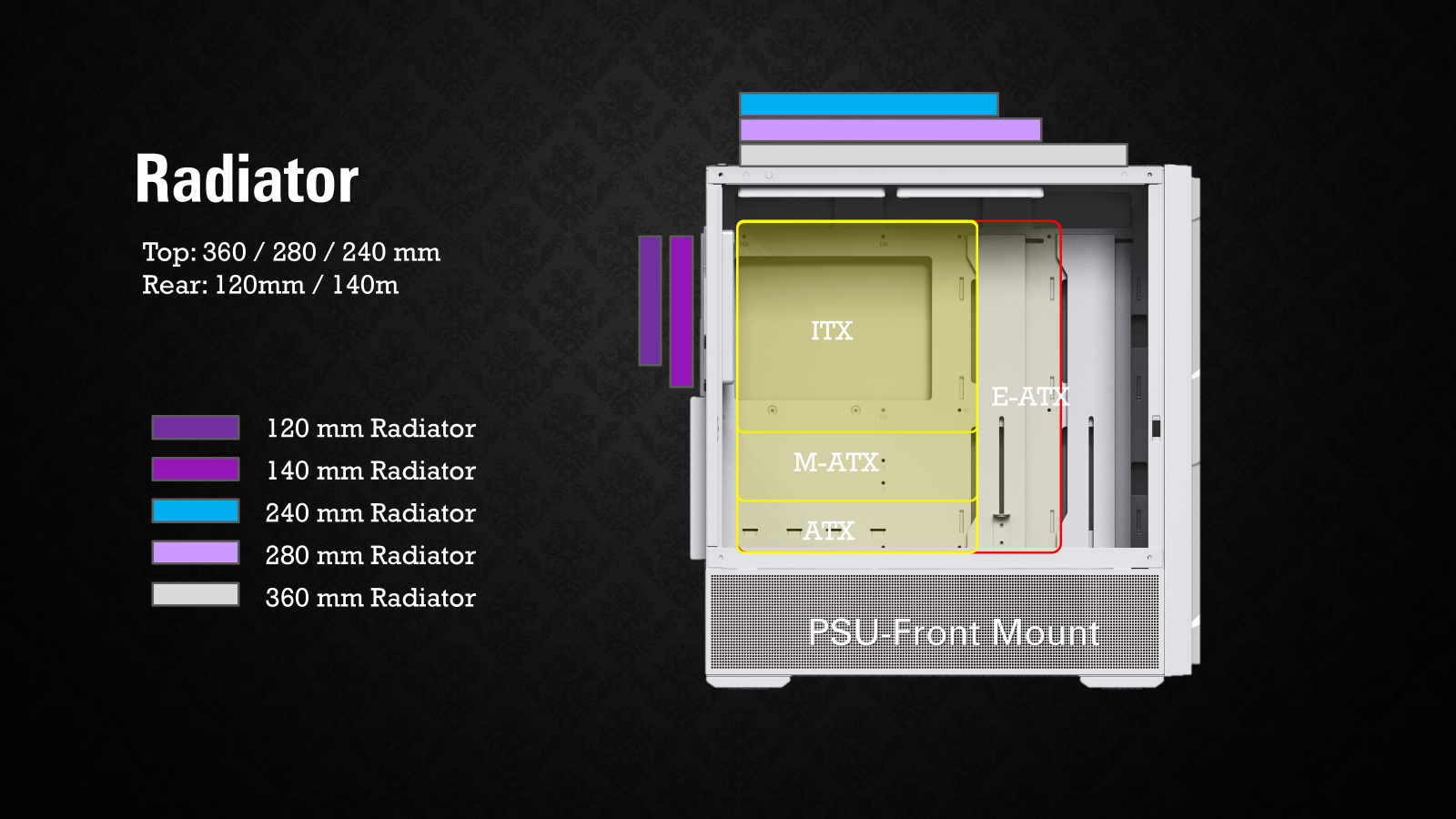

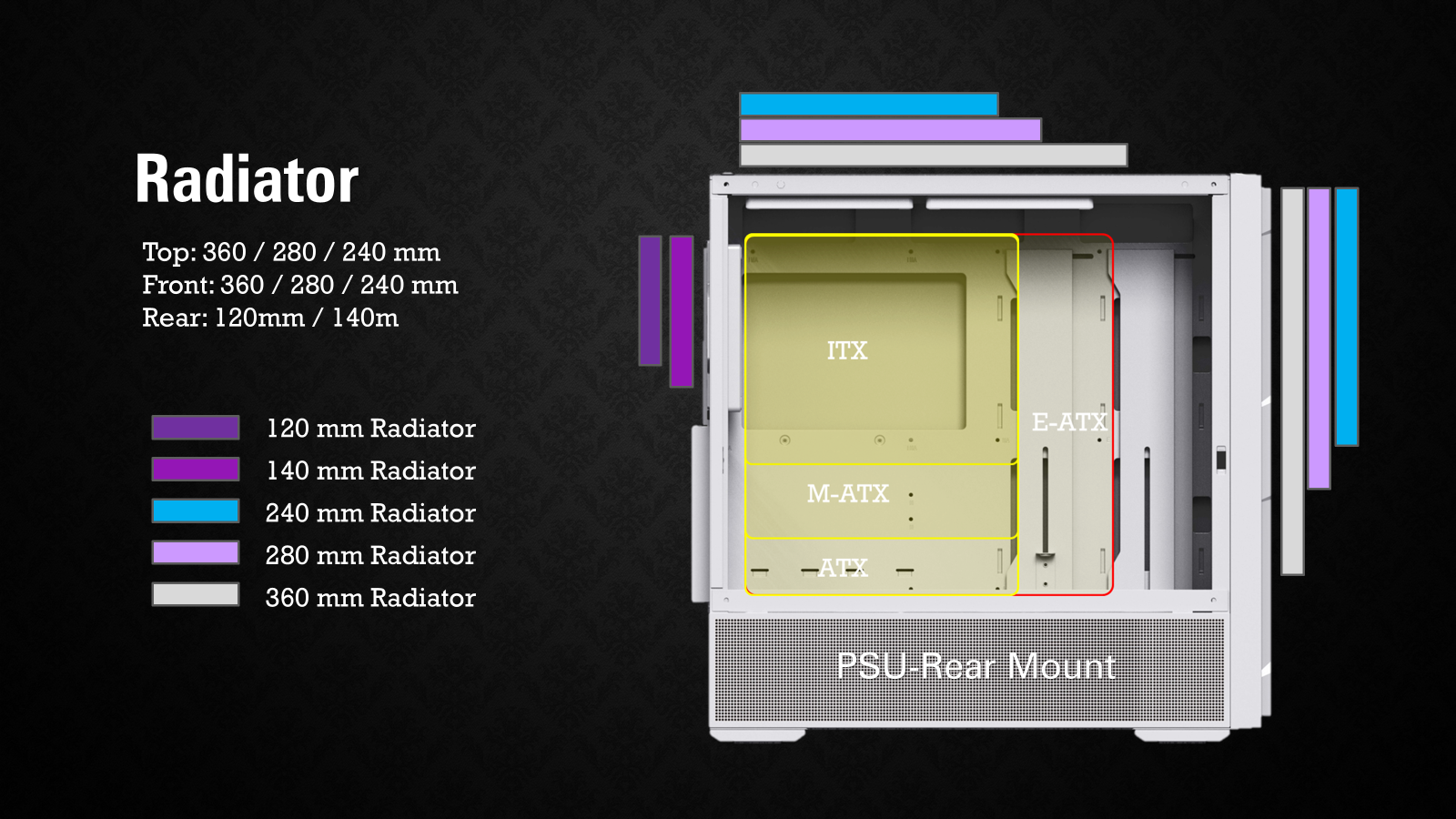

| Radiator Compatibility |
PSU Rear-Mount: Top : Up to 360 mm / 280mm / 240mm Front : up to 360 mm / 280 mm / 240 mm Rear : up to 140 mm / 120 mm PSU Front-Mount: Top : Up to 360 mm / 280mm / 240mm Rear : up to 140 mm / 120 mm |

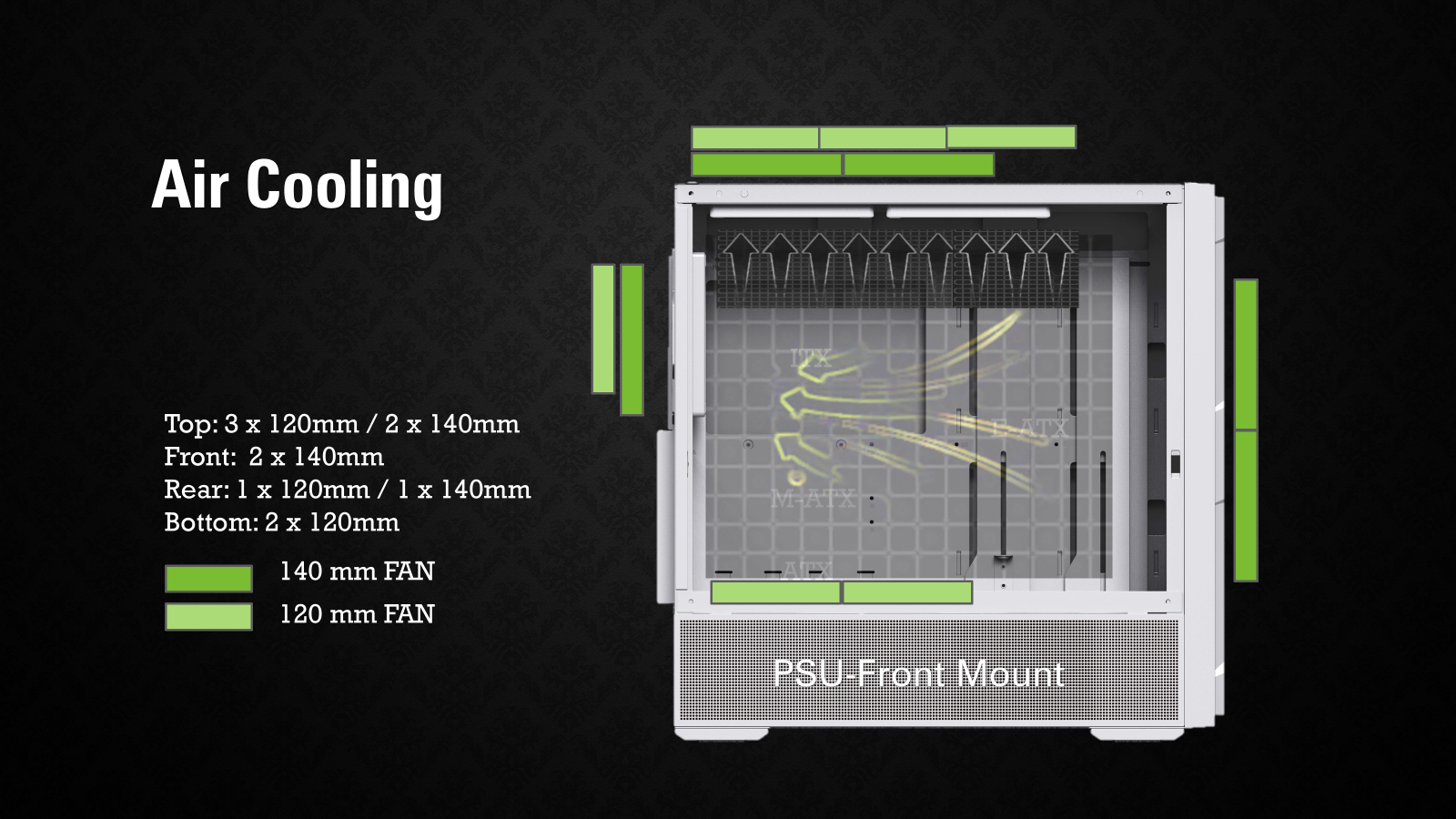

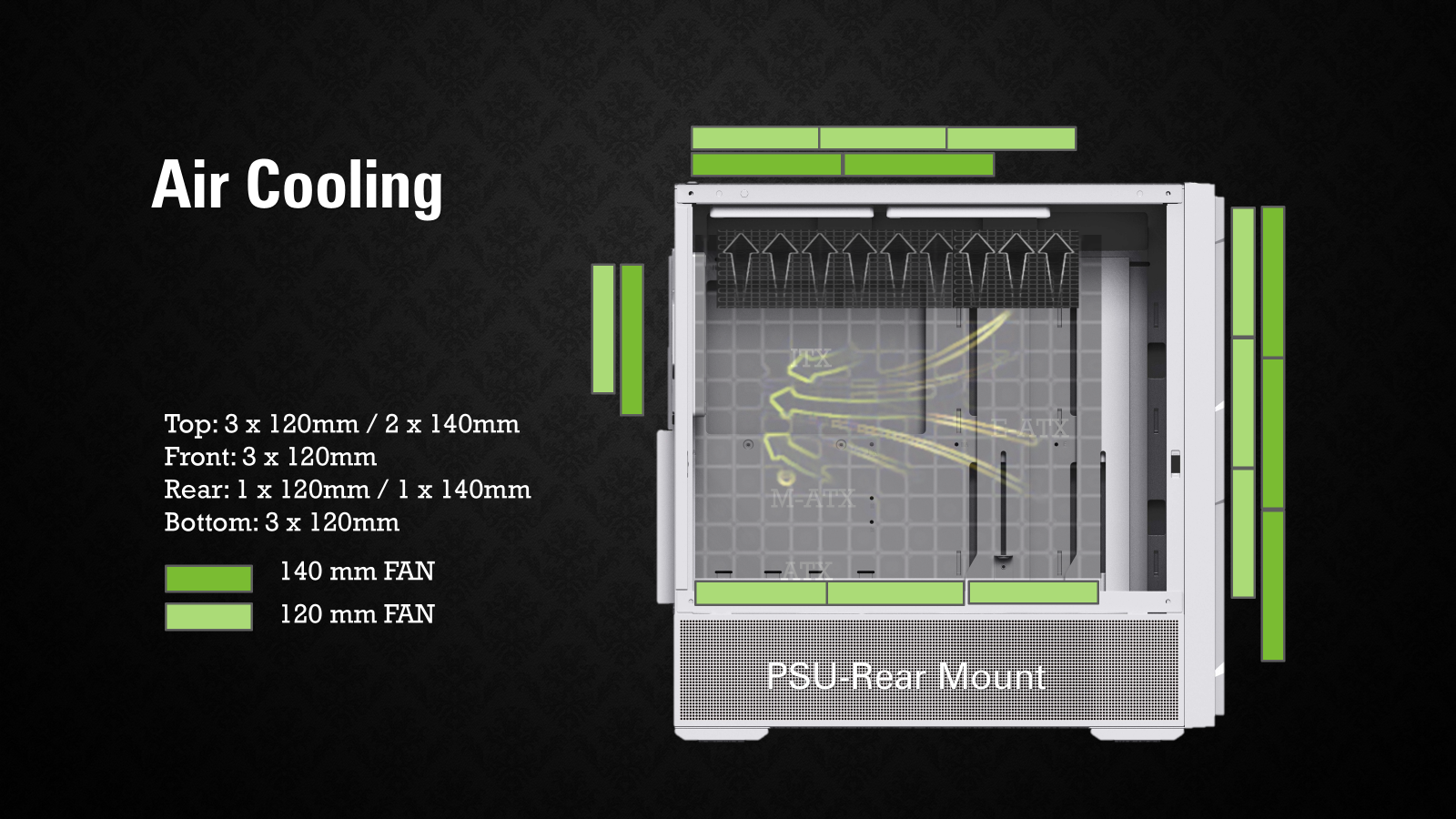

| Air Cooling System |
PSU Rear-Mount: Top : 12cm x3 / 14cm x2 ; Bottom : 12 cm x 3 Front : (12cm / 14cm) x 3 ; Rear : (12 cm or /14 cm) x1 PSU Front-Mount: Top : 12cm x3 / 14cm x2 ; Bottom : 12 cm x 2 Front : 14cm x 2 ; Rear : (12 cm or /14 cm) x1 |

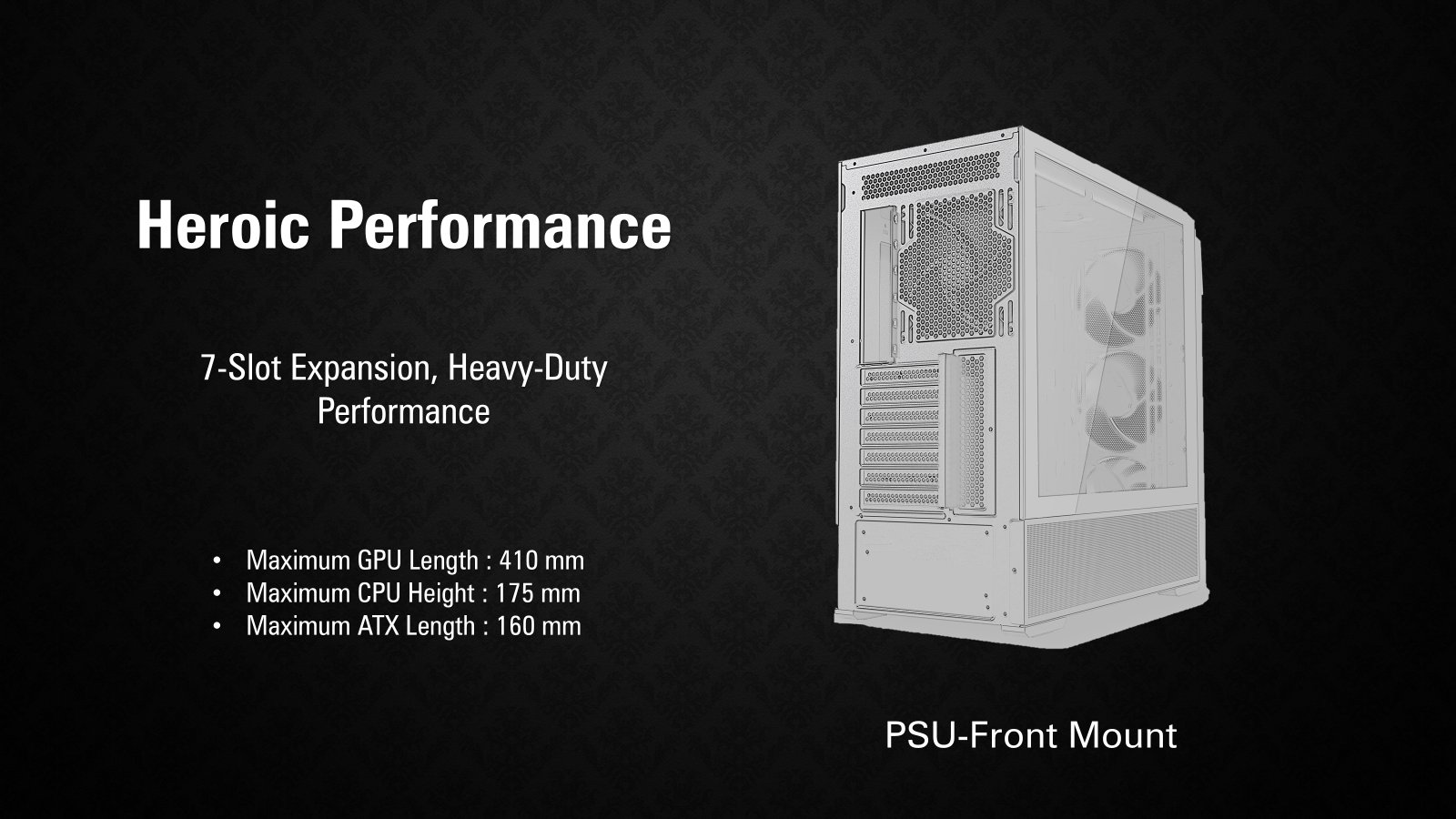

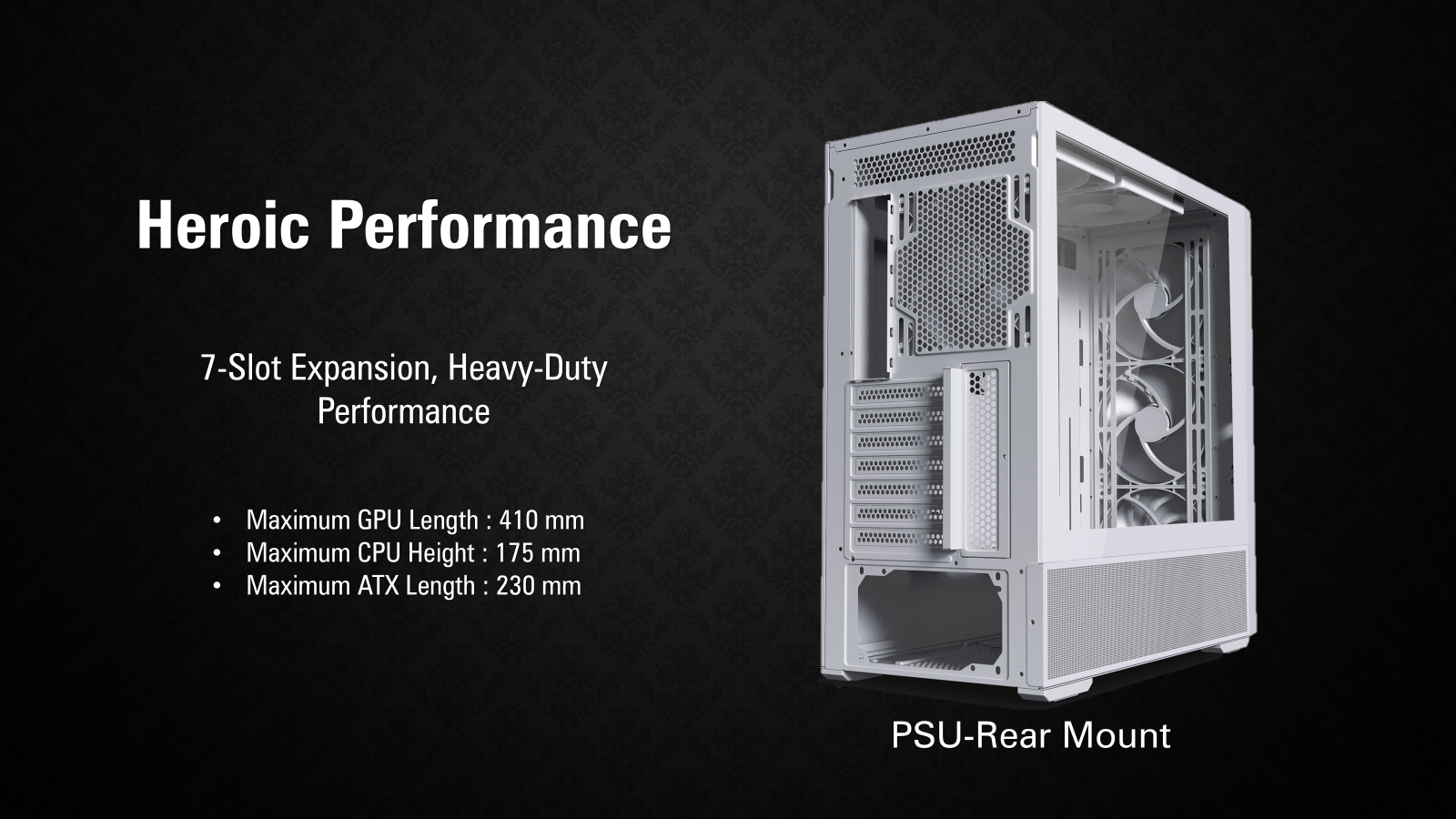

| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 175 mm |
| Maximum PSU Length |
PSU Rear-Mount: 230 mm PSU Front-Mount: 160 mm |
| Case Expansion Slots | 7 |

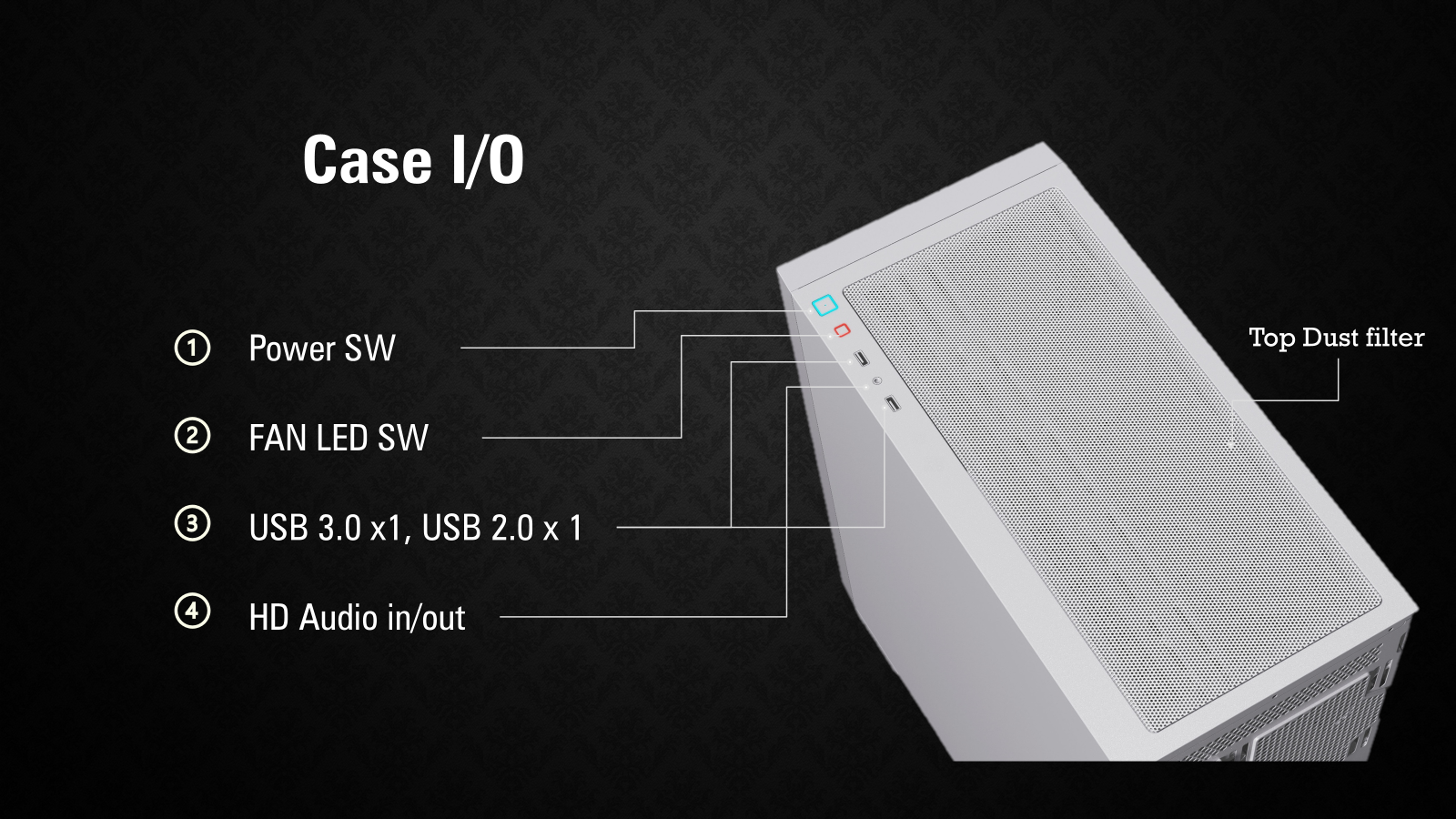

| Case Front IO |
USB 3.0 x1、USB2.0 x 1 、(Type-C for option only) HD Audio x 1 Power / LED SW |
| Case Power Supply | ATX |
| Case Window | Tempered glass |
