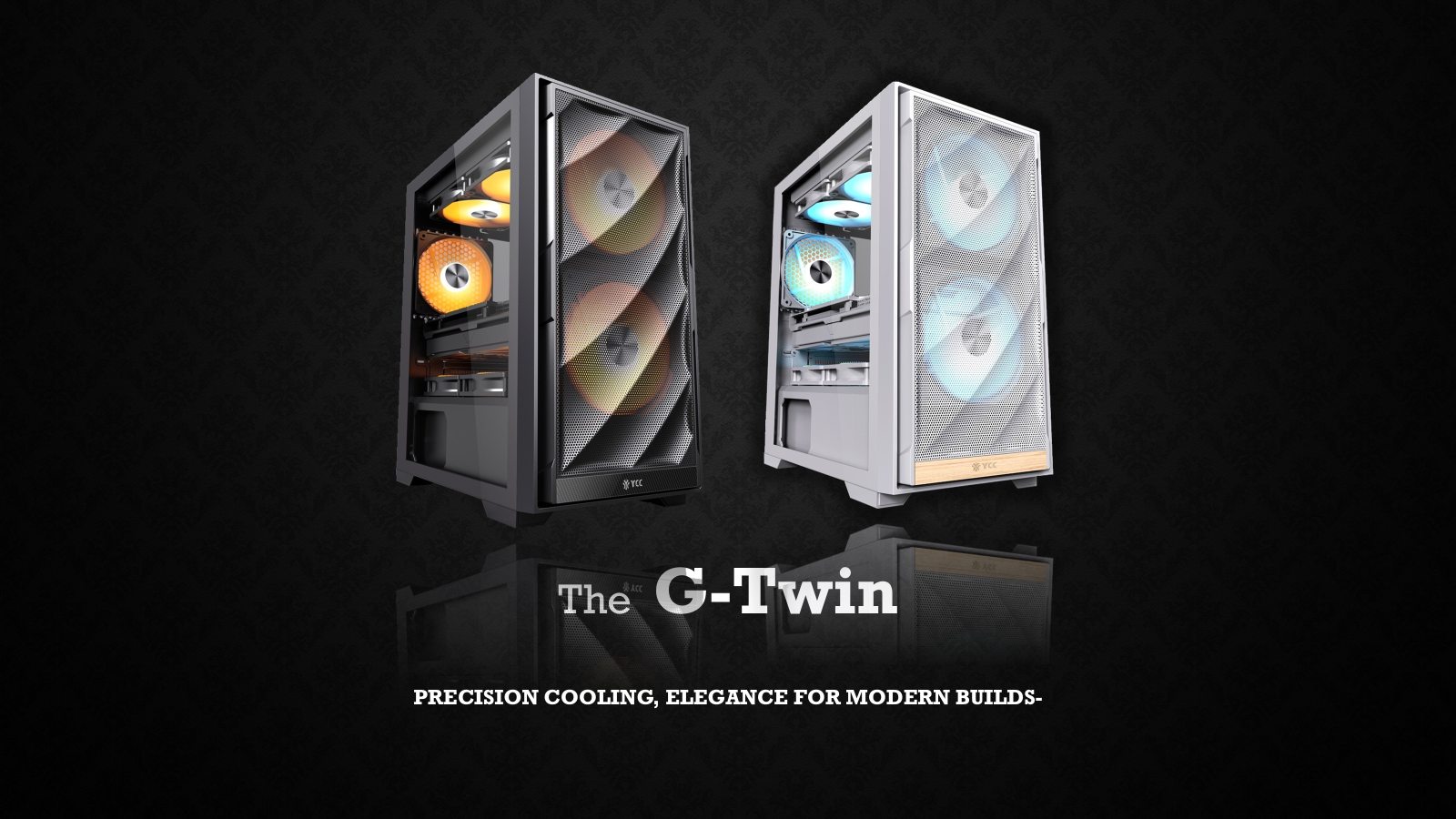

• Premium Material & Timeless Design
Enhanced aesthetics with a sleek perforated front panel and a minimalist white finish. Wooden accents, including the frame and foot pads, elegance and uniqueness to the design.
• Superior Cooling Efficiency

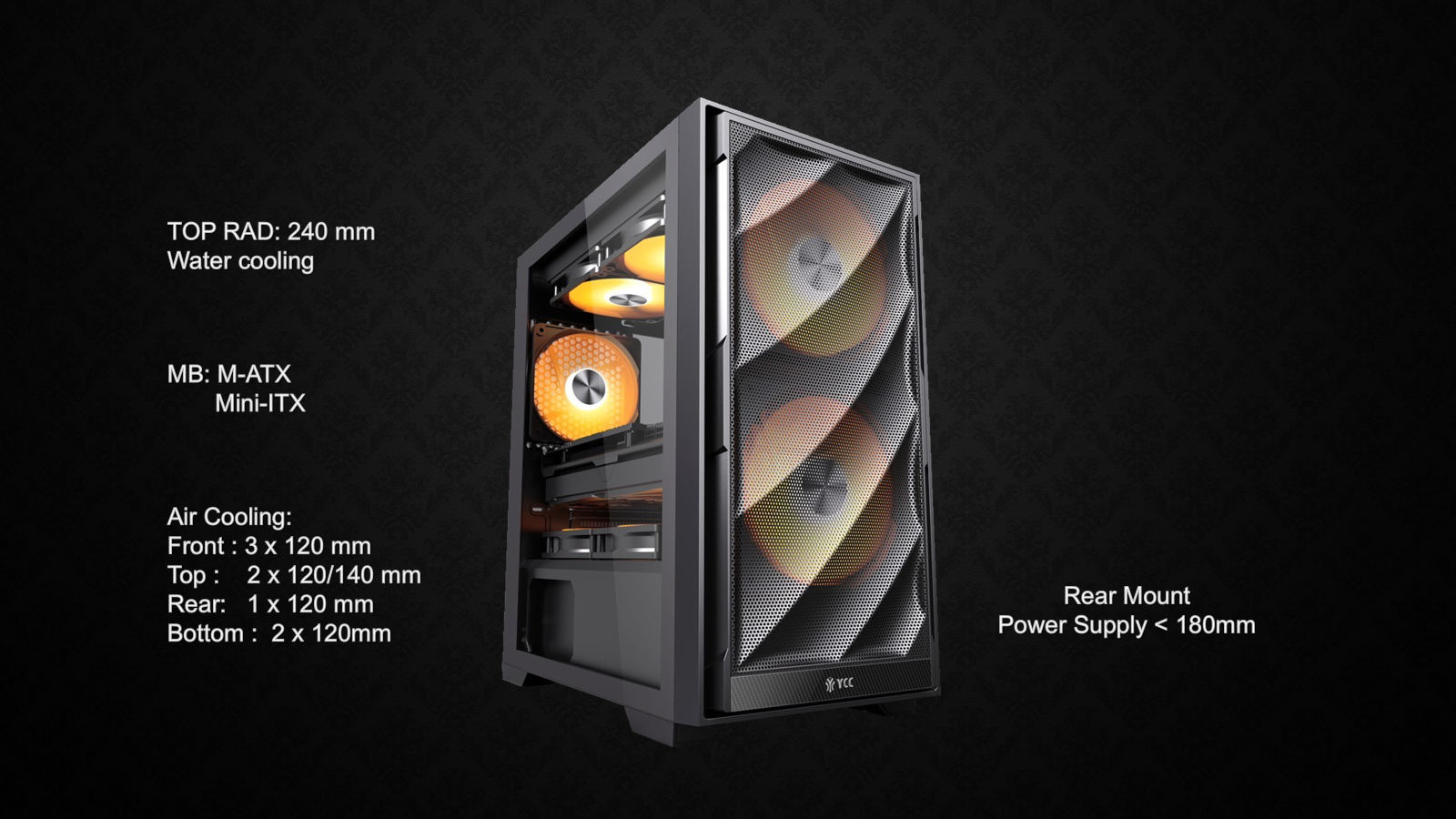

Air Cooling: Supports up to 8 fans, including configurations for 120mm and 140mm fans across top, front, rear, and bottom panels. Water Cooling: Compatible with radiators up to 240mm, enabling efficient thermal management for demanding builds.
• Generous Dimensions & Compatibility

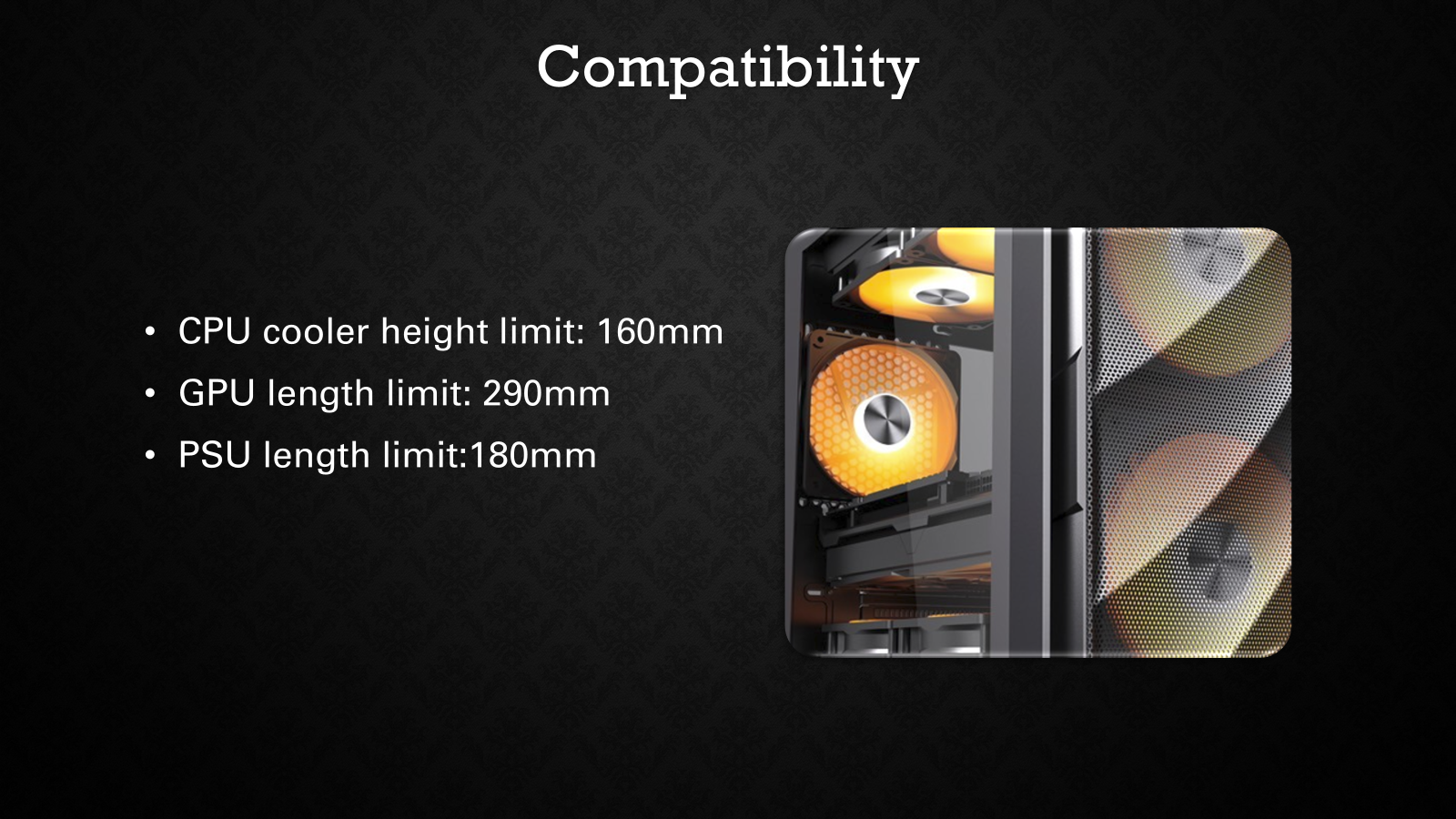

Spacious interior tailored to fit Micro-ATX, and Mini-ITX motherboards. Accommodates GPUs up to 290mm in length and CPU coolers up to 160mm in height.
• Thoughtful Interior Layout:
Dedicated mounting points for 3.5" HDDs or 2.5" SSDs, offering versatile storage options. Designated spaces for cable management and cooling installations simplify assembly.
• Convenient Front I/O Connectivity:
Features USB Type-A ports, USB Type-C port, and a 3.5mm audio jack, ensuring easy access to peripherals.
Color |
Item Code |
Black |
YCH-2540B |
White |
YCH-2540W |
Technical Data |
|
Case Size |
Mid-tower |
Motherboard Compatibility |
M-ATX、ITX |
Case Height |
16.6 inches (422 mm) |
Case Length |
14.8 inches (377 mm) |
Case Width |
8.3 inches (210 mm) |
Color |
Black, White |
Weight |
- - |
Radiator Compatibility |
Top : 1 X 240 mm Water cooler |
Maximum GPU Length |
320 mm |
Maximum CPU Cooler Height |
160 mm |
Maximum PSU Length |
180 mm |
Compatible Air Coolers |
Top: (12/14 cm) x2 |
Case Expansion Slots |
4 |
Case Drive Bays |
1x USB 3.0, 2xUSB 1.0, Audio, power & Reset |
Case Front IO |
1x USB 3.1 Type-C, 2x USB 3.0, Audio in/out, power & Reset Buttons |
Case Window |
Tempered glass |
Case Warranty |
- - |
Case Power Supply |
ATX PSU (not included) |
