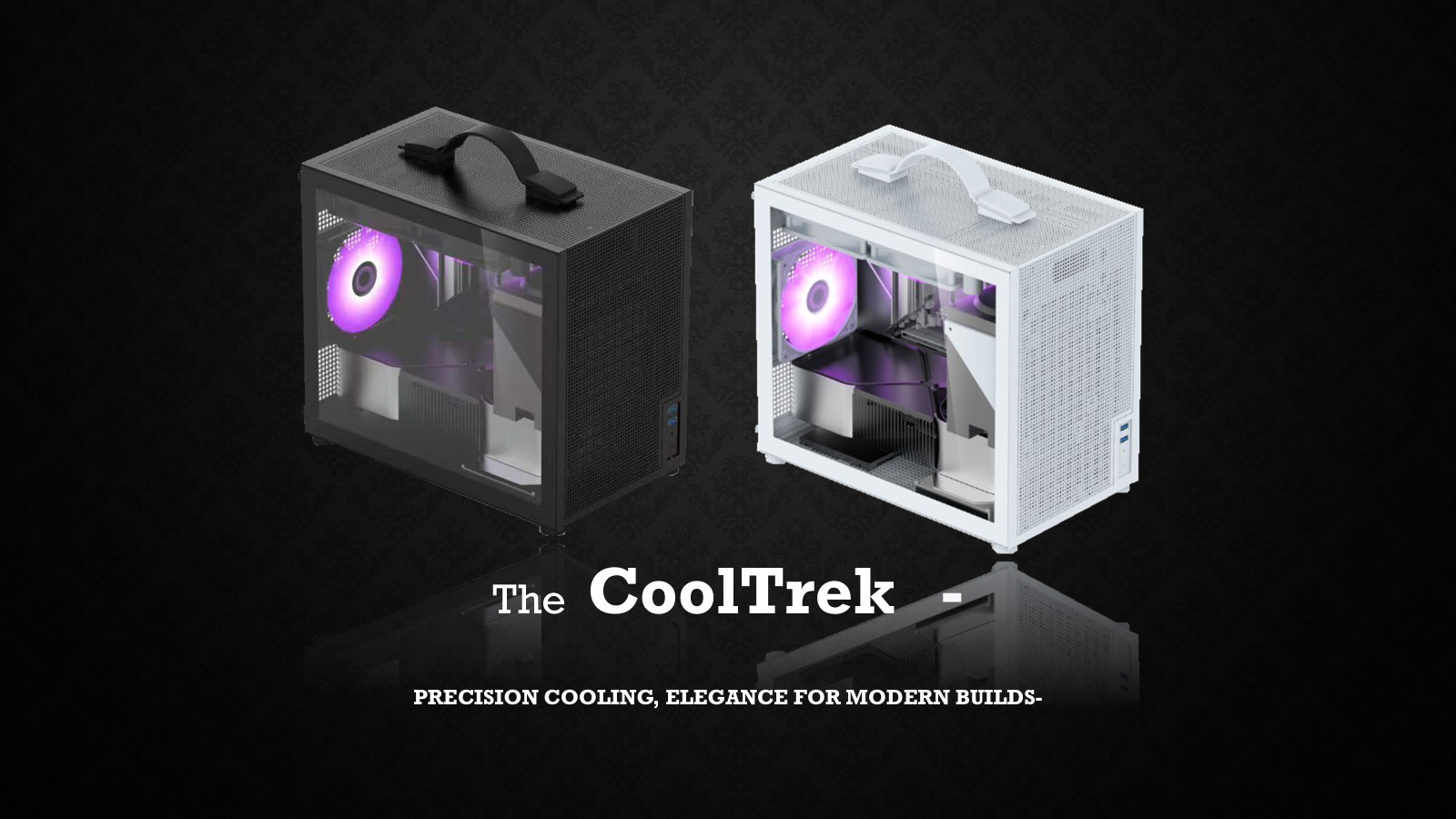

Enhanced aesthetics with a sleek perforated front panel and a minimalist white finish.
Wooden accents, including the frame and foot pads, elegance and uniqueness to the design.
Air Cooling: Supports up to 8 fans, including configurations for 120mm and 140mm fans across top, front, rear, and bottom panels.
Water Cooling: Compatible with radiators up to 240mm, enabling efficient thermal management for demanding builds.
Spacious interior tailored to fit Micro-ATX, and Mini-ITX motherboards.
Accommodates GPUs up to 290mm in length and CPU coolers up to 160mm in height.
Dedicated mounting points for two 3.5" HDDs or two 2.5" SSDs, offering versatile storage options.
Designated spaces for cable management and cooling installations simplify assembly.
Features USB Type-A ports, USB Type-C port, and a 3.5mm audio jack, ensuring easy access to peripherals.
|
Color |
Item Code |
|
Black |
YCH-2550B |
|
White |
YCH-2550W |
.png)
.png)
.png)
|
Technical Data |
|
|
Case Size |
Small-tower |
|
Motherboard Compatibility |
M-ATX、ITX |
|
Case Height |
12.2 inch (310 mm) |
|
Case Length |
13.8 inches (350 mm) |
|
Case Width |
88.3 inches (212 mm) |
|
Color |
Black, White |
|
Weight |
- - |
|
Radiator Compatibility |
Top : 1 X 240 mm Water cooler |
|
Maximum GPU Length |
290 mm |
|
Maximum CPU Cooler Height |
170 mm |
|
Maximum PSU Length |
140 mm |
|
Compatible Air Coolers |
Top: (12cm/14cm) x2, |
|
Case Expansion Slots |
4 |
|
Case Drive Bays |
1x3.5“ HDD |
|
Case Front IO |
1x USB 3.0, Audio |
|
Case Window |
Tempered glass |
|
Case Warranty |
- - |
|
Case Power Supply |
ATX / SFX (PSU (not included) |
