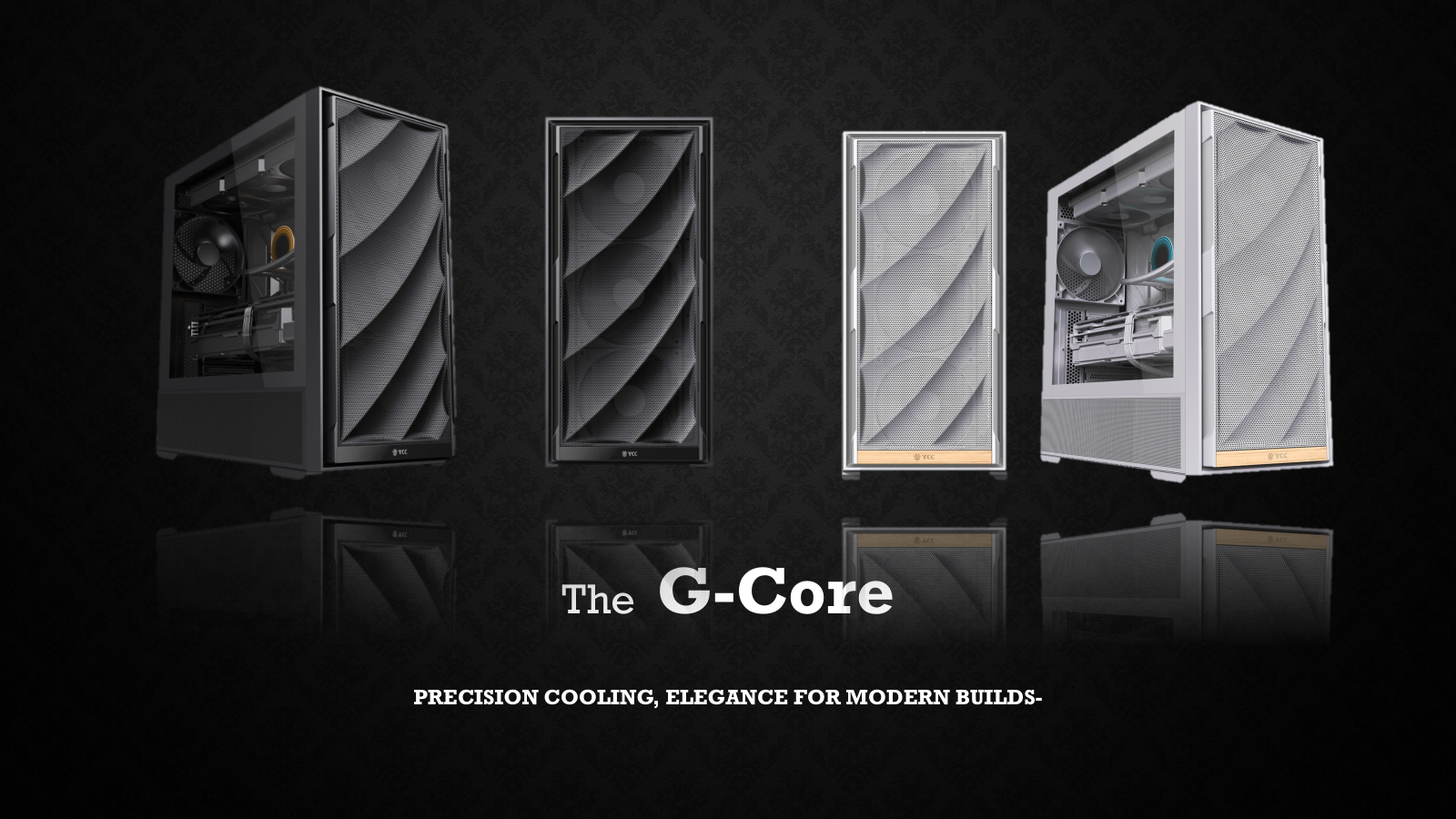

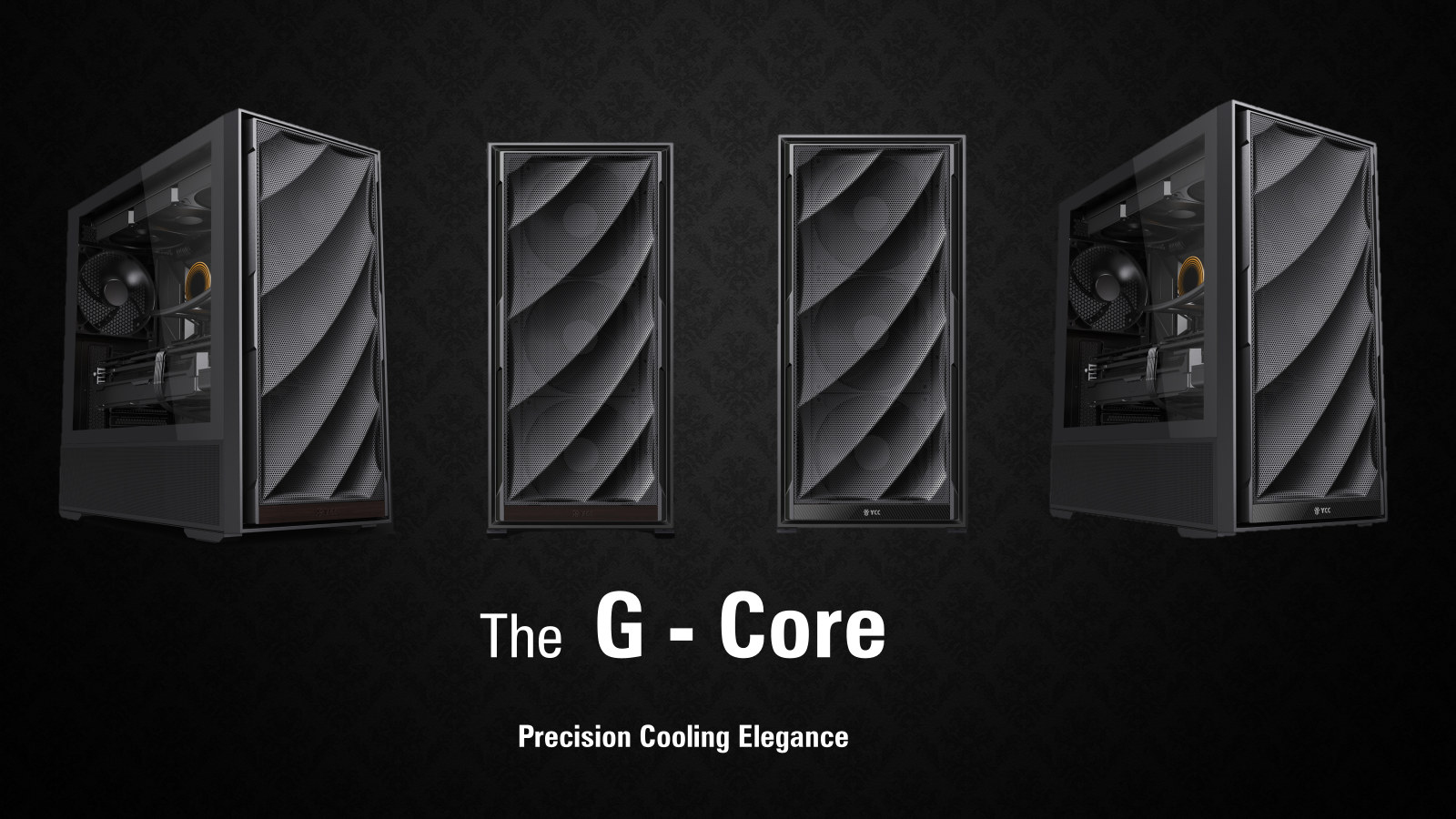

G-Core _ YCH-2530B/ YCH-2531B Series
• ATX PC Case
• up to 10 ARGB Fans (120mm or 140mm FANs)
• 360mm / 280mm / 240mm Radiator Support

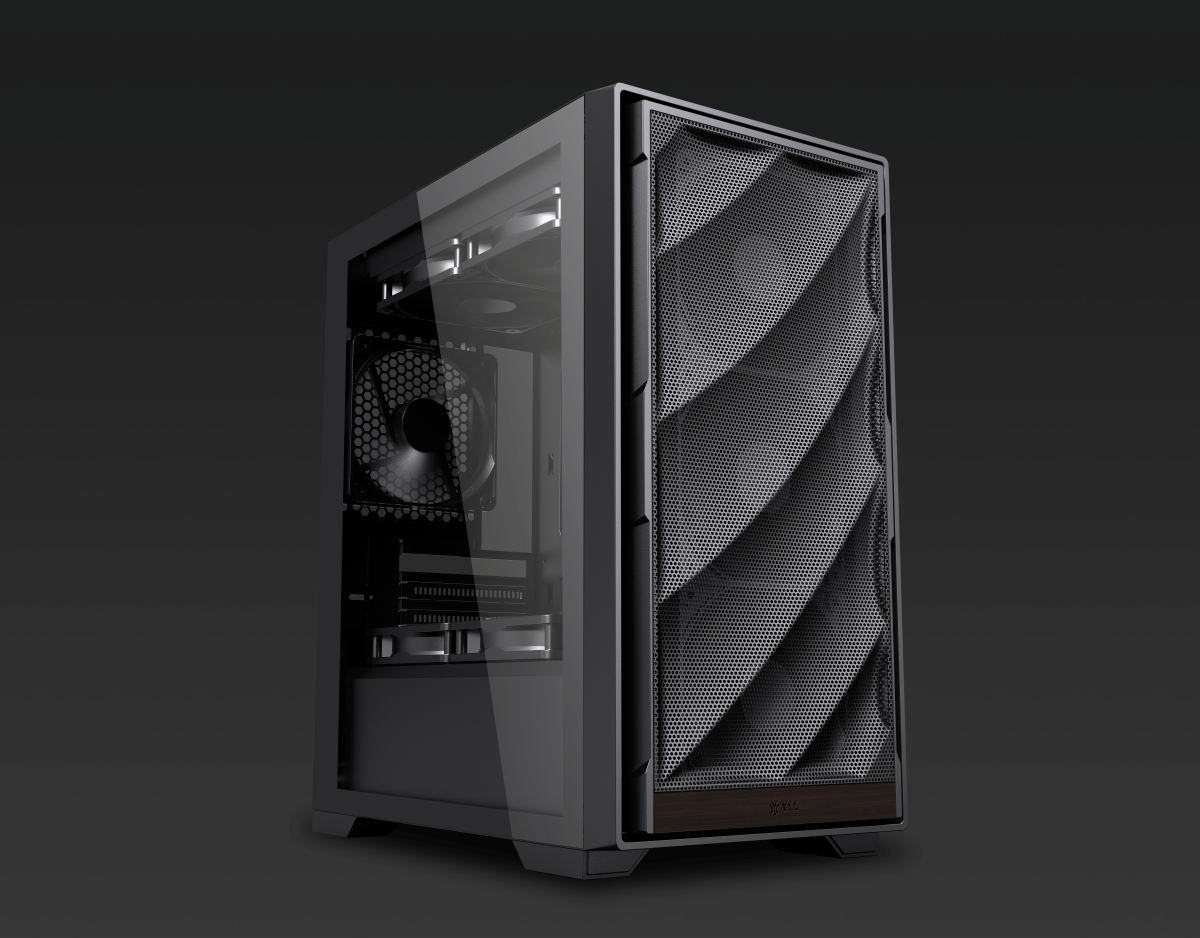

• Tempered Glass Gaming PC Case with Type-C,

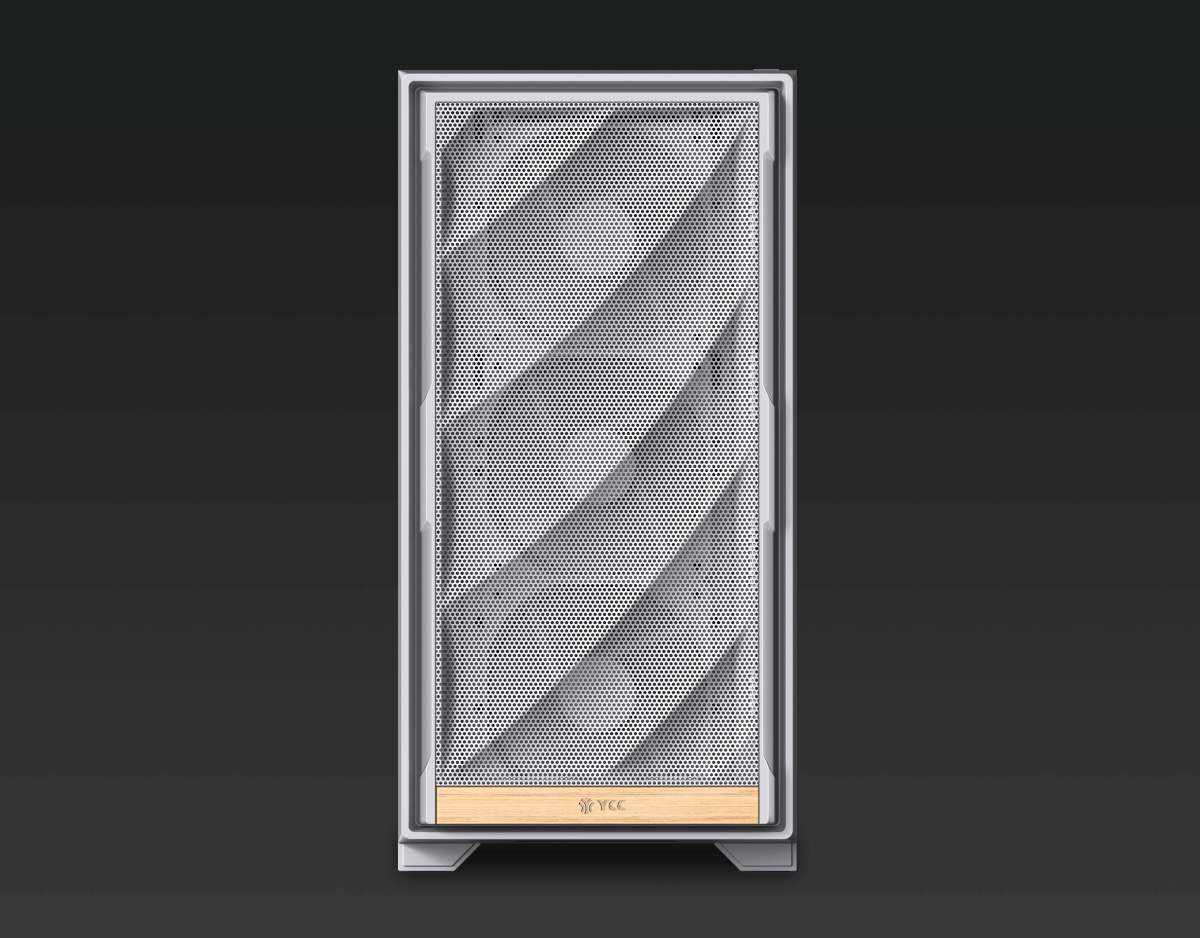

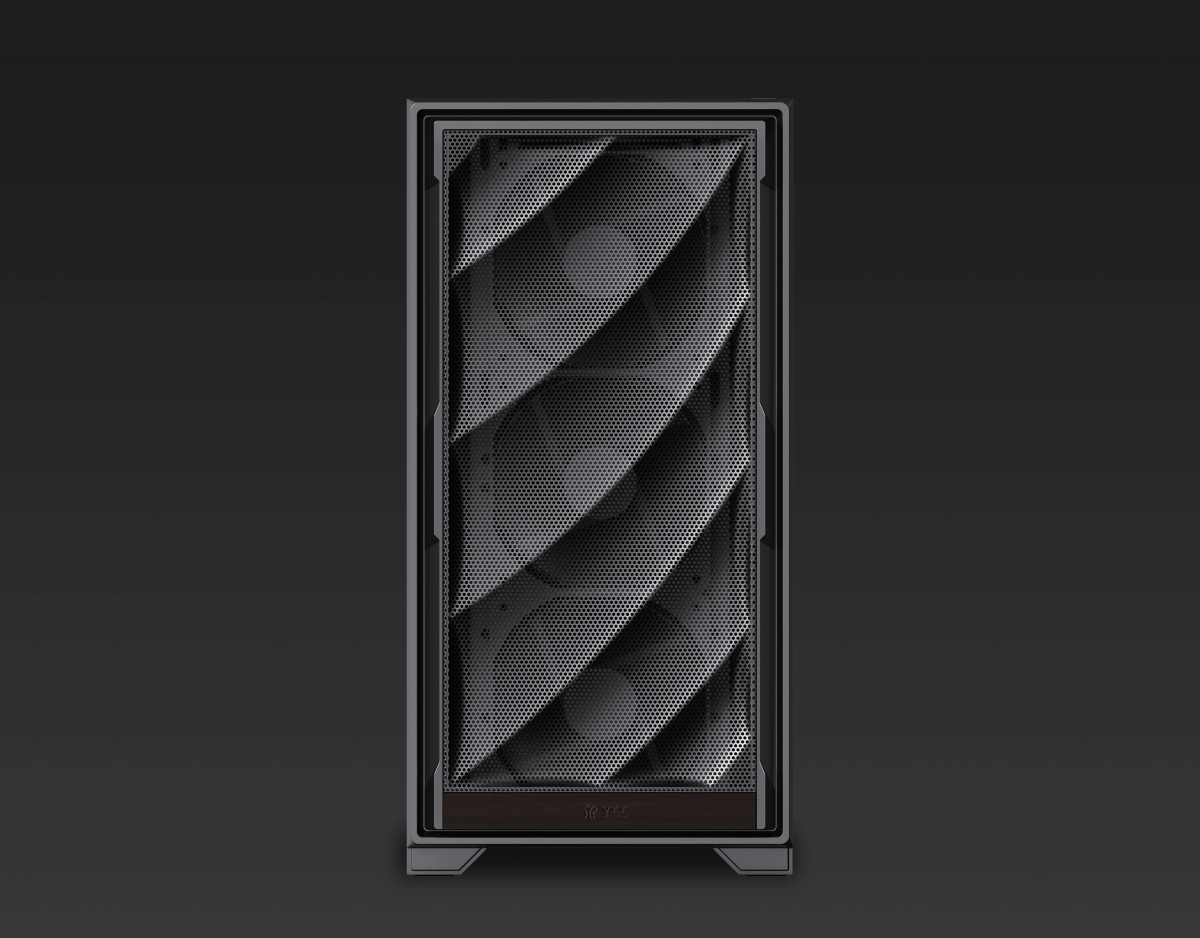

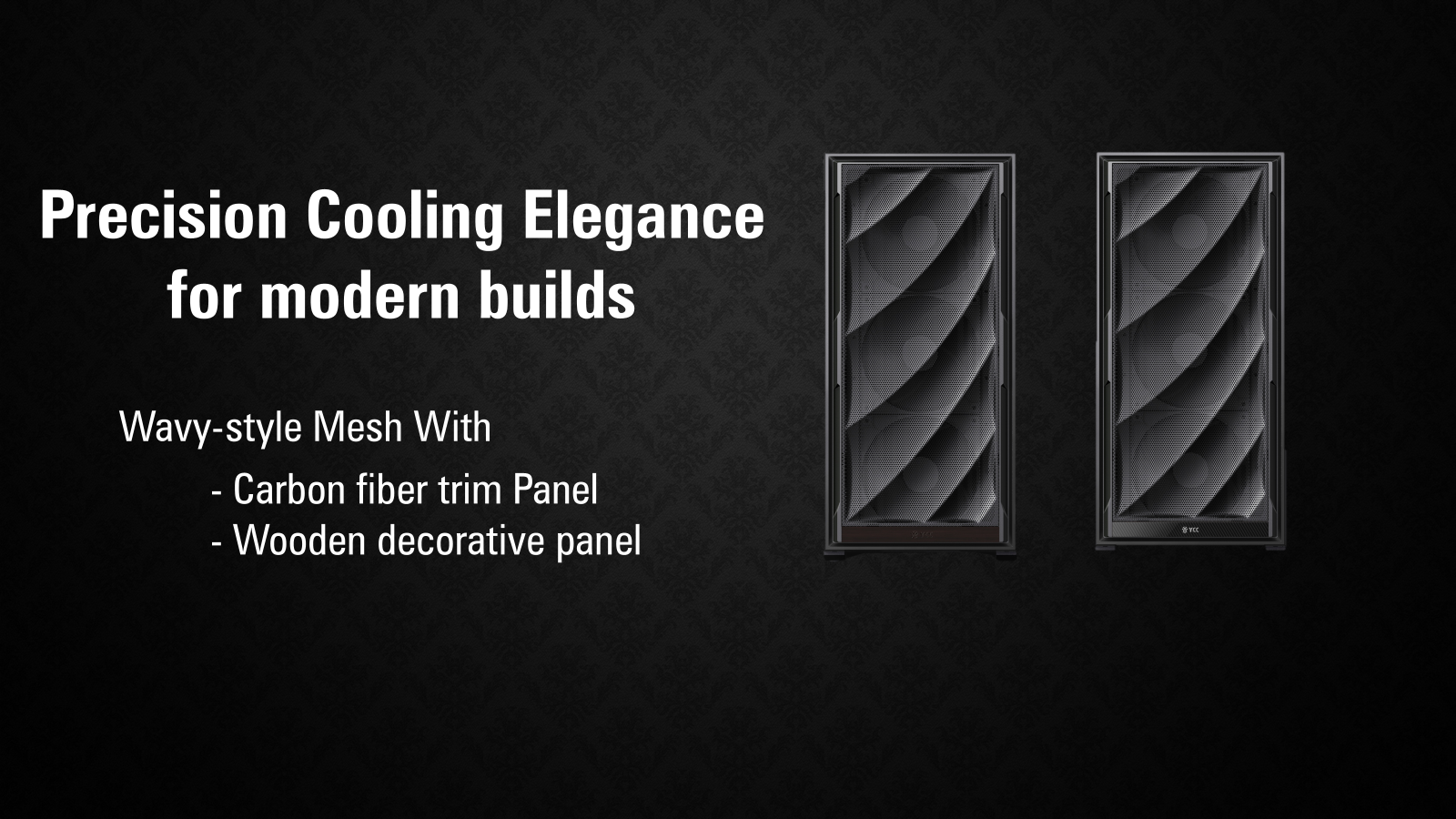

• Wave-shaped Mech Pane
• Black PC Tower for ATX Computer Case
• up to 10 ARGB Fans (120mm or 140mm FANs)
• 360mm / 280mm / 240mm Radiator Support
• Tempered Glass Gaming PC Case with Type-C,
• Wave-shaped Mech Pane
• Black PC Tower for ATX Computer Case
Instructions
|
|
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
specification
| Case Size | mid-Tower (YCH-2530B series: PSU Rear-Mount type、YCH-2531B Series: PSU Front-Mount type) |
| Dimensions | L470 × W225 × H480 mm |

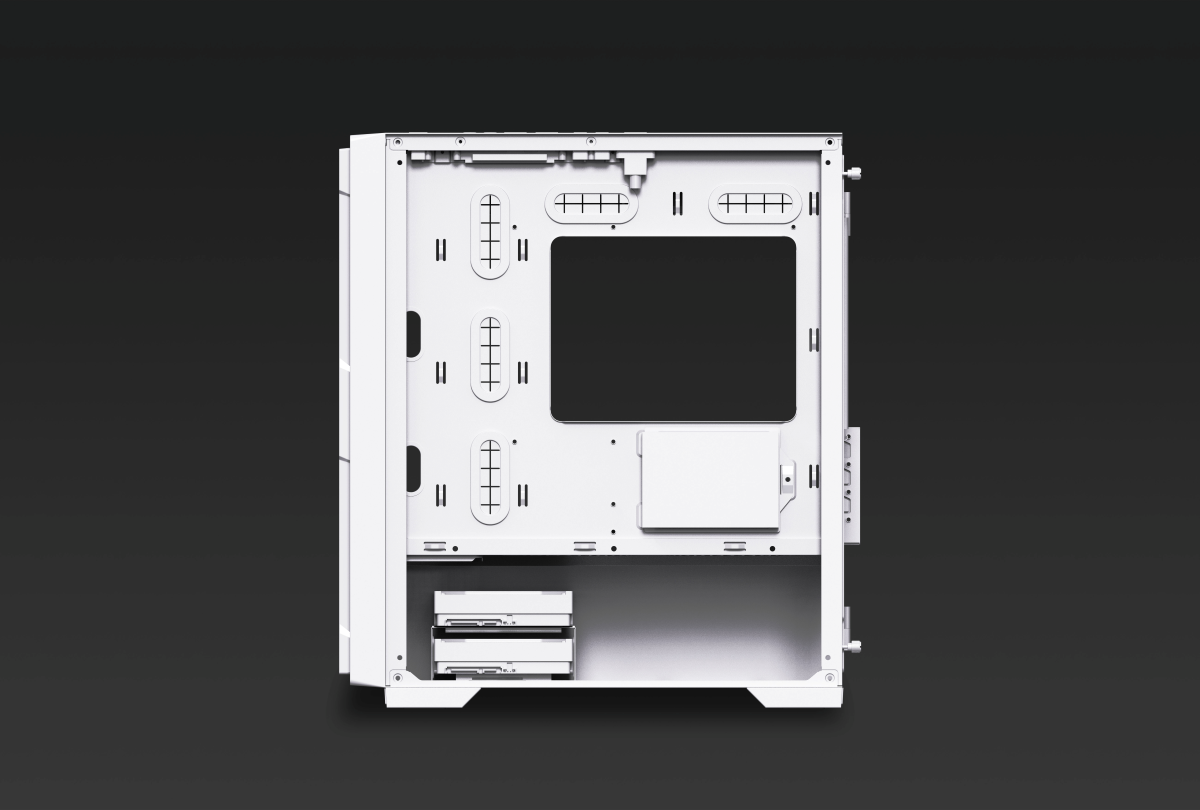

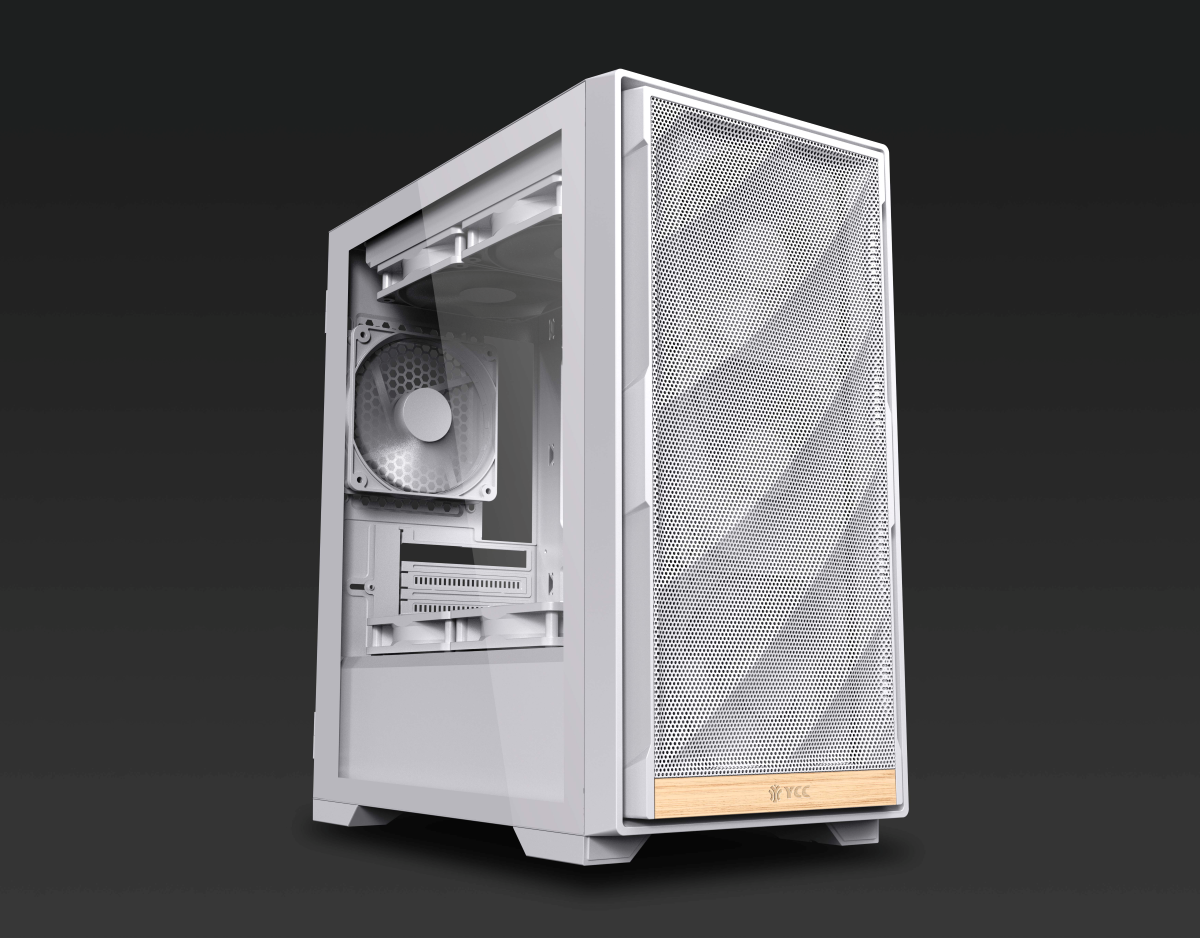

| Case Colors | White |

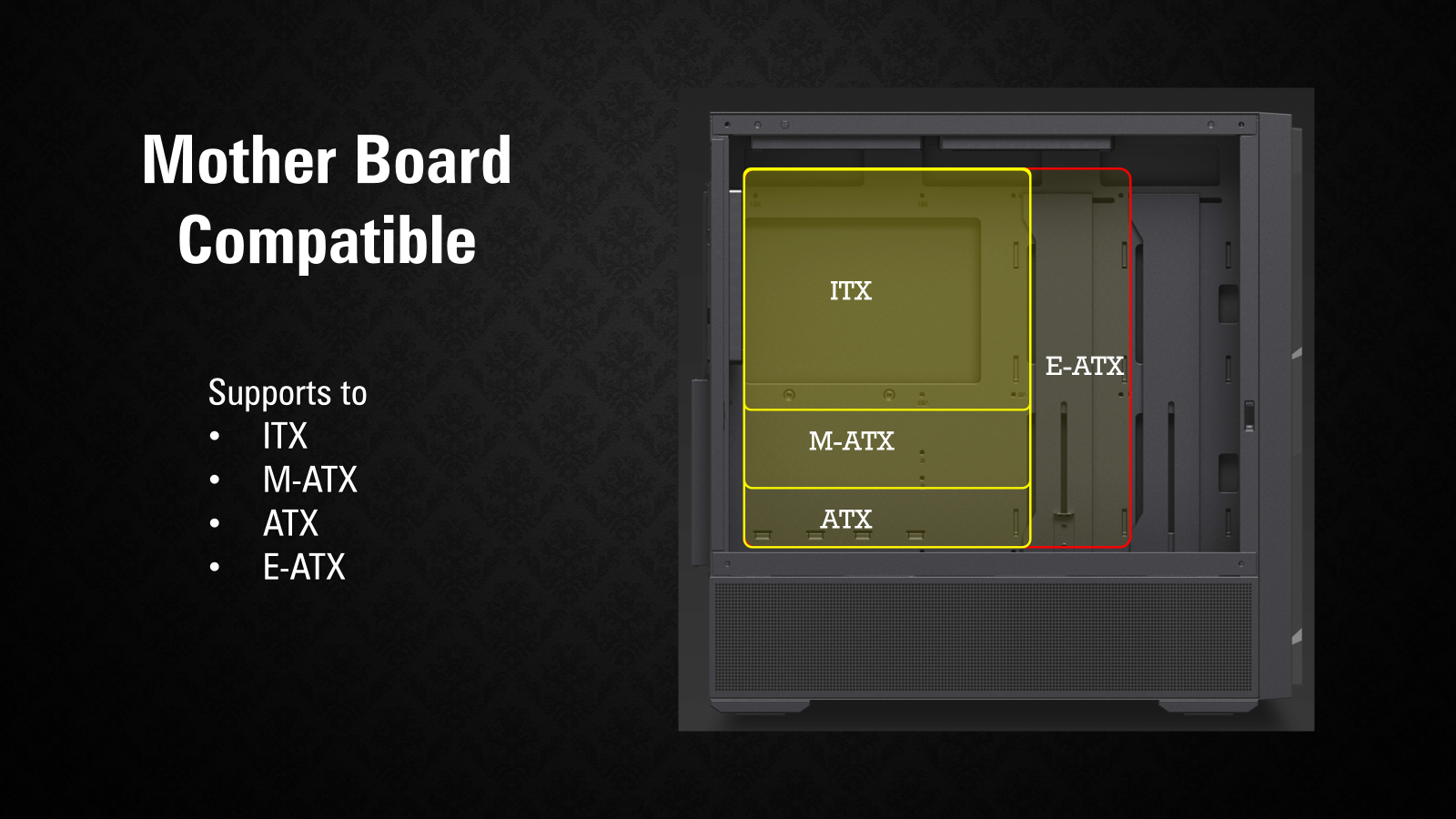

| Motherboard Compatibility | E-ATX, ATX、M-ATX、ITX |
| Drive Bay & HDD Slot | 2 x 2.5” / 3.5” |

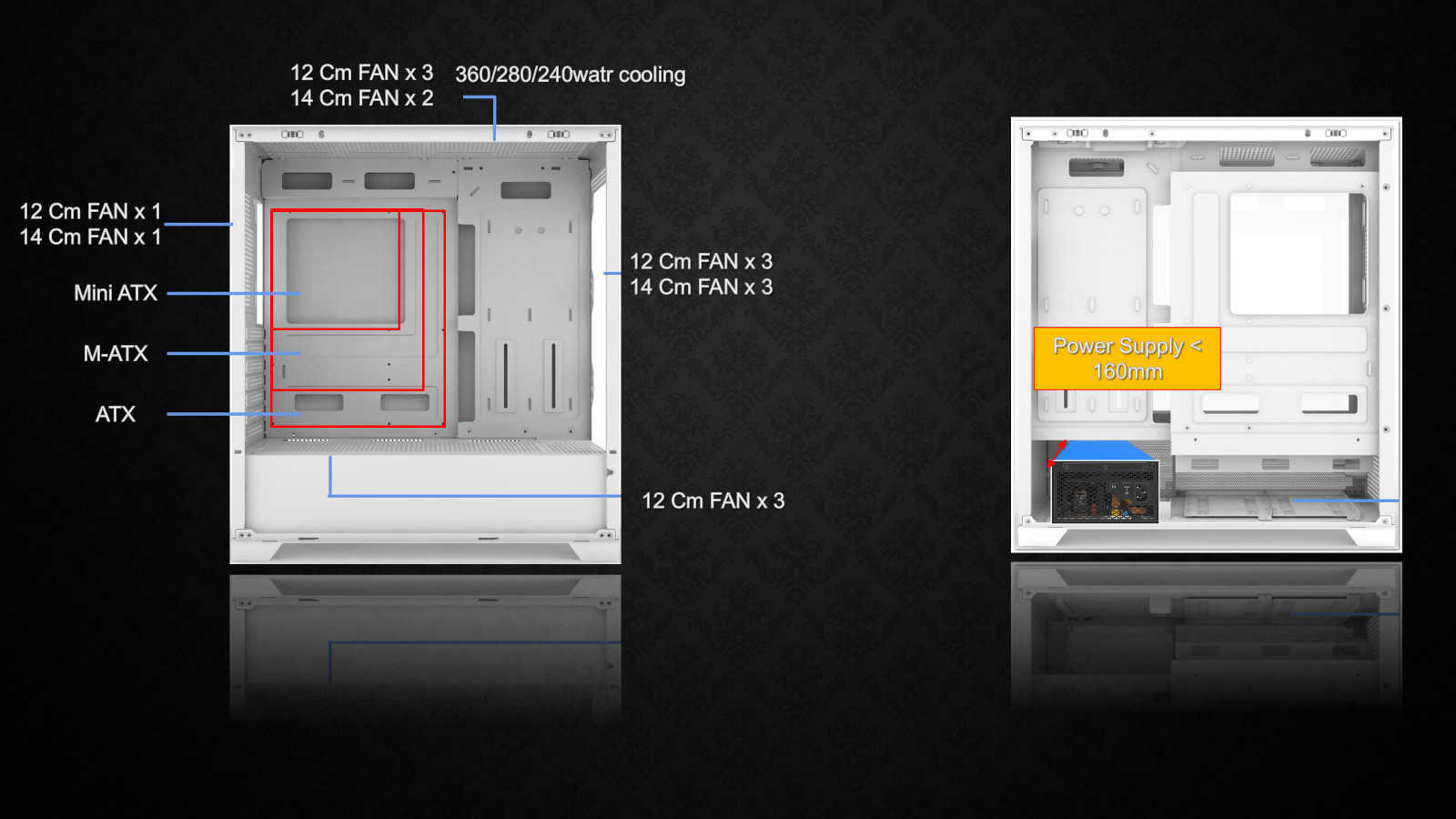

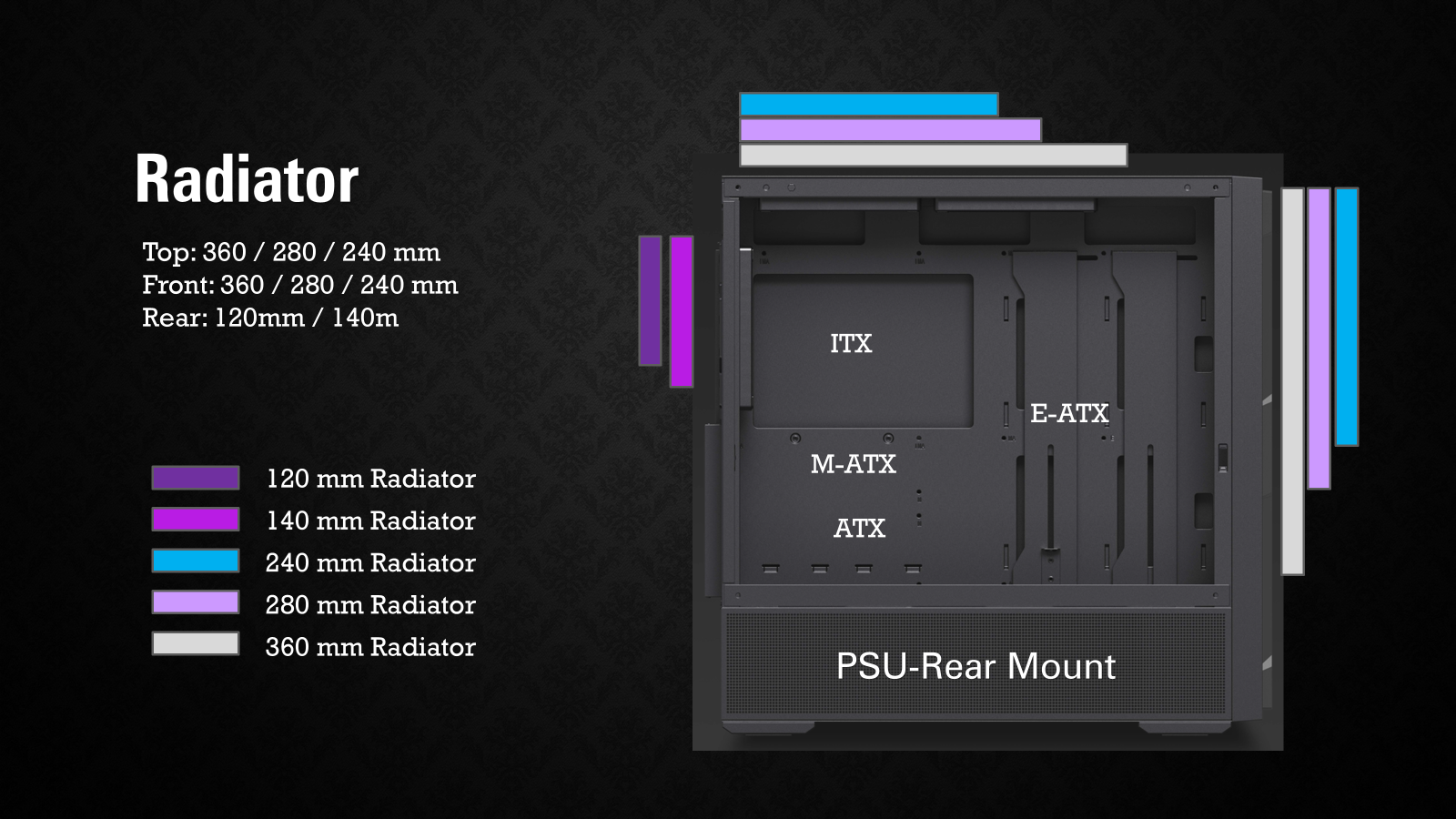

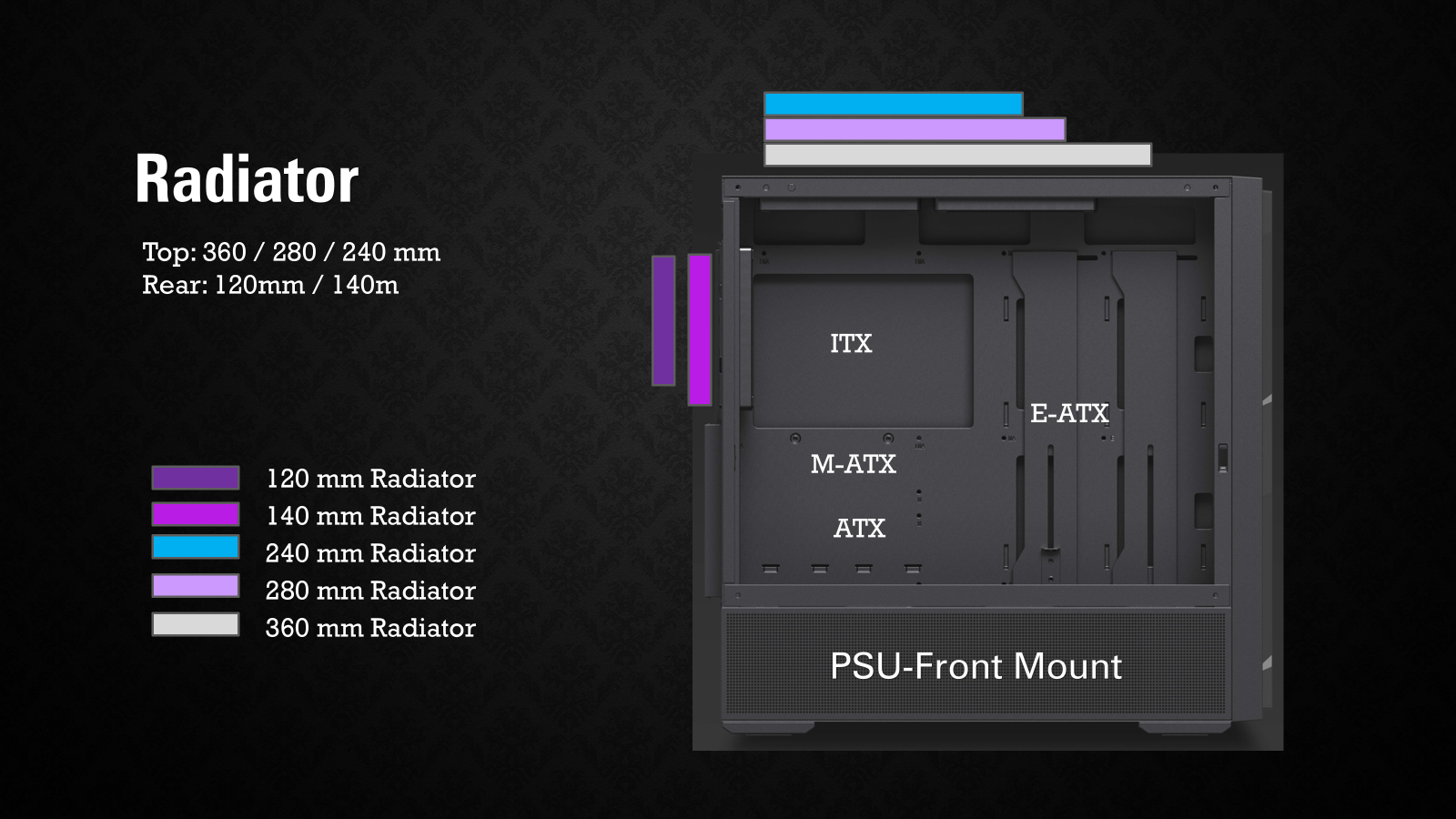

| Radiator Compatibility |
PSU Rear-Mount: Top : Up to 360 mm / 280mm / 240mm Front : up to 360 mm / 280 mm / 240 mm Rear : up to 140 mm / 120 mm PSU Front-Mount: Top : Up to 360 mm / 280mm / 240mm Rear : up to 140 mm / 120 mm |

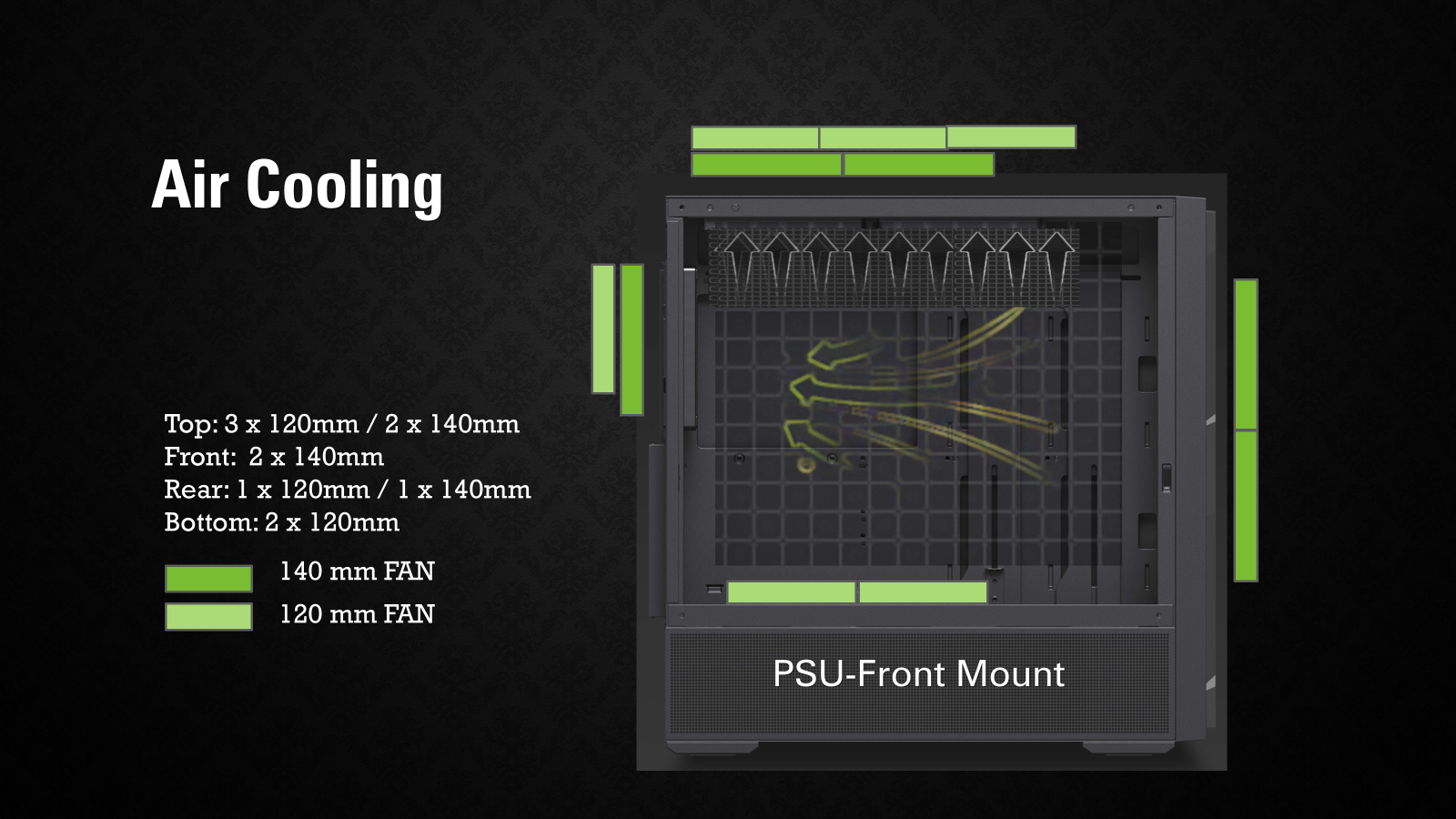

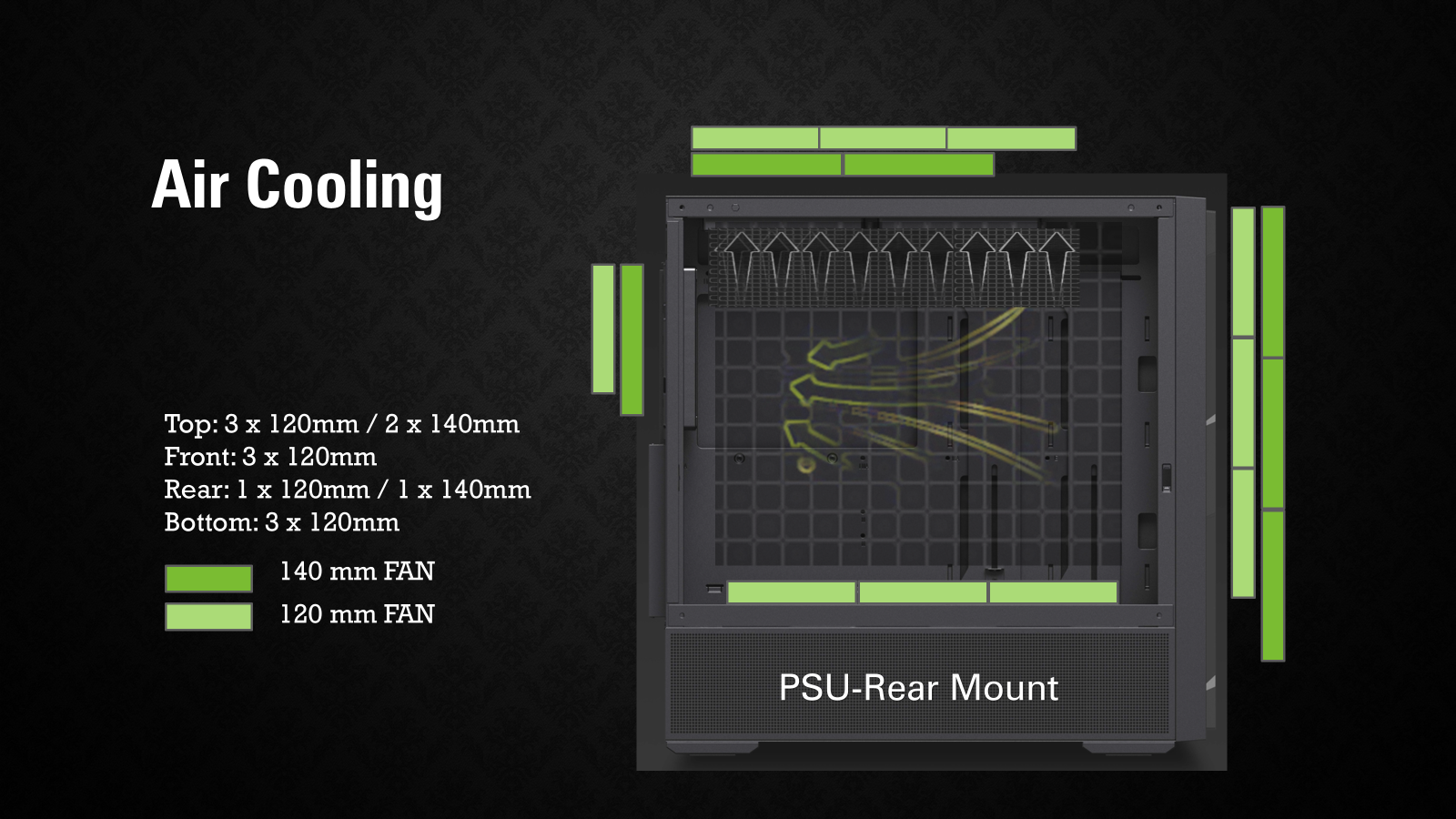

| Air Cooling System |
PSU Rear-Mount: Top : 12cm x3 / 14cm x2 ; Bottom : 12 cm x 3 Front : (12cm / 14cm) x 3 ; Rear : (12 cm or /14 cm) x1 PSU Front-Mount: Top : 12cm x3 / 14cm x2 ; Bottom : 12 cm x 2 Front : 14cm x 2 ; Rear : (12 cm or /14 cm) x1 |

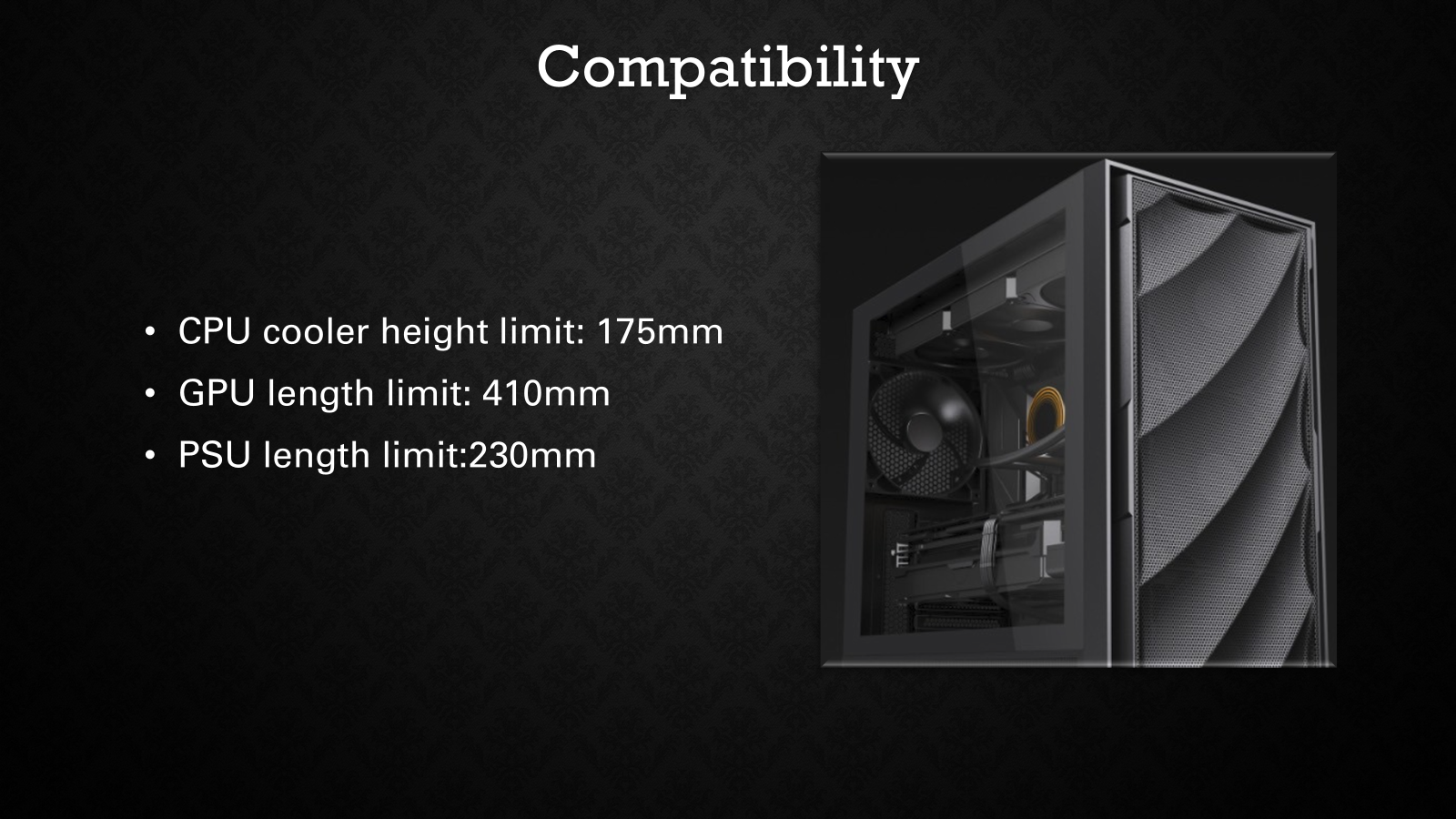

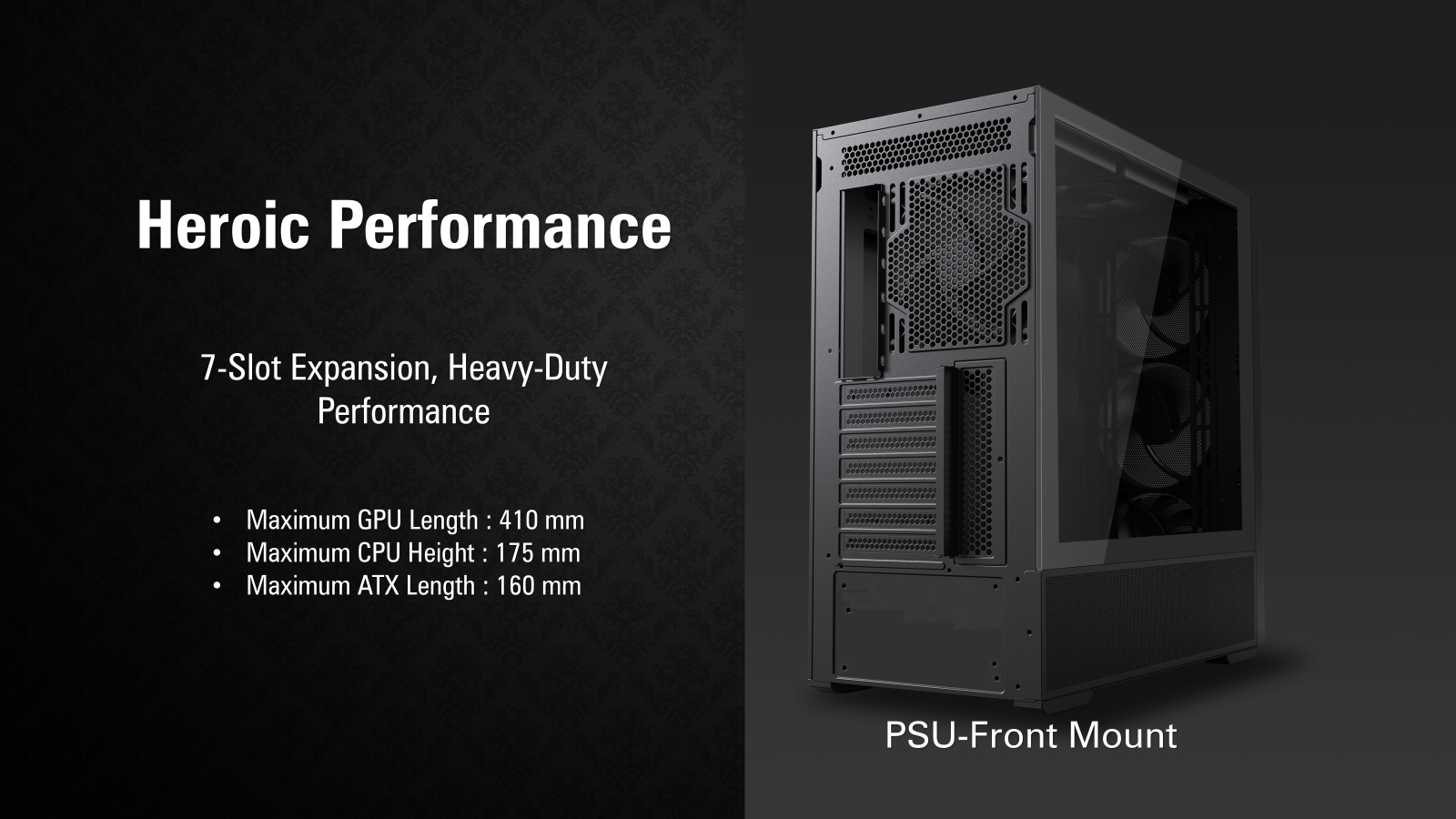

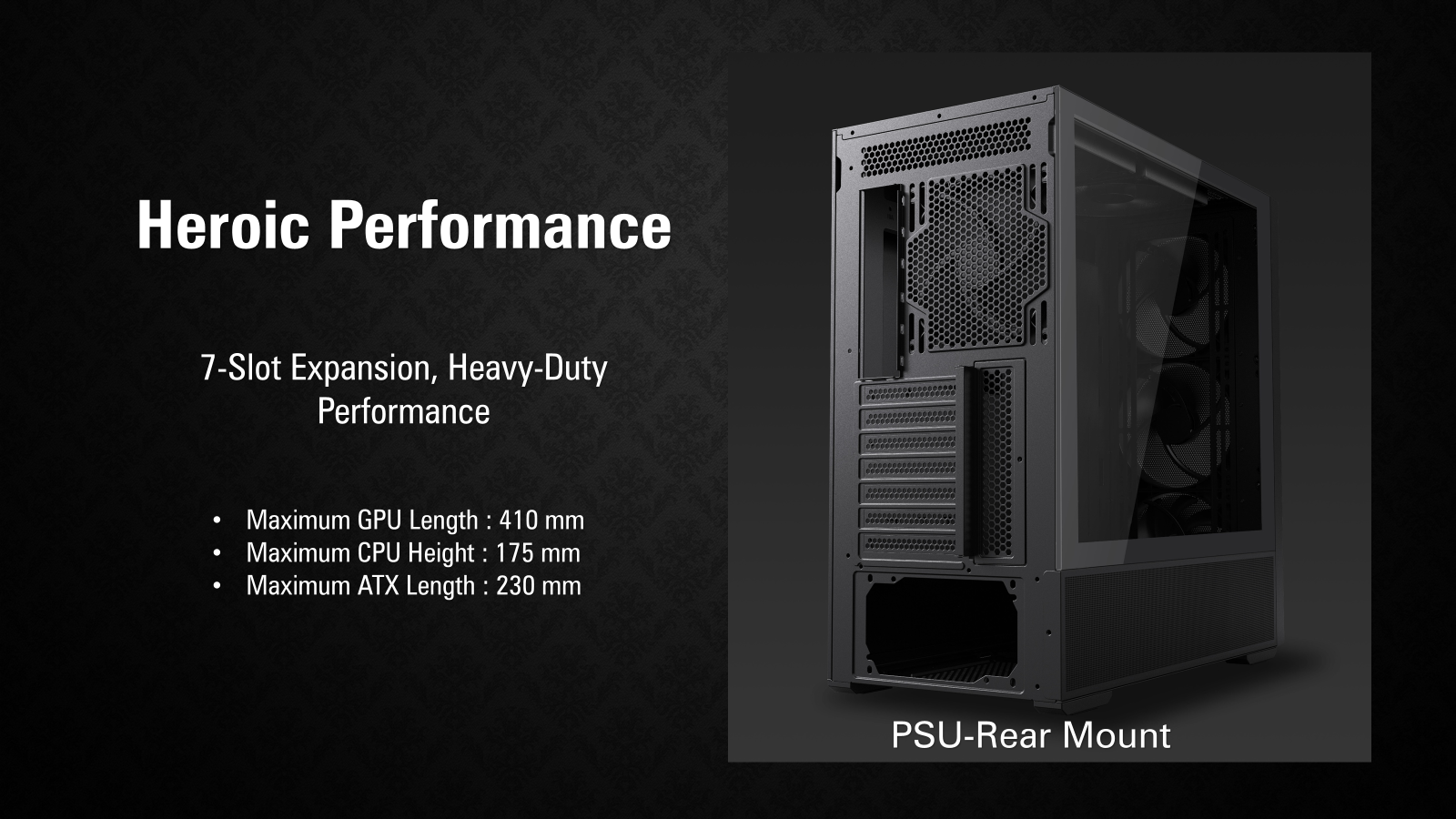

| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 175 mm |
| Maximum PSU Length |
PSU Rear-Mount: 230 mm PSU Front-Mount: 160 mm |
| Case Expansion Slots | 7 |

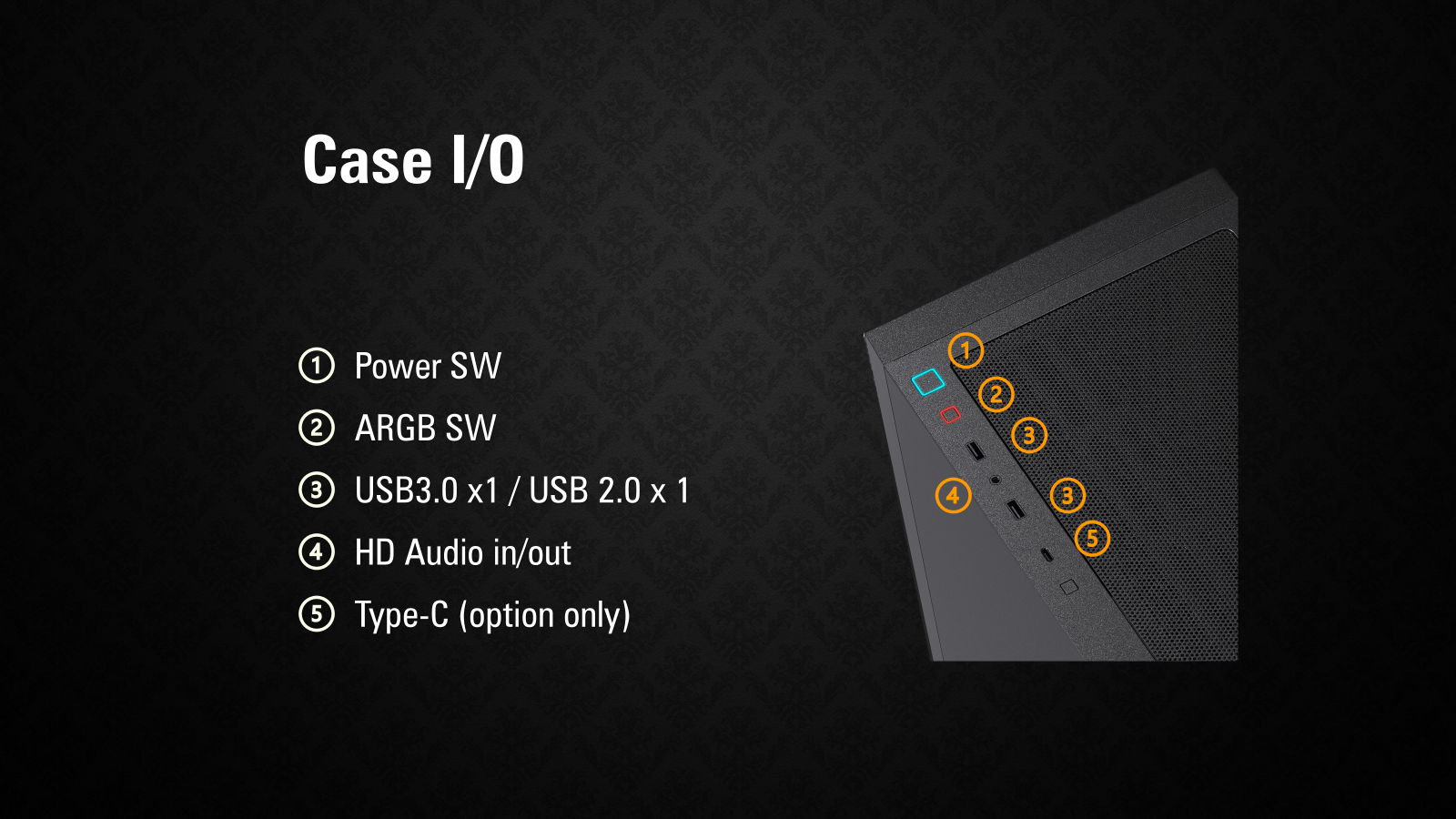

| Case Front IO |
USB 3.0 x1、USB2.0 x 1 、(Type-C for option only) HD Audio x 1 Power / ARGB SW |
| Case Power Supply | ATX |
| Case Window | Tempered glass |
