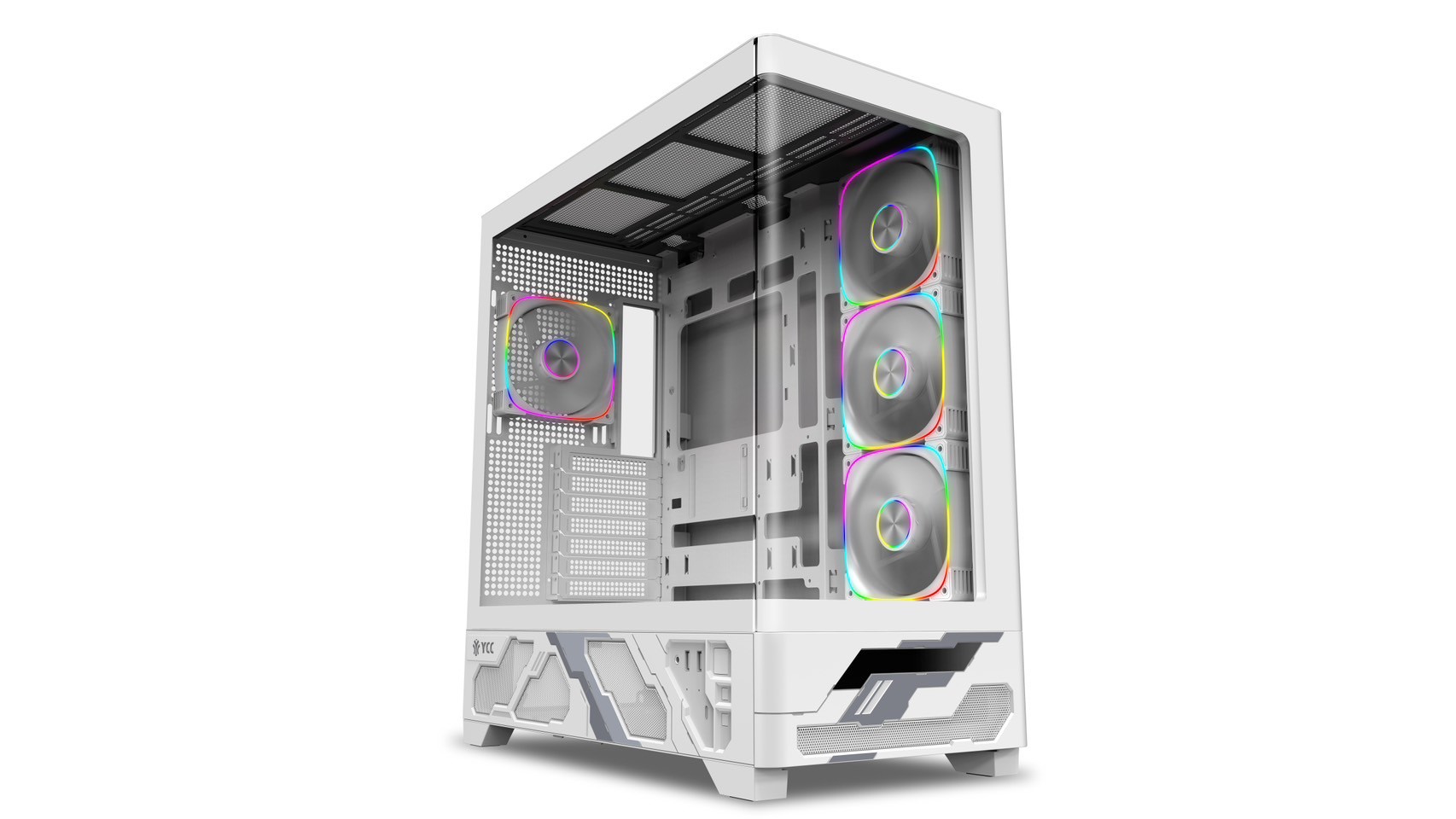

BayWave / YCH-2510W (White)
ATX PC Case, 4x 120mm ARGB FANs
360MM Radiator Support,
270° Full View Tempered Glass
Gaming PC Case with Type-C,

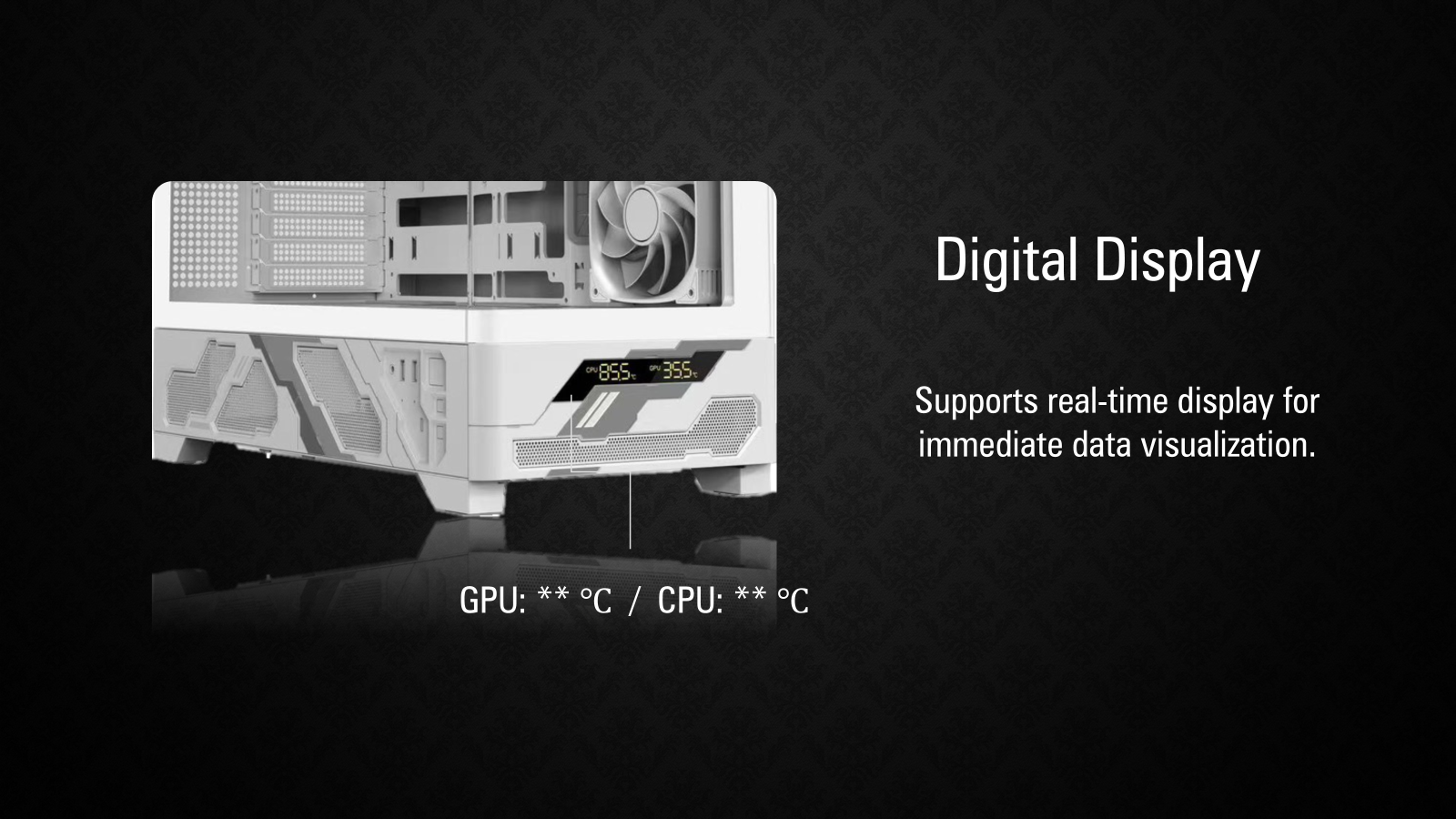

Front Digital Display shown CPU & GPU ( ℃ )
Mid Tower ATX Computer Case
360MM Radiator Support,
270° Full View Tempered Glass
Gaming PC Case with Type-C,
Front Digital Display shown CPU & GPU ( ℃ )
Mid Tower ATX Computer Case
Instructions
|

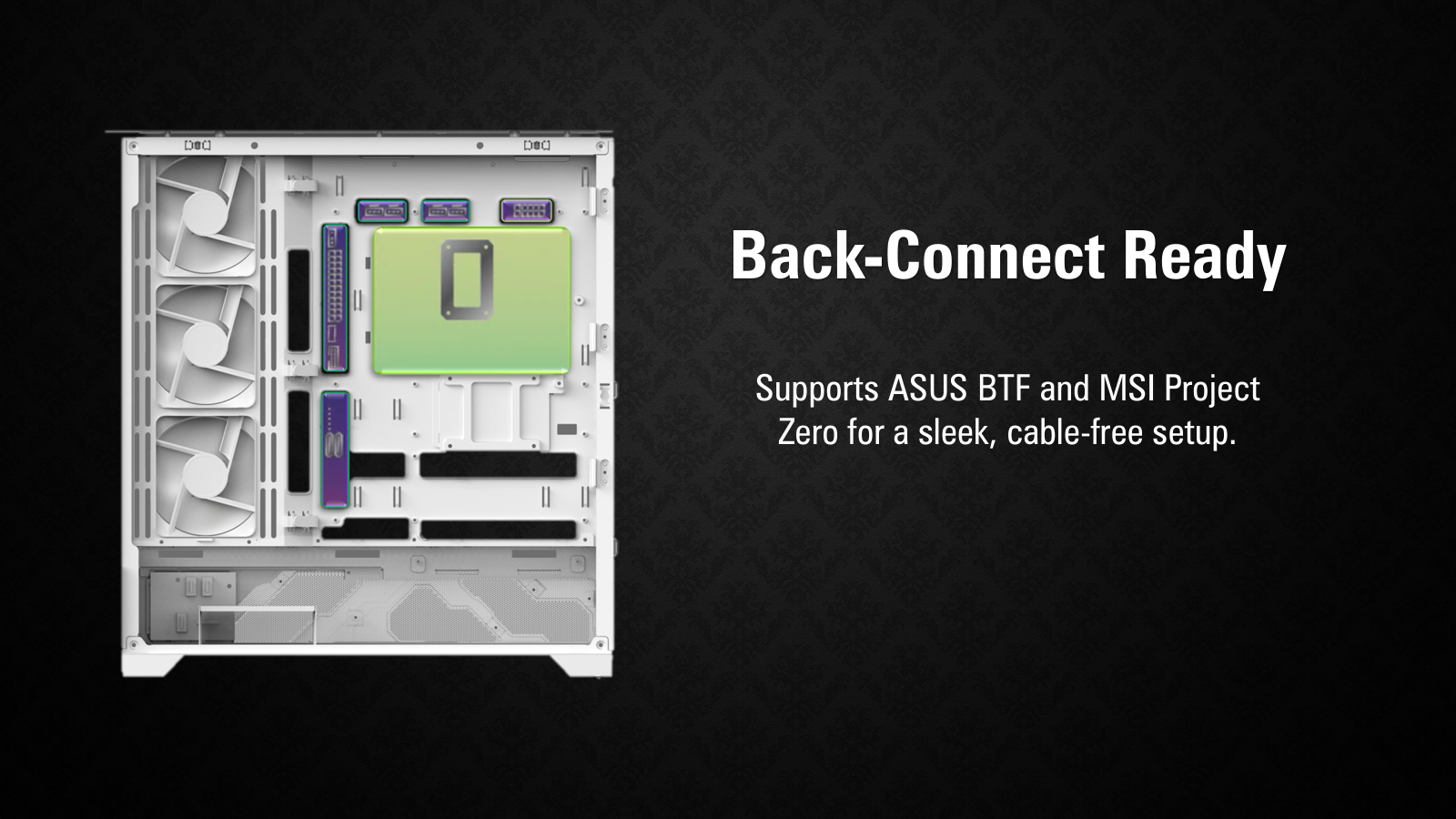

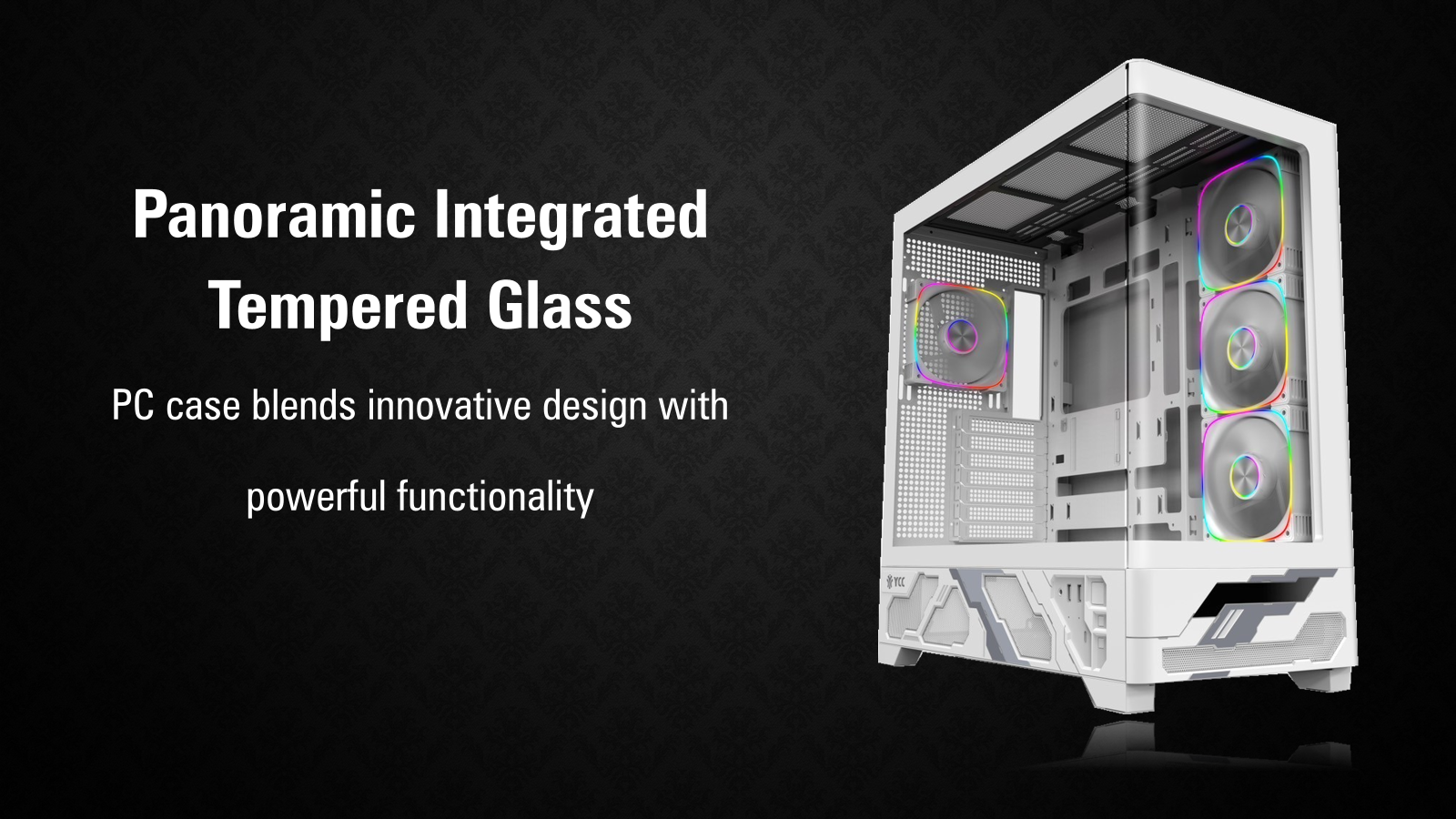

• Panoramic Tempered Glass • Six-Sided Ventilation • Back-connect Motherboard Support • Accommodates GPUs up to 440mm Length |

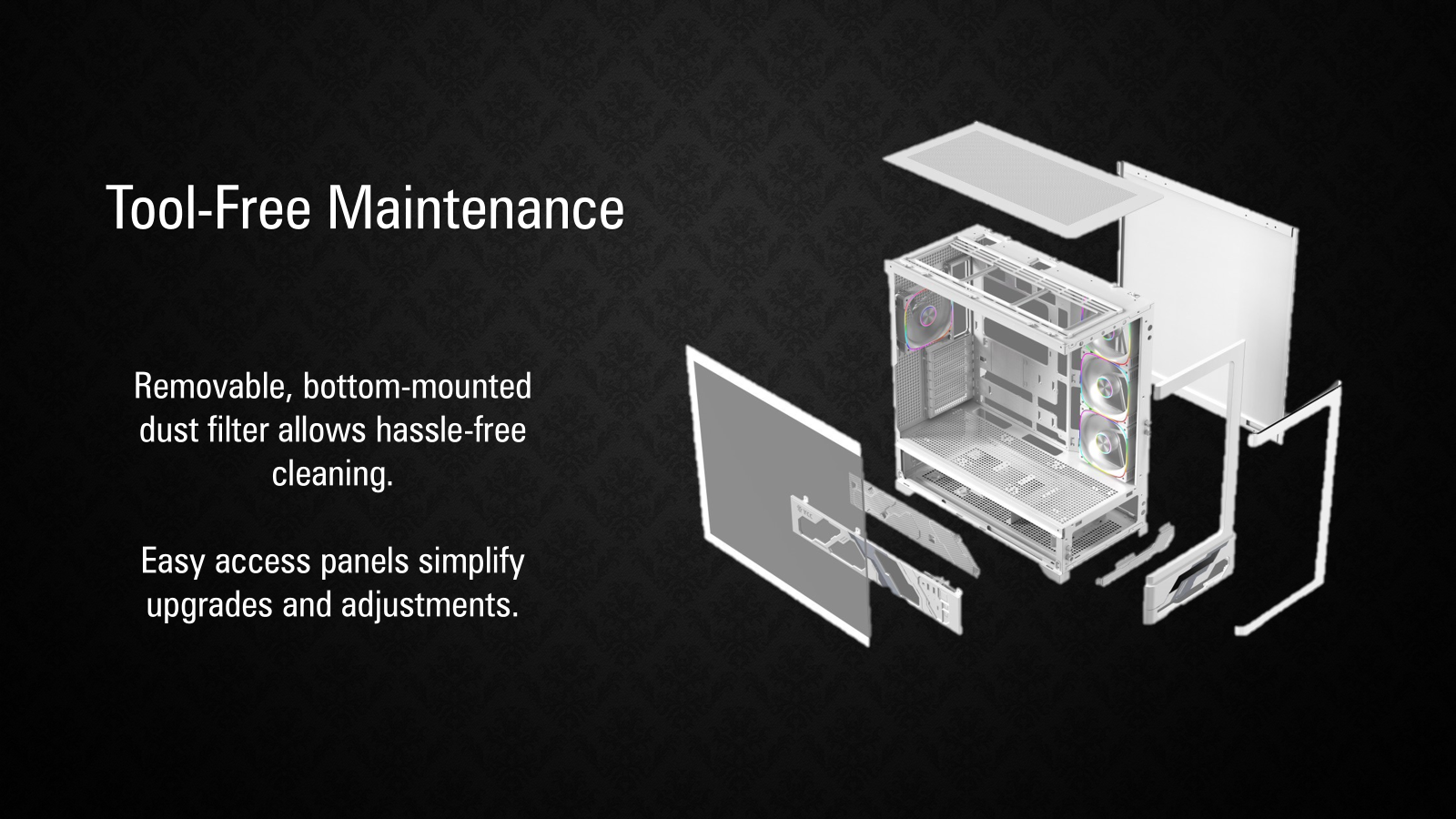

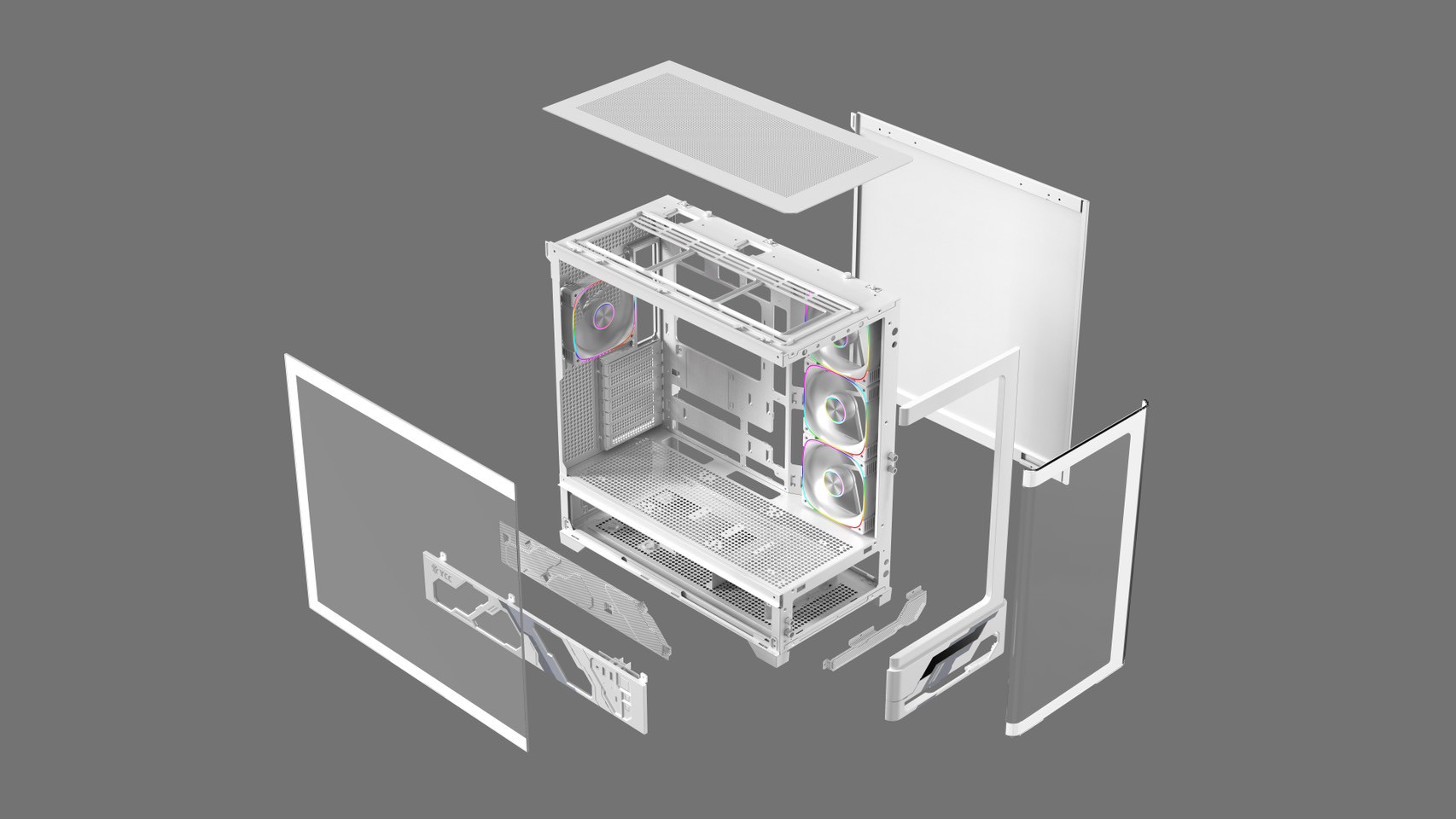

• CPU Air coolers up to 180mm Height • Supports 7 expansion slots, including an upright GPU bracket • Advanced Cooling radiators up to 360mm (Top) & 140mm (Rear) • Tool-Free Maintenance with Removable Panels • Easy Maintenance with bottom-mounted dust filter |
|
|
.png)
.png)
.png)
.png)
.png)
.png)
.png)
specification
| Technical Data | |
| Case Size | mid-Tower |
| Dimensions | L470 × W238 × H500 mm |
| Case Colors | White |
| Motherboard Compatibility | ATX、M-ATX、ITX；Rear-Mounted: M-ATX、ATX |
| Drive Bay & HDD Slot | 2 x 3.5" or 3 x 2.5" |

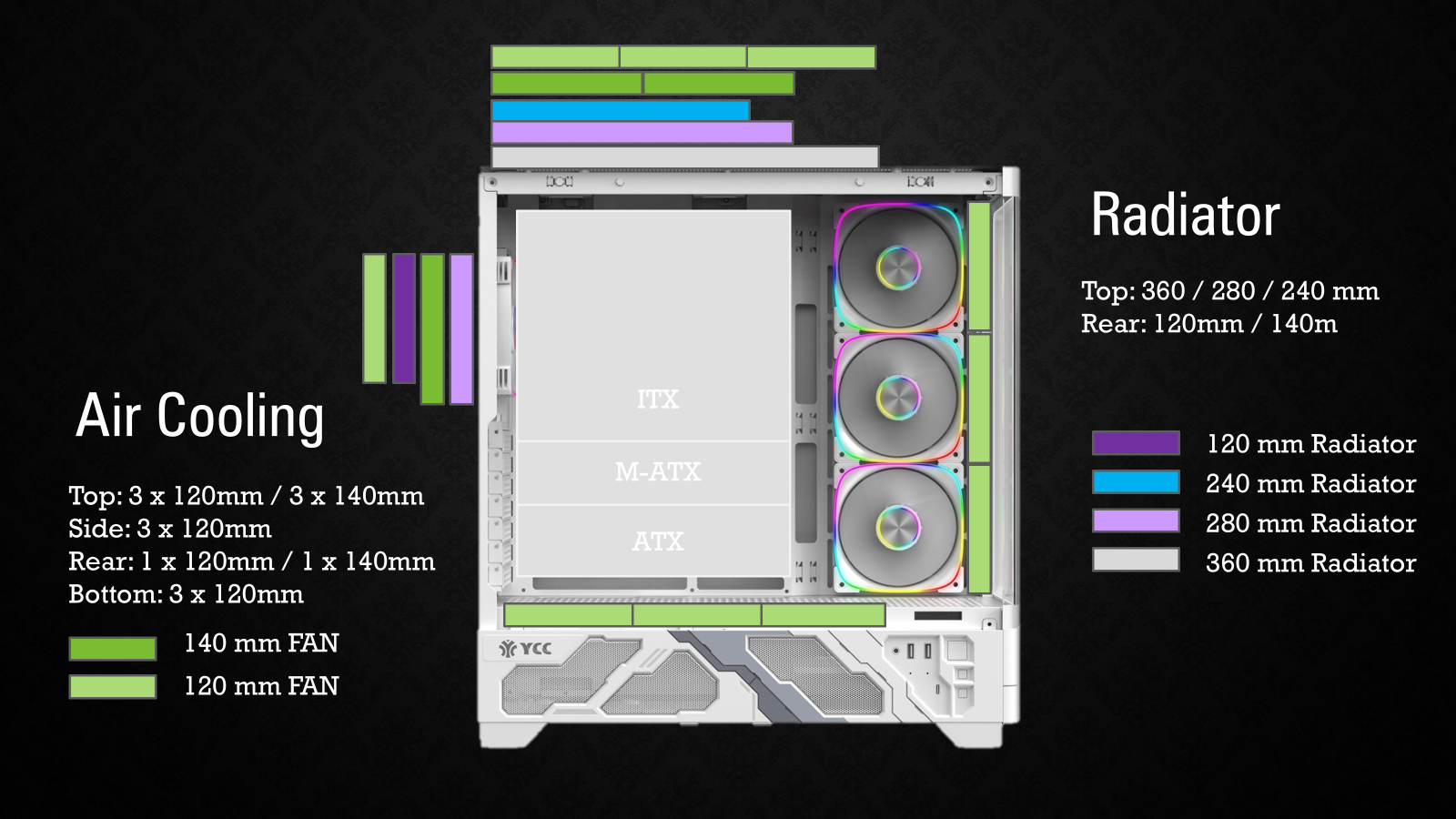

| Radiator Compatibility |
Top : Up to 360 mm / 280mm / 240mm Rear : up to 140 mm / 120 mm |
| Air Cooling System |
Top : 12cm x 3 / 14cm x 2 Bottom : 12 cm x 3 Side : 12cm x 3 Rear : 12cm x 1 or 14cm x 1 |
| Maximum GPU Length | 440 mm (all RTX 40, 50) |
| Maximum CPU Cooler Height | 180 mm |
| Maximum PSU Length | 220 mm |
| Case Expansion Slots | 7 (support vertical GPU mounting kit) |

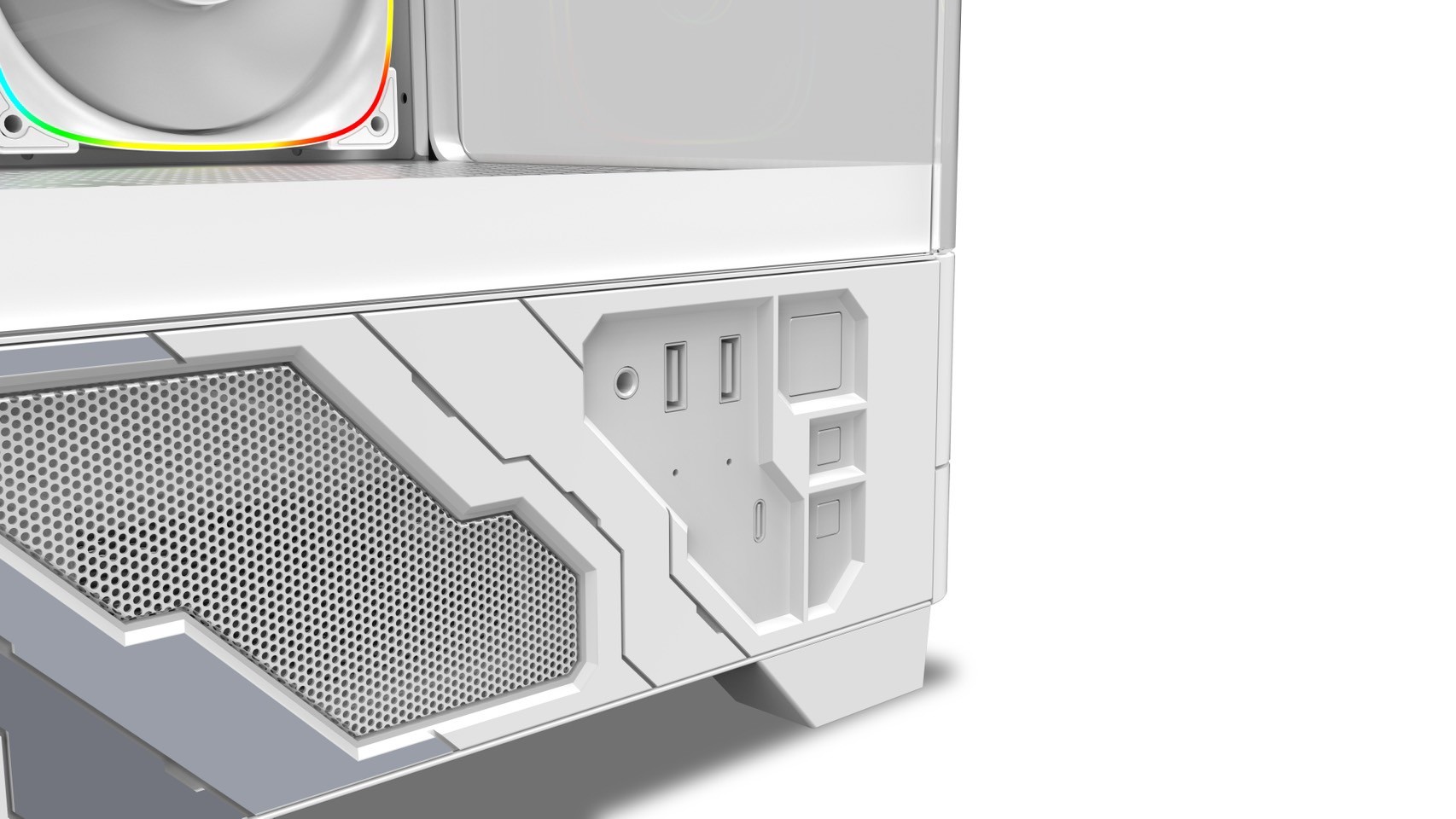

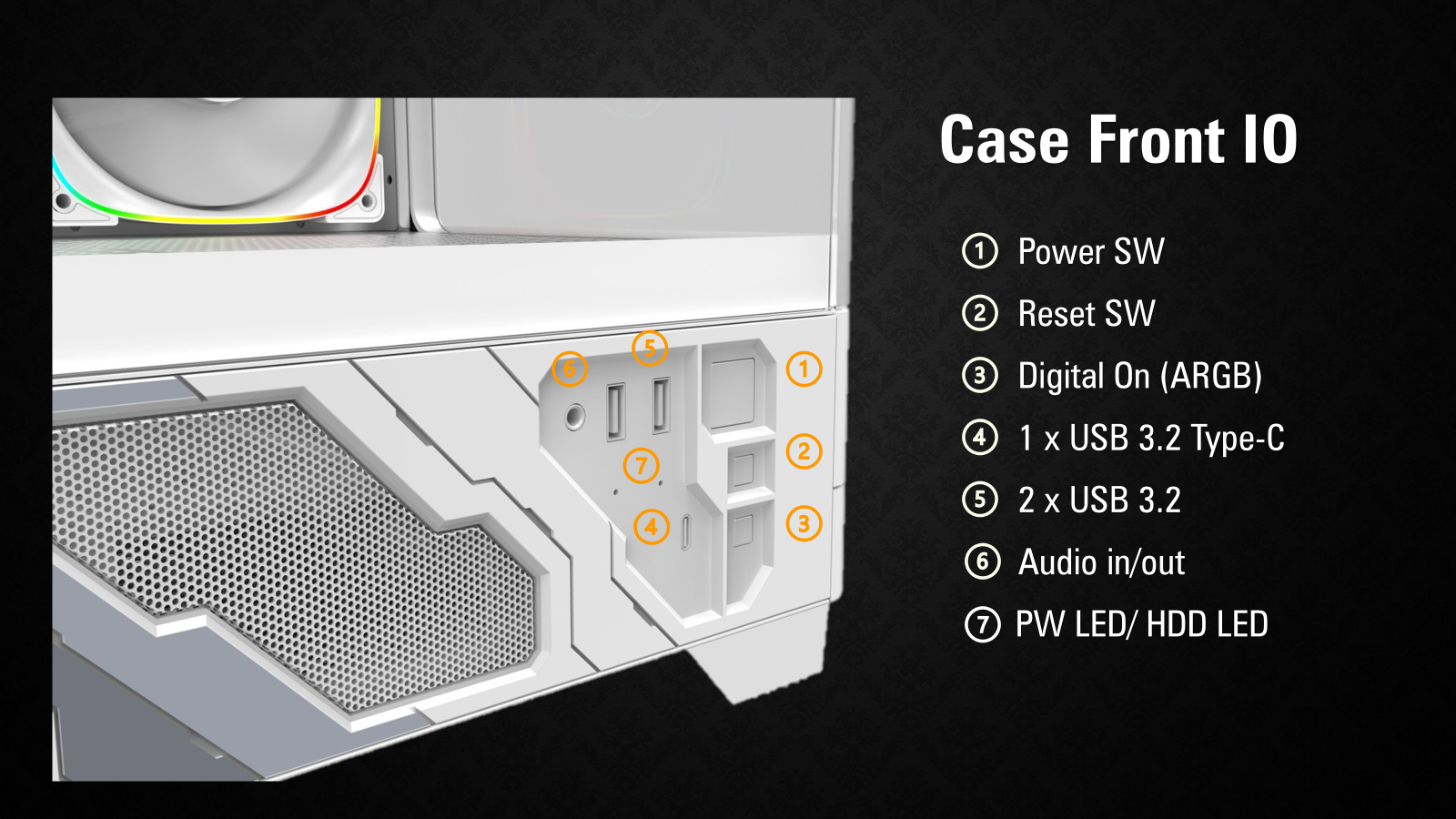

| Case Front IO |
USB 3.2 x 2、USB3.2_Type C x 1 HD Audio x 1 Power/Reset/ARGB SW Power LED / HDD LED |
| Case Power Supply | ATX |
| Case Window | Tempered glass |
