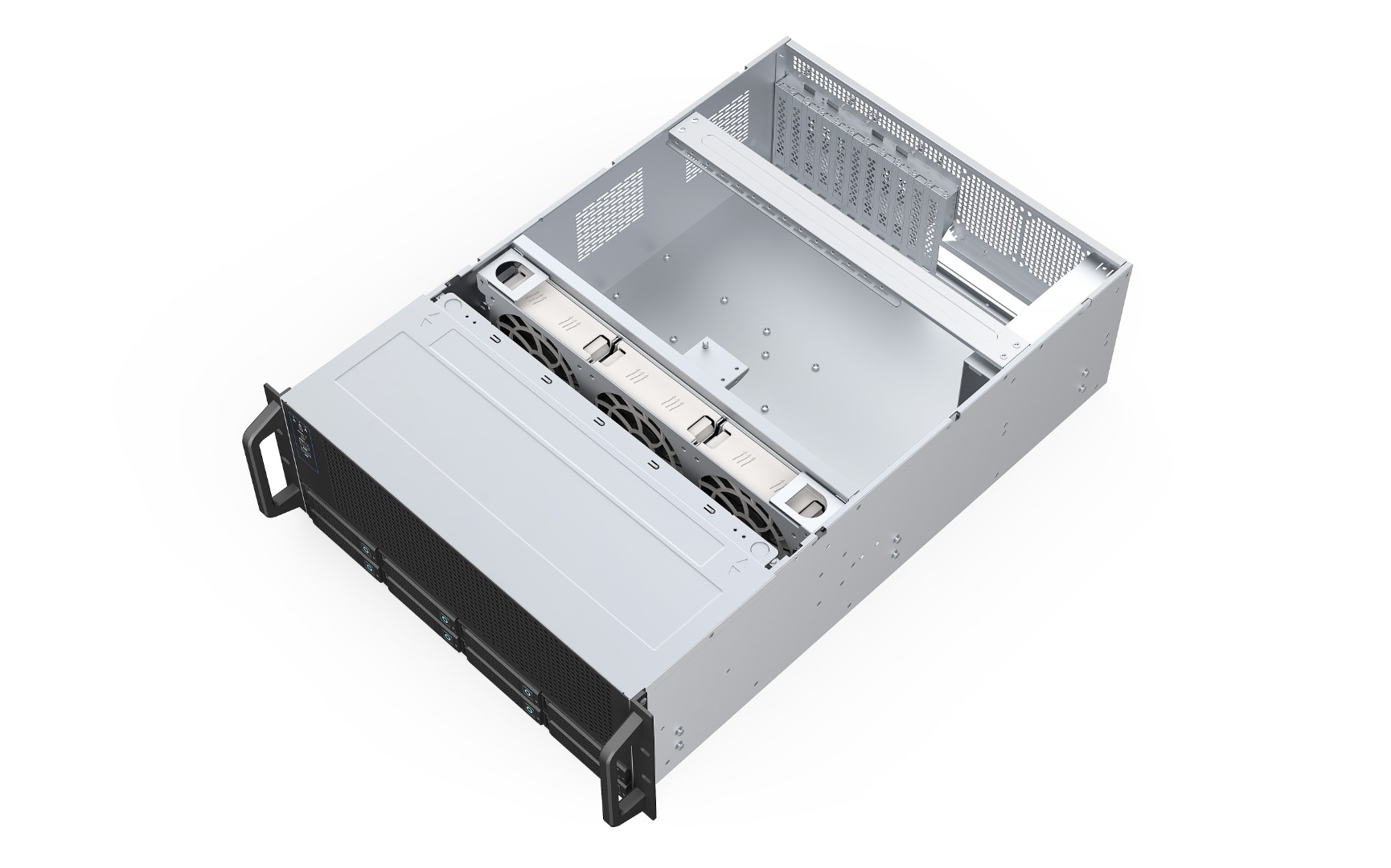

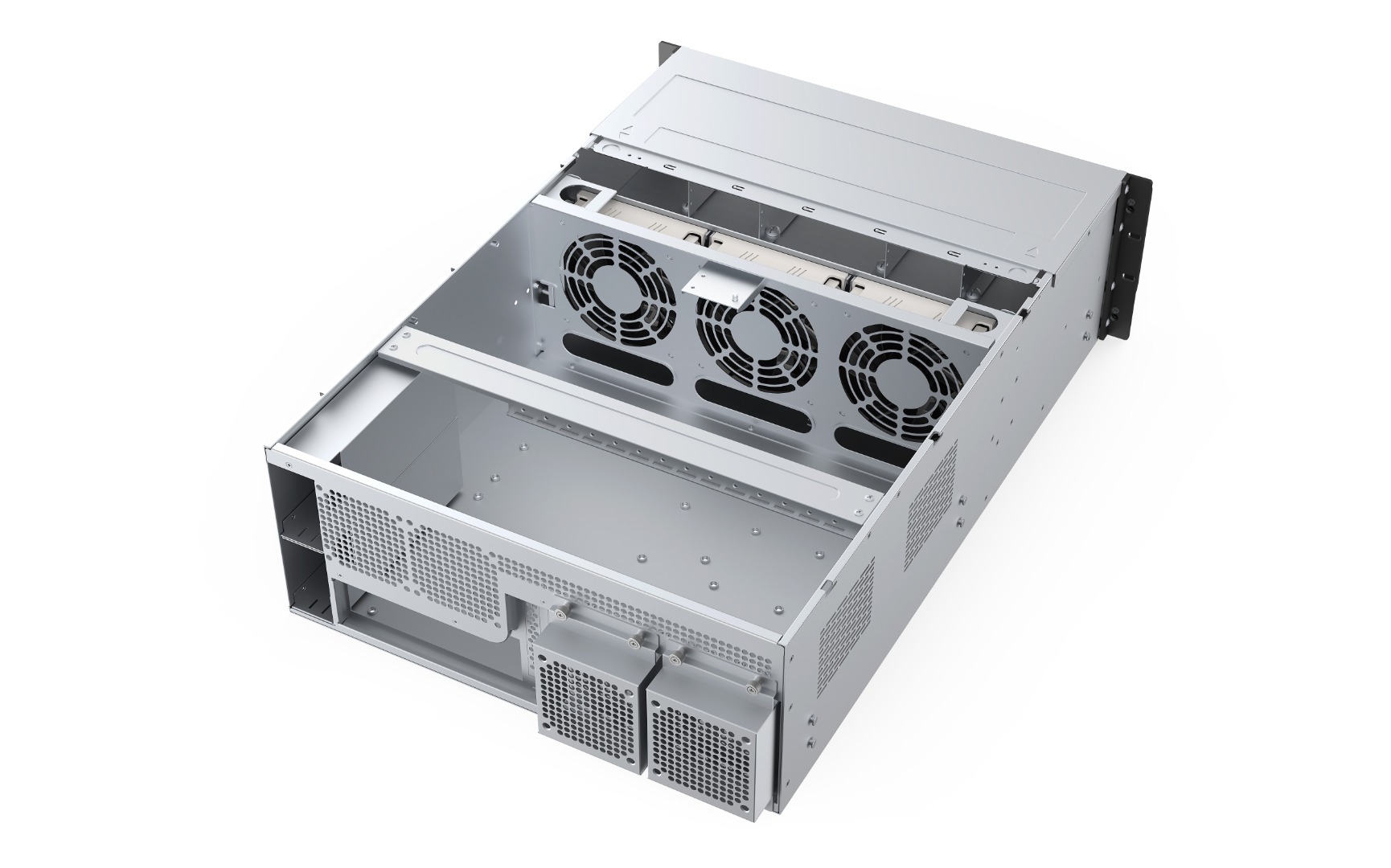

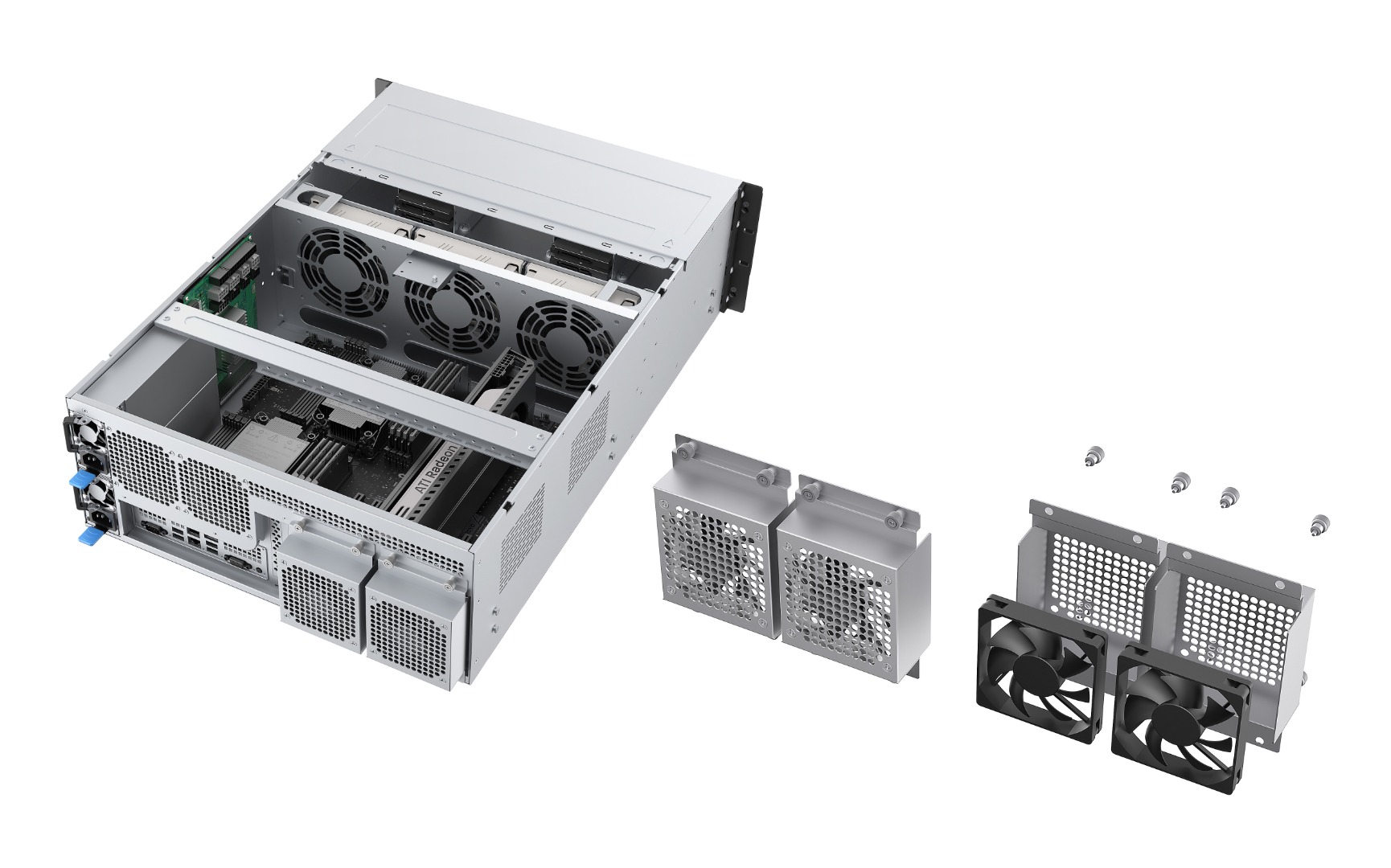

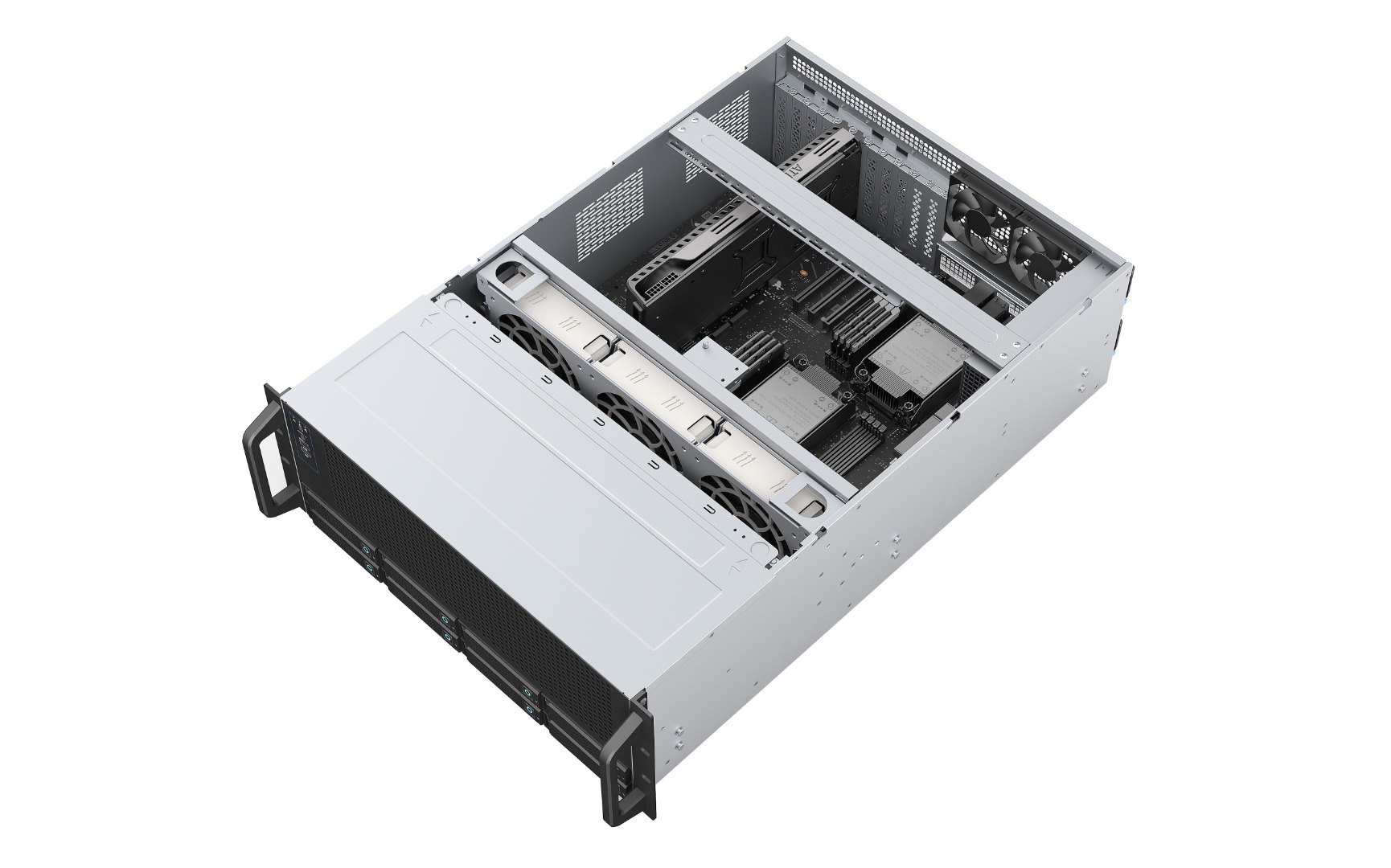

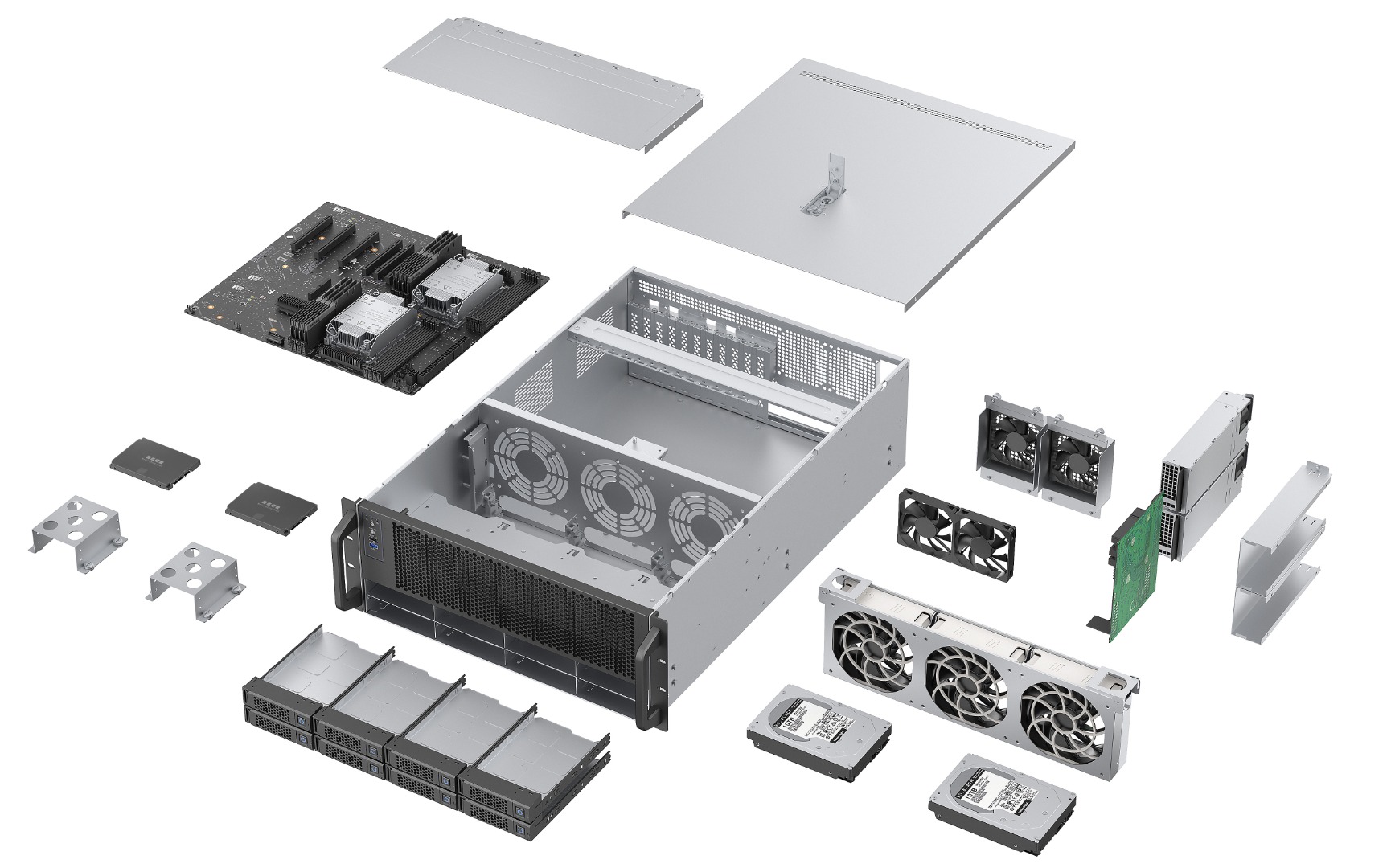

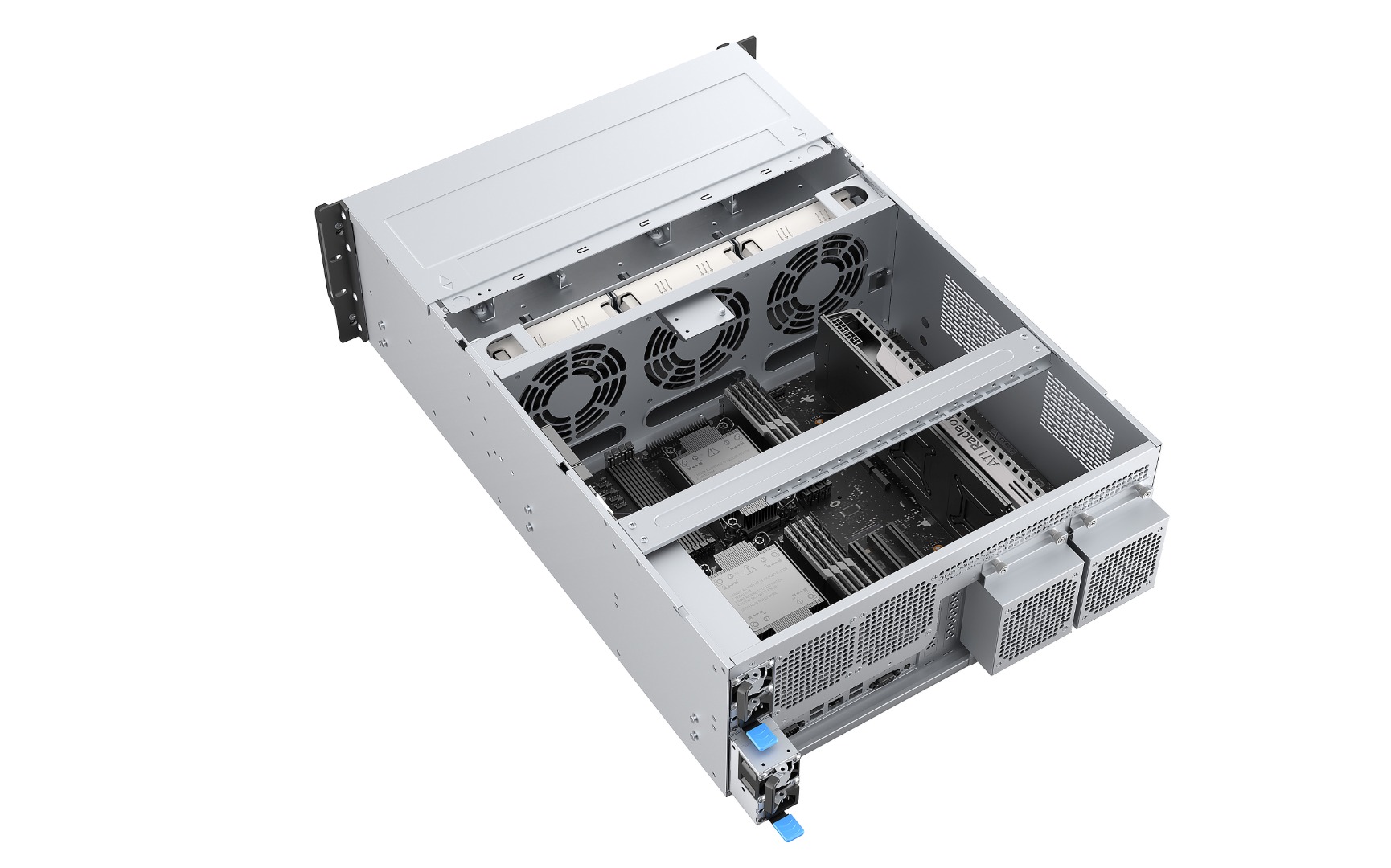

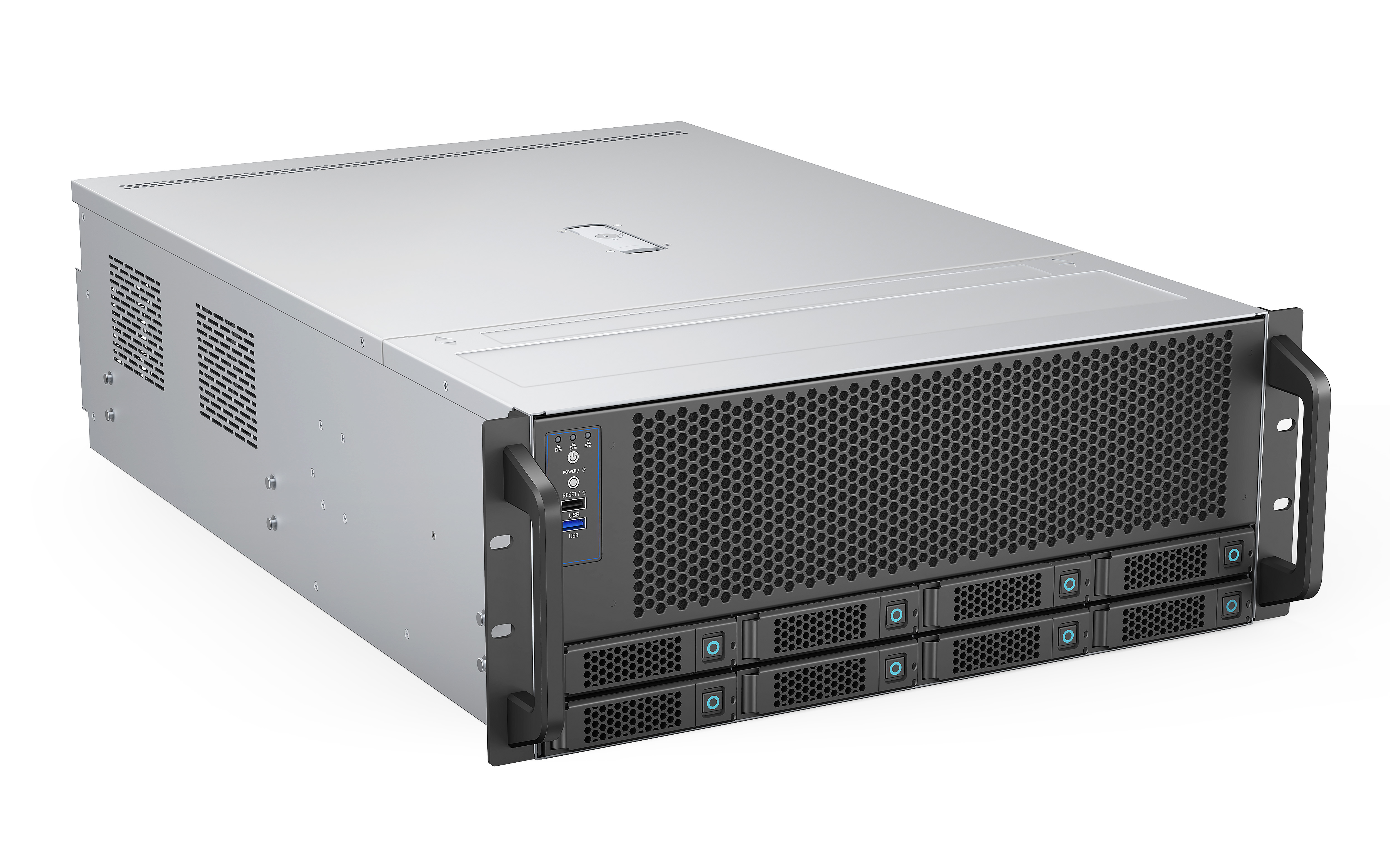

YRM-46508 Series / 4U AI Chassis (2025)
• Dimensions L650 × W437.5 × H176.5 mm
• Material and Build with 1.0 mm SGCC
• Storage Capacity with 8 x 3.5” HDD (Hot-Swap)
• 12Gb/s SATA/ SAS Hot-swappable HDD backplane
• Motherboard Compatible with E-ATX (12" × 13")
• PSU Compatible with CRPS redundant power supplies.
• Cooling system Equipped with three 12038 fans
• Material and Build with 1.0 mm SGCC
• Storage Capacity with 8 x 3.5” HDD (Hot-Swap)
• 12Gb/s SATA/ SAS Hot-swappable HDD backplane
• Motherboard Compatible with E-ATX (12" × 13")
• PSU Compatible with CRPS redundant power supplies.
• Cooling system Equipped with three 12038 fans
Instructions
The 4U AI Inference Chassis, for demanding AI, HPC, and enterprise solutions, combines robust storage (8 SATA/SAS bays), exceptional cooling (3 x 12038 fans), and high hardware compatibility (11-slot PCIe, ATX/redundant PSU).
specification
Specification
| Dimensions | L650 × W437.5 × H176.5 mm |
| Case Colors | Black |
| Material | 1.0 mm SGCC |
| Drive Bay & HDD Slot | 8 x3.5” SATA / SAS 6Gb/s |
| GPU / Hot-Swap Backplane |
- 12Gb/s SATA / SAS (Hot-Swap) HDD Backplane |
| Motherboard Support | 12" × 13" |
| Power Supply Support | CRPS Redundant Power Supply |
| Panel Controls | Reset Button × 1 |
| Power Switch × 1 | |
| Panel LEDs | Power LED × 1 |
| HDD LED × 1 | |
| NIC LED × 2 | |
| Panel Interfaces | USB 2.0 × 2 |
| Expansion Slots | 11 slot full-height PCI/PCI-E (W/ thermal IC) |
| Cooling System | 3 x 12038 fans |
|
