CTC 750W Platinum ATX3.1

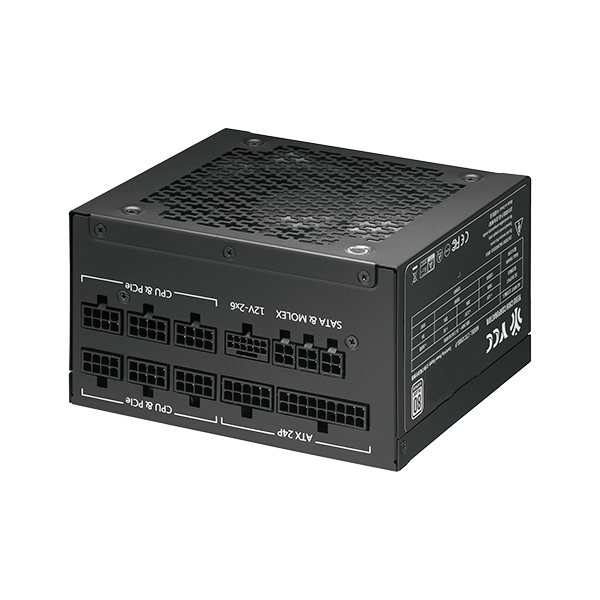

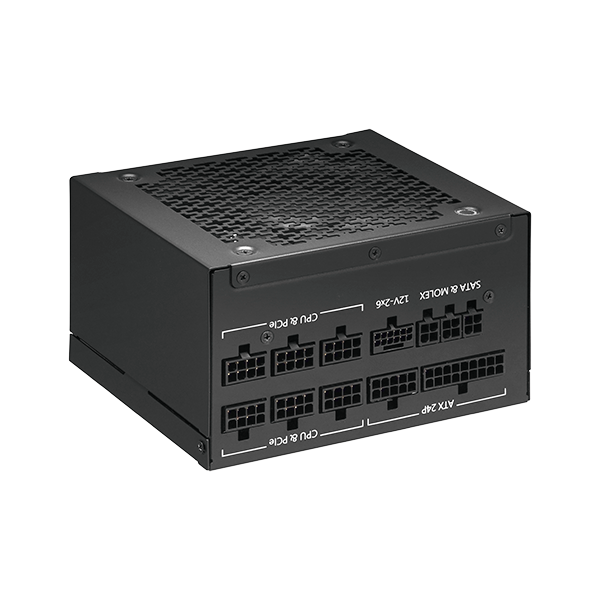

CTC750B-P 750W ATX 3.1 and PCIe 5.1 compatibility, 80Plus Platinum efficiency, Active PFC, and a 12cm FDB fan , Fully Modular.

Instructions

80Plus Platinum Certification:
This top-tier certification guarantees exceptional energy efficiency, reducing heat output and lowering power consumption during demanding workloads.
Active Power Factor Correction (PFC):
Stabilizes power delivery, even in varying input conditions, ensuring the system runs reliably and efficiently.
Low Noise Operation:

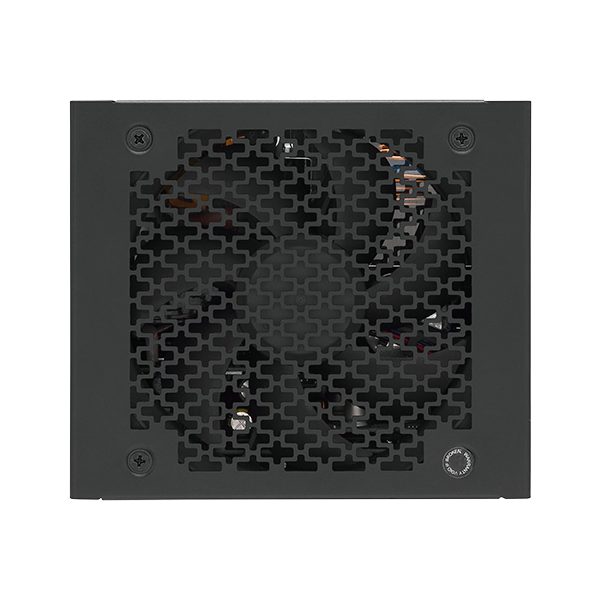

Advanced Fluid Dynamic Bearing technology enhances cooling with 120mm Fan, ideal for users prioritizing silent performance.
Alternative Sleep Mode (ASM):
Complies with ErP regulations, optimizing 5V standby efficiency for eco-friendly performance in sleep states.
PCI-E CEM5 Support:
Provides scalability for power excursions, catering to graphics-heavy gaming and workstation systems.
High Reliability in Tough Environments:
Operates seamlessly from 0°C to +40°C with automatic performance adjustment at higher temperatures, ensuring consistent functionality in challenging conditions.

specification

Input Rating	DC output Rating
• Input Voltage : 100 - 240V • Input Current : 10..0 - 5.0 A • Input Frequency : 50 - 60 Hz	• 12V : 62.5A (750W) • 5Vsb : 3A (15W) • 3.3V & 5V : 20A (100W) • -12V : N.A • Total Output Power: 1200W
Power Efficiency	Protections
• 80Plus Efficiency: Platinum • 2% Loading: 60% @ 115V • 10% Loading: reference only • 20% Loading: 90% @ 115V • 50% Loading: 92% @ 115V • 100% Loading: 89% @ 115V	• OVP (Overvoltage Protection) • OCP (Overcurrent Protection) • SCP (Short Circuit Protection) • OTP (Over Temperature Protection) • OPP (Overpower Protection)
Operation
• Operating Temperature: 0 - 40 °C (40-50°C derating 80% Load) • MTBF : 100,000 hours
