PC Power Supply
CTC 1000W Platinum ATX3.1
Feature
• 80 Plus Platinum Efficiency
• Smart FAN Control
• Low Noise Operation
• ATX 3.1 & PCI-E 5
• Fully Modular design
• Durable 12V-2x6 power connector
• 80 Plus Platinum Efficiency
• Smart FAN Control
• Low Noise Operation
• ATX 3.1 & PCI-E 5
• Fully Modular design
• Durable 12V-2x6 power connector
Instructions
.png)
The CTC1000B-P Series power supply, with compact dimensions of 150 mm x 130 mm x 86 mm, supports modern standards like ATX 3.1 and PCIe 5.1. Featuring 80Plus Platinum efficiency, Active PFC, and a 12mm FDB fan, it delivers reliable performance, efficient power delivery, and compatibility for future-ready high-performance systems.
.png)
specification
| Input Rating |
DC output Rating |
• Input Voltage : 100 - 240V• Input Current : 13.0 - 6.5 A• Input Frequency : 50 - 60 Hz
|
• 12V : 80.3 A (1000W)• 5Vsb : 3A (15W)• 3.3V & 5V : 20A (100W)• -12V : N.A• Total Output Power: 1000W |
Power Efficiency |
Protections |
• 80Plus Efficiency: Platinum• 2% Loading: 60% @ 115V• 10% Loading: reference only• 20% Loading: 90% @ 115V• 50% Loading: 92% @ 115V• 100% Loading: 89% @ 115V |
• OVP (Overvoltage Protection)• OCP (Overcurrent Protection)• SCP (Short Circuit Protection)• OTP (Over Temperature Protection)• OPP (Overpower Protection) |
Operation |
|
• Operating Temperature: 0 - 40 °C• MTBF : 100,000 hours |
|

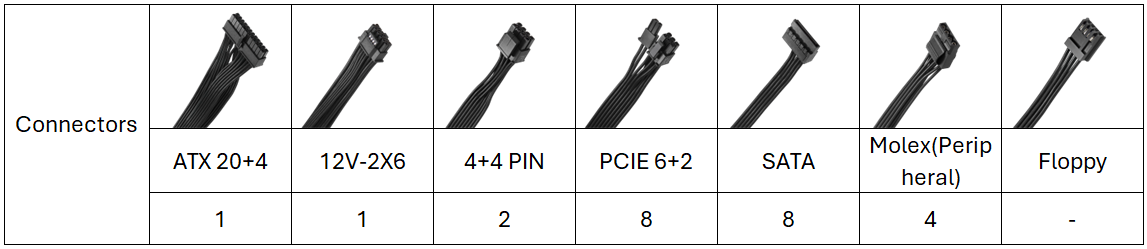

Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
|
ATX 20+4 |
12V-2X6 |
8 (4+4) PIN |
PCIE 6+2 |
SATA |
Peripheral |
Floppy |
|
|
1 |
1 |
2 |
8 |
8 |
4 |
- |
- Dimension：150(W)x130(L)x86(H)mm
- 120mm Cooling Fan
- Protection：OVP、SCP、OPP、OCP、OTP
.png)
|
|
|
Datasheet |
