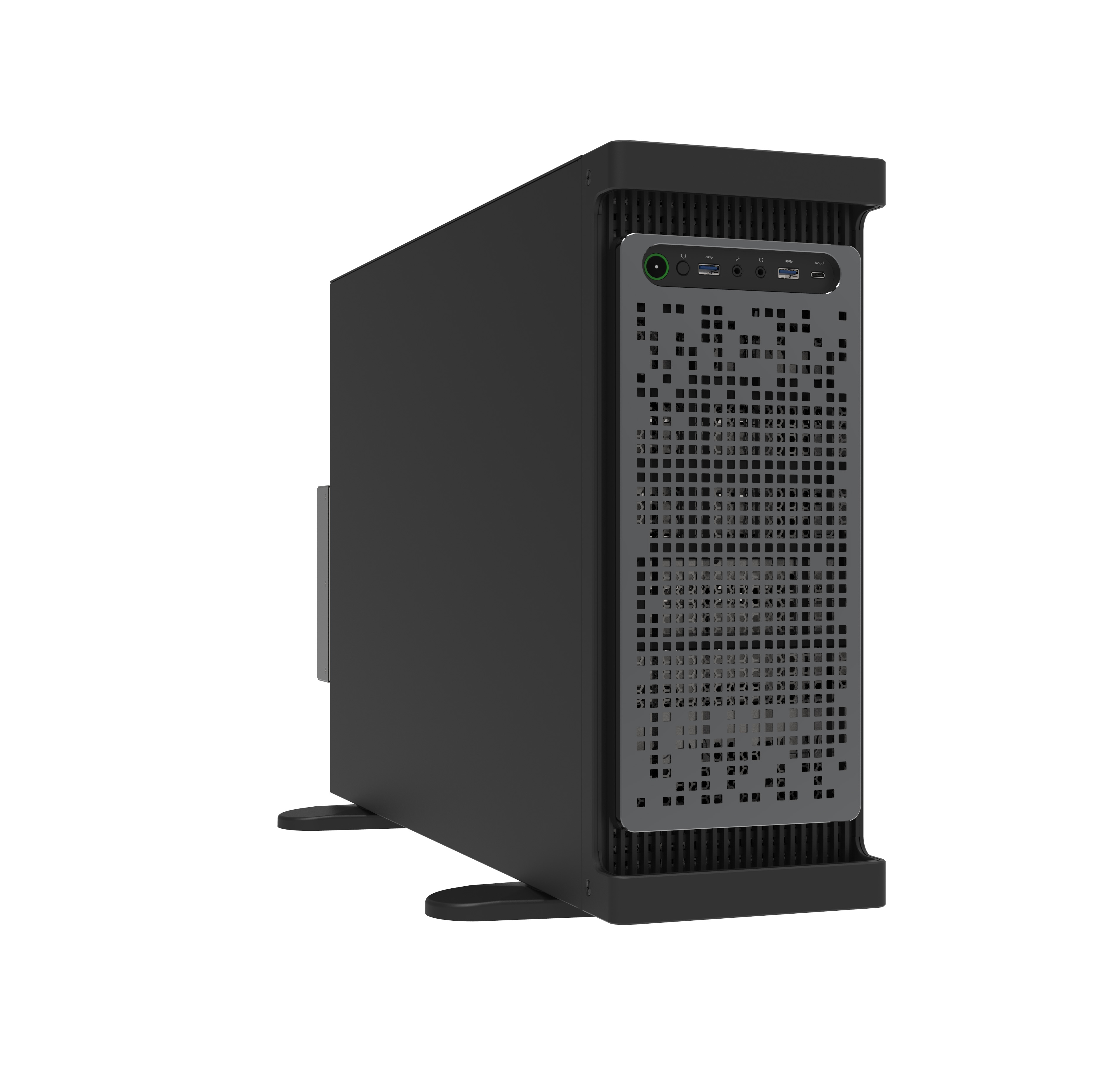

YRM-W5400A Series / Workstation Server Chassis
Compact convertible chassis , EEB motherboard support, and enterprise cooling for HPC and industrial workloads.
Key Applications
• Versatile Workstation
• High-Performance Computing
• Industrial and Enterprise Solutions
Key Applications
• Versatile Workstation
• High-Performance Computing
• Industrial and Enterprise Solutions
Instructions

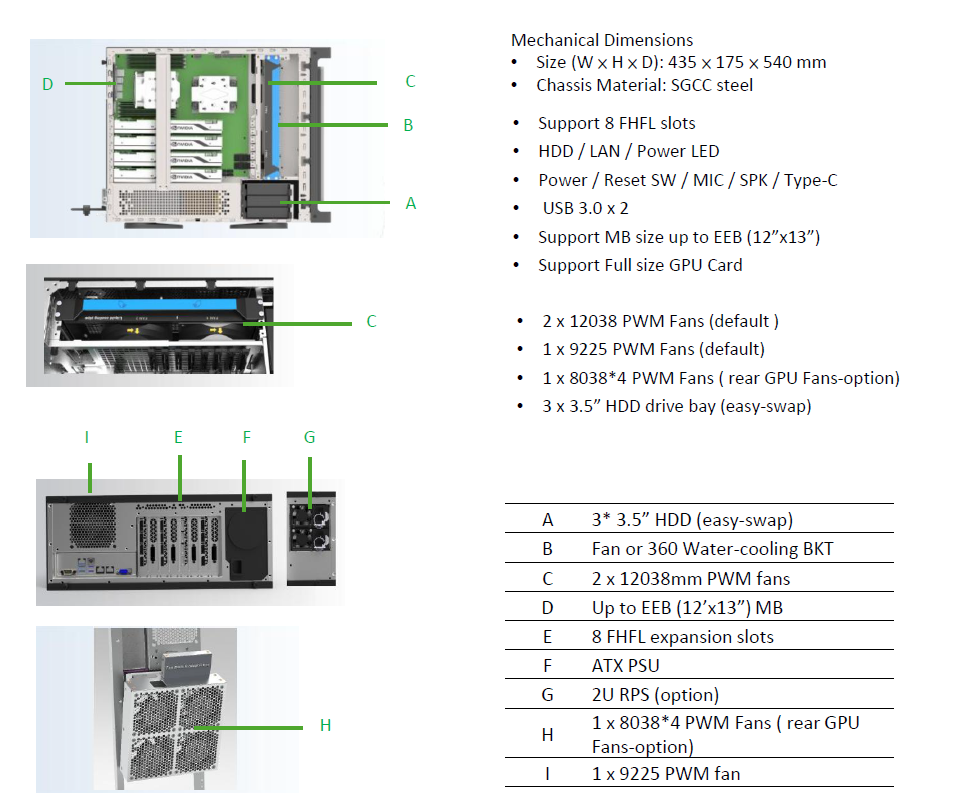

he YRM‑W5400A chassis supports EEB motherboards, three hot‑swap 3.5” HDDs, and full‑size GPUs. With advanced cooling and modular PSU options, it ensures reliability for enterprise computing.
.png)
specification
Tech Spec
| Model Name | YRM-W5400A0 |
| Material | SGCC with Coating (black) |
| M/B Form Factor | EEB(12"*13") / CEB(12"*10.5") / ATX(12"*9.5") |
| Dimension (D x W x H) | L540 × W435 × H175 mm |
| Drive Bay | 3* 3.5” HDD (easy-swap) |
| Storage Backplane | N.A |
| PSU Form Factor | ATX (option for 2U RPS) |
| Indicators | PWR_LED*1. HDD_LED*1, NIC_LED*2 |
| Front Control | USB3.0*2, PWR SW*1, Reset SW*1, MIC*1, SPK*1, Type-C*1 |
| Cooling Fans |
- internal: 12038mm Fan*2 (default ) - Front: 9225mm Fan*1 (default ) - Rear: 9225mm Fan*1 (default ) - Rear: 1x 8038*4 Fan( rear GPU fan for option) |
| Expansion Slot | 8 FHFL slots |
| Supported Rack Mount Kit | YES (option) |
