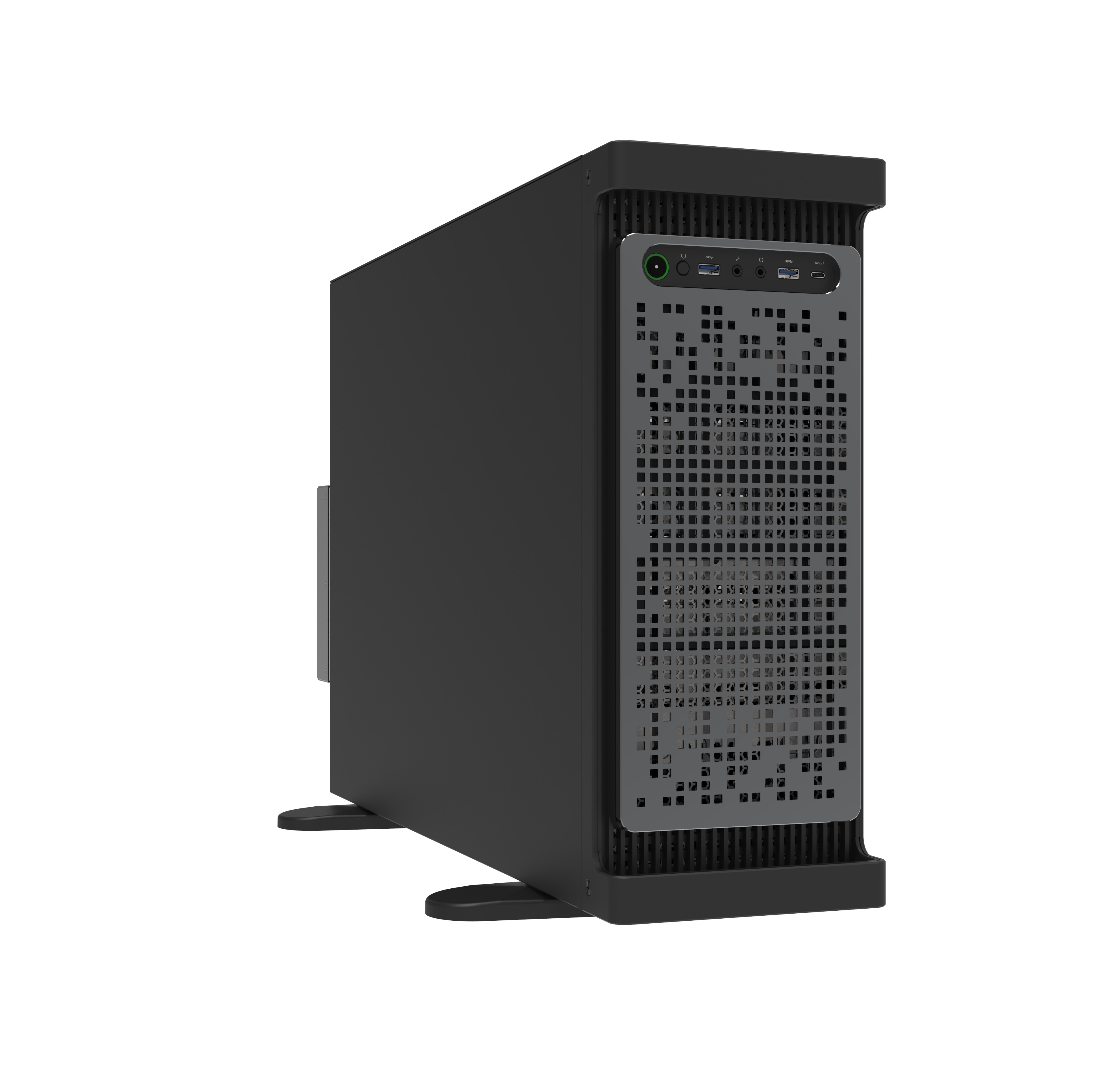

YRM-W6300A Series / Workstation Server Chassis
Key Applications
• Versatile Workstation
• High-Performance Computing
• Industrial and Enterprise Solutions
• Versatile Workstation
• High-Performance Computing
• Industrial and Enterprise Solutions
Instructions

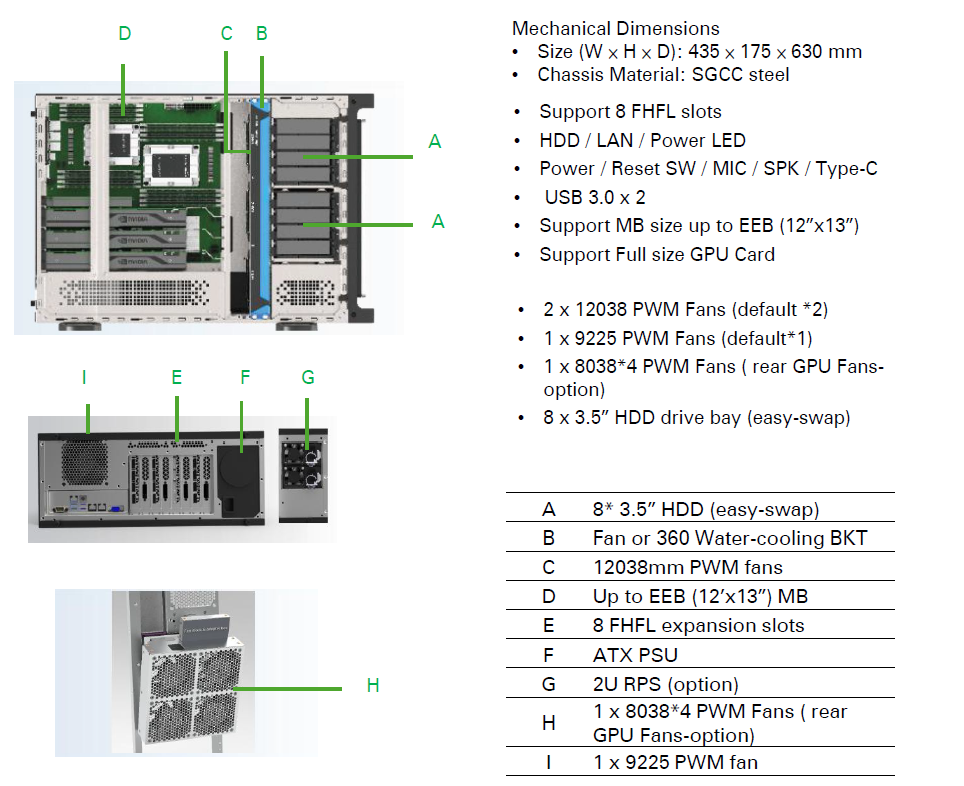

The YRM‑W6300A chassis supports EEB motherboards, eight easy-swap 3.5” HDDs, and full‑size GPUs. With advanced cooling and modular PSU options, it ensures reliability for enterprise computing.
.png)
specification
Tech Spec
| Model Name | YRM-W6300A0 |
| Material | SGCC with Coating (black) |
| M/B Form Factor | EEB(12"*13") / CEB(12"*10.5") / ATX(12"*9.5") |
| Dimension (D x W x H) | L630 × W435 × H175 mm |
| Drive Bay | 8* 3.5” HDD (easy-swap) |
| Storage Backplane | N.A |
| PSU Form Factor | ATX (option for 2U RPS) |
| Indicators | Power LED *1，HDD LED *1 ，LAN LED*2 |
| Front Control | Reset*1，Power*1 , USB3.0*2，MIC*1，SPK*1，Type-C*1 |
| Cooling Fans |
- front: 9225mm Fan*1 (default) - internal: 12038mm Fan*3 (default) - Rear: 1 x 8038*4 PWM Fans ( rear GPU Fans-option) |
| Expansion Slot | 8 FHFL slots |
| Supported Rack Mount Kit | YES (option) |
