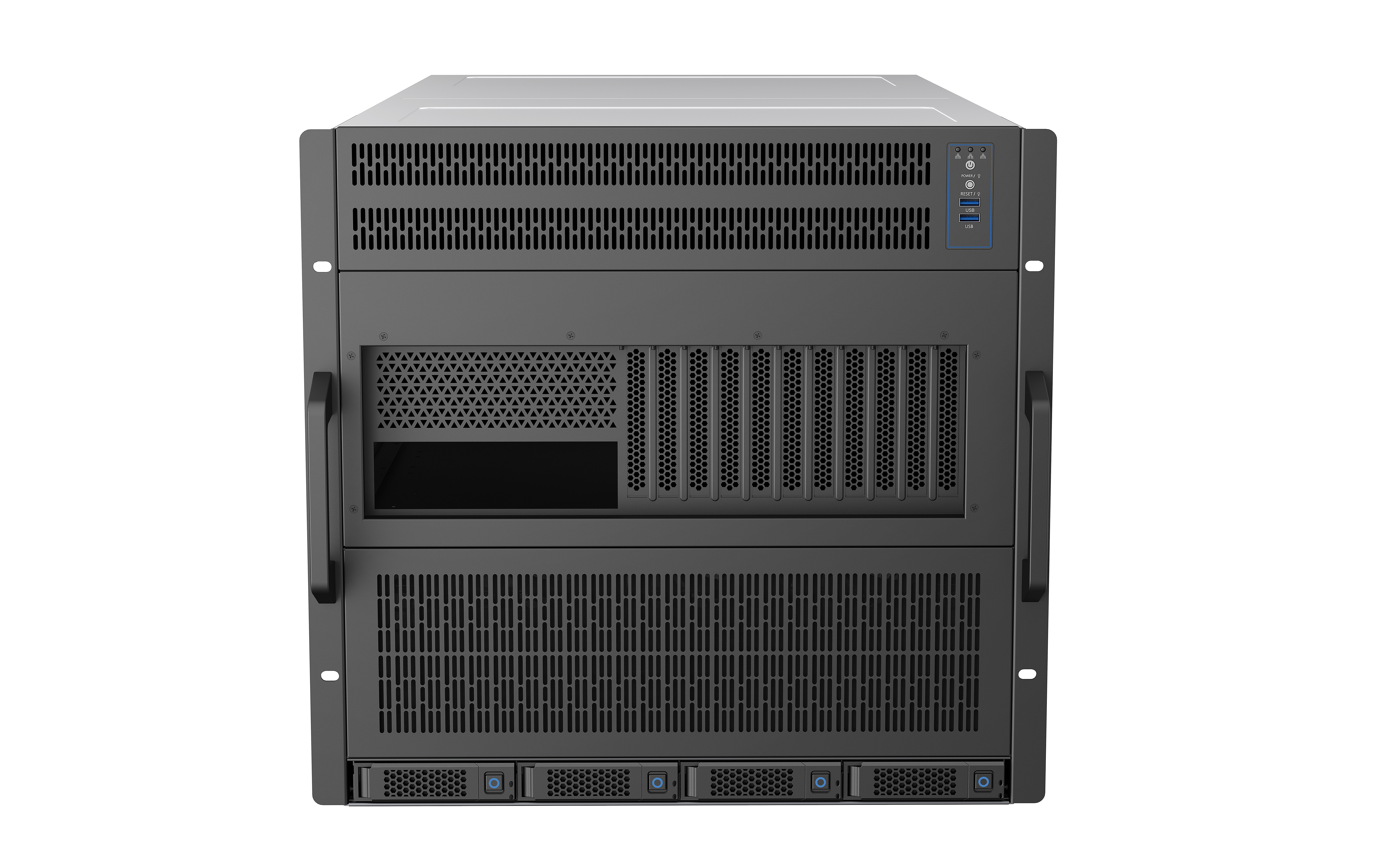

YRM-X8504A / 10U AI Chassis (2025)
Features & Benefits
• Supports 4-bay 3.5" HDD (Compatible 2.5")
• Supports 10 x Double - wide Graphic Cards
• Proprietary 16.53' x 13.79' MB
• Supports up to 12 x 120mm hot-swap fans
• Supports 4-bay 3.5" HDD (Compatible 2.5")
• Supports 10 x Double - wide Graphic Cards
• Proprietary 16.53' x 13.79' MB
• Supports up to 12 x 120mm hot-swap fans
Instructions
YCCCASE’s 10U AI chassis supports 10 double-wide GPUs, CRPS 4+1 power, 21(Rear)+11 (front) PCIe slots, 4x hot-swap HDDs, and dual USB 3.0 ports. Built with 1.2mm SGCC for AI inference Chassis.
specification
| Dimensions | L850 × W437.6 × H440 mm |
| Case Colors | Black |
| Material | 1.2 mm SGCC |
| Drive Bay & HDD Slot | 4 x 2.5” / 3.5” |
| GPUs Backplane | 10 double-wide turbo GPU cards (270mm) |
| HDD hot-swap Backplane | 4 ports 12Gb/s SATA/SAS hot-swap 3.5' HDD backplane |
| Motherboard Support | 16.53” x 13.79” |
| Power Supply Support | CRPS 4+1 |
| Panel Controls | Reset Button × 1 |
| Power Switch × 1 | |
| Panel LEDs | Power LED × 1 |
| HDD LED × 1 | |
| NIC LED × 2 | |
| Panel Interfaces | USB 3.0 × 2 |
| Expansion Slots | Rear: 21 x PCIe Slots. Front: 11 PCIe Slots. |
| Cooling System | Internal 6x 12038 fans. |
| Rear 6 x 12038 fans |
