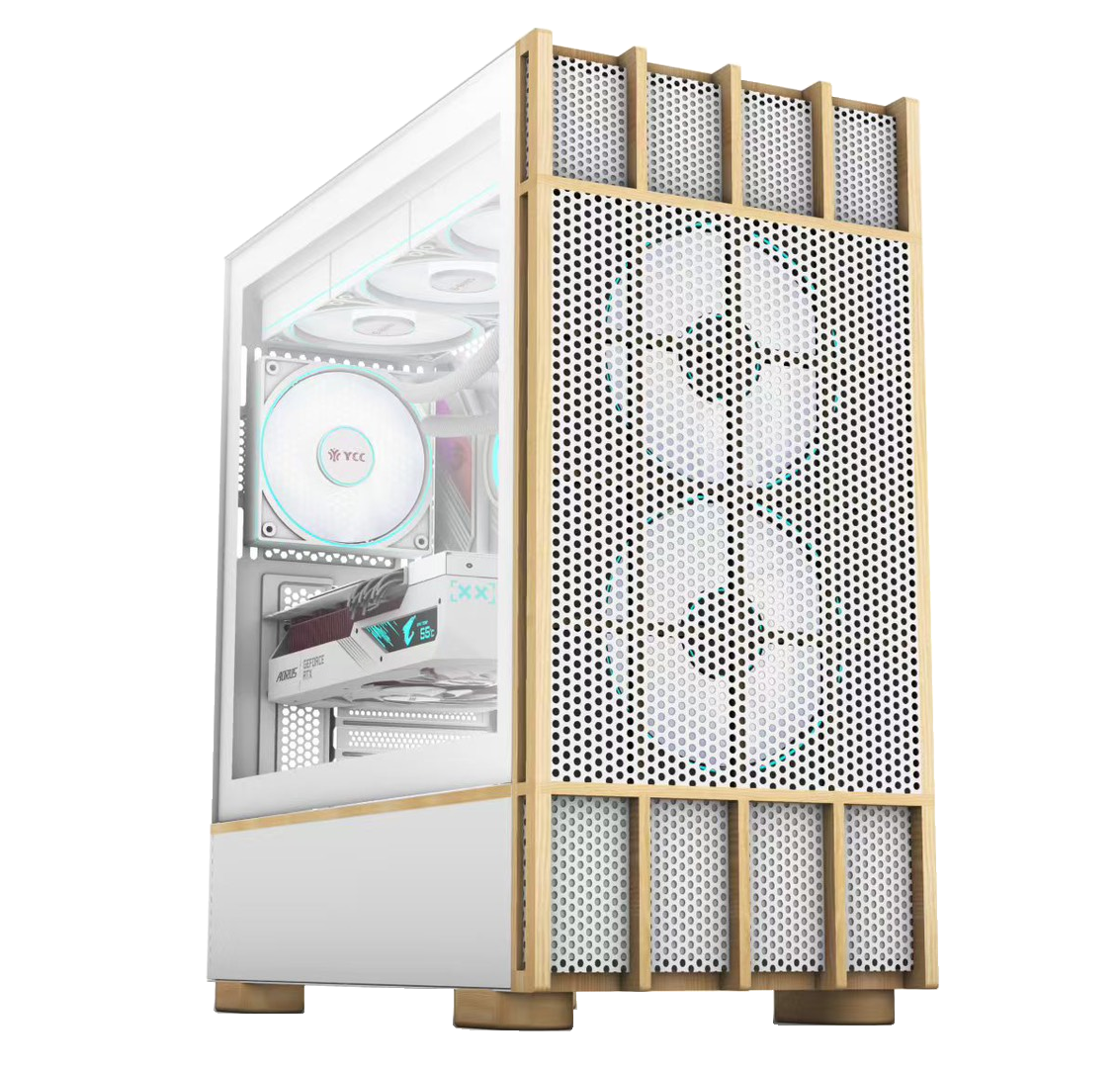

Experience exceptional mid-tower case functionality& artistic craftsmanship
Enhanced aesthetics with a sleek perforated front panel and a minimalist white finish.
Wooden accents, including the frame and foot pads, elegance and uniqueness to the design.

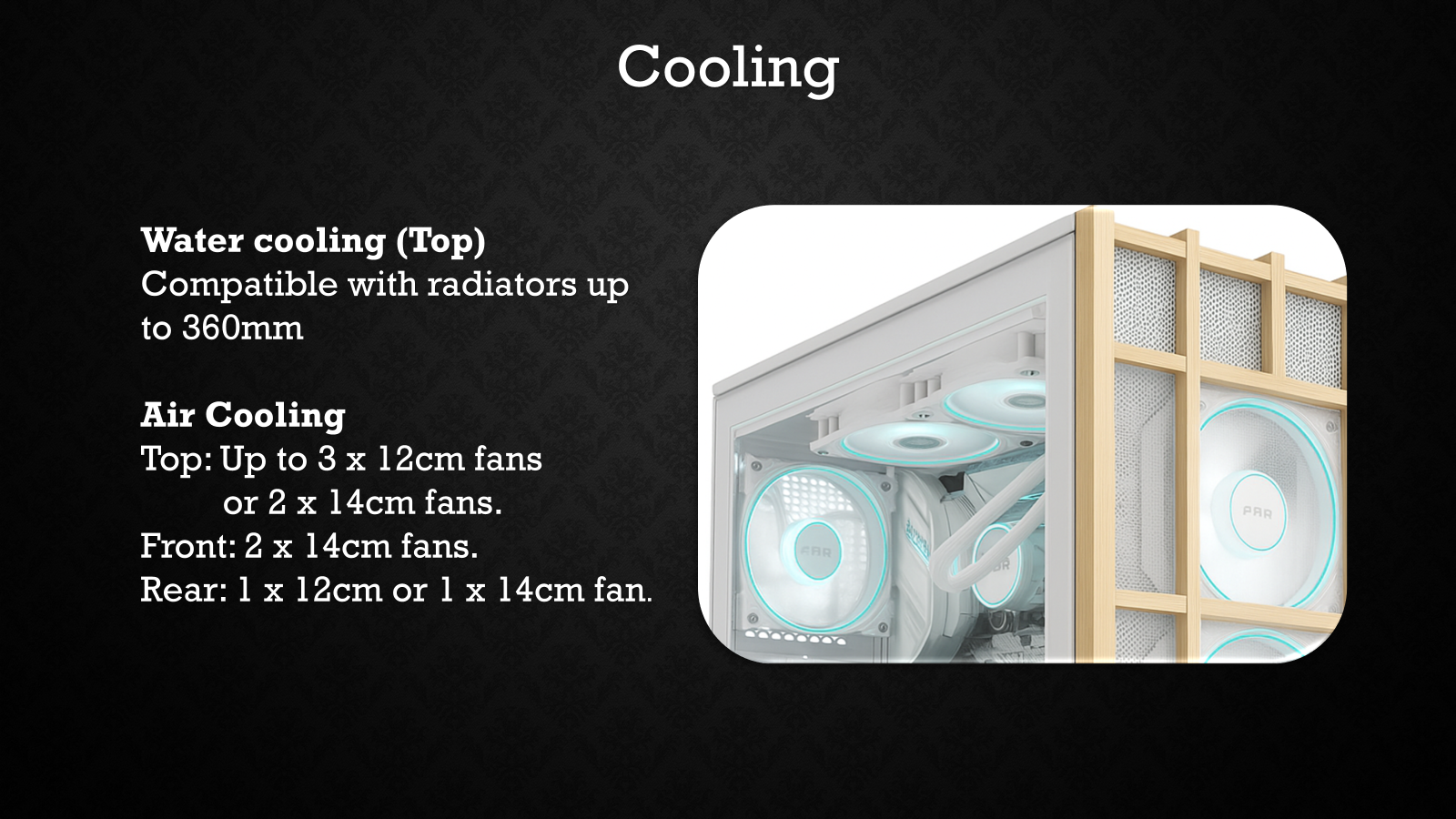

Air Cooling: Supports up to 8 fans, including configurations for 120mm and 140mm fans across top, front, rear, and bottom panels.
Water Cooling: Compatible with radiators up to 360mm, enabling efficient thermal management for demanding builds.
Spacious interior tailored to fit ATX, Micro-ATX, and Mini-ITX motherboards.
Accommodates GPUs up to 400mm in length and CPU coolers up to 185mm in height.
Dedicated mounting points for two 3.5" HDDs and two 2.5" SSDs, offering versatile storage options.
Designated spaces for cable management and cooling installations simplify assembly.
Features two USB Type-A ports, one USB Type-C port, and a 3.5mm audio jack, ensuring easy access to peripherals.
|
Front Panel(color) |
Item Code |
|
Mesh (white) |
YCH-2520W |
|
Glass (white) |
YCH-2520G |
.png)
.png)
.png)
|
Technical Data |
|
|
Case Size |
Mid-tower |
|
Motherboard Compatibility |
ATX、M-ATX、Mini-ITX |
|
Case Height |
19.7 inches (500 mm) |
|
Case Length |
18.5 inches (470 mm) |
|
Case Width |
9.4 inches (238 mm |
|
Color |
Black, White |
|
Weight |
|
|
Radiator Compatibility |
Top : Up to 360 mm / 280mm / 240mm |
|
Maximum GPU Length |
400 mm (all RTX 40, 50) |
|
Maximum CPU Cooler Height |
185 mm |
|
Maximum PSU Length |
160 mm (front mount) |
|
Compatible Liquid Coolers |
Supports custom water-cooling setups |
|
Case Expansion Slots |
7 |
|
Case Drive Bays |
2x 3.5“ or 2x 2.5" |
|
Case Front IO |
1x USB 3.1 Type-C, 2x USB 3.0, Audio in/out, power & Reset Buttons |
|
Case Window |
Tempered glass |
|
Case Warranty |
|
|
Internal 3.5" Drive Bays |
2 |
|
Internal 2.5" Drive Bays |
2 |
|
Case Power Supply |
ATX PSU (not included) |
