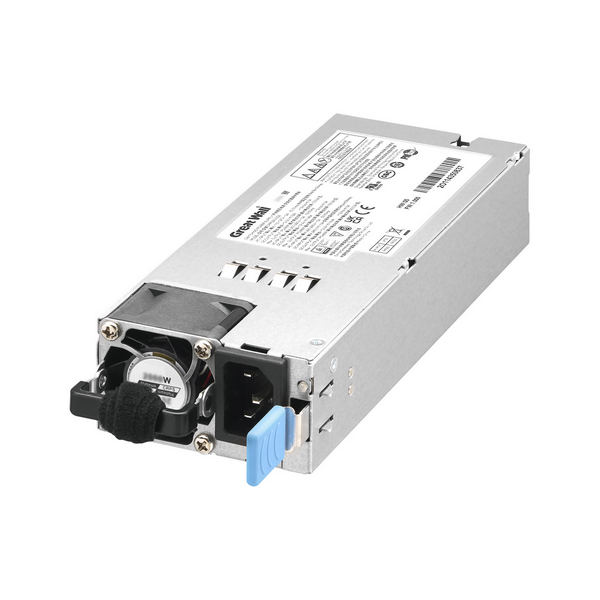

CRPS 2000W Platinum (L185)

The CRPS2000D2 2000W CRPS power module offers high-efficiency, 80Plus Platinum as 1U high-density designs, it's also featuring redundancy options for N+1 / N+M configurations with PMBus communication
Dimension: 73.5(W) x 185(L) x 40 (H)

Instructions
specification

Instructions

FEATURE

Meets 80Plus Platinum Certification
Compact 1U Design
Cold Redundancy
Hot-Pluggable Capability
Ultra-High Power Density
N+M and N+1 Redundancy
Active Current Sharing
PMBus Compliance
Active Power Factor Correction

specification

Input / Output Specification

WATT	MODEL	INPUT		OUTPUT
		Voltage	Current
				Max Output Power	+12.2V	+12VSB
2000W	CRPS2000D2	100-127Vac	12A Max	1000W	82A (100-127Vac)	3A
		200-220Vac	10A Max	1800W	148A (200-220Vac)
		220-240Vac	10A Max	2000W	164A (220-240Vac)
		240Vdc	9.5A Max	2000W	164A (240Vdc)

General Specification

• Efficiency: 94% @ 50% Load

• Hold up time: 10ms

• MTBF: 200k hours at 55 oC by Tlecordia

• Operating Temperature: 0- 55 ^oC

• Operating Himudity: To 85% (non-condesing)

• Altitude: 5000M (16404 ft)

Safety & EMC/EMI Specification

• FCC/CE class A ; EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
• IIEC/EN 60950-1; IEC/EN/UL: 62368-1; GB4943.1; UL&cUL, TUV, CQC, UKCA, IRAM
