PRODUCTS YCC Redundant PSU

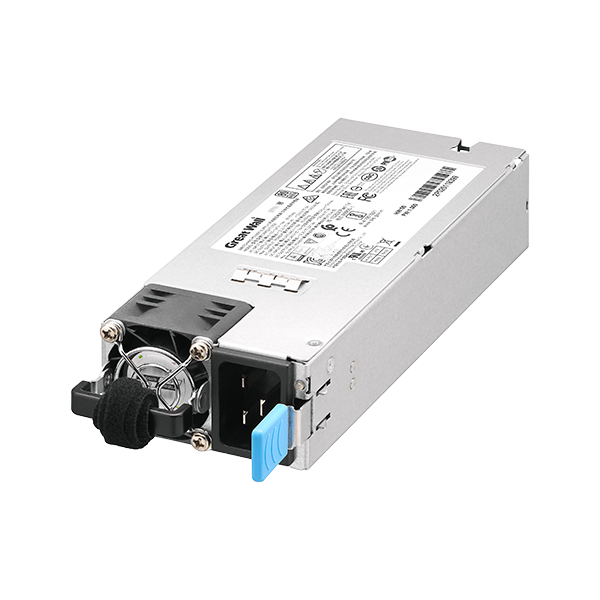

CRPS 2400W Platinum (L185)

The CRPS2400D2 power models offers high-efficiency, 80Plus Platinum, CRPS form factor as 1U high-density designs, it's also featuring redundancy options for N+1 / N+M configurations with PMBus communication.

Instructions
specification

Instructions

FEATURE

Meets 80Plus Platinum Certification
Compact 1U Design
Cold Redundancy
Hot-Pluggable Capability
Ultra-High Power Density
N+M and N+1 Redundancy
Active Current Sharing
PMBus Compliance
Active Power Factor Correction

specification

Input / Output Specification

WATT	MODEL	INPUT		OUTPUT
		Voltage	Current	Maximum Load
				+12.2V	+12VSB
2400W	CRPS2400D2	100-127Vac	14A Max	91A (100-127Vac)	3A
		200-240Vac	16A Max	181A (180-200Vac)
				197A (200-264Vac)
		240Vdc	16A Max	197A (240Vdc)

General Specification

• Efficiency: 94% @ 50% Load

• Hold up time: 10ms

• MTBF: 200k hours at 55 oC by Tlecordia

• Operating Temperature: 0- 55 ^oC

• Operating Himudity: To 85% (non-condesing)

• Altitude: 5000M (16404 ft)

Safety & EMC/EMI Specification

• FCC/CE class A ; EN61000-3-2, EN61000-4-2,3,4,5,6,8,11
• IEC/EN 60950-1; IEC/EN/UL: 62368-1; GB4943.1; UL&cUL, TUV, CQC, UKCA, IRAM
