CTT 1350W Titanium ATX3.1

Feature
Meet 80Plus Titanium
Design with Digital Active PFC
135mm FDB Fan ensures low noise operation
Excellent Regulated Outputs Voltage (± 3%)
Smart Fan Speed Control with Fan Stop/Start

Instructions
specification

Instructions

CTT1350V-T 1350W supports to 80Plus Titanium Power supply, ATX 3.1, PCIe 5.1, support GeForce RTX 5000 Series, Fully Modular for Gaming PC Desktops.

specification

Input Rating		DC output Rating
• Input Voltage : 100 - 240V • Input Current : 15A Max. • Input Frequency : 50 - 60 Hz		• 12V : 112.5 A (1350W) • 5Vsb : 3 A (15W) • 3.3V & 5V : 22 A (120W) • -12V : 0.3 A (3.6W) • Total Output Power: 1350W
Power Efficiency		Protections
• 80Plus Efficiency: Titanium • 2% Loading: 60% @ 115V • 10% Loading: 90% • 20% Lo ading: 92% @ 115V • 50% Loading: 94% @ 115V • 100% Loading: 90% @ 115V		• OVP (Overvoltage Protection) • OCP (Overcurrent Protection) • SCP (Short Circuit Protection) • OTP (Over Temperature Protection) • OPP (Overpower Protection)
Operation
• Operating Temperature: 0 - 50 °C • MTBF : 100,000 hours

Dimension：150(W)x180(L)x86(H)mm

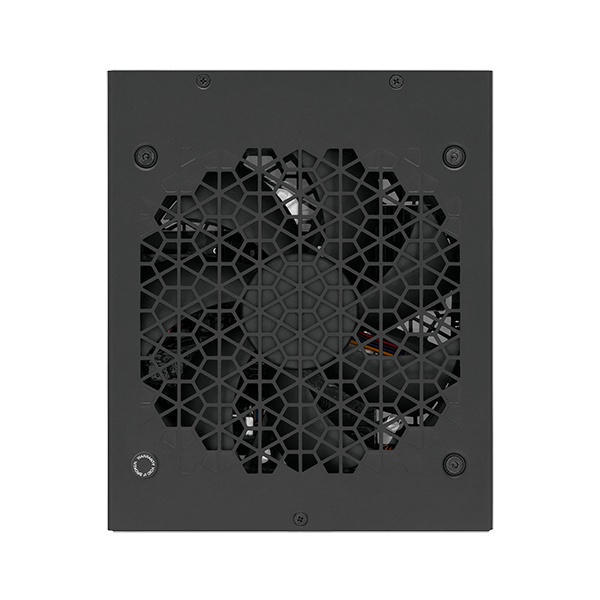

135mm Cooling Fan / Fan Stop swtich: Zero / Low / High Speed


Datasheet

Back to the list

Input Rating

DC output Rating

• Input Voltage : 100 - 240V

• Input Current : 15A Max.

• Input Frequency : 50 - 60 Hz

• 12V : 112.5 A (1350W)

• 5Vsb : 3 A (15W)

• 3.3V & 5V : 22 A (120W)

• -12V : 0.3 A (3.6W)

• Total Output Power: 1350W

Power Efficiency

Protections

• 80Plus Efficiency: Titanium

• 2% Loading: 60% @ 115V

• 10% Loading: 90%

• 20% Lo ading: 92% @ 115V

• 50% Loading: 94% @ 115V

• 100% Loading: 90% @ 115V

• OVP (Overvoltage Protection)

• OCP (Overcurrent Protection)

• SCP (Short Circuit Protection)

• OTP (Over Temperature Protection)

• OPP (Overpower Protection)

Operation

• Operating Temperature: 0 - 50 °C

• MTBF : 100,000 hours
