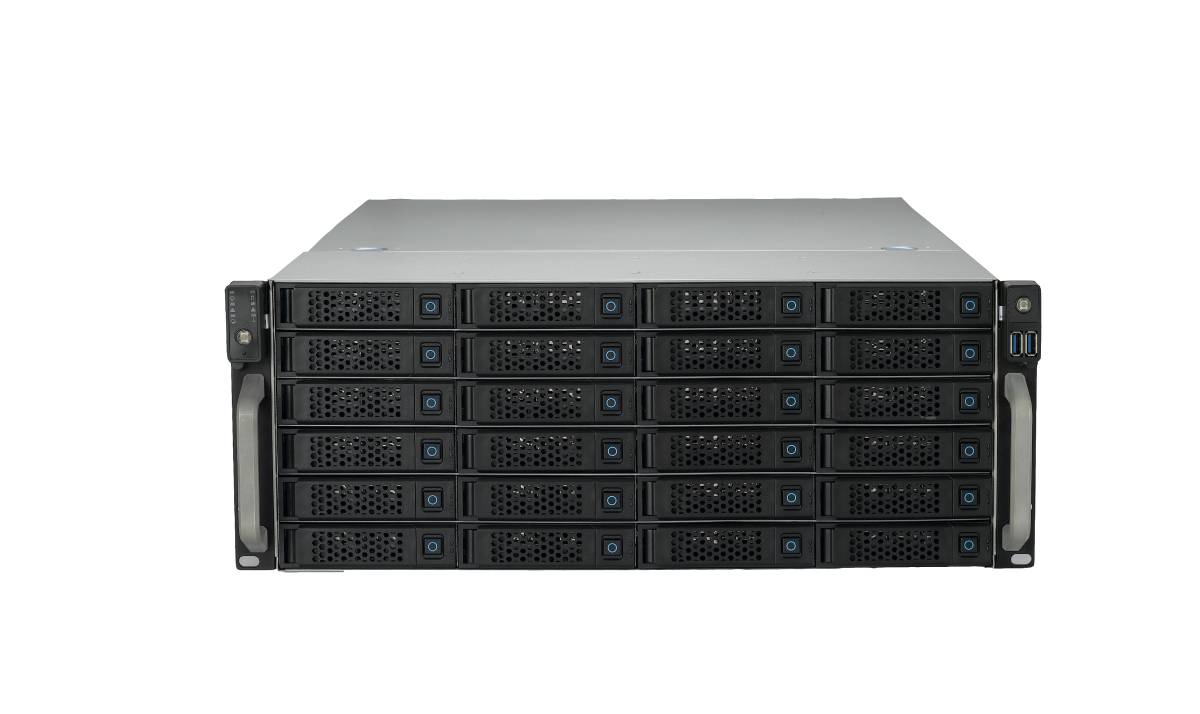

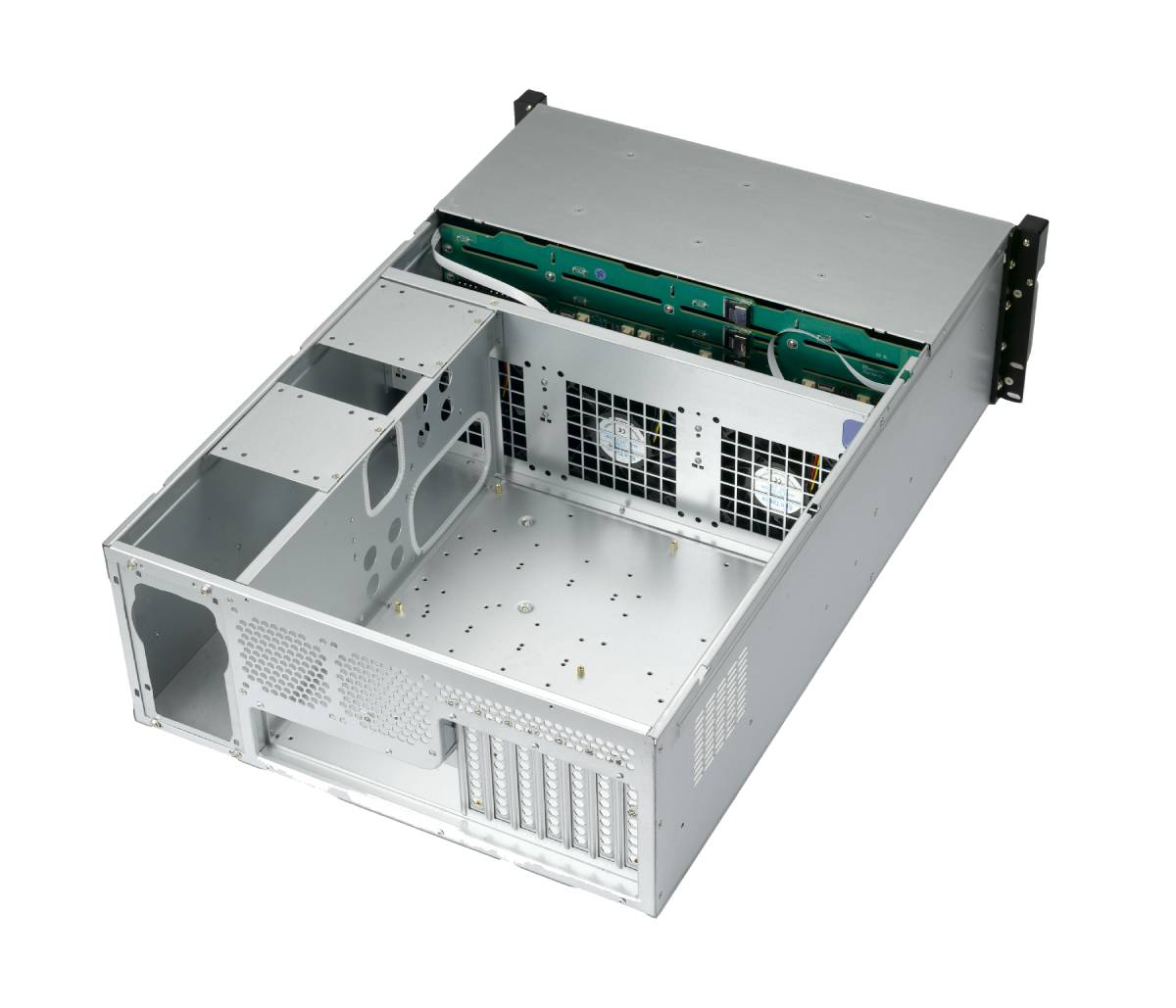

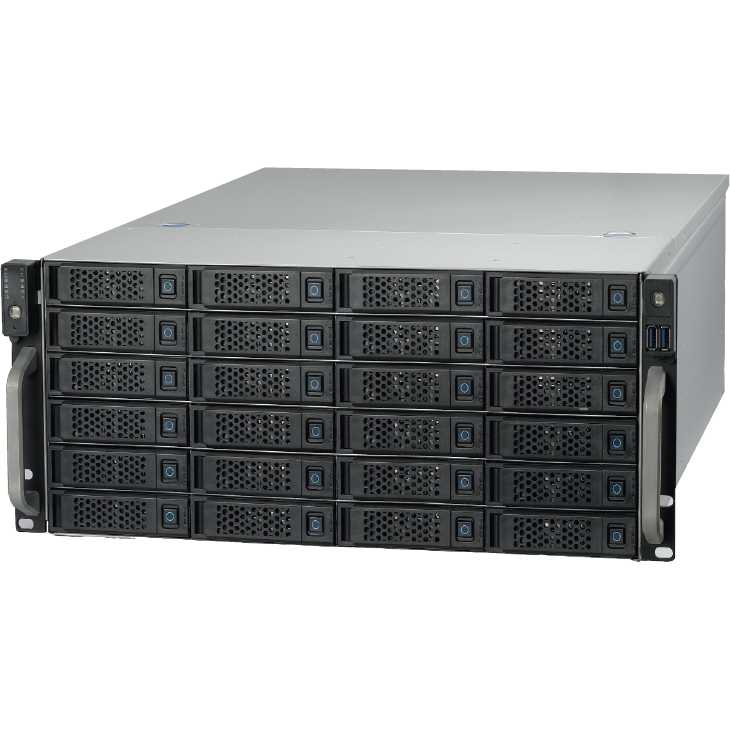

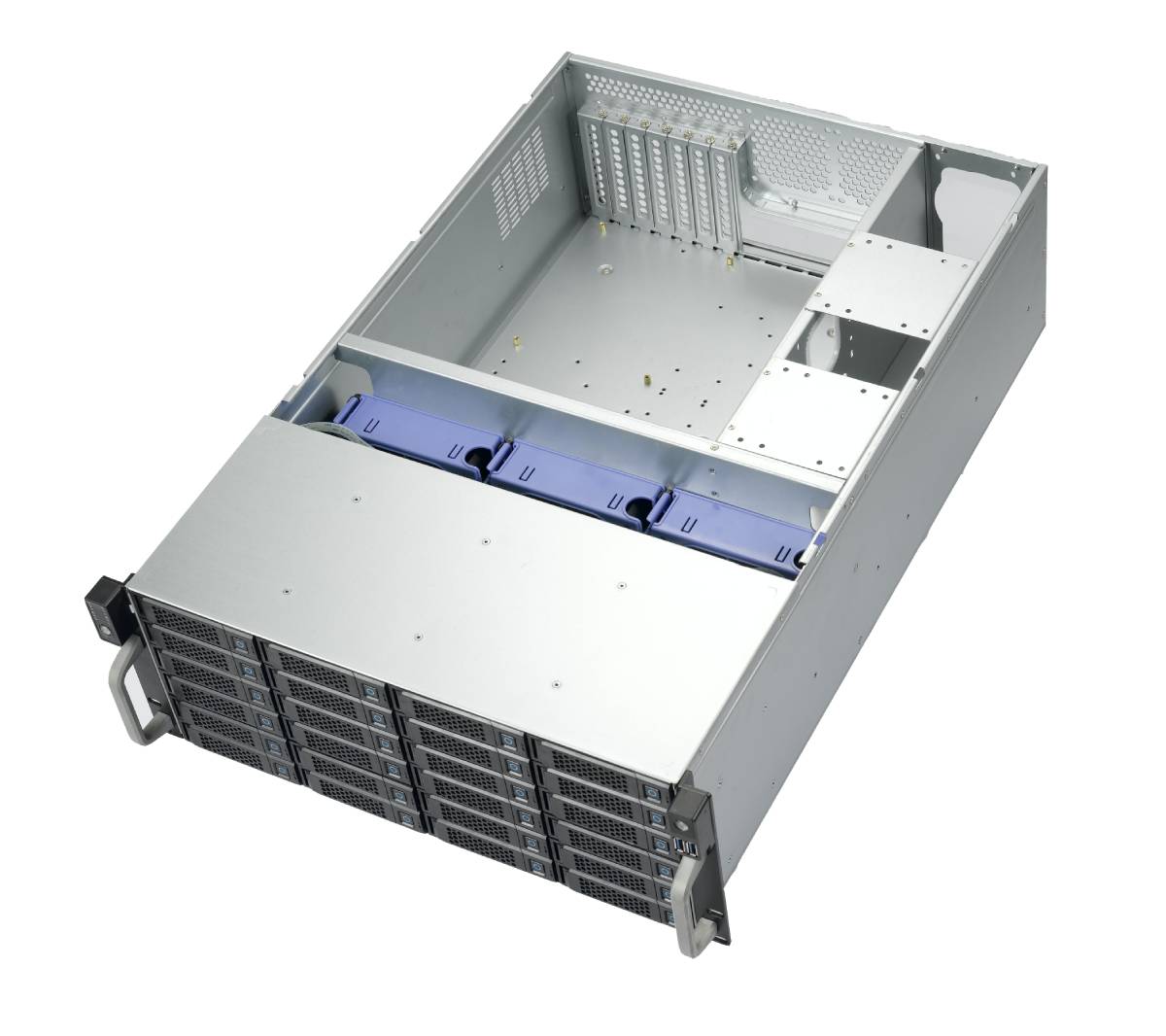

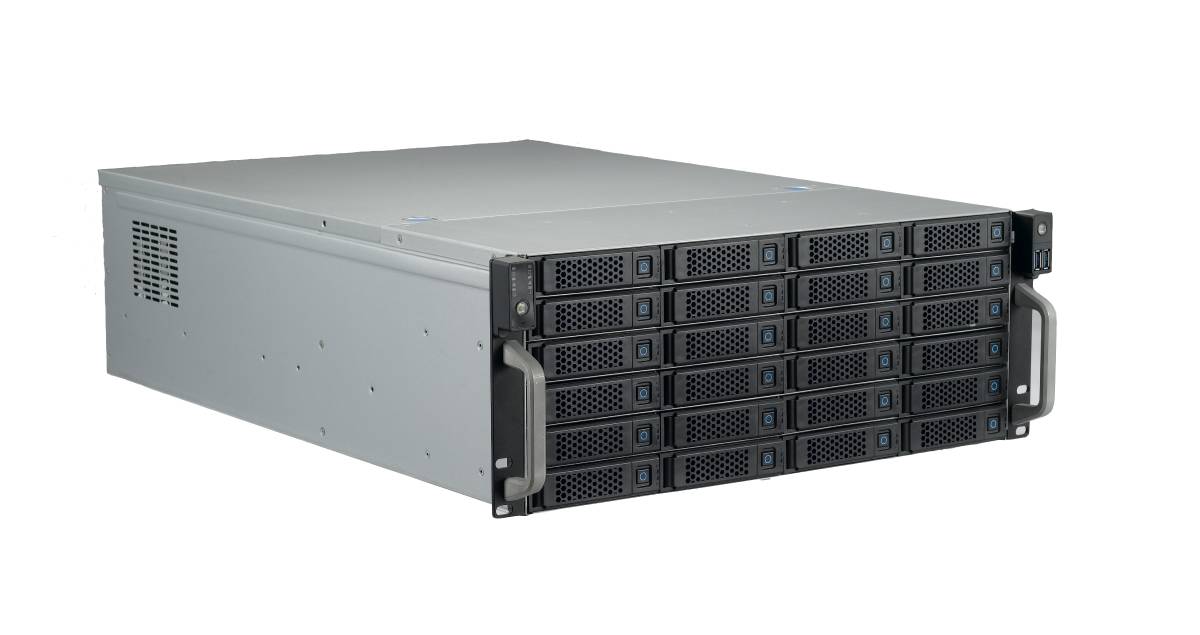

YCC-HS24
Instructions
specification
| Model Name | YCC-HS24 |
| Form Factor | 4U |
| Material | 1.0 mm SGCC |
| Motherboard | E-ATX (12" x 13") and below |
| Drive Bay(Internal) | 2.5" x 2 |
| Drive Bay(External) | hot-swap 3.5"/2.5" x 24 |
| Power Supply | ATX PS2, Mini-Redundant |
| Cooling system |
Middle: hot-swap 12cm fan x 3
Rear: 8cm fan x 4 |
| Expansion Slot |
11
|
| Front I/O Port | USB 3.0 x 2 |
| Indicators |
Power LED x 1 + HDD LED x 1 + LAN LED x 2 + Power Fail LED x 1 + OH/FAN Fail LED x 1 |
| Control lights Key | Power switch x 1 + Reset switch x1 + UID switch |
|
Dimension
|
650 x 431 x 176mm (D x W x H)
|
