PRODUCTS
Industrial Chassis

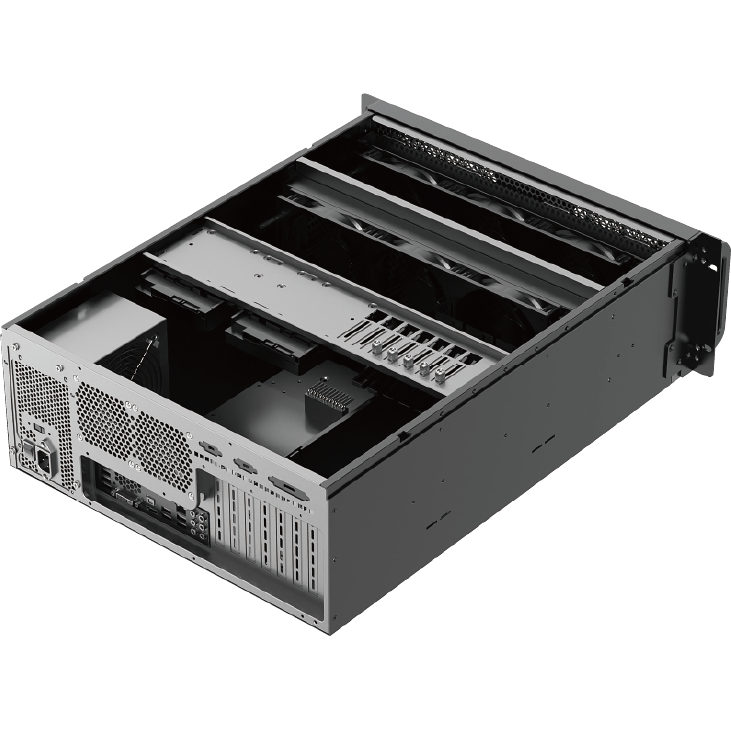

YCC-L6000
specification
| Model Name | YCC-L6000 |
| Form Factor | 4U |
| Material | 1.2 mm SGCC |
| Motherboard | E-ATX (12" x 13") and below |
| Drive Bay(Internal) |
3.5" x 2 (compatible with 2.5" x 3) 2.5" x 4 |
| Power Supply | ATX PS2, Mini-Redundant |
| Cooling system |
Front: 12cm fan x 3
Middle: 12cm fan x 3 Rear: 8cm fan x 2 |
| Radiator support |
Front: 360mm x 1 Middle: 360mm x 1 |
| Expansion Slot |
8
|
| Front I/O Port | USB2.0 x 1+USB3.0 x 1+Type-C x 1 |
| Indicators | Power LED x 1 + HDD LED x 1 + LAN LED x 3 |
| Control lights Key | Power switch x 1 + Reset switch x1 |
|
Dimension
|
600 x 438 x 177mm (D x W x H)
|
