Industrial Chassis

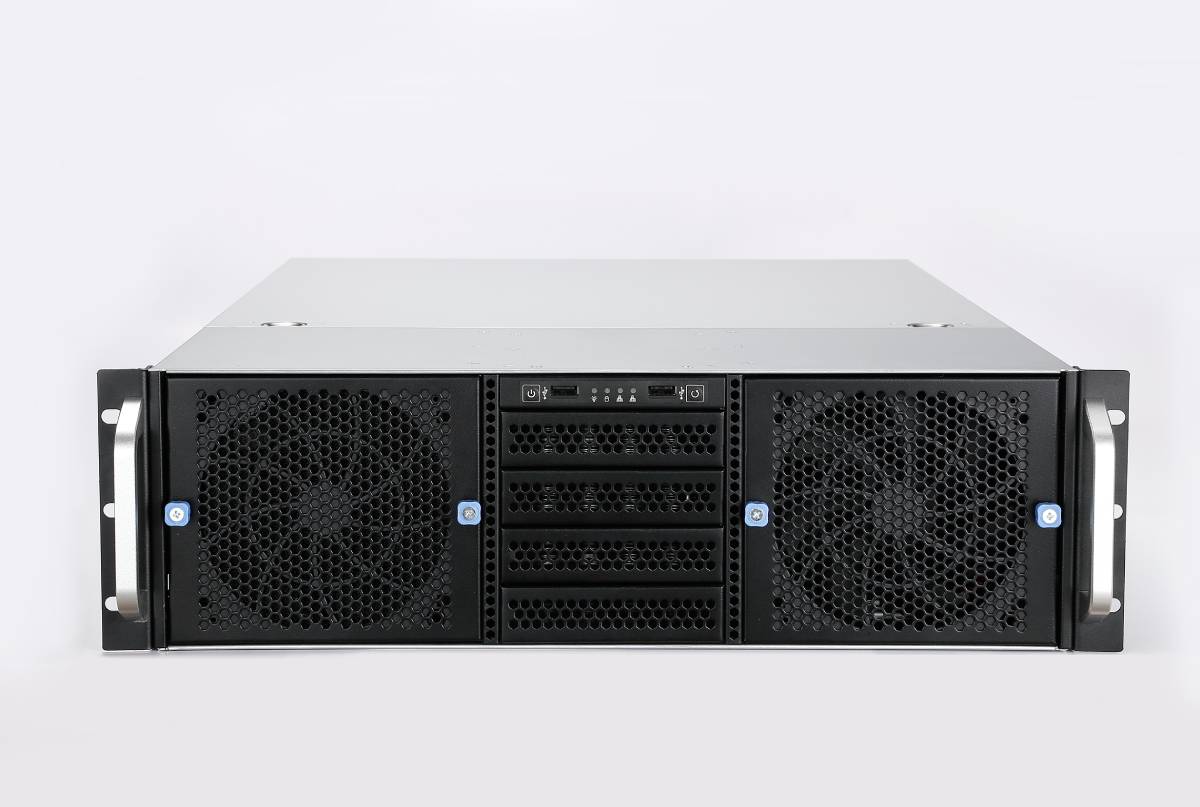

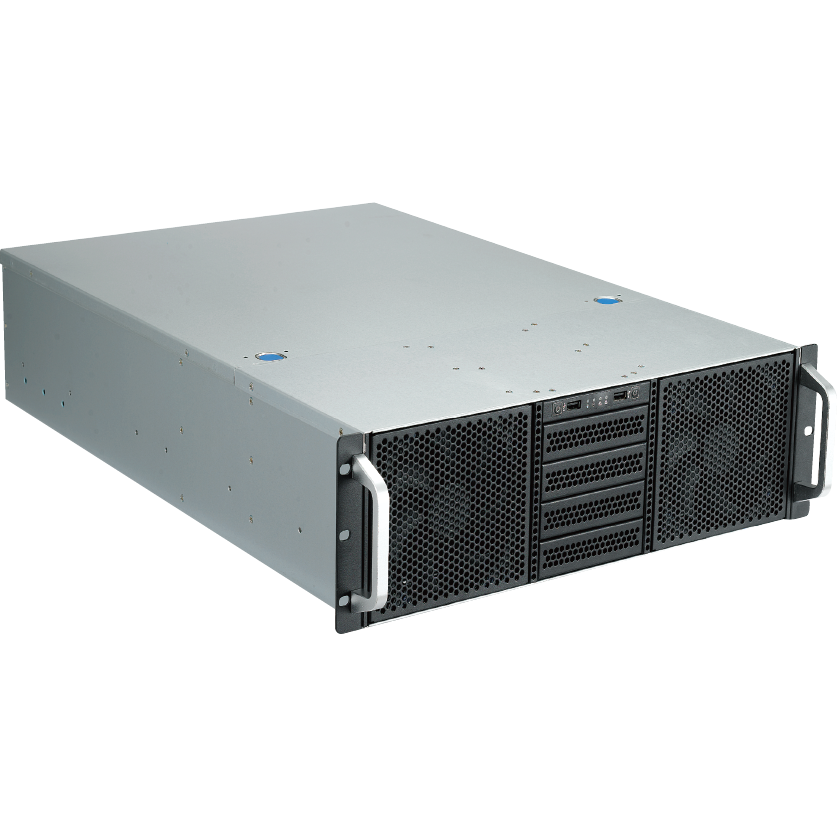

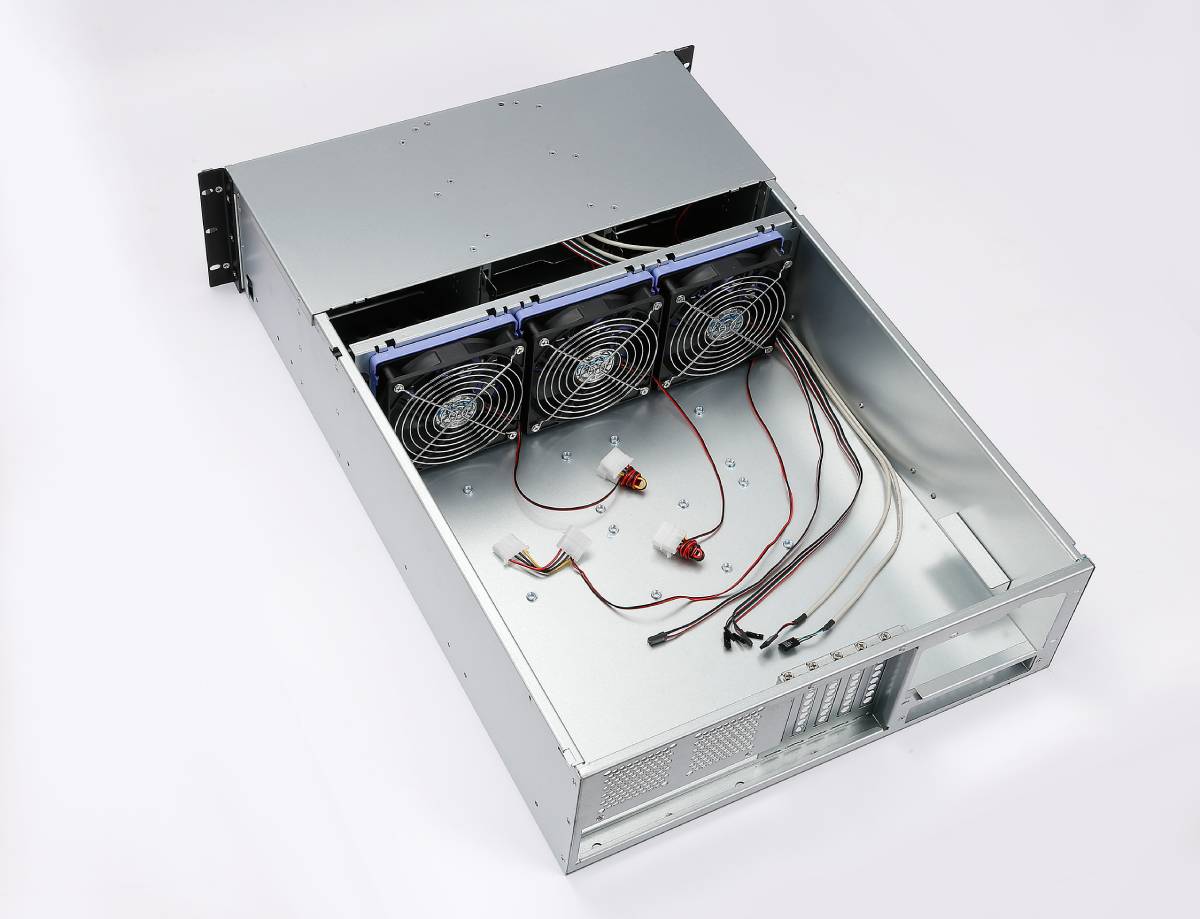

YCC-3650
Instructions
specification
| Model Name | YCC-3650 |
| Form Factor | 3U |
| Material | 1.0 mm SGCC |
| Motherboard | E-ATX (12" x 13") and below |
| Drive Bay(External) | 3.5" x 10 + 3.5" x 4 (compatible with 2.5" x 4) |
| Power Supply | ATX PS2 |
| Cooling system |
Front: 12cm fan x 2
Middle: 12cm fan x 3 Rear: 6cm fan x 2 |
| Expansion Slot |
5(vertical) + 1(horizontal)
|
| Front I/O Port | USB 2.0 x 2 |
| Indicators | Power LED x 1 + HDD LED x1 + LAN LED x 2 |
| Control lights Key | Power switch/LED x 1 + Reset switch/LED x1 |
|
Dimension
|
650 x 430 x 132mm (D x W x H)
|
