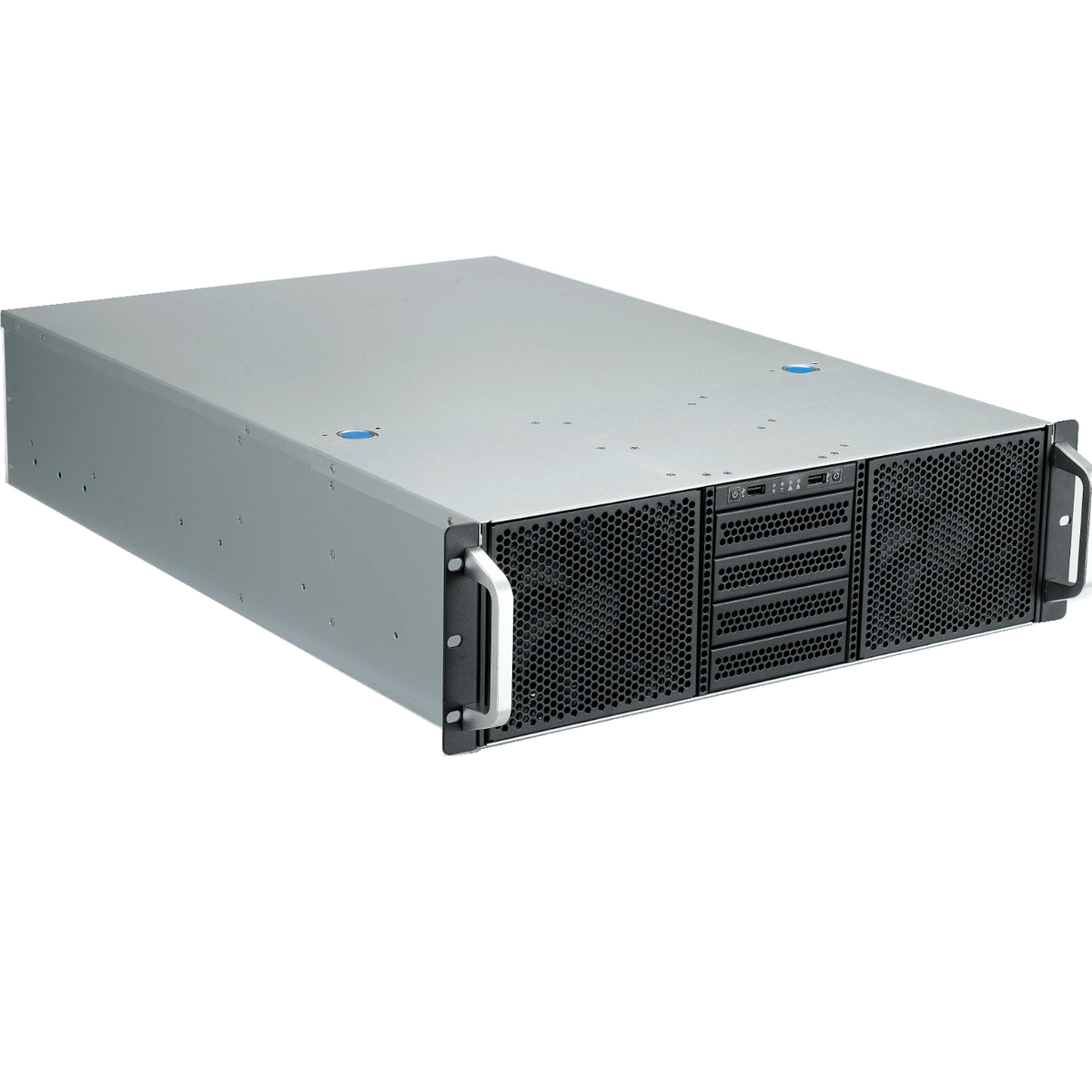

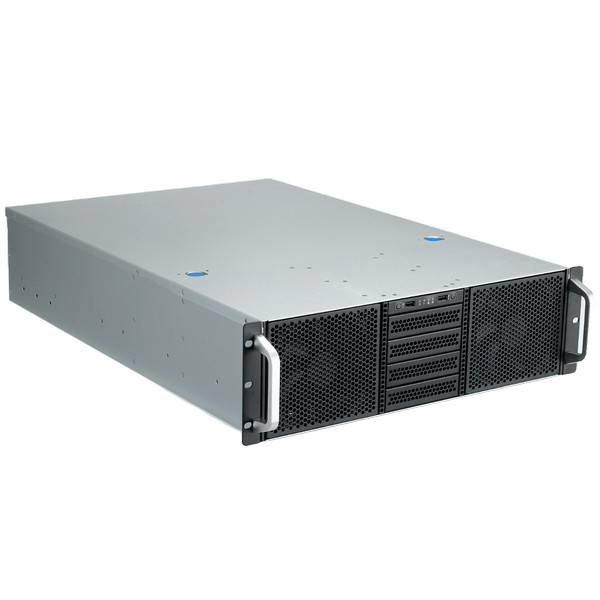

The 3U Industrial Chassis is compact and durable, offering versatile storage (upto 14 x 3.5” drives or 6 x 5.25” CD-ROM bays), efficient cooling (2x 12025 and 2x 6025 fans, optional for 3x 12025), and 7 PCIe slots. Ideal for server storage, IoT, and 5G networks, it ensures reliable performance for industrial and enterprise applications.
.png)

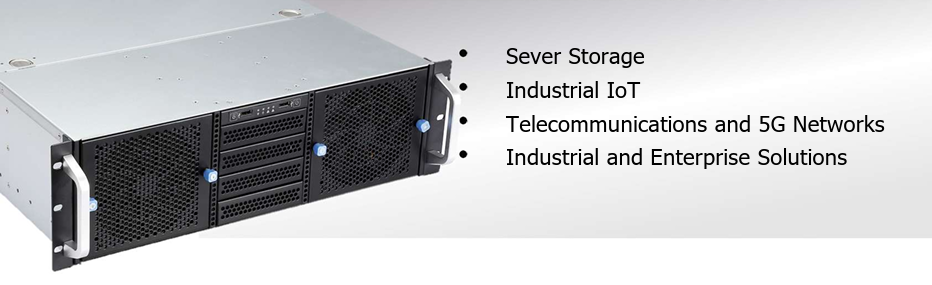

Key Application
• Server Storage
• Industrial IoT
• Telecommunications and 5G Networks
• Industrial and Enterprise Solutions
Technical Highlights
• Dimensions: Compact structure (L650 × W430 × H132mm) ensuring space efficiency.

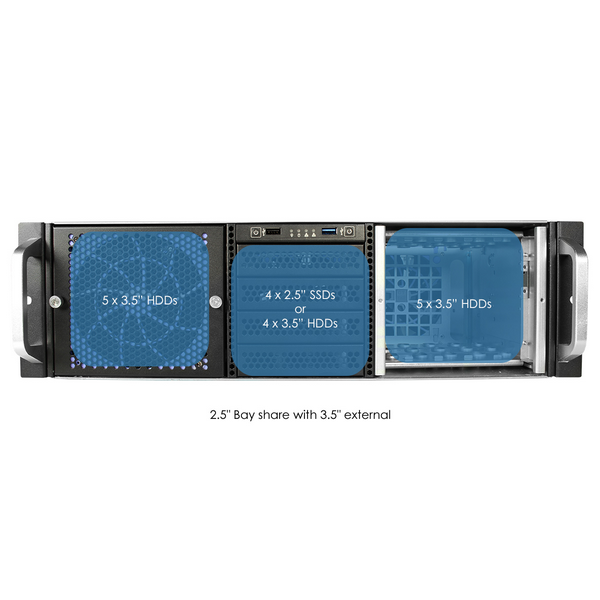

• Storage Capacity: Holds up to 14 x 3.5” drives and 6 x 5.25” CD-ROM bays.
• Motherboard & PSU Support: Compatible with 12" × 13" motherboards and ATX power supplies.

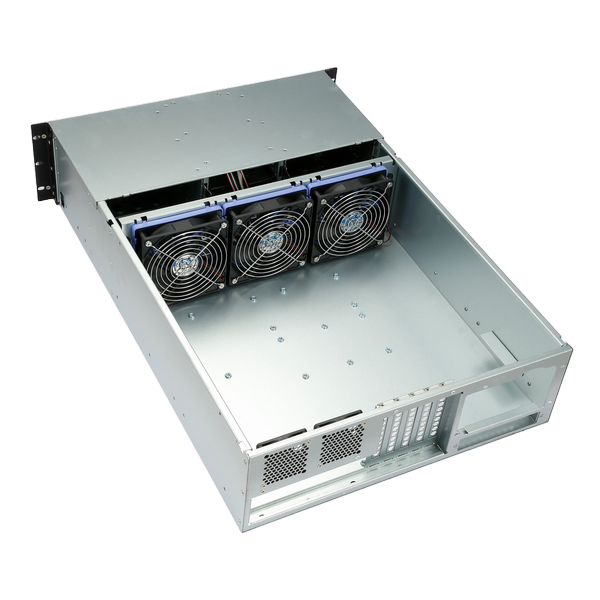

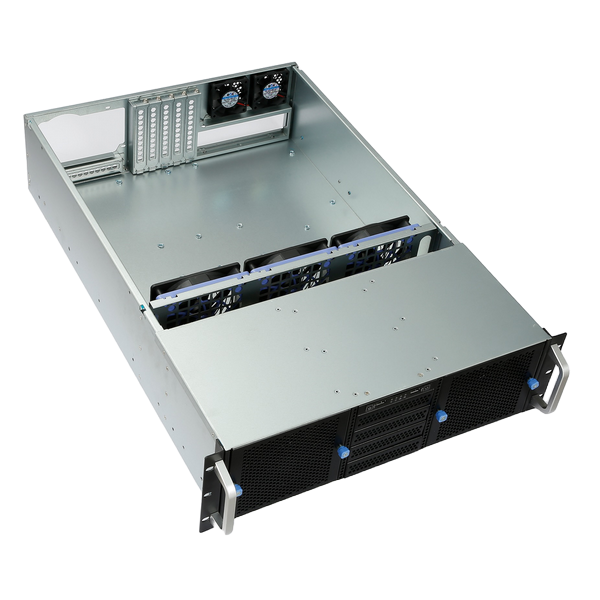

• Cooling System: Equipped with 2x 12025 and 2x 6025 fans for airflow.
• Expansion Options: Offers 7 PCIe slots for hardware configurations.
• Front Panel Features: Includes reset/power controls, LEDs (power, HDD), and USB 2.0 interfaces.
| Dimensions | L650 × W430 × H132mm |
| Case Colors | Black |
| Material | 1.0 mm SGCC |
| Drive Bay & HDD Slot | 14 x 3.5” / 6 x 5.25” CD-ROM |
| GPU / Hot-Swap Backplane | N.A |
| Motherboard Support | 12" × 13" |
| Power Supply Support | ATX |
| Panel Controls | Reset × 1、Power x14 |
| Panel LEDs | Power LED , HDD |
| Panel Interfaces | USB 2.0 × 2 |
| Expansion Slots | 5(vertical) + 1(horizontal) |
| Cooling System | 2x 12025 fans、 2x 6025 fans |
|
Datasheet |
