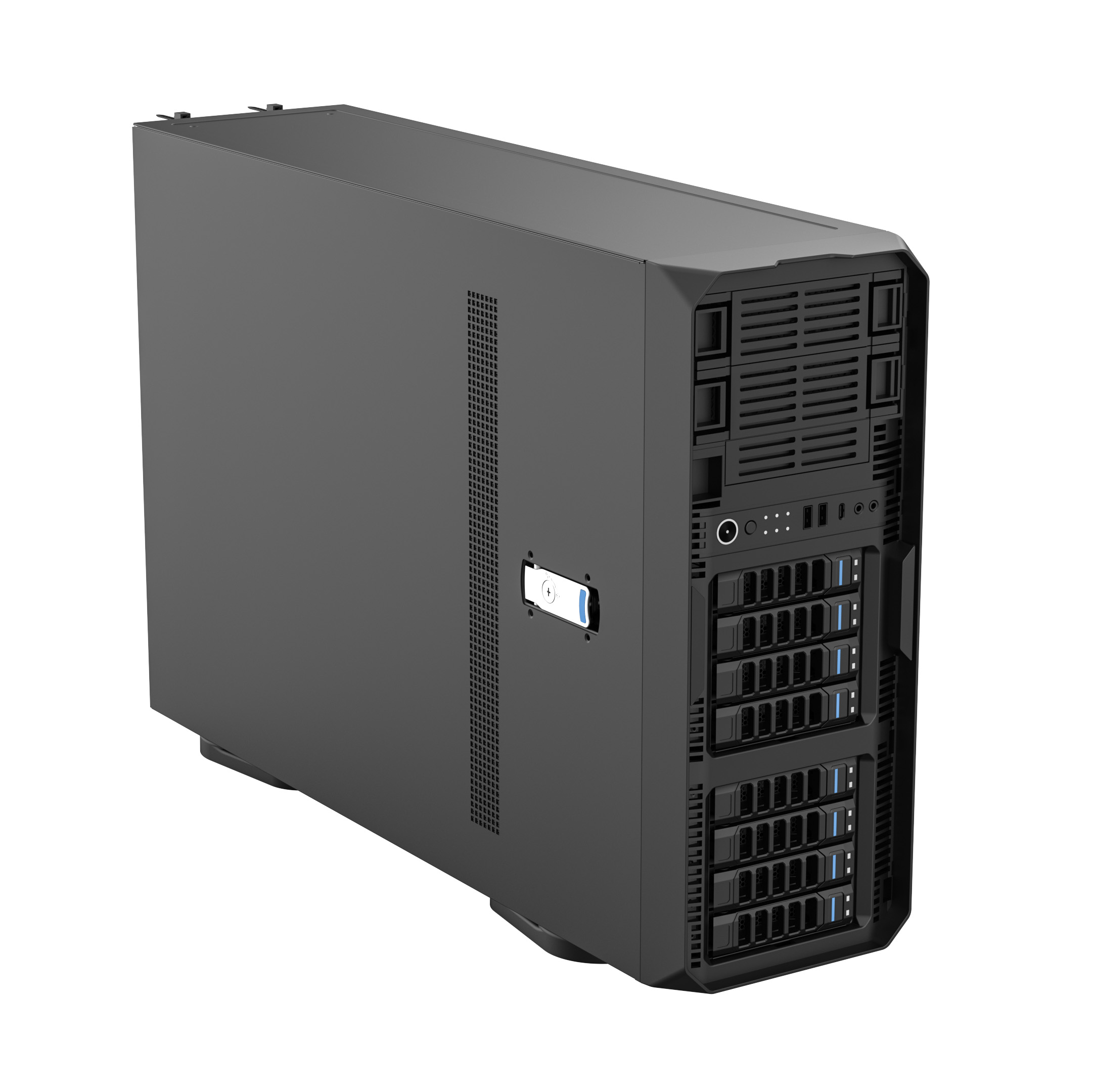

YRM-W6800A Series / Workstation Server Chassis
Convertible tower/rackmount chassis with hot‑swap HDD modules, multi‑GPU support, and enterprise cooling for AI and HPC workloads.
Instructions
The YRM‑W6800A chassis combines tower and rackmount flexibility, supporting EEB motherboards, dual 4LFF hot‑swap HDD modules, and up to four double‑width GPUs. With enterprise cooling and SAS backplane integration, it ensures reliability for industrial and AI computing.
.png)
specification

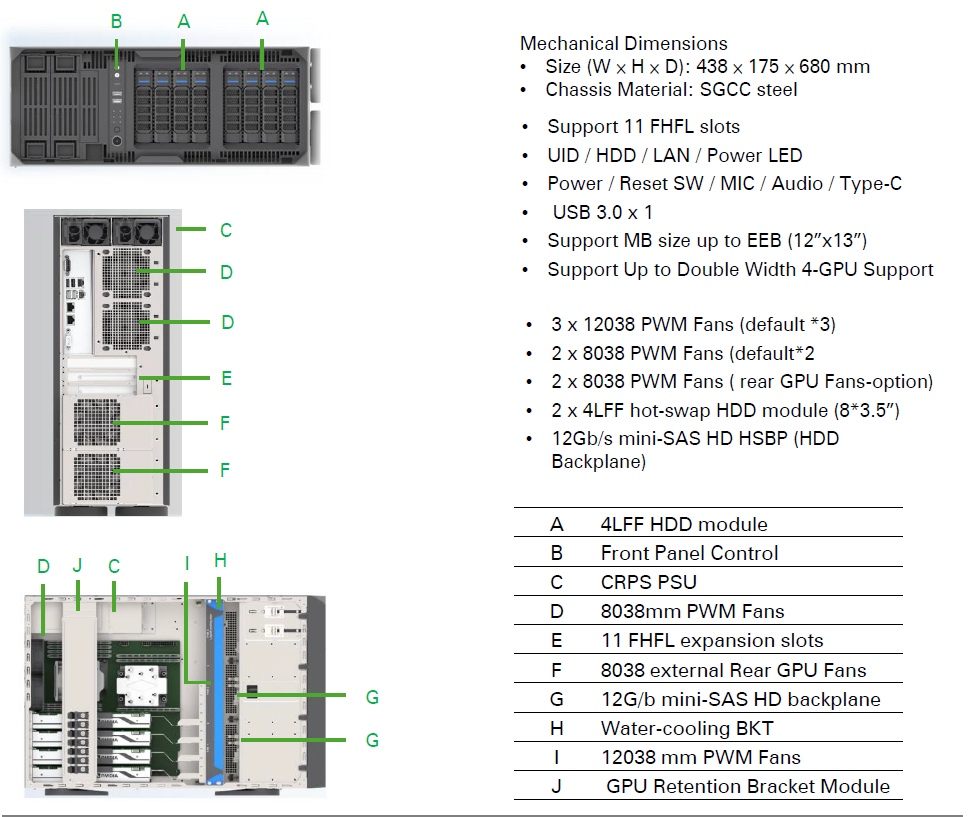

Tech Spec
| Model Name | YRM-W6800A0 |
| Material | SGCC with Coating (black) |
| M/B Form Factor | EEB(12"*13") / CEB(12"*10.5") / ATX(12"*9.5") |
| Dimension (D x W x H) | L680 × W438 × H175 mm |
| Drive Bay | with 4LFF hot-swap HDD module *2 (8*3.5") |
| Storage Backplane | 12G/b mini-SAS HD backplane |
| PSU Form Factor | CRPS, 1+1 horizontal type |
| Indicators | Power LED *1，HDD LED *1 ，LAN LED *2, UID*1 |
| Front Control | Reset*1，Power*1 , USB3.0*1，Audio*1, |
| Cooling Fans |
- 12038 Fan*3 (default), 360 water-cooling bracket *1 - 8038 Fan*2 (default) - 8038 Fan*2 , PWM 10000RPM(Rear GPU Hot-swap Fan for External option) |
| Expansion Slot | 11 FHFL slots |
| Supported Rack Mount Kit | YES (option) |
