PRODUCTS
Computer Case
Slant 330 ATX Mini-Tower Gaming PC Case (2026)

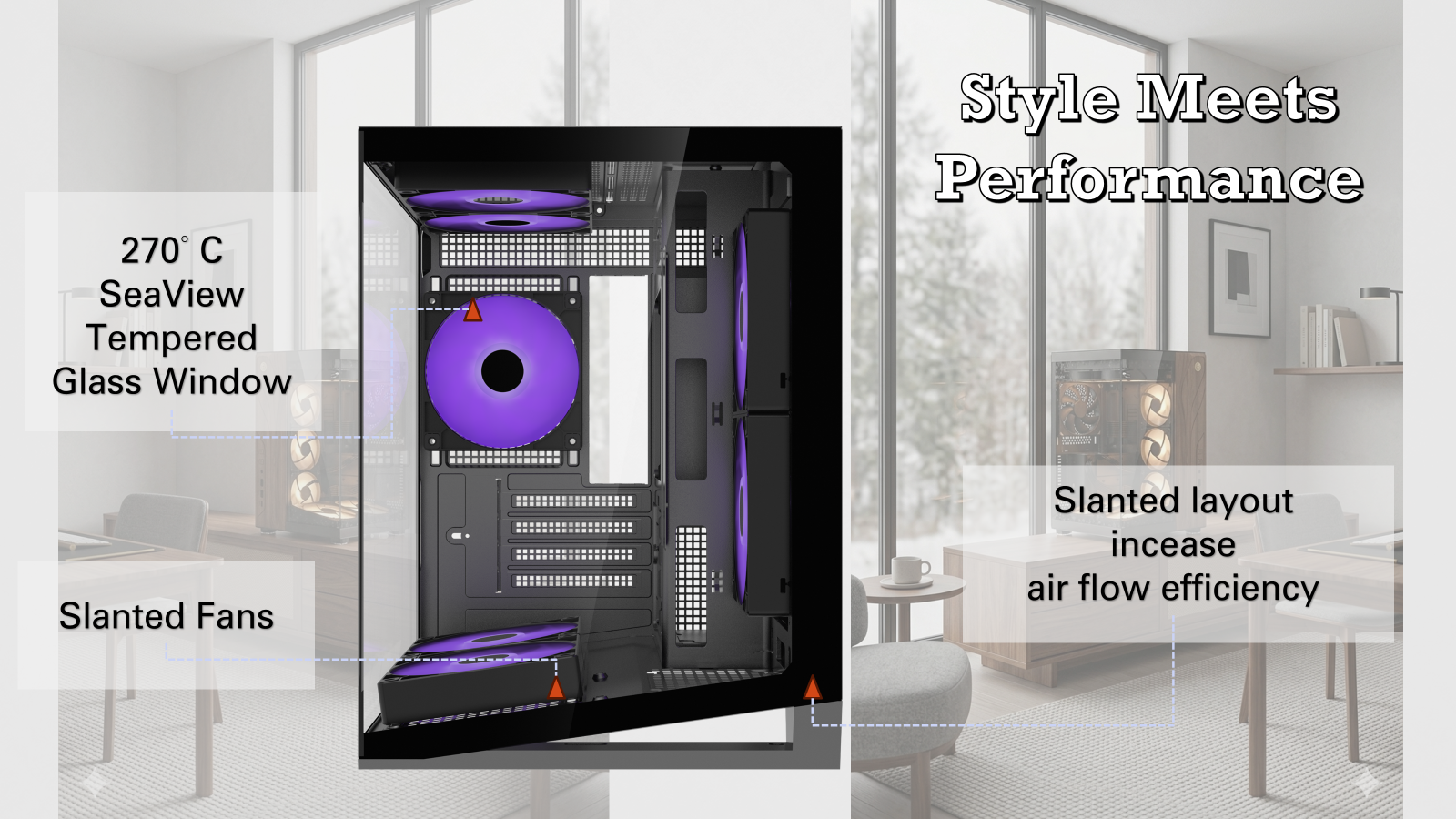

Style Meets Performance

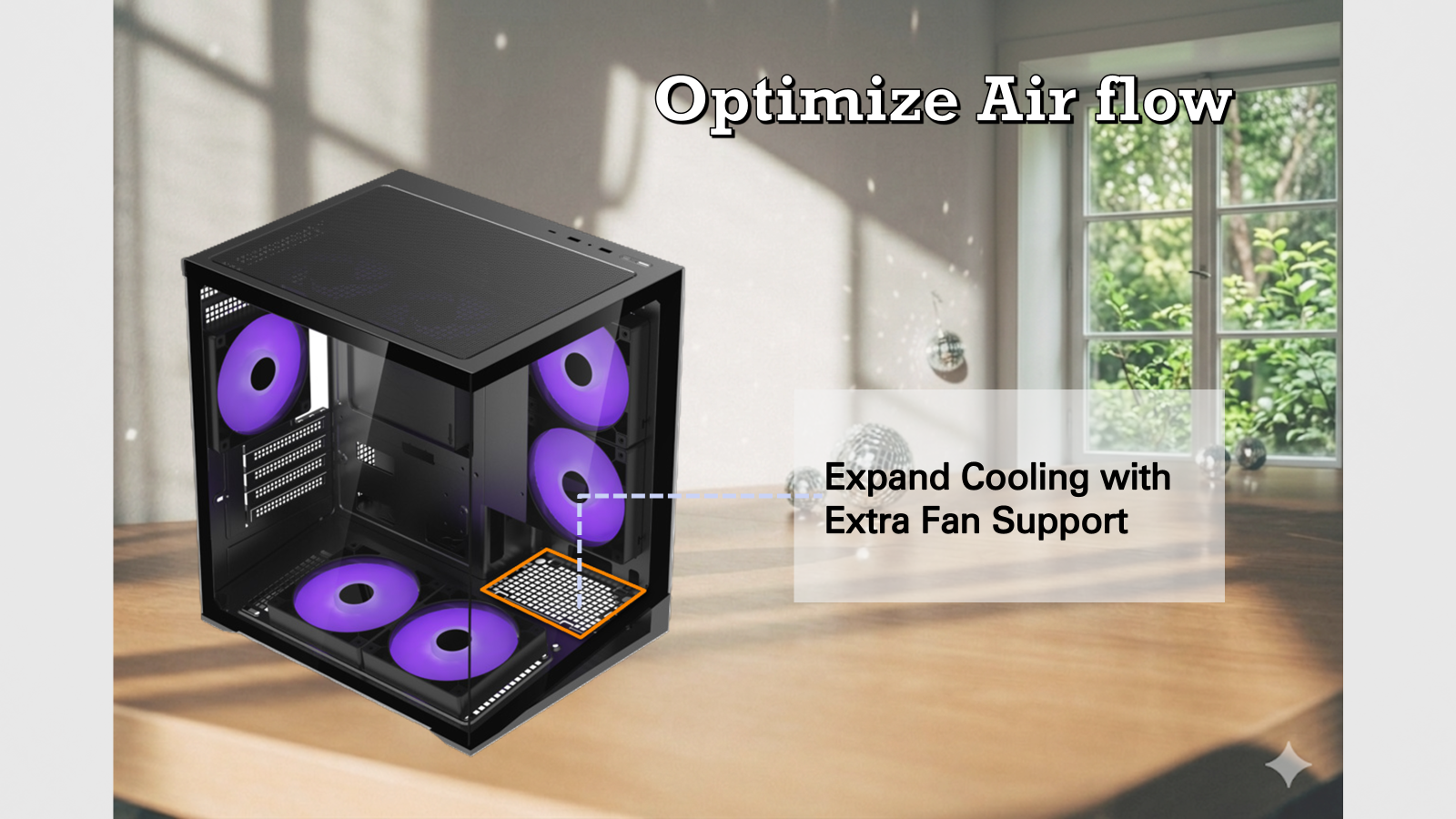

• Slanted positioning fans optimize airflow direction toward GPU fans
• Tempered glass side panel
• Cooling Fans up to 8 air cooling fans
• 240 radiator support
• USB‑C + dual USB 3.2 front I/O
• 330 mm GPU & 160 mm CPU cooler height clearance
• Combines natural style with cutting‑edge functionality.
• Slanted positioning fans optimize airflow direction toward GPU fans
• Tempered glass side panel
• Cooling Fans up to 8 air cooling fans
• 240 radiator support
• USB‑C + dual USB 3.2 front I/O
• 330 mm GPU & 160 mm CPU cooler height clearance
• Combines natural style with cutting‑edge functionality.
Instructions
The YCC Slant 330 is a Mini-Tower ATX PC Case, supports ITX/MATX, 140/160mm PSU, 160mm CPU cooler, 330mm GPU. Storage: HDD+SSD, 4 PCIe slots. I/O: HD Audio, USB 3..2 Gen1. Cooling: top 3×120/ 2x140mm or 240mm liquid, front 2×120mm, rear 1×120mm, bottom 2×120mm slanted fans. it's Compact, efficient, modern for gamers and creators.
.png)
.png)
.png)
.png)
.png)
specification
Tech Spec
| Dimension (LxWxH) | 339mm x 280mm x 372mm / 13.4" x 11" x 14.7" | |
| Motherboard Compatibility | M-ATX , ITX | |
| Material | Steel, Plastic, Tempered Glass | |

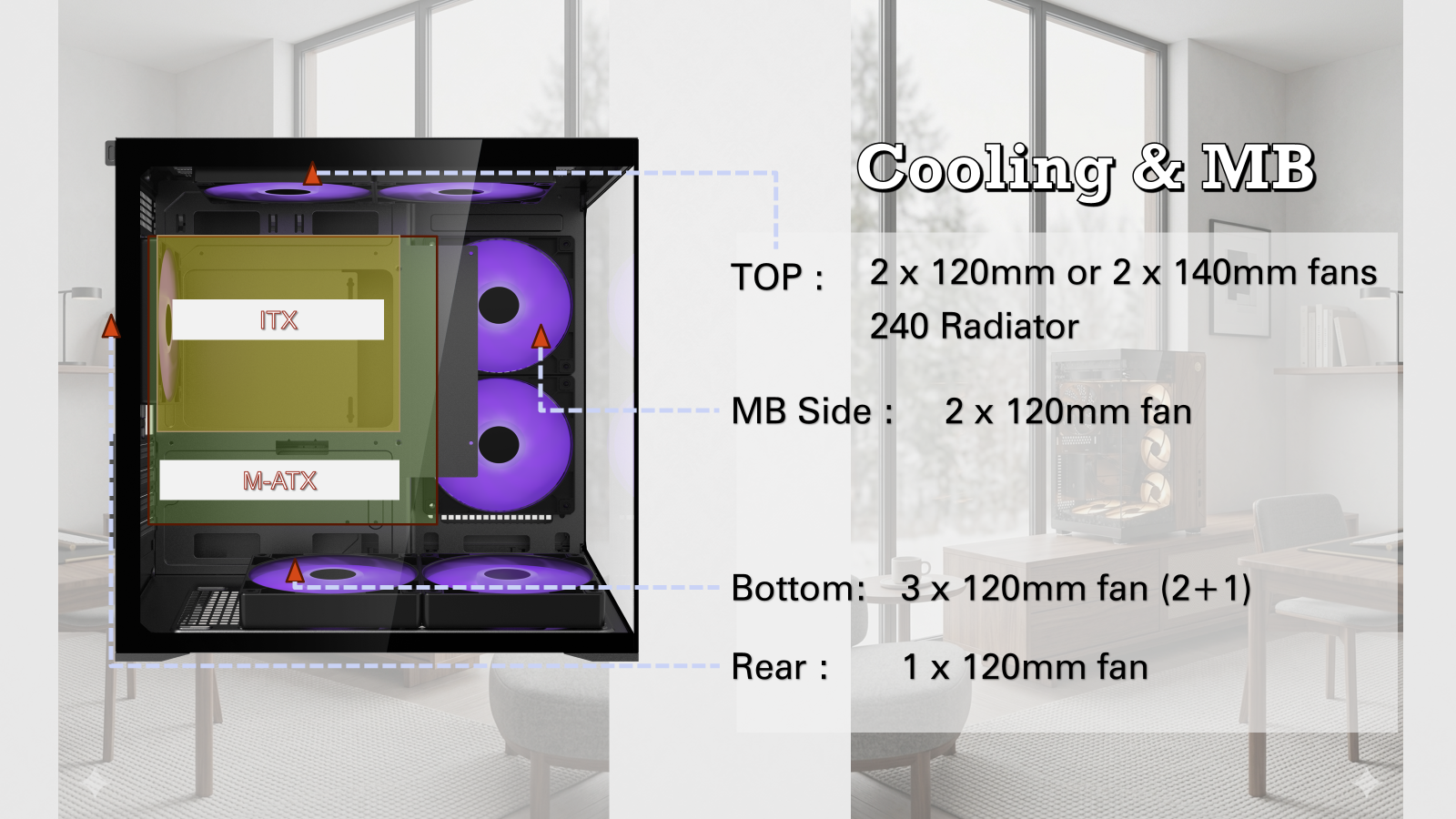

| Cooling Compatibility |
Top: 2 x 120 mm / 2 x 140 mm MB Side: 2 x 120mm Rear: 1 x 120 mm Bottom: 3 x 120mm (Slanted) |
|
| Radiator Compatibility | Top: 240 | |
| Expansion Slots | 4 | |
| Storage | 3.5" x 1 + 2.5" x1 | |

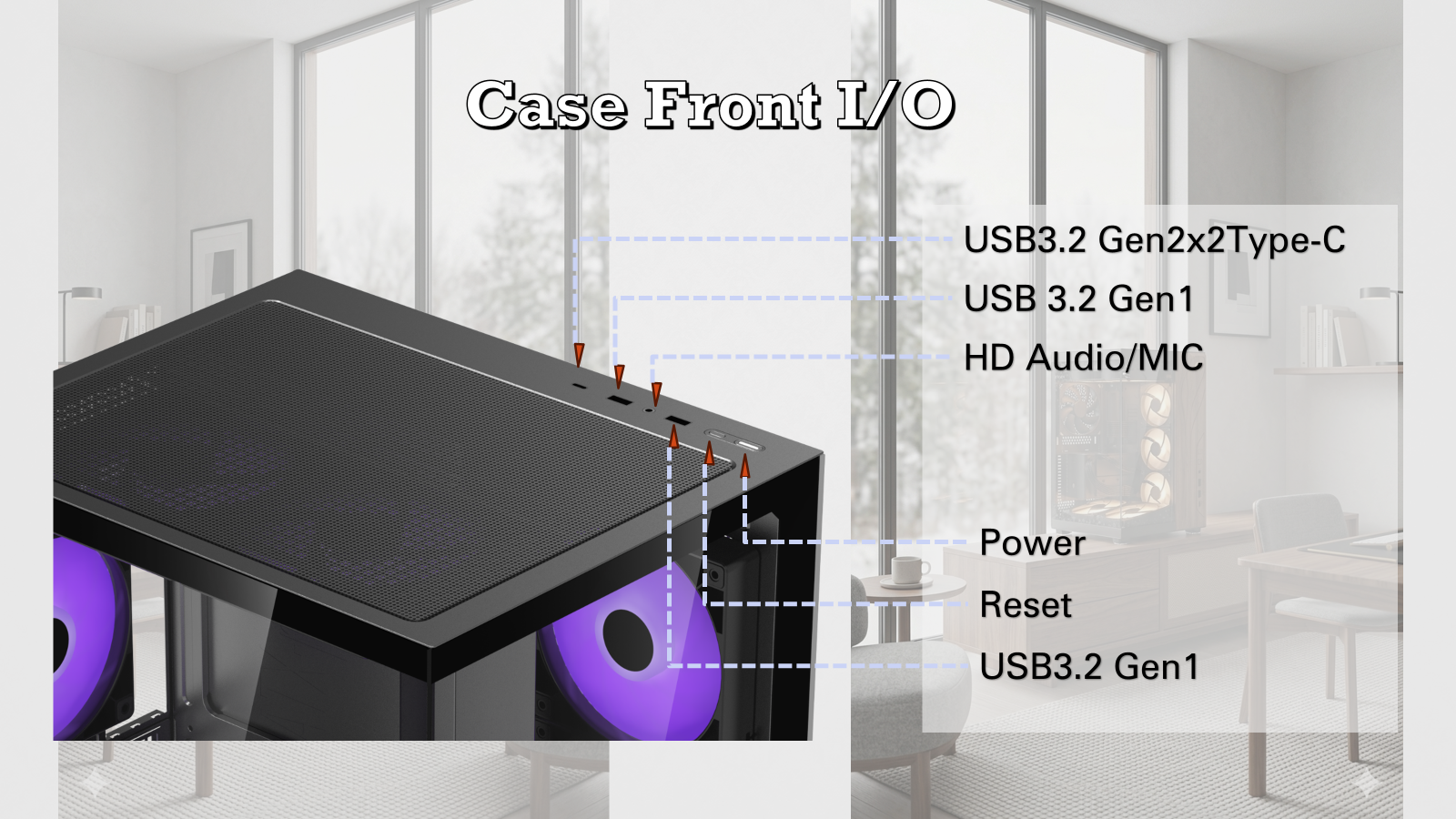

| Case Front IO | USB3.2 Gen1 ( x2) | |
| USB3.2 Gen2x2 ( x1) | ||
| HD Audio / Power / Reset | ||

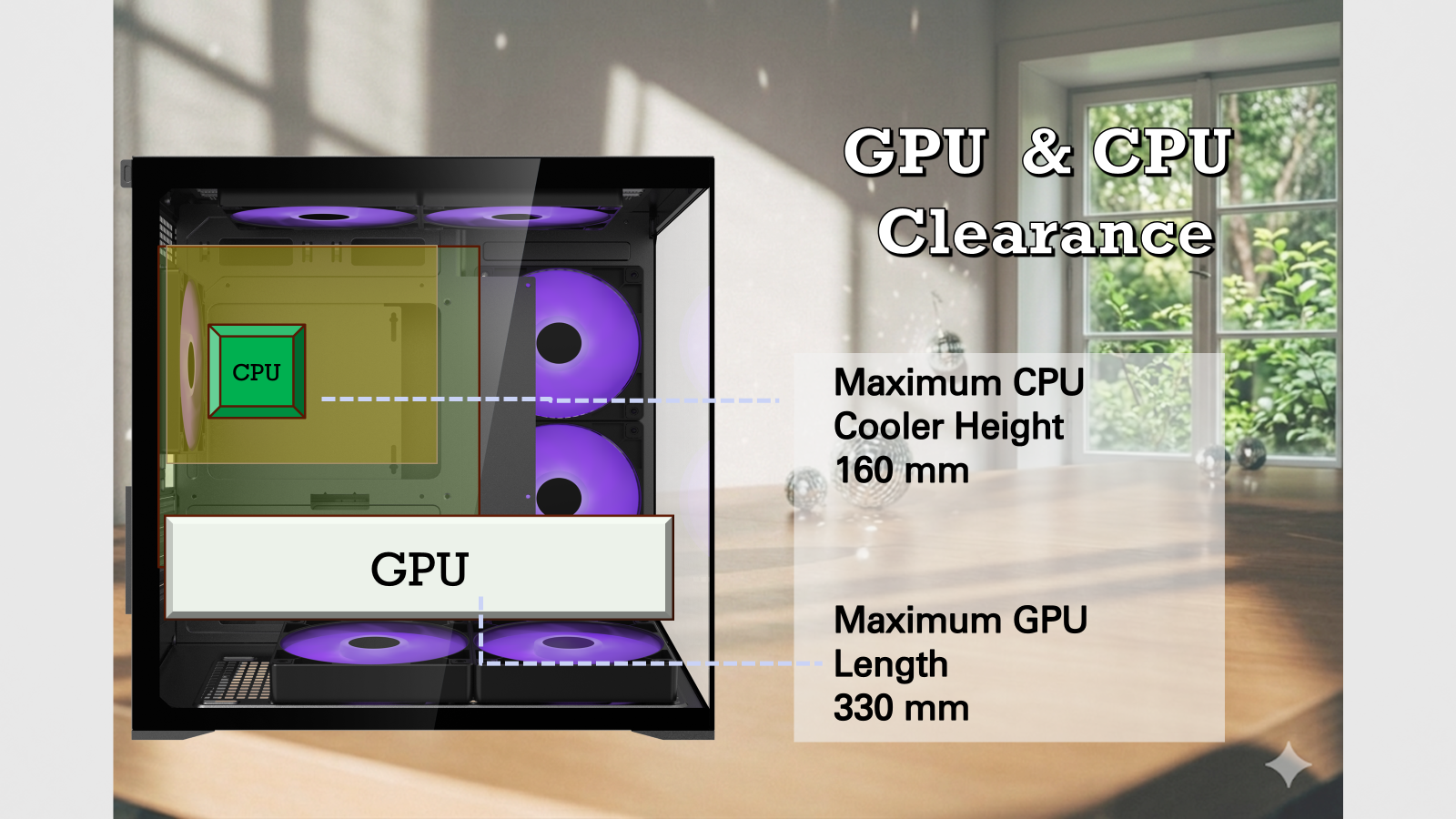

| Clearances | GPU: 330 mm | |
| CPU Cooler: 160 mm | ||
| PSU: 160 mm | ||
| Dust filters | Top | |
| Case Window | Tempered Glass | |
| Power Supply | ATX ( rear mount ; not ncluded) | |
| Case Warranty | TBD | |
| Box Content | ||
| Slant 330 Gaming PC Case | ||
| Accessory Box | ||
| Shipping Information | ||
| Country of Origin | China | |
| HTC | 8473.30.xxxx | |
| Model | Part Nunber / UPC / EAN | Weight (kg): |
| Slant 330 ATX Mini-Tower Black Gaming PC Case |
PN: YCH-2650B00-xxx(x: TBD by Import Country) UPC: EAN: |
Box Shipping Weight: xx kg / xx lbs Product Weight: xx kg / xx lbs |
| Slant 330 Air ATX Mini-Tower Black Gaming PC Case (Pre-installed 120mm fans) |
PN: YCH-2650BAx-xxx(x: TBD by Import Country) UPC: EAN: |
Box Shipping Weight: xx kg / xx lbs Product Weight: xx kg / xx lbs |
