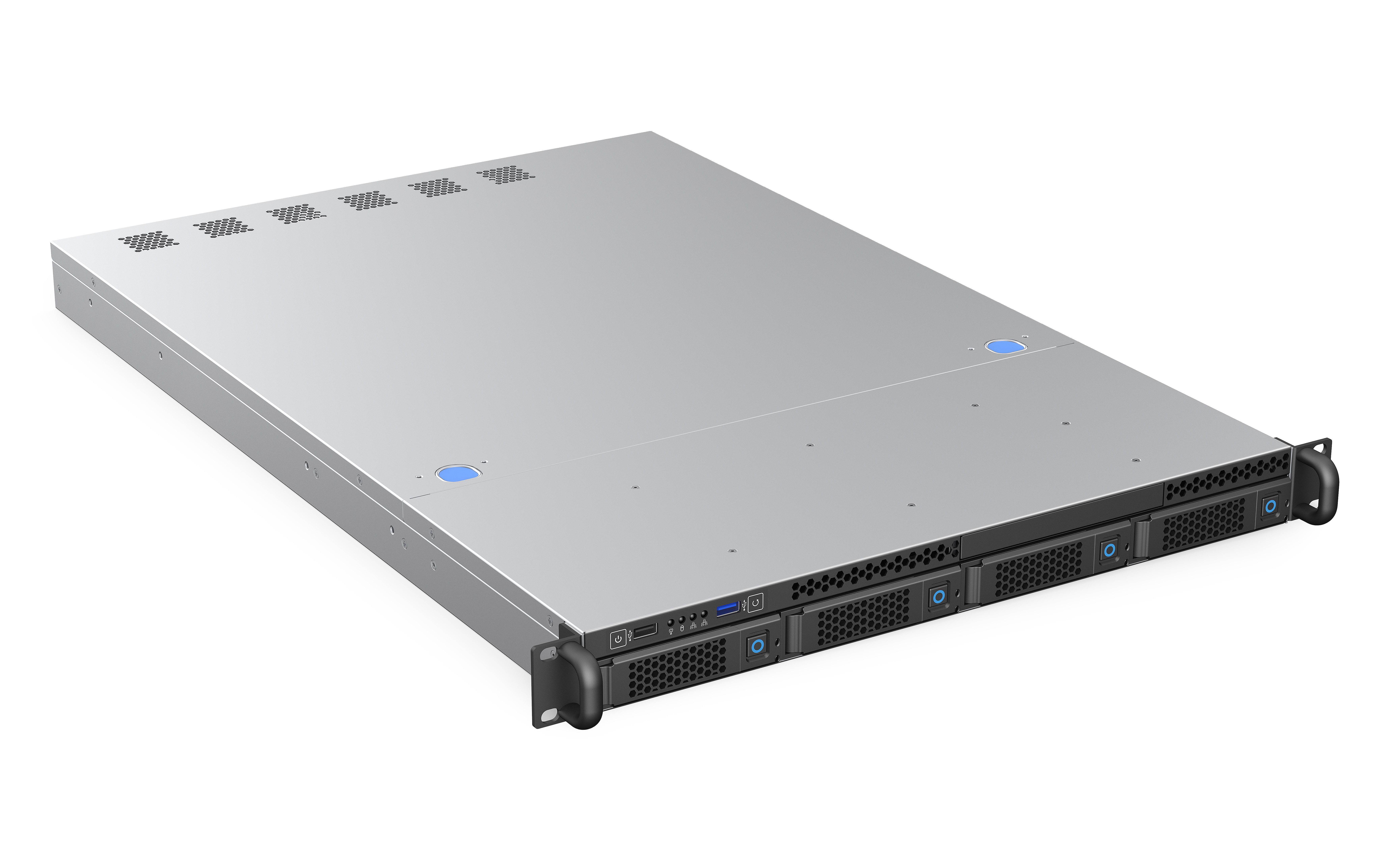

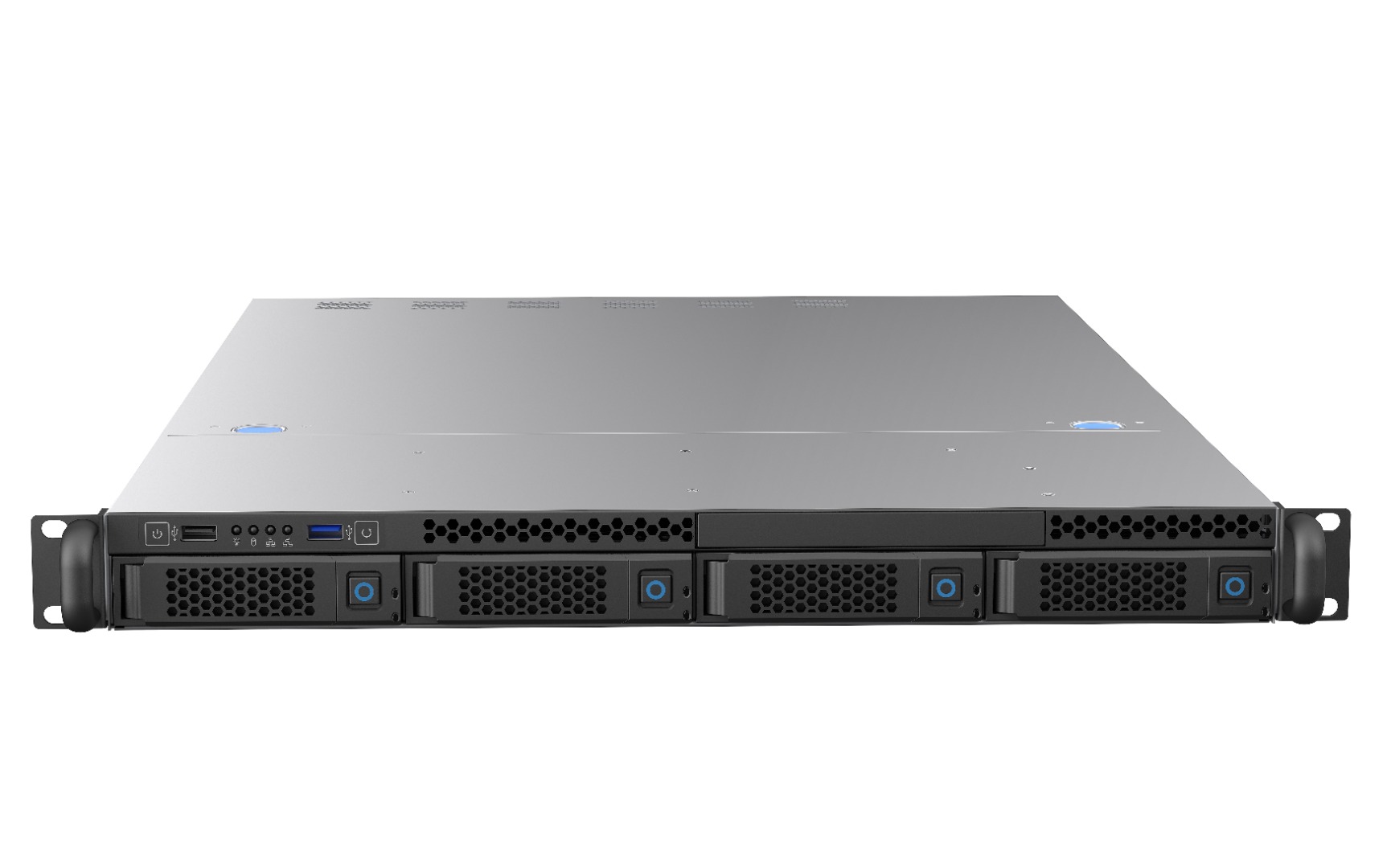

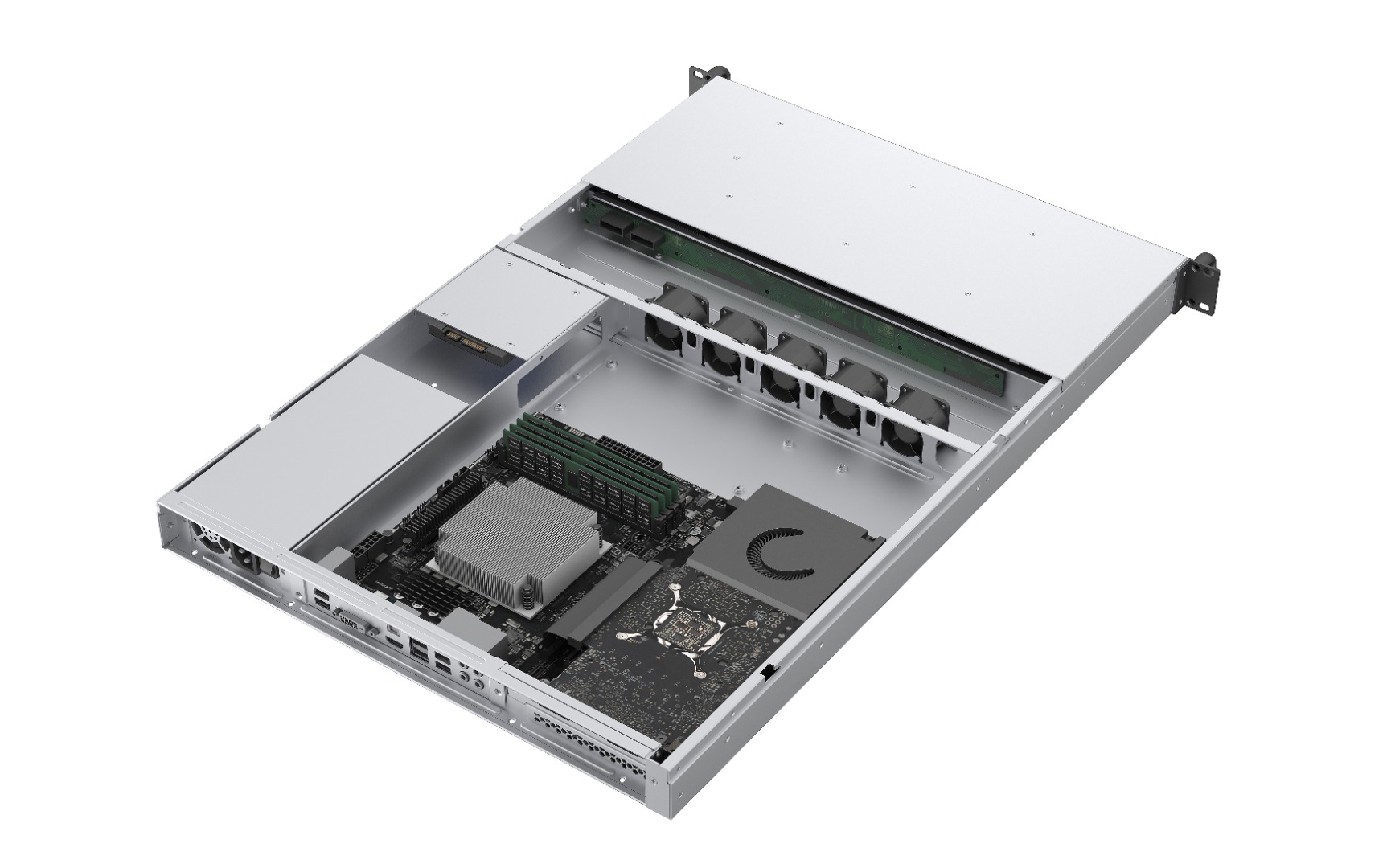

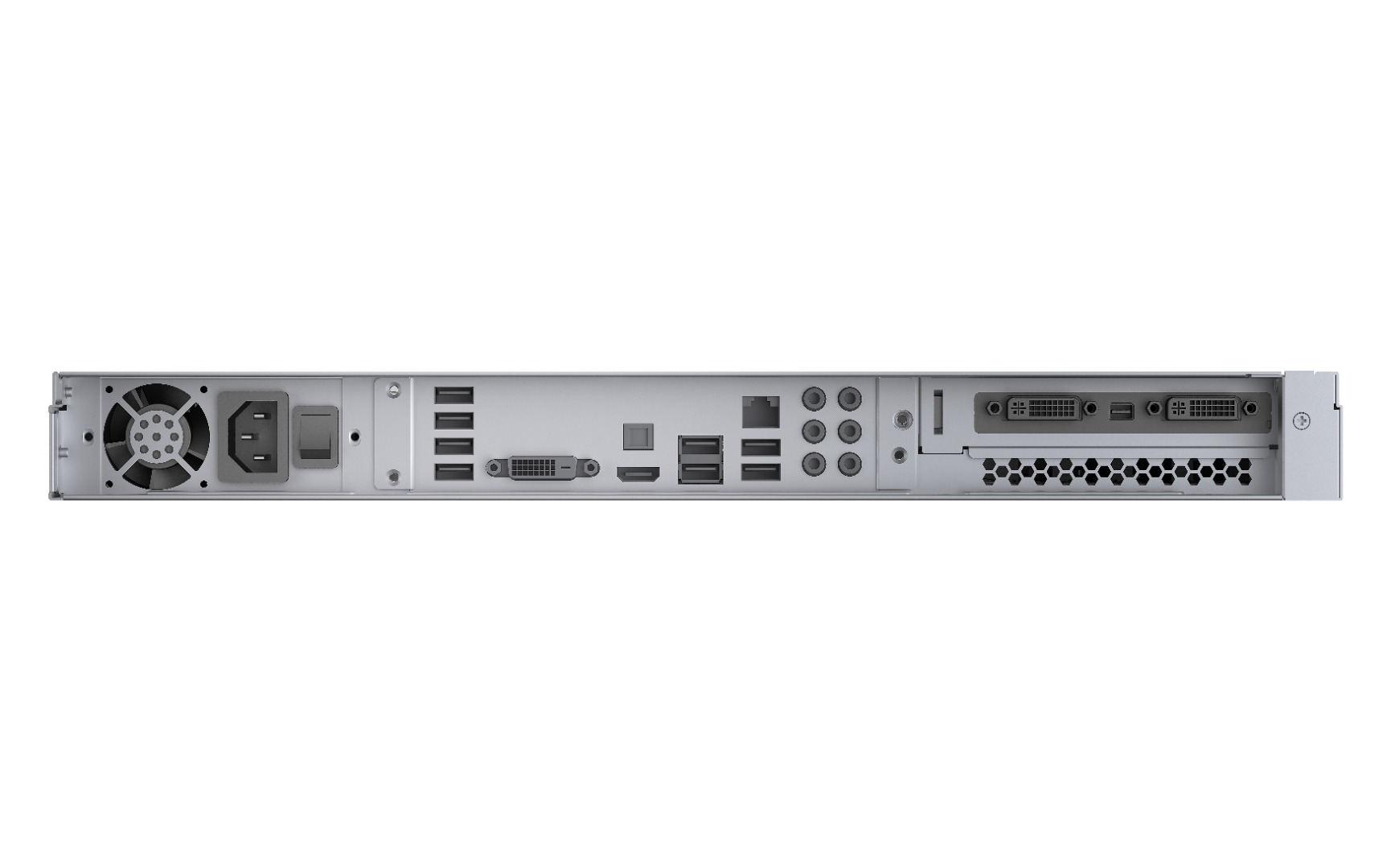

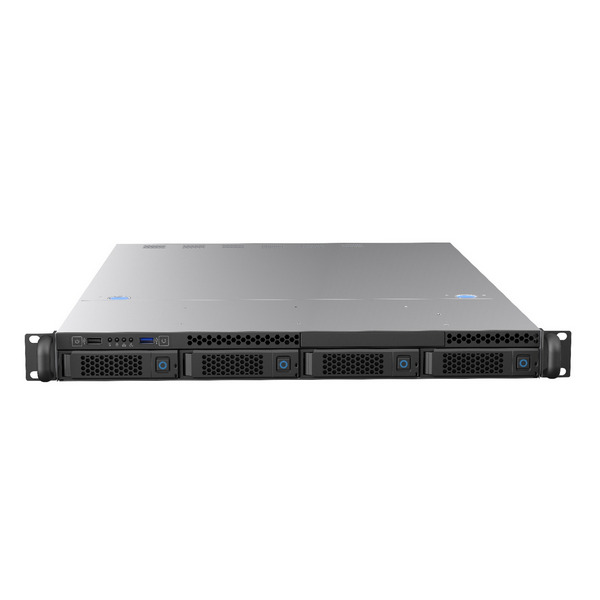

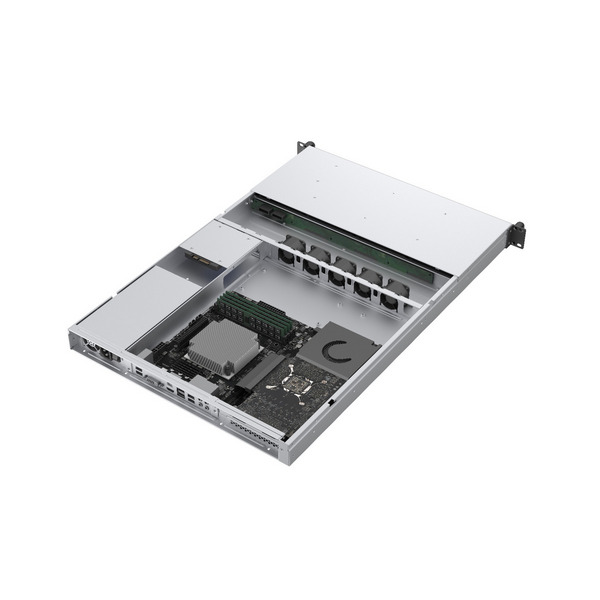

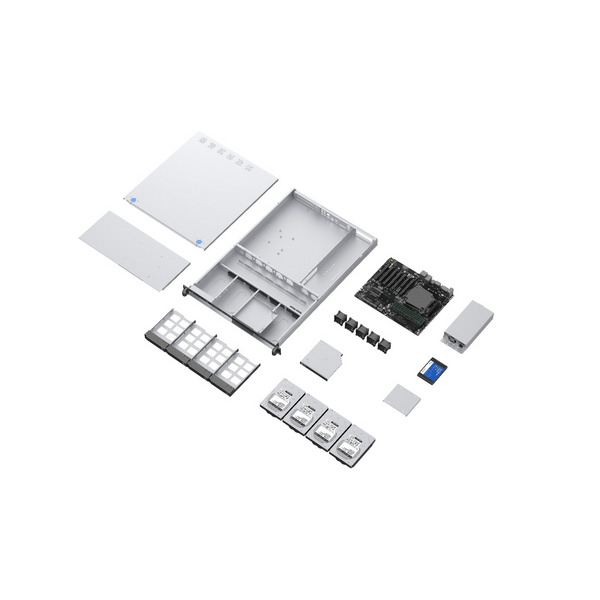

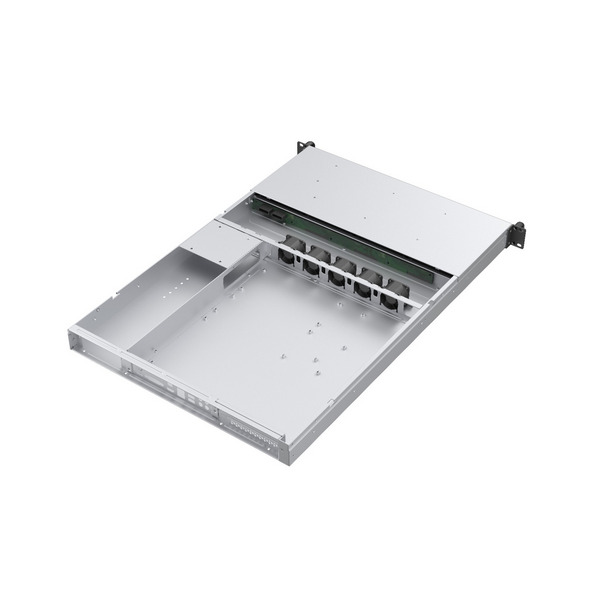

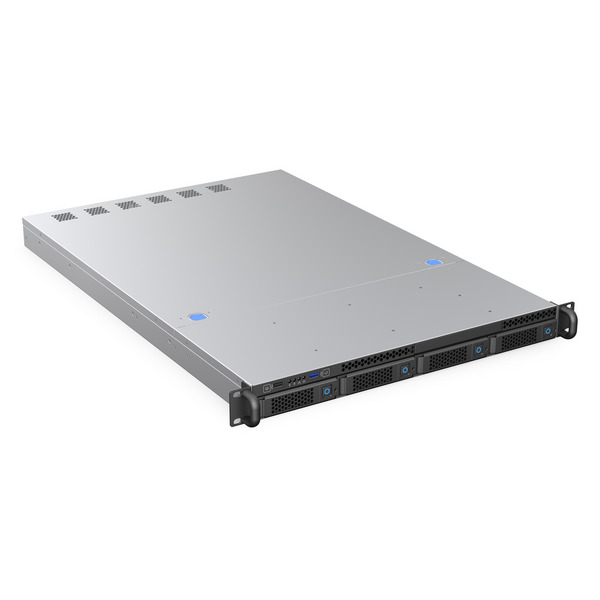

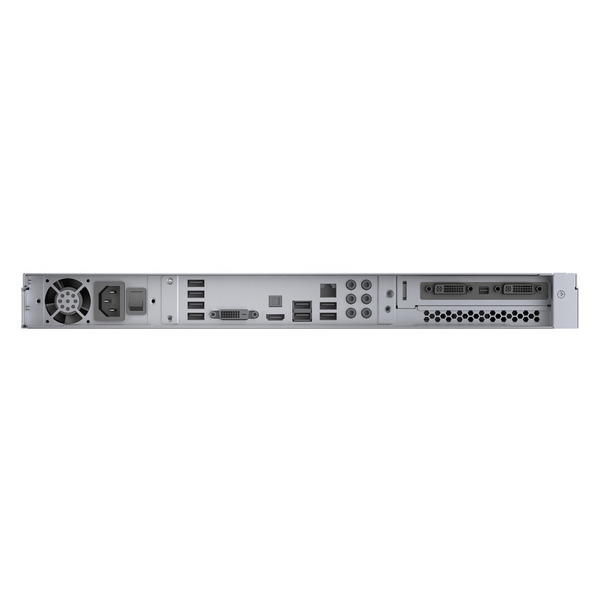

YRM-16504 Series
1U Versatile Server Storage Chassis
• Dimensions of L650 × W431 × H44 mm
• Material Constructed from 1.0mm SGCC
• Drive and Storage Support 4 x 3.5"(2.5") HDD bays
• Supports 4 ports 12Gb/s SATA/SAS Hot-Swap backplane
• Motherboard accommodates E-ATX (12" × 13")
• Supports 1U Standard PSU or 1U 1+1 slim redundant power

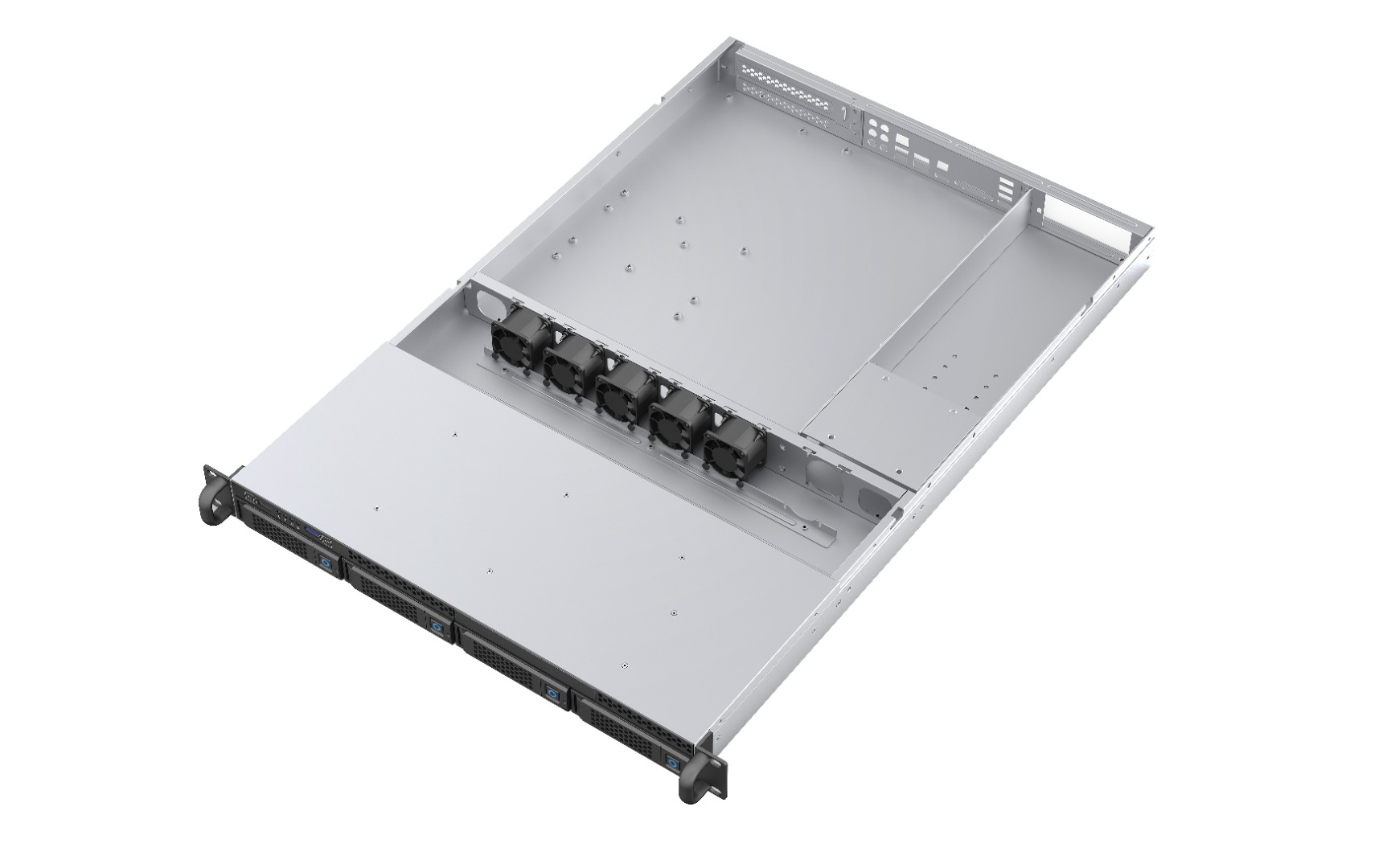

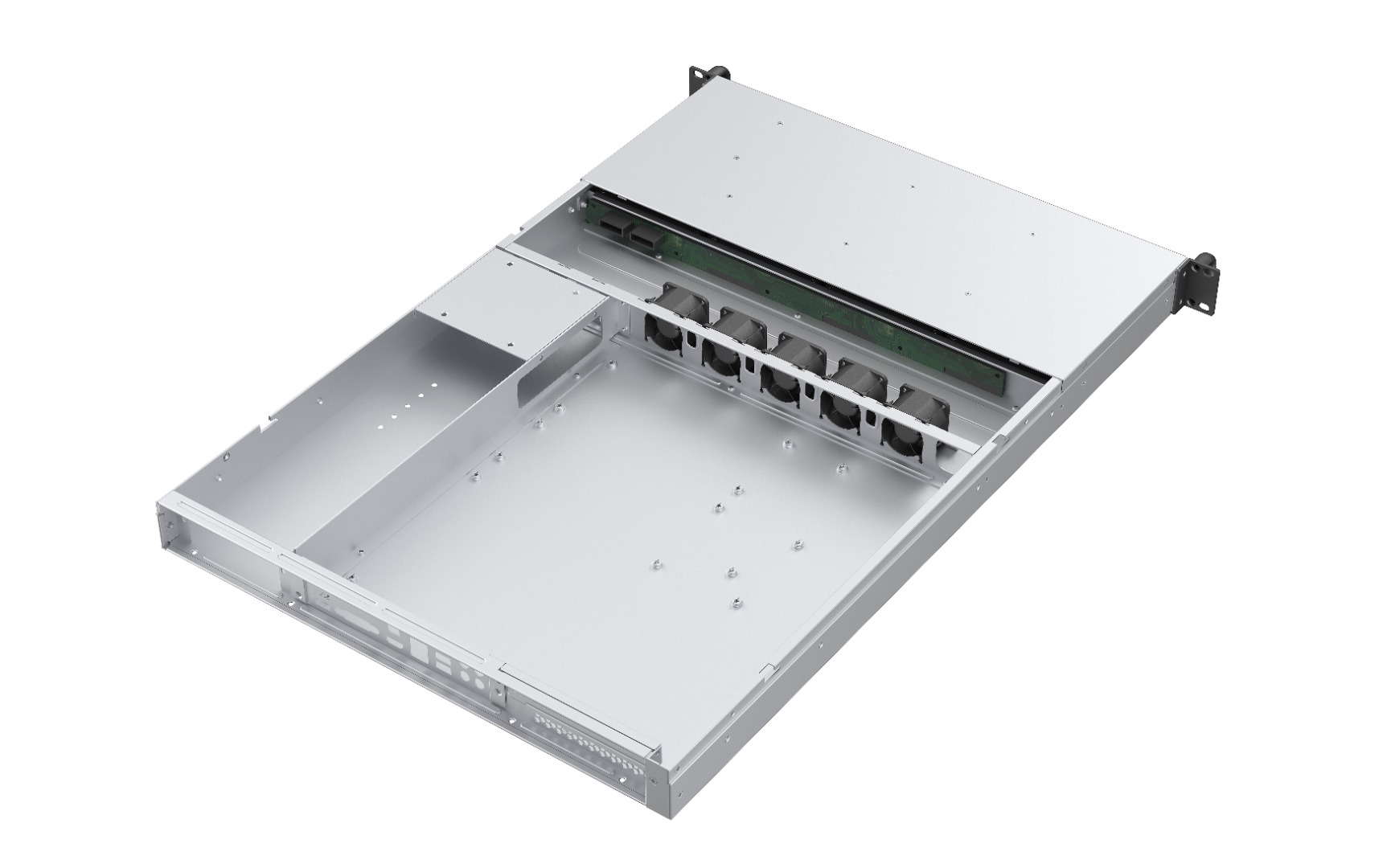

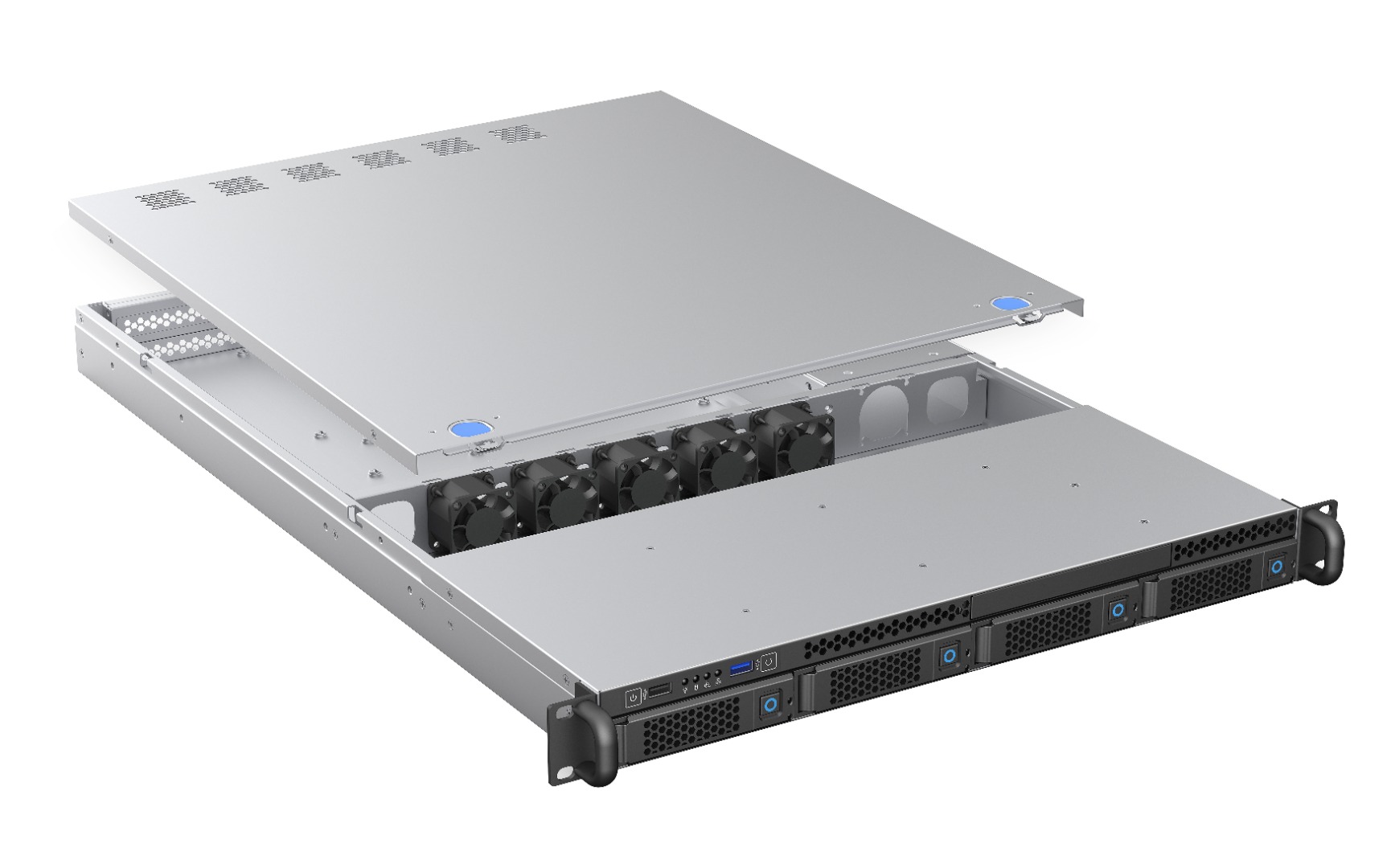

• Cooling Equipped maximum 5 x 4038 fans
• Expansion slot with 1 x FHFL ((horizontal)
• Dimensions of L650 × W431 × H44 mm
• Material Constructed from 1.0mm SGCC
• Drive and Storage Support 4 x 3.5"(2.5") HDD bays
• Supports 4 ports 12Gb/s SATA/SAS Hot-Swap backplane
• Motherboard accommodates E-ATX (12" × 13")
• Supports 1U Standard PSU or 1U 1+1 slim redundant power
• Cooling Equipped maximum 5 x 4038 fans
• Expansion slot with 1 x FHFL ((horizontal)
Instructions
.png)
.png)
.png)
.png)
specification
| Dimensions | L650 × W431 × H44 mm |
| Case Colors | Black |
| Material | 1.0 mm SGCC |
| Drive Bay & HDD Slot | 4 x3.5” (2.5") |
| HDD Hot-Swap Backplane |
(a) 3.5” 4 Port 6Gbps SATA/SAS HD Passive HSBP, (SFF8087 Host) (b) 3.5” 4 Port 12Gbps SATA/SAS HD Passive HSBP, (SFF8643 Host) (c) 3.5” 4 Port 16GTs NVMe HD Passive HSBP, (SFF8654 Host) |
| Motherboard Support | Upto 12" × 13" |
| Power Supply Support | 1U Standard PSU / 1U 1+1 Slim Redundant PSU |
| Panel Controls | Reset button、Power button |
| Panel LEDs | Power LED 、HDD LED、NIC LED x1 |
| Panel Interfaces | USB 3.0 x 2 |
| Expansion Slots | 1 FLFH |
| Cooling System | Maximun 5 x 4038 Fan |
