PC Power Supply

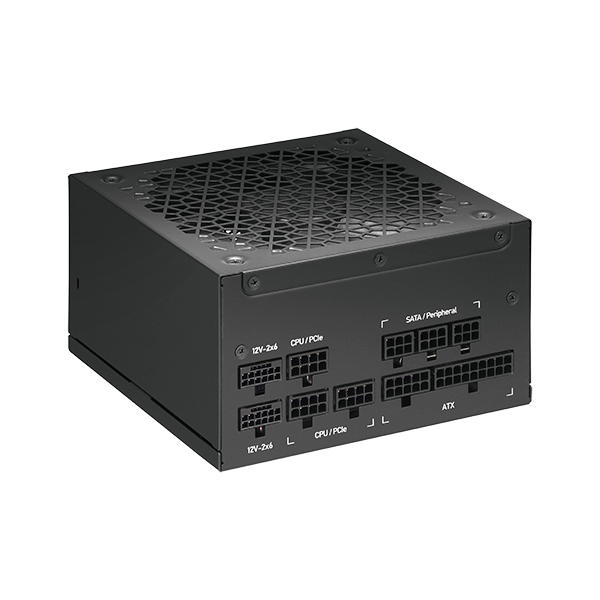

CTE 750W Gold ATX3.1
Feature
• 80 Plus Gold Efficiency
• Smart FAN Control
• Low Noise Operation
• ATX 3.1 & PCIe 5.1
• Dual 12V-2x6 connector
• 80 Plus Gold Efficiency
• Smart FAN Control
• Low Noise Operation
• ATX 3.1 & PCIe 5.1
• Dual 12V-2x6 connector
Instructions
The CTE750V5-G is offering 750W configurations. Supporting ATX 12V 3.1 and PCIe 5.1, it delivers precise power with ±5% regulation. Equipped with a 135mm FDB fan, it ensures efficient cooling, compact design, and compliance with global safety standards.
specification
| Wattage | 850W |
| Combined Power +5V&+3.3V | 120W |
| Efficiency | Gold |
| Input Voltage | 100-240 Vac |
| Input Current | 10 - 5.0 A |
| 80 PLUS Label | 115V Gold |
| Efficiency (115V) | |
| 20% Load: >87% | |
| 50% Load: >90% | |
| 100% Load: >87% | |
| Hold-up time | > 16ms |
| MTBF | >100000 hours |
| OutPut Voltage | Output Maxinum Current |
| +3.3V | 22A |
| +5V | 22A |
| +12V | 62.5A |
| -12V | 0.3A |
| +5Vsb | 3A |
| ATX 24 pin | 1x (600 mm) |
| EPS 4+4 pin | 1x (750 mm) |
| PCI-e 6+2 pin | 1x (600 mm) |
| ATX3.1 12V-2x6 | 1x (600 mm) |
| 12V-26 to 2xPCI-e(6+2) | 1x (600+600 mm) |
| PATA (P+P+P+P) | 1x (500+150+150+150 mm) |
| SATA (S+S+S+S) | 1x (500+150+150+150 mm) |
| Cooling | 135 mm (FDB) |
| Dimensions (mm) | |
| Length | 150mm |
| Width | 150mm |
| Height | 86mm |
| Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
| ATX 20+4 | 12V-2X6 | 4+4 PIN | PCIE 6+2 | SATA | Molex(Peripheral) | Floppy | |
| 1 | 1 | 1 | 3 | 4 | 4 | - |
