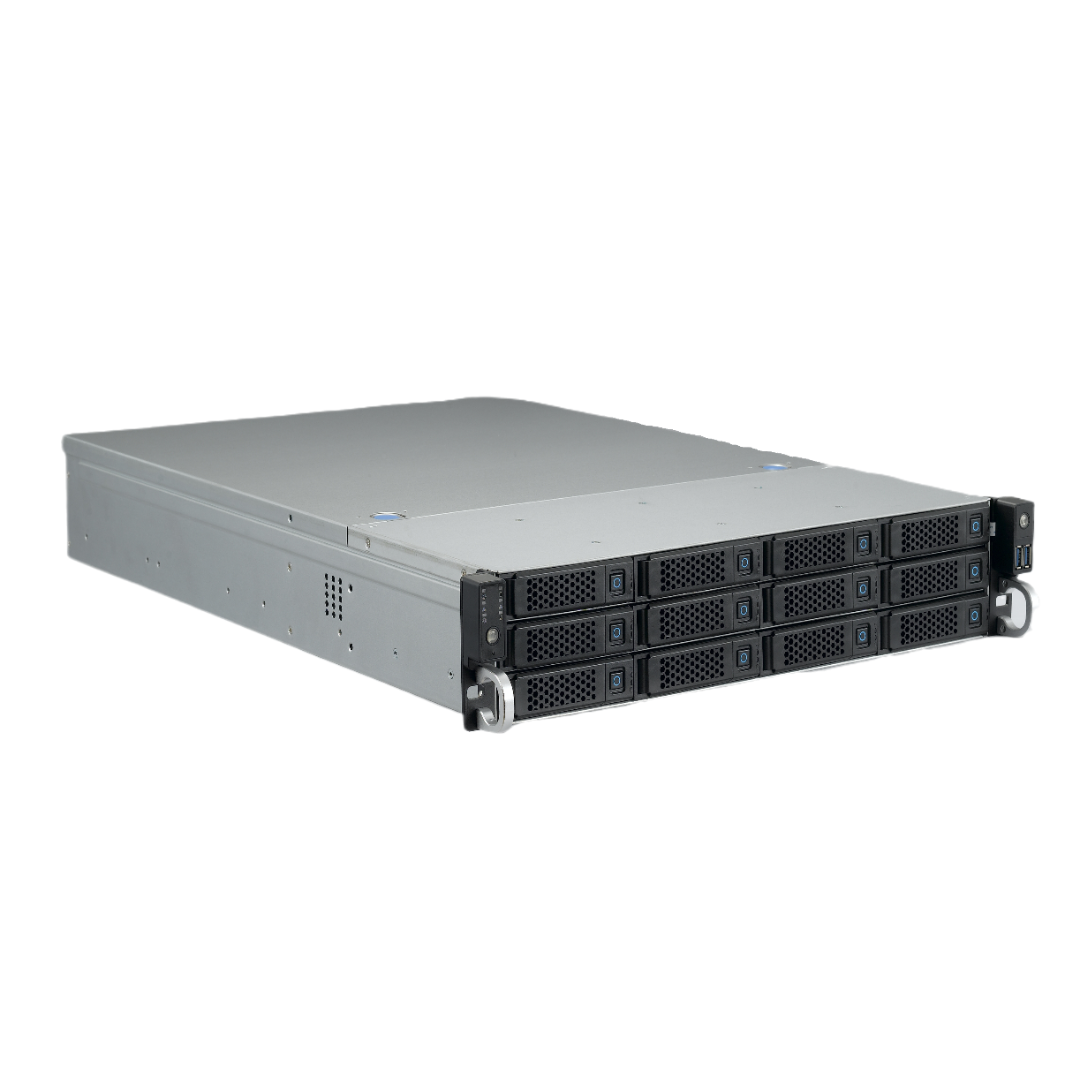

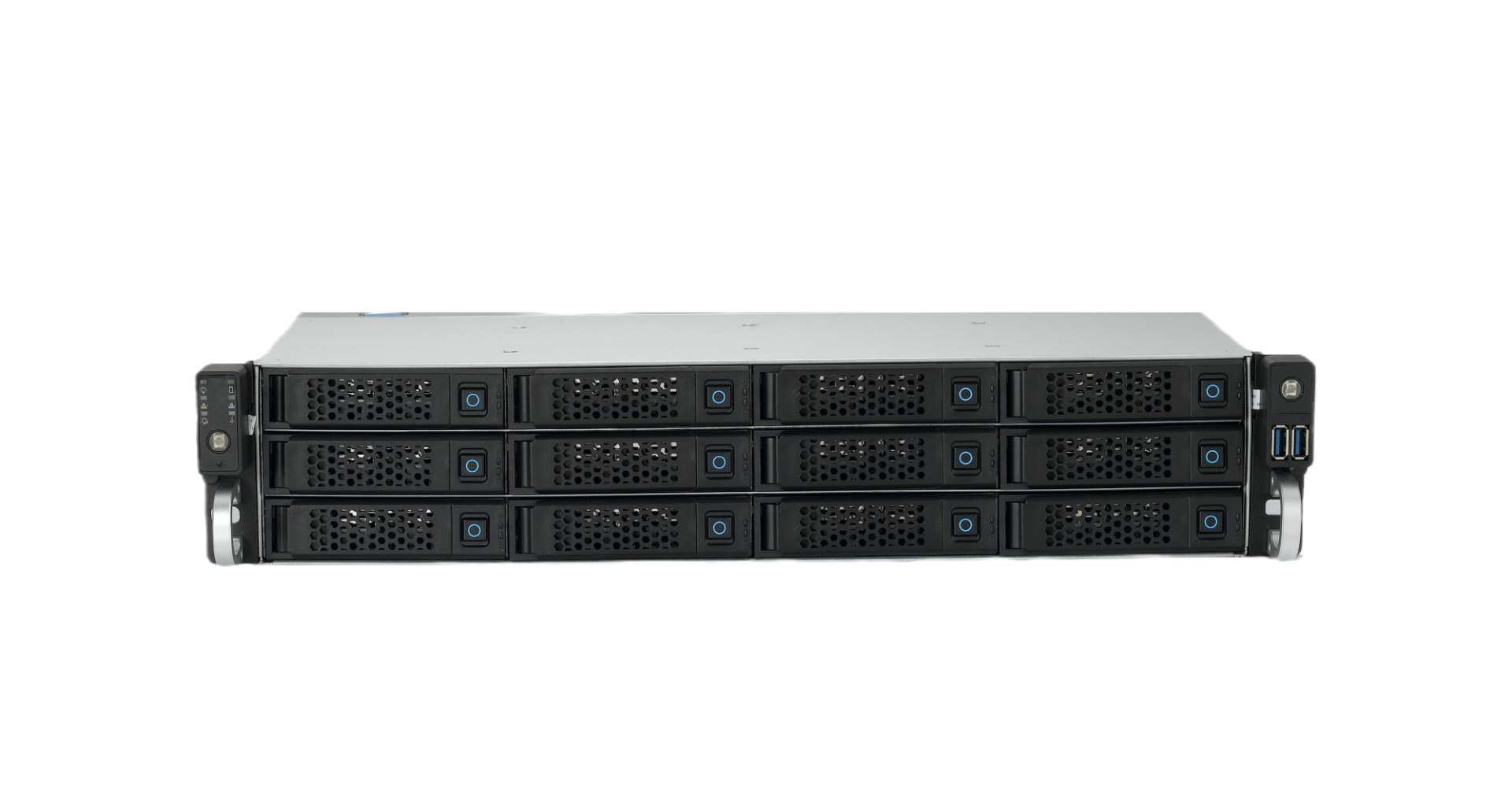

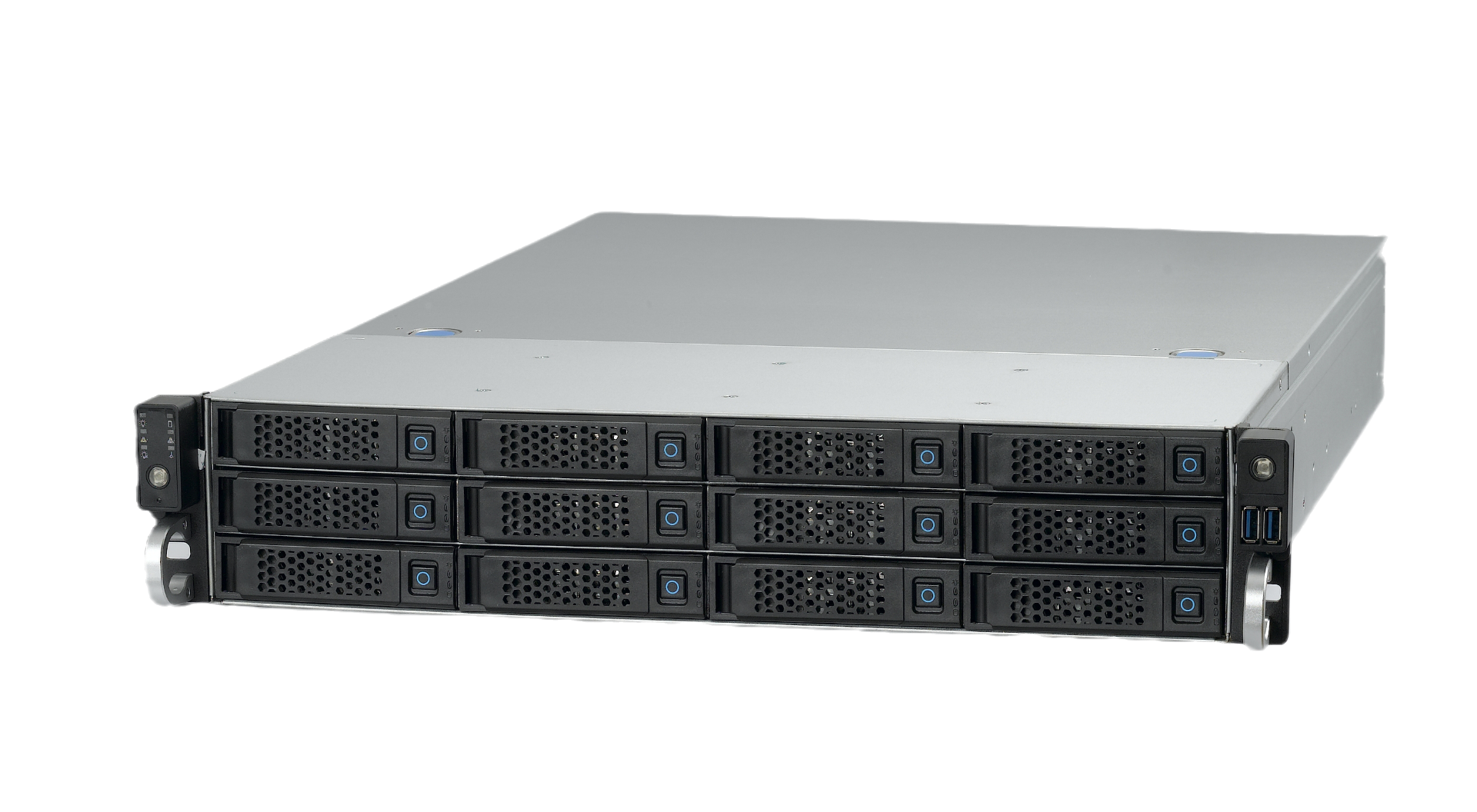

With 12 x 3.5” drive bays, 7 PCIe slots, efficient cooling, redundant power, it offers scalability and reliability for high-performance environments.

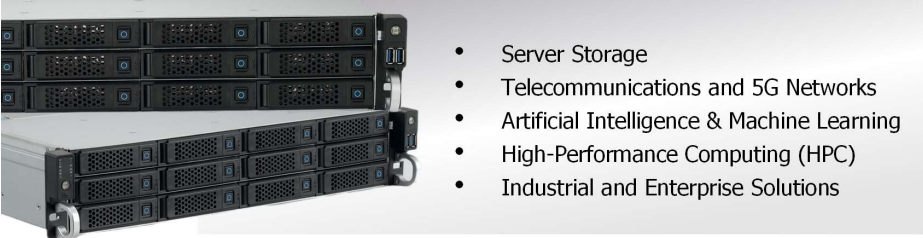

Key Applications
• Server Storage:
• Telecommunications and 5G Networks:
• Artificial Intelligence & Machine Learning:
• High-Performance Computing (HPC):
• Industrial and Enterprise Solutions:
Technical Highlights
• Compact Design: Dimensions of L650 × W431 × H88 mm make it optimized for space in rack-mounted setups.
• Material: Constructed from sturdy 1.0 mm SGCC for durability.
• Drive and Storage: 12 x 3.5" drive bays, supporting 6 Gb/s expander with an optional upgrade to 12 Gb/s.
• Motherboard and Power: Accommodates 12" × 13" motherboards and supports 2U PSU or redundant power for reliability.

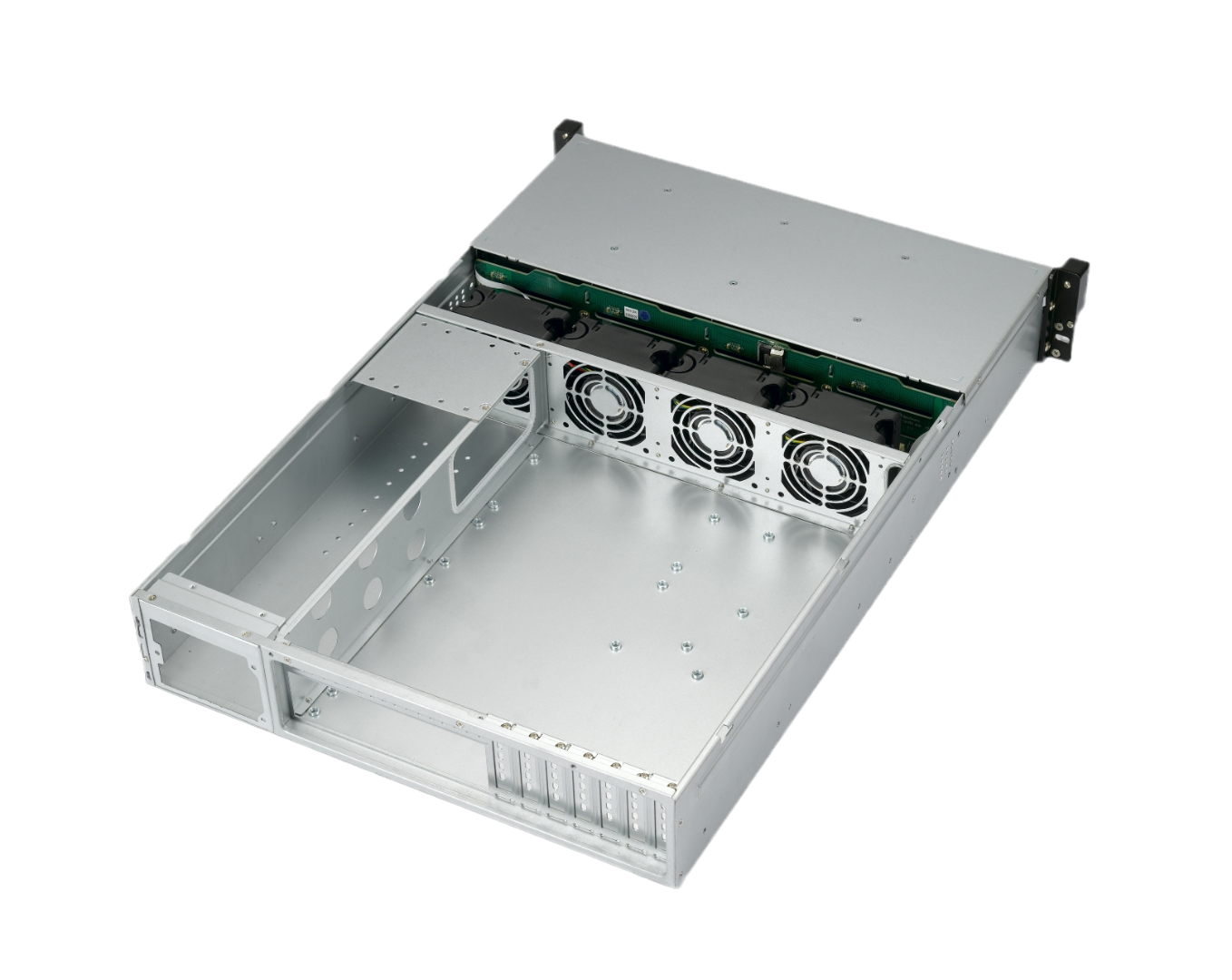

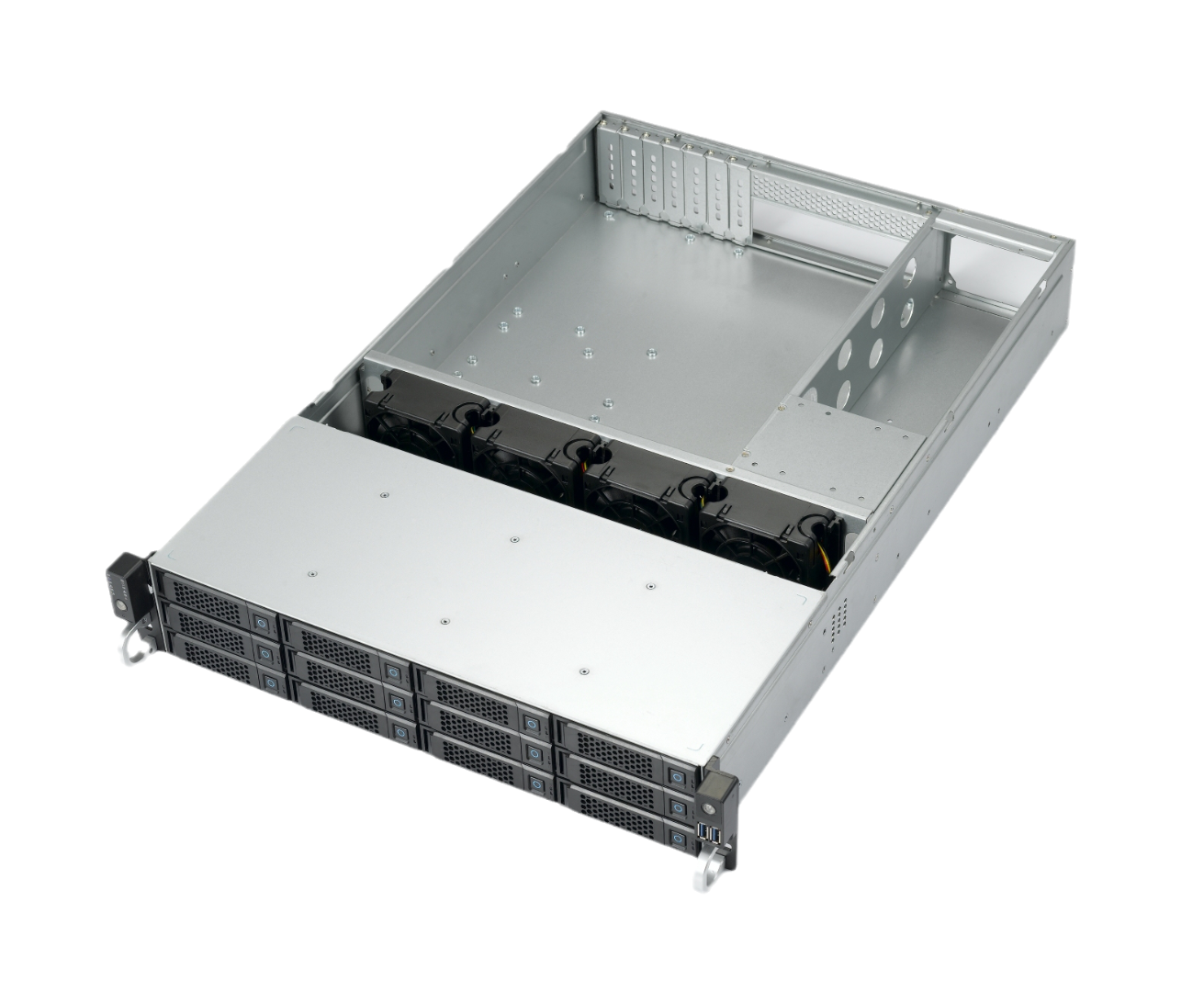

• Cooling Efficiency: Equipped with 4 x hot-swappable 8038 cm fans for effective heat dissipation.
• PCIe Expansion: 7 x PCIe slots provide flexibility for additional hardware.
• Front Panel Features: Includes USB 2.0 ports (upgradeable to USB 3.0), LED indicators, and standard control buttons for easy operation.
Specification
| Dimensions | L650 × W430 × H132mm |
| Case Colors | Black |
| Material | 1.0 mm SGCC |
| Drive Bay & HDD Slot | 14 x 3.5” / 6 x 5.25” CD-ROM |
| GPU / Hot-Swap Backplane | N.A |
| Motherboard Support | 12" × 13" |
| Power Supply Support | ATX |
| Panel Controls | Reset Button × 1 |
| Power Switch × 1 | |
| Panel LEDs | Power LED × 1 |
| HDD LED × 1 | |
| Panel Interfaces | USB 2.0 × 2 |
| Expansion Slots | 7 x PCIe |
| Cooling System | 2x 12025 fans. |
| 2 x 6025 fans | |
| Power Supply Support | 2U PSU / Redundant |
| Panel Controls | Reset Button × 1 |
| Power Switch × 1 | |
| Panel LEDs | Power LED × 1 |
| HDD LED × 1 | |
| NIC LED x 2 | |
| Panel Interfaces | USB 2.0 × 2 (Option: 3.0 x 2) |
| Expansion Slots | 7 x PCIe |
| Cooling System | 4 × Hot-Swappable 8038 cm Fa |
|
Datasheet |
