| Applications |
|
• Data Centers • Telecommunications and 5G • AI & Machine Learning • High-Performance Computing (HPC) • Enterprise and Industrial Solutions |
| Features |
|

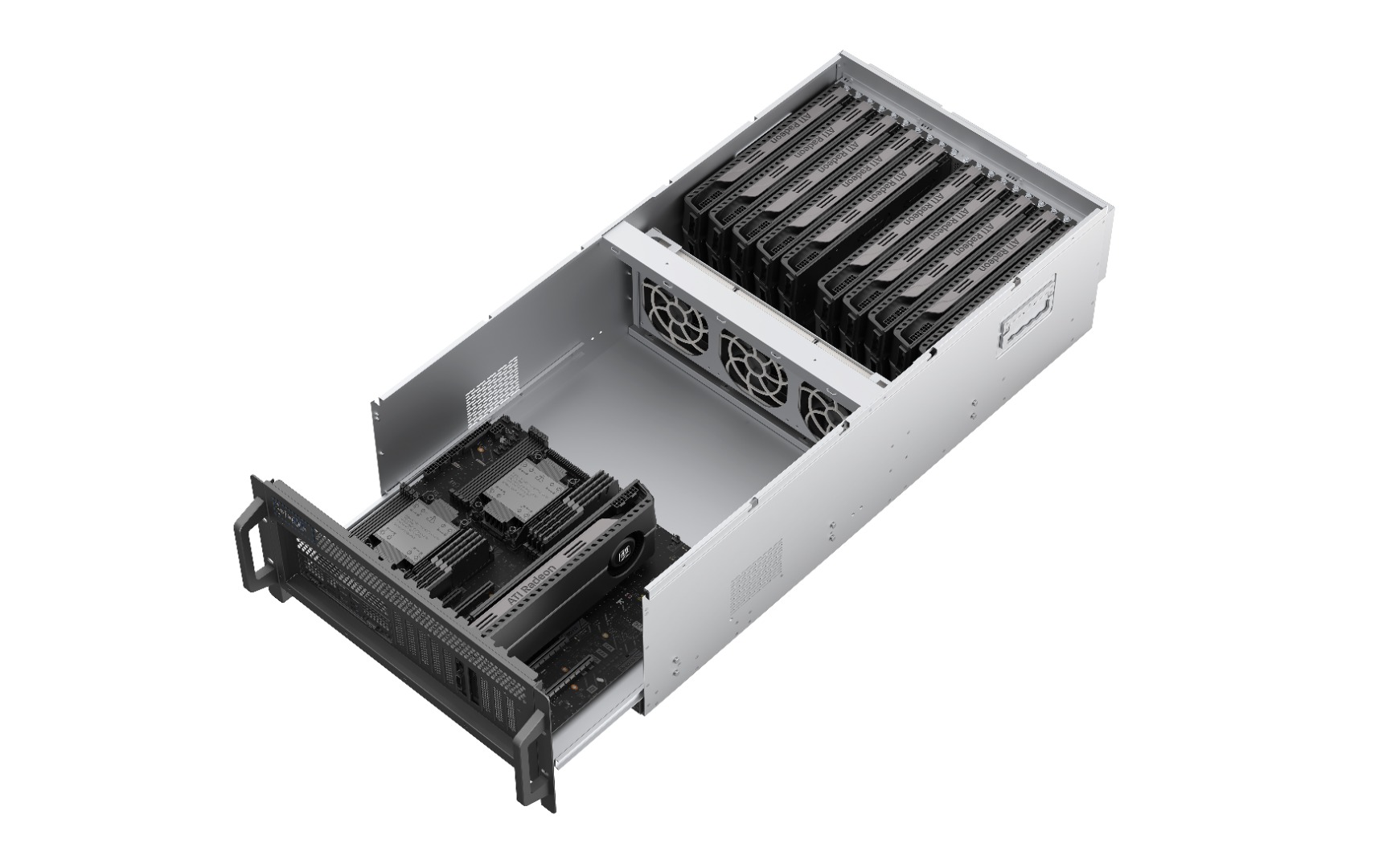

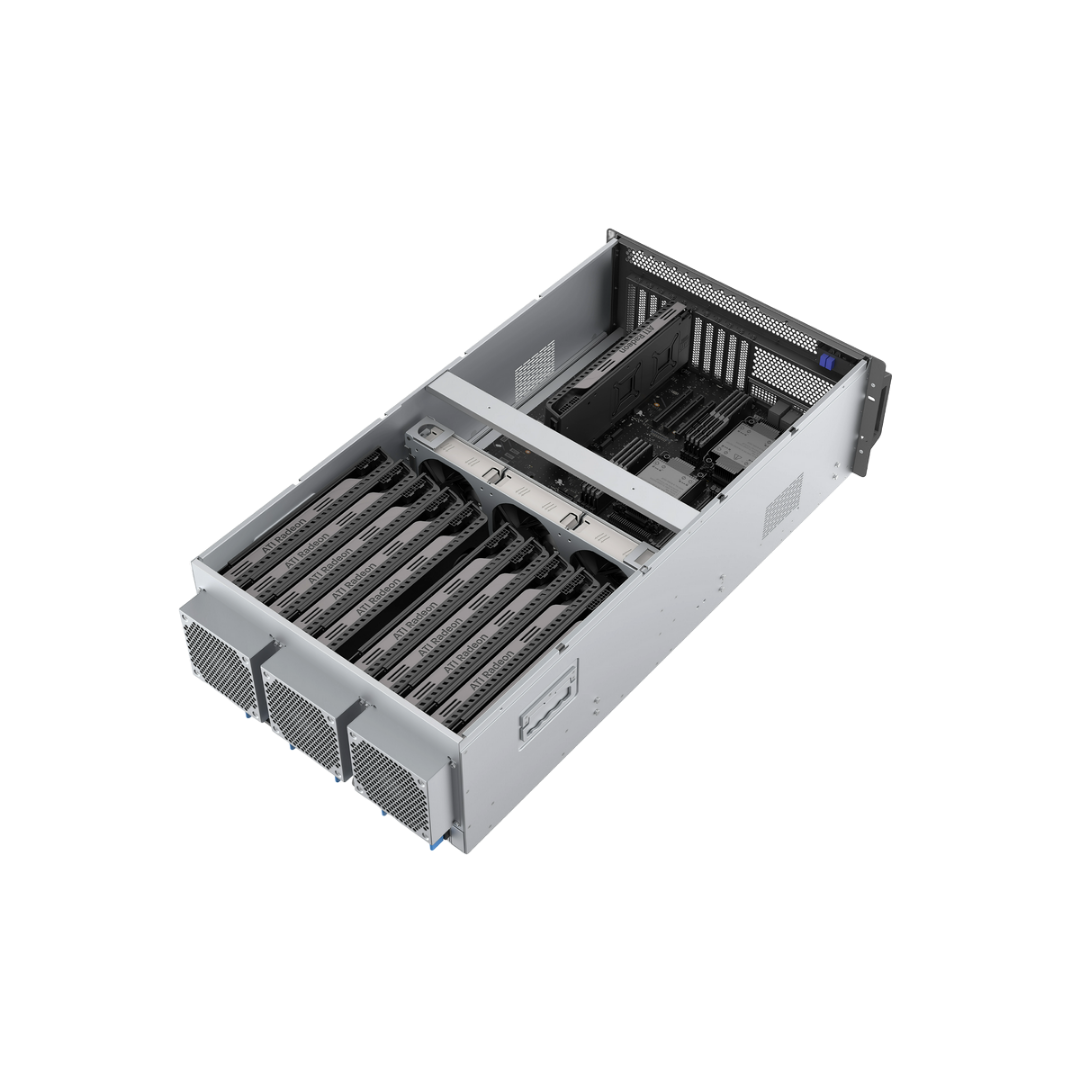

• High GPU Capacity up to 10 double-wide GPUs (270mm) • CRPS 4+1 Power Provides reliable power redundancy • Optimized Cooling equipped with 6× 12038 fans (3 front, 3 rear) • Expansion Slots Includes 8× PCIe 4.0 x8 slots • Drive Bays Supports 4× 2.5” or 3.5” drives |
|

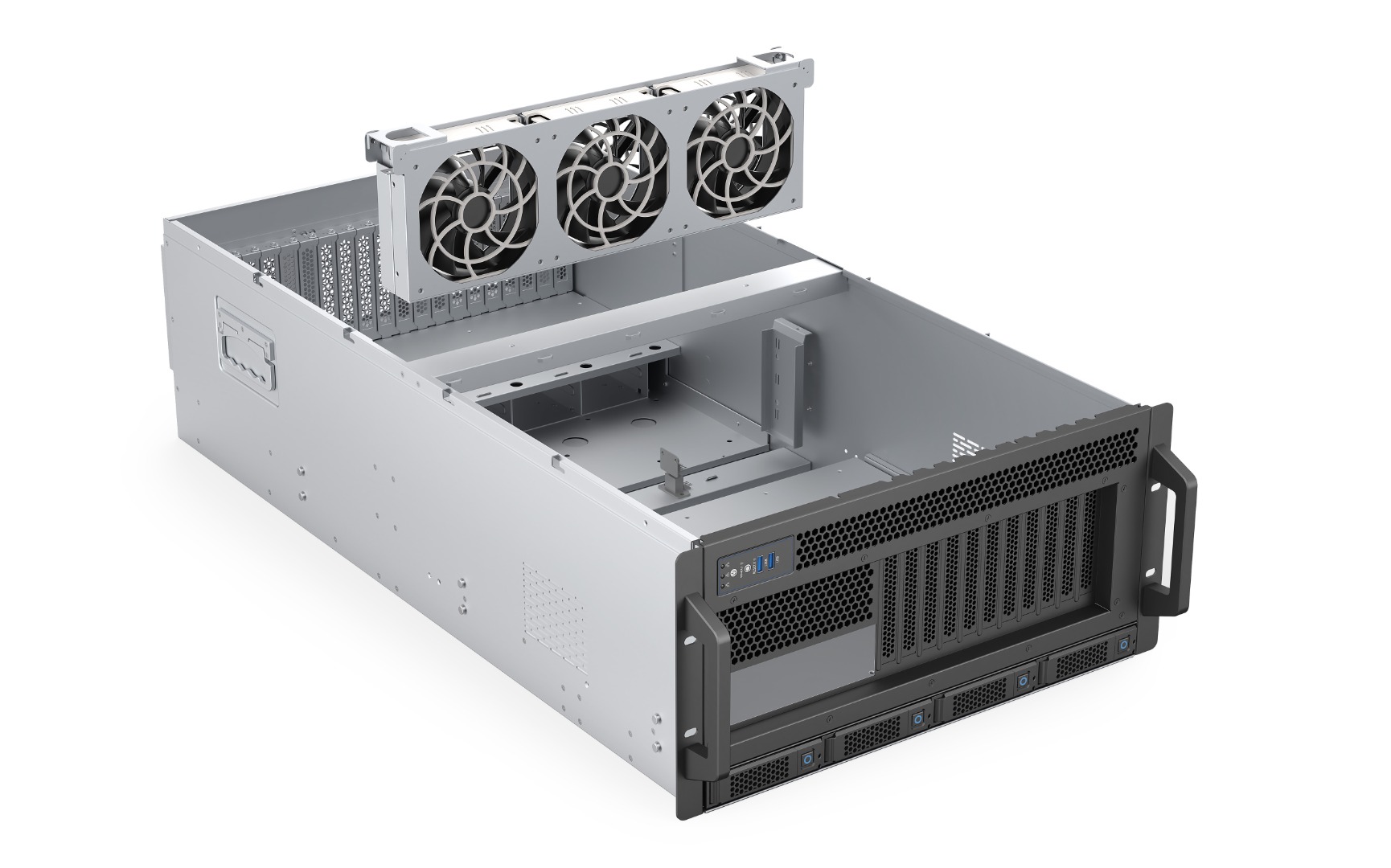

Model Name |
YRM-58504A Series |
|
M/B Form Factor |
Proprietary (16.53'' x 13.79'') |
|
Dimension (D x W x H) |
L850 × W437.6 × H220 mm |
|
Drive Bay |

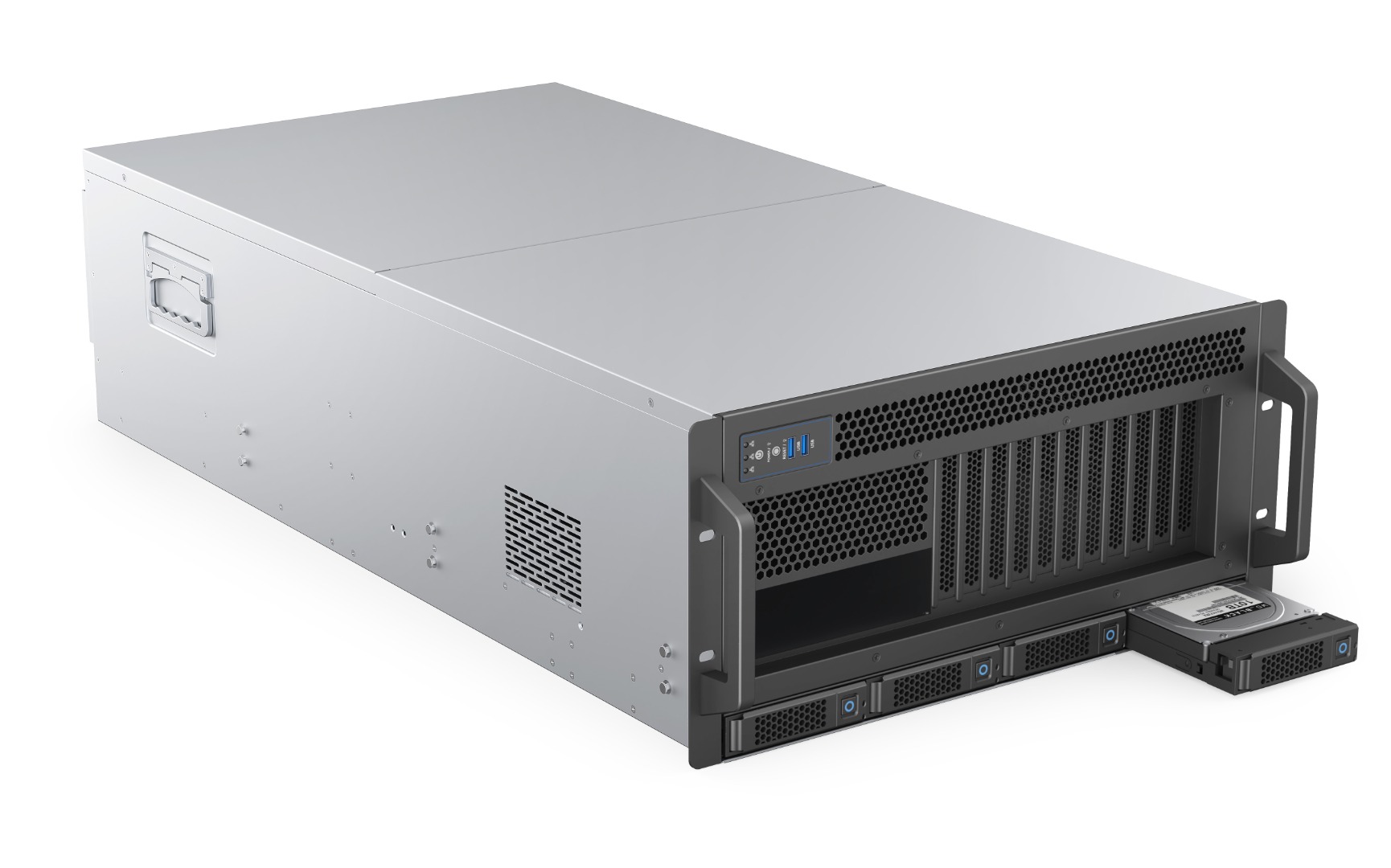

4 x 3.5” HDD, Hot swap (2.5” compatible) |
|
Storage Backplane |
12 Gb/s SATS/SAS (hot-swap) SFF8643, 4 pin PWN fan, SGPIO support |
|
PSU Form Factor |

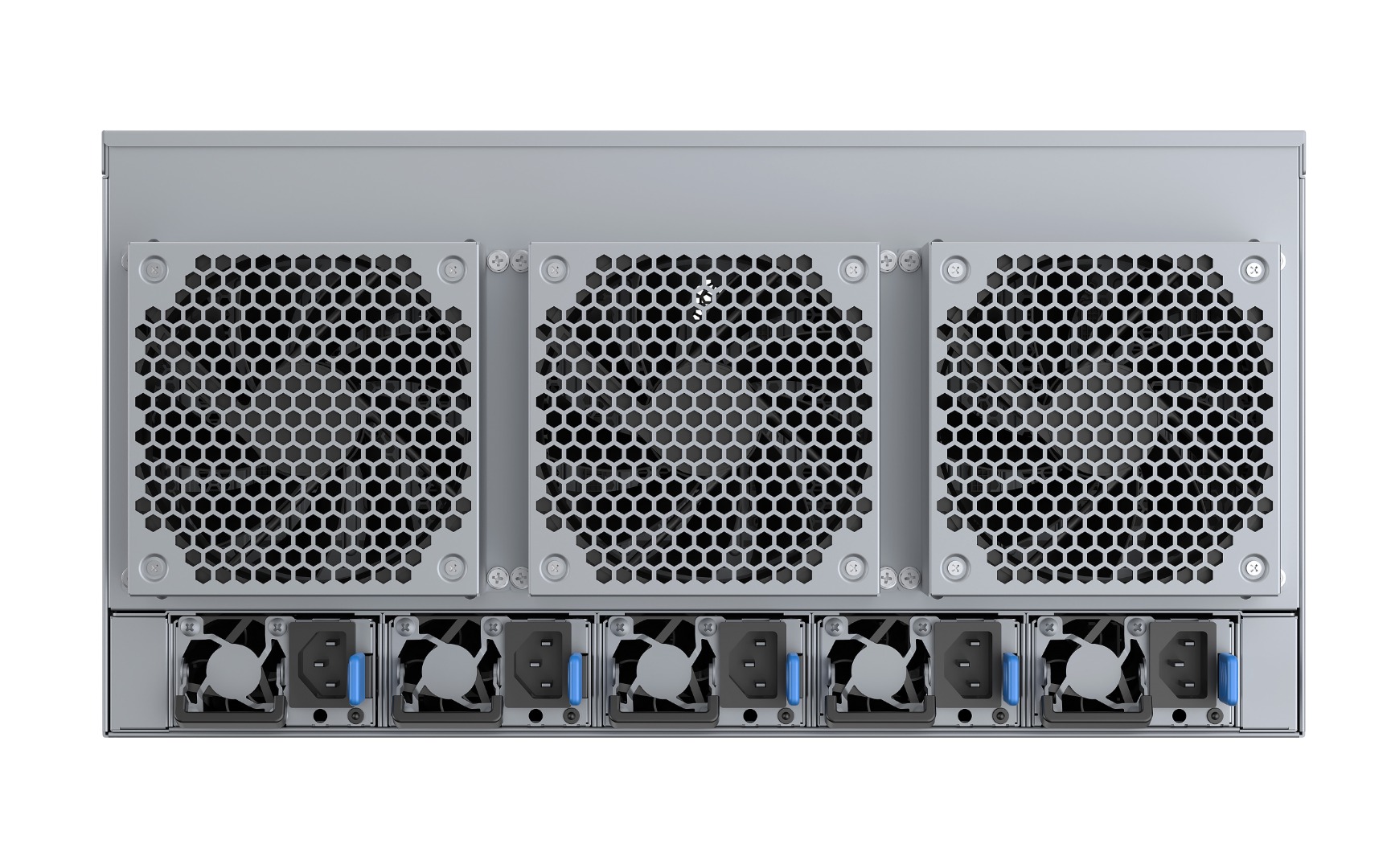

CRPS (4+1 ) Horizontal type (1U) |
|
Indicators |
Power LED *1，HDD LED *1 ，NIC LED × 3 |
|
Front Control |
Reset*1，Power*1 , USB3.2 (Type-A) x 2 |
|
Cooling Fans |

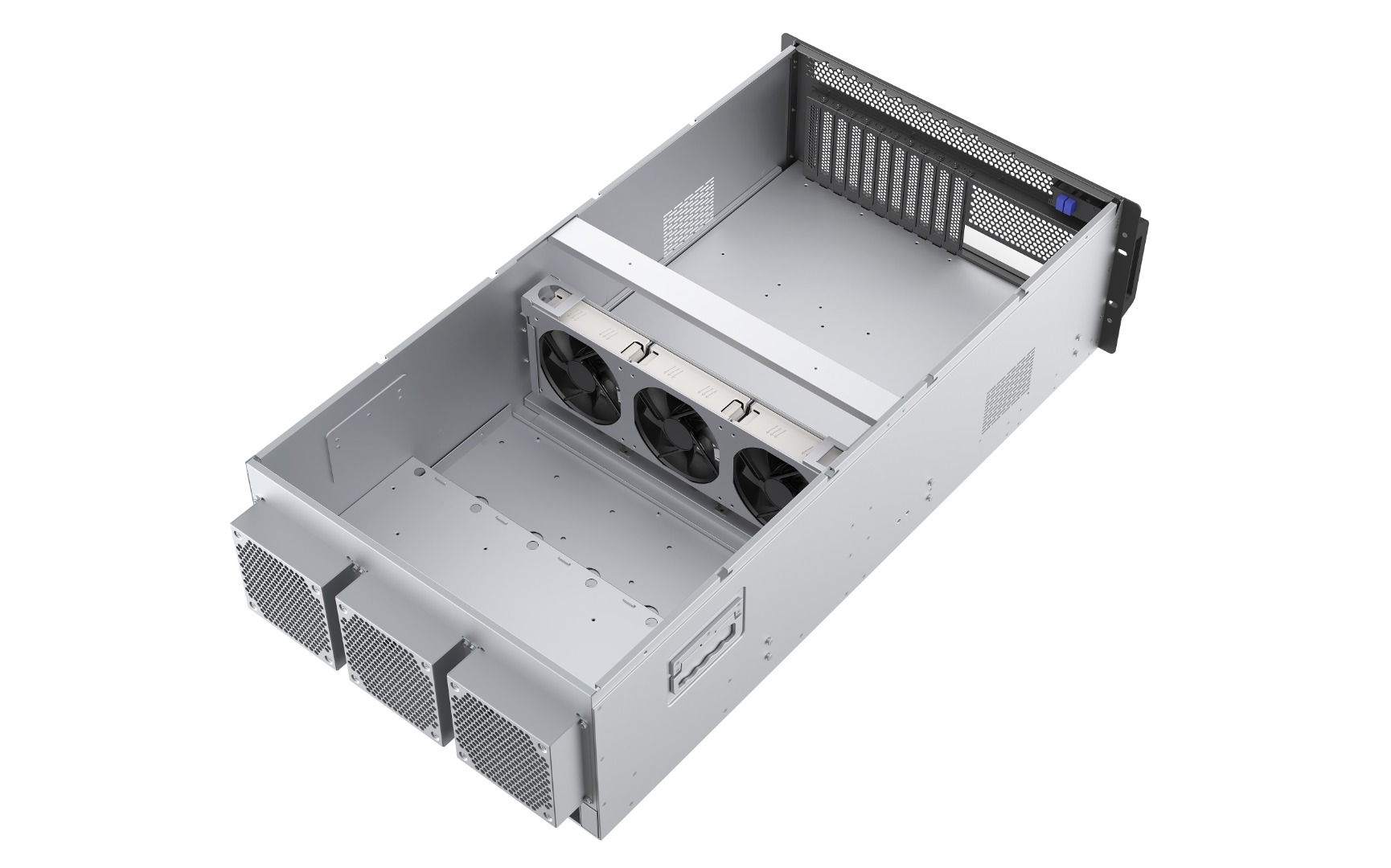

Middle : 3 x 12038 fans. Rear 3 x 12038 fans |
|
Expansion Slot |
Rear: 21 ; Front : 11 |
|
Supported Rack Mount Kit (Options) |
(Option) |
|
Net Weight |
≒28.30KG |
|
Gross Weight |
≒32.40KG |
|
Pallet Size |
N.A |
|
Cartons Per Pallet |
N.A |
|
Container Loading |
20’: 150 , 40’: 300 , 40’H: |
|
Category |
Description |
Revision |
Size |
Download |
|
Datasheet |
YRM-58504A Series Datasheet |
V1.0 |
0.3 MB |
|
