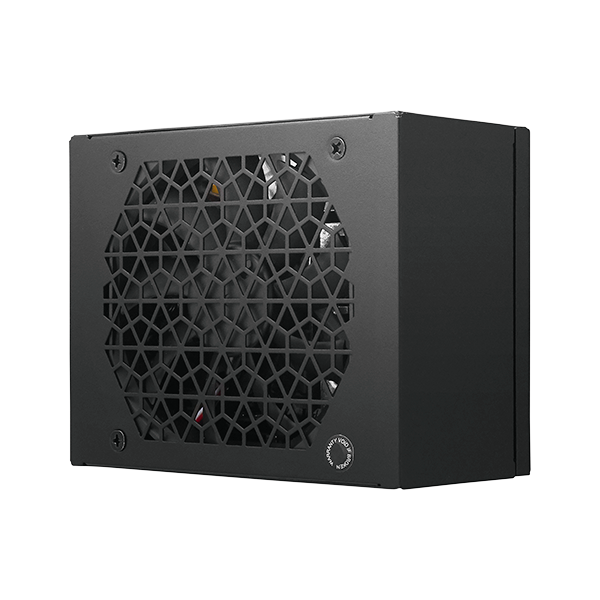

Fully modular design with 12V-2x6 high power Graphic Card connector.
.png)
• ATX 3.1 & PCI-E 5.1 Compliance:
Complies with the latest standards for compatibility and performance.
• 80 Plus Platinum Efficiency
Ensures high energy efficiency, reducing power waste and heat output.
• Enhanced Cooling System:
The 90mm DC cooling fan ensures quiet and reliable heat dissipation over extended periods of operation.
• Low-Load Efficiency:
Exceeds 60% efficiency at low loads, meeting stringent ErP energy-saving standards.
• Alternative Sleep Mode (ASM):
Complies with ErP regulations, optimizing 5V standby efficiency for eco-friendly performance in sleep states.
• 12V-2x6 connector:
Suitable for high-power GPUs, providing stable power delivery.
• Compact Dimensions:
Measures 100mm x 125mm x 63.5mm, fitting seamlessly into micro-ATX desktop system designs.
.png)
Input Rating |
|
DC output Rating |

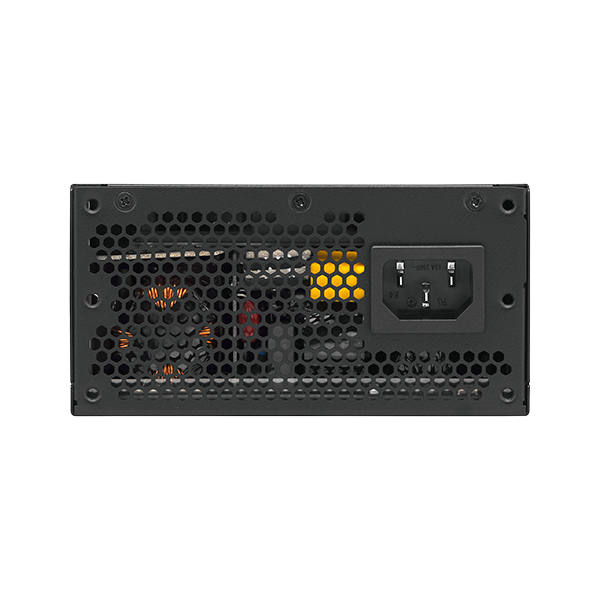

• Input Voltage : 100 - 240V• Input Current : 13.0 - 6.5 A Max.• Input Frequency : 50 - 60 Hz |
|
• 12V : 83.3 A (1000W)• 5Vsb : 3 A (15W)• 3.3V & 5V : 20 A (100W)• -12V : 0.3 A (3.6W)• Total Output Power: 1000W |
Power Efficiency |
|
Protections |
• 80Plus Efficiency: Platinum• 2% Loading: N.A• 10% Loading: N.A• 20% Lo ading: 90% @ 115V• 50% Loading: 92% @ 115V• 100% Loading: 82% @ 115V |
|
• OVP (Overvoltage Protection)• OCP (Overcurrent Protection)• SCP (Short Circuit Protection)• OTP (Over Temperature Protection)• OPP (Overpower Protection) |
Operation |
|
|
• Operating Temperature: 0 - 40 °C• MTBF : 100,000 hours |
|
| Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
| ATX 20+4 | 12V-2X6 | 4+4 PIN | PCIE 6+2 | SATA | Molex(Peripheral) | Floppy | |
| 1 | 1 | 2 | 4 | 3 | 3 | - |
- Dimension：125(W)x100(L)x63.5(H)mm

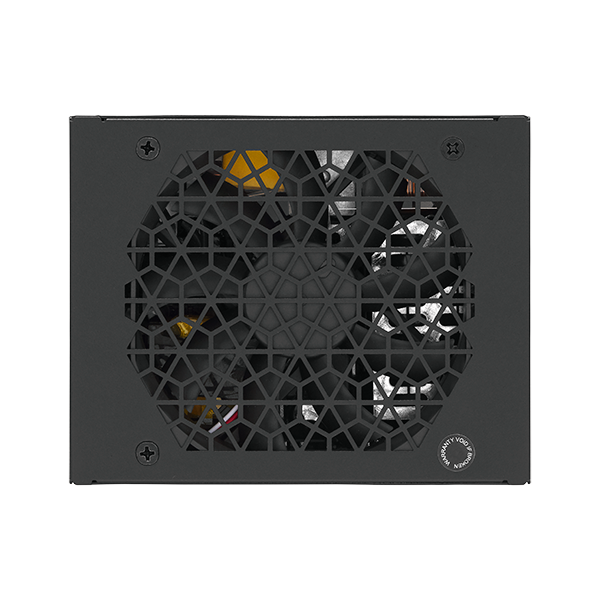

- 90mm Cooling Fan
.png)
|
|
|
Datasheet |
