• ATX 3.1 Compliance:
Designed to meet the latest ATX 3.1 standards for improved efficiency and performance.
• PCIe 5.0 Compatibility:
Fully compatible with PCIe 5.0, supporting modern GPUs and high-performance components.
• Active Power Factor Correction (PFC):
Ensures stable and efficient power delivery across varying input conditions.
• High Energy Efficiency:
Achieves up to 85% efficiency at 50% load, meeting 115V Bronze-grade standards and ErP requirements.
• Five Output Options:
Offers flexibility to power multiple components, optimized for ATX12V platforms.
• Advanced Cooling System:
Features a durable 120mm DC fan for effective heat dissipation and quiet operation.
• Compact Dimensions:
Measures 150mm x 140mm x 86mm, fitting seamlessly into most desktop system designs.
• Safety-Certified:
Complies with global safety standards, including cTUVus, TUV, and CB certifications...etc.
• Wide Input Range:
Operates with a full-range input of 90-264Vrms, ensuring reliability in diverse power conditions.
.png)
Input Rating |
|
DC output Rating |
• Input Voltage : 100 - 240V• Input Current : 10A Max.• Input Frequency : 50 - 60 Hz |
|
• 12V : 54 A (650W)• 5Vsb : 3 A (15W)• 3.3V & 5V : 20 A (120W)• -12V : 0.3 A (3.6W)• Total Output Power: 650W |
Power Efficiency |
|
Protections |
• 80Plus Efficiency: Bronze• 2% Loading: N.A• 10% Loading: N.A• 20% Lo ading: 82% @ 115V• 50% Loading: 85% @ 115V• 100% Loading: 82% @ 115V |
|
• OVP (Overvoltage Protection)• OCP (Overcurrent Protection)• SCP (Short Circuit Protection)• OTP (Over Temperature Protection)• OPP (Overpower Protection) |
Operation |
|
|
• Operating Temperature: 0 - 40 °C• MTBF : 100,000 hours |
|
| Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
| ATX 20+4 | 12V-2X6 | 4+4 PIN | PCIE 6+2 | SATA | Molex(Peripheral) | Floppy | |
| 1 | 1 | 2 | 4 | 8 | 4 | - |
- Dimension：150(W)x140(L)x86(H)mm

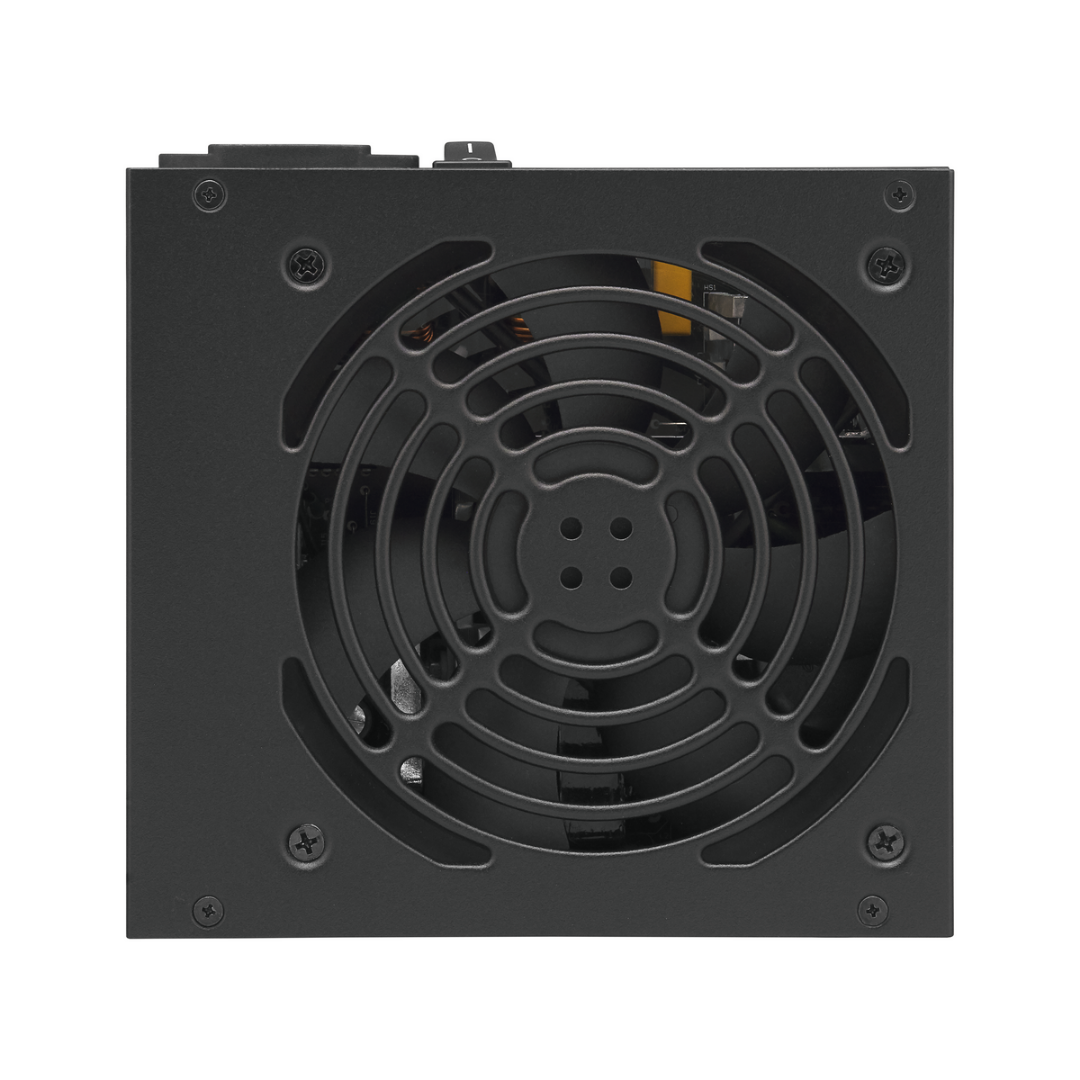

- 120mm Cooling Fan
.png)
|
|
|
Datasheet |
