• 80Plus Gold Efficiency:
Delivers energy efficiency meeting Gold-grade standards, achieving up to 90% efficiency at 50% load.
• ATX 12V 3.1 Compliance:
Ensures compatibility with advanced Intel platforms and next-generation components.
• PCIe 5.1 Support:
Optimized for modern GPUs, supporting power excursions up to 200%.
• Regulated Outputs:
±5% voltage accuracy for stable and precise power delivery across all output rails.

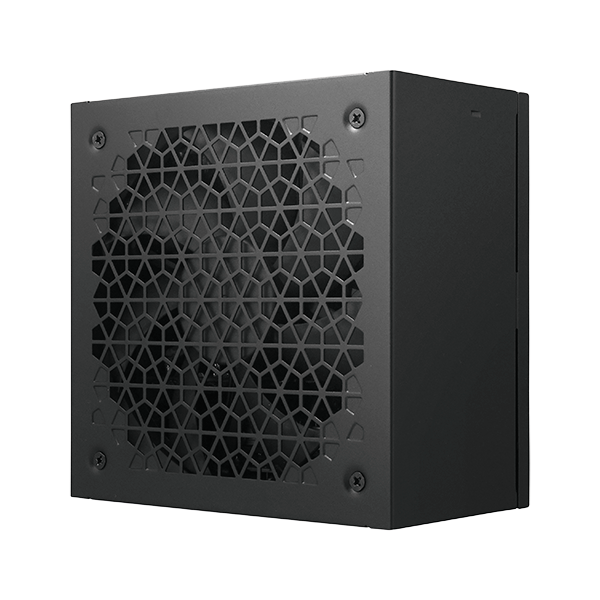

• Advanced Cooling:
Equipped with a 135mm FDB fan for effective heat dissipation and low noise.
• Full Range Input:
Supports 90–264Vrms input with Active Power Factor Correction for stable operation globally.
• Eco-Friendly Design:
Compliant with ErP Lot 6 and Lot 3 standards for energy savings and sustainability.
• Safety Assured:
Certified for global safety standards, including UL62368-1 and EN 62368-1.
• Compact Design:
Measures 150 x 150 x 86mm, making it suitable for versatile desktop builds.
• Engineered for Long-Term Reliability:
Constructed with heat-resistant materials for long-term reliability.
Input Rating |
|
DC output Rating |
• Input Voltage : 100 - 240V• Input Current : 13 - 6.5A• Input Frequency : 50 - 60 Hz |
|
• 12V : 83.3 A (1000W)• 5Vsb : 3 A (15W)• 3.3V & 5V : 22 A (120W)• -12V : 0.3 A (3.6W)• Total Output Power: 1000W |
Power Efficiency |
|
Protections |
• 80Plus Efficiency: Gold• 2% Loading: 60% @ 115V• 10% Loading: N.A• 20% Lo ading: 87% @ 115V• 50% Loading: 90% @ 115V• 100% Loading: 87% @ 115V |
|
• OVP (Overvoltage Protection)• OCP (Overcurrent Protection)• SCP (Short Circuit Protection)• OTP (Over Temperature Protection)• OPP (Overpower Protection) |
Operation |
|
|
• Operating Temperature: 0 - 40 °C• MTBF : 100,000 hours |
|

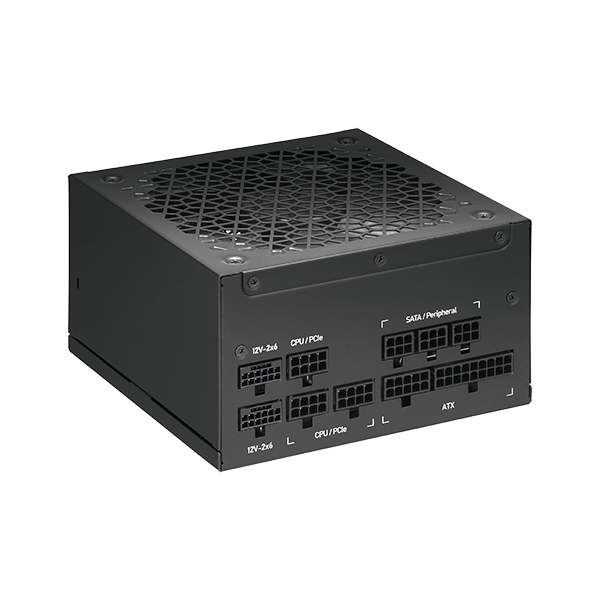

| Connectors |
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
.png)
|
| ATX 20+4 | 12V-2X6 | 4+4 PIN | PCIE 6+2 | SATA | Molex(Peripheral) | Floppy | |
| 1 | 1 | 2 | 8 | 8 | 4 | - |
- Dimension：150(W)x150(L)x86(H)mm
- 120mm Cooling Fan / Zero Fan
.png)
|
|
|
Datasheet |
