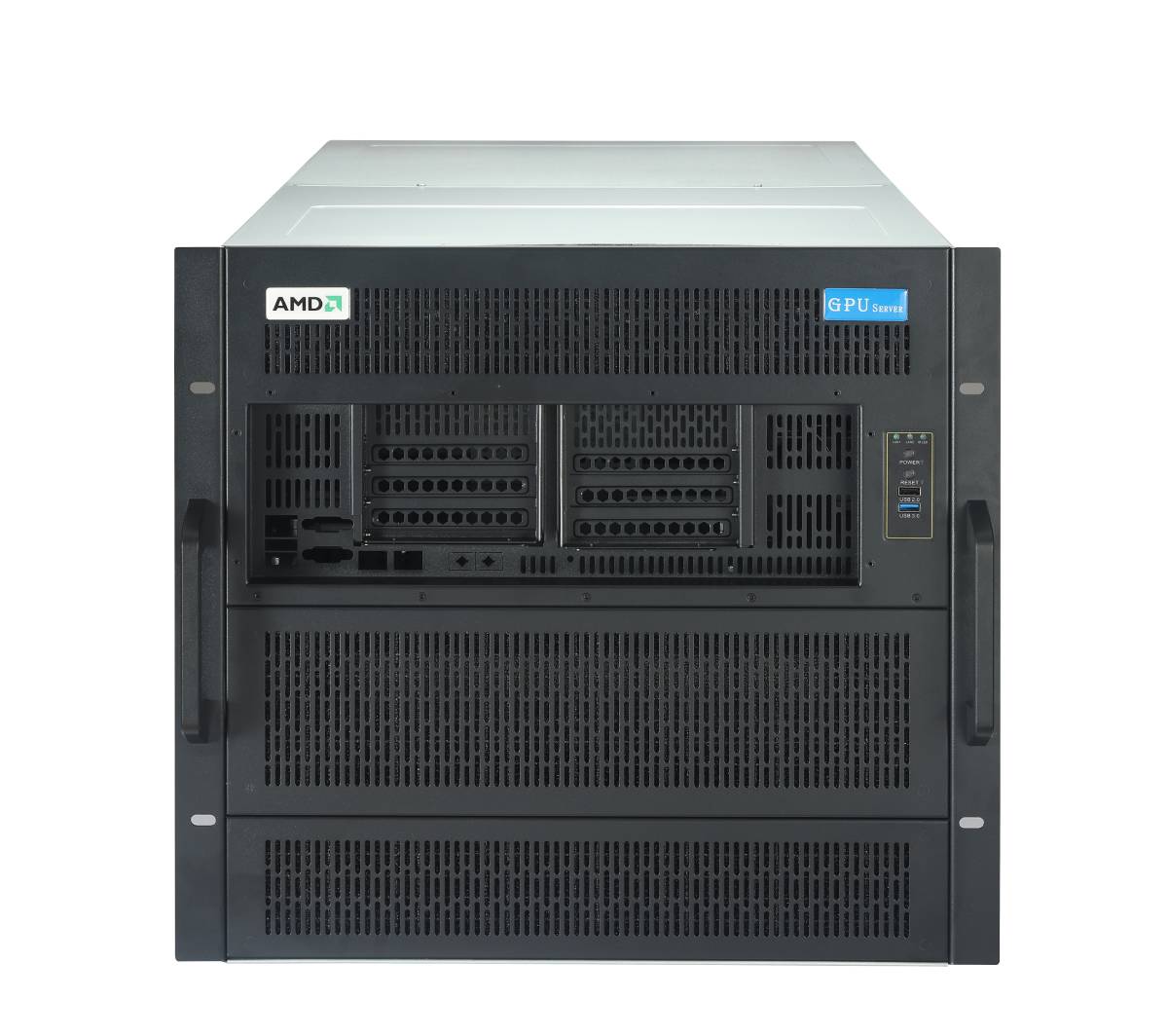

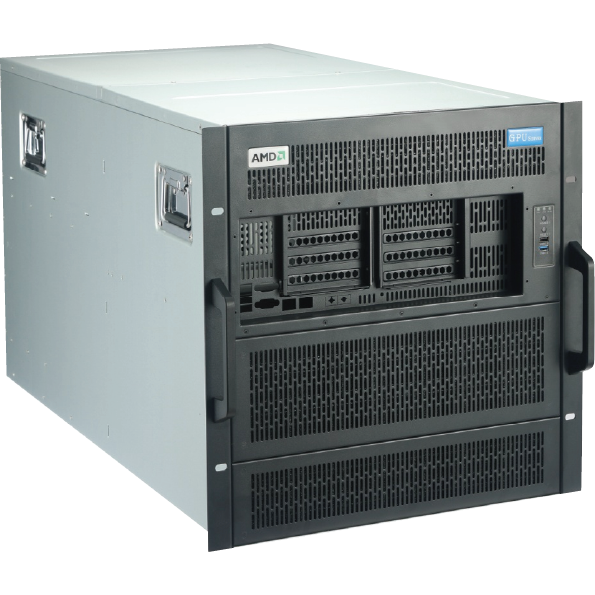

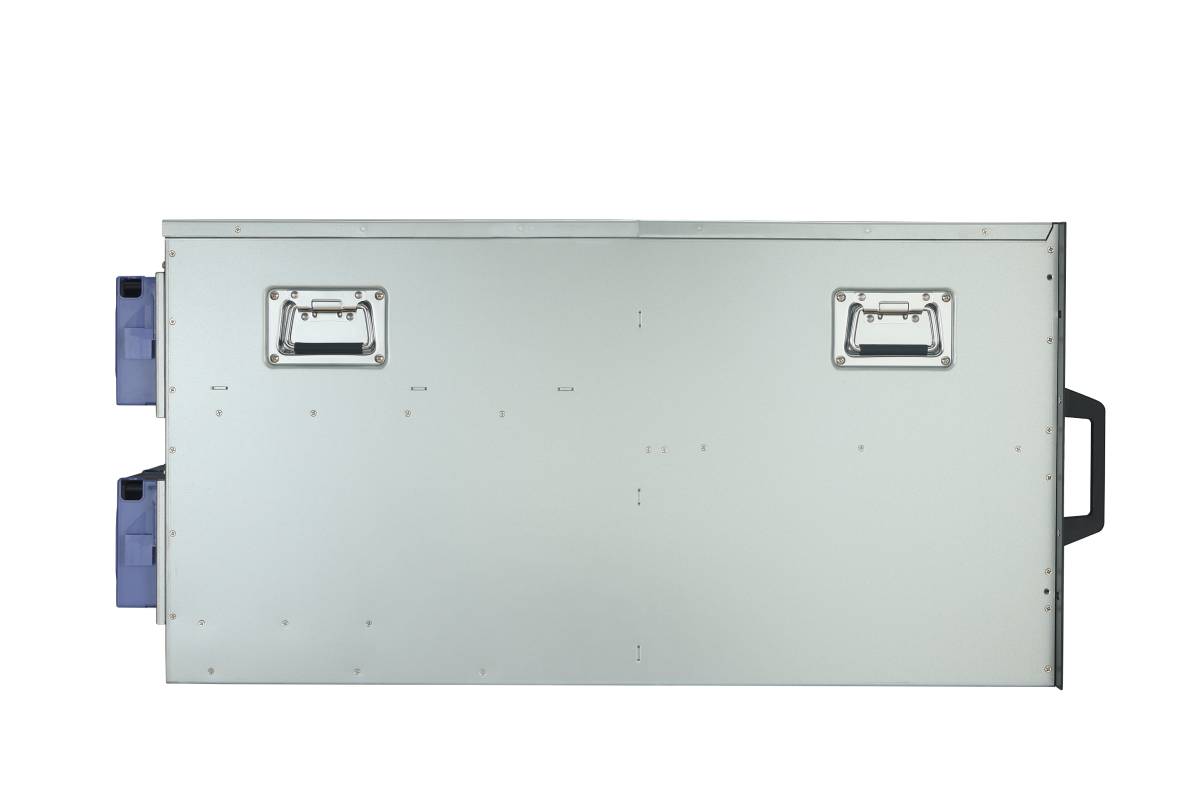

YCC-1000
Instructions
specification
| Model Name | YCC-1000 |
| Form Factor | 10U |
| Material | 1.2 mm SGCC |
| Motherboard | E-ATX (12" x 13") and below |
| Drive Bay (External) | 3.5" x 12 (compatible with 2.5" x 12) |
| Power Supply | 1U Redundant x 4 or 5 |
| Cooling system |

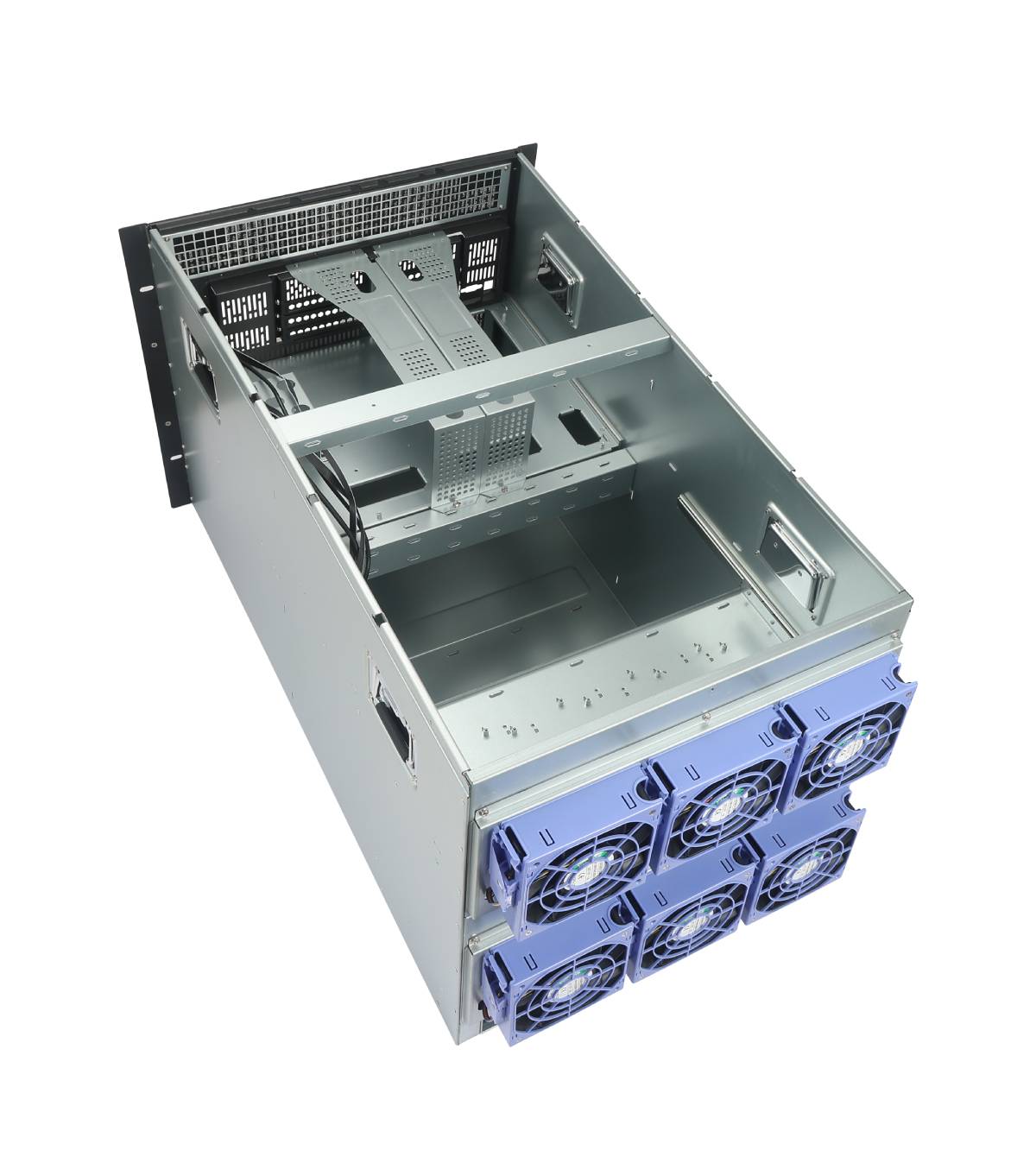

Rear: hot-swap 12cm fan x 6
|
| Expansion Slot |
40
|
| Front I/O Port | USB 2.0 x 2 |
| Indicators | Power LED x 1 + Reset LED x 1 + LAN LED x 2 + ID LED x1 |
| Control lights Key | Power switch x 1 + Reset switch x1 |
|
Dimension
|
900 x 495 x 444.5mm (D x W x H)
|
