Industrial Chassis

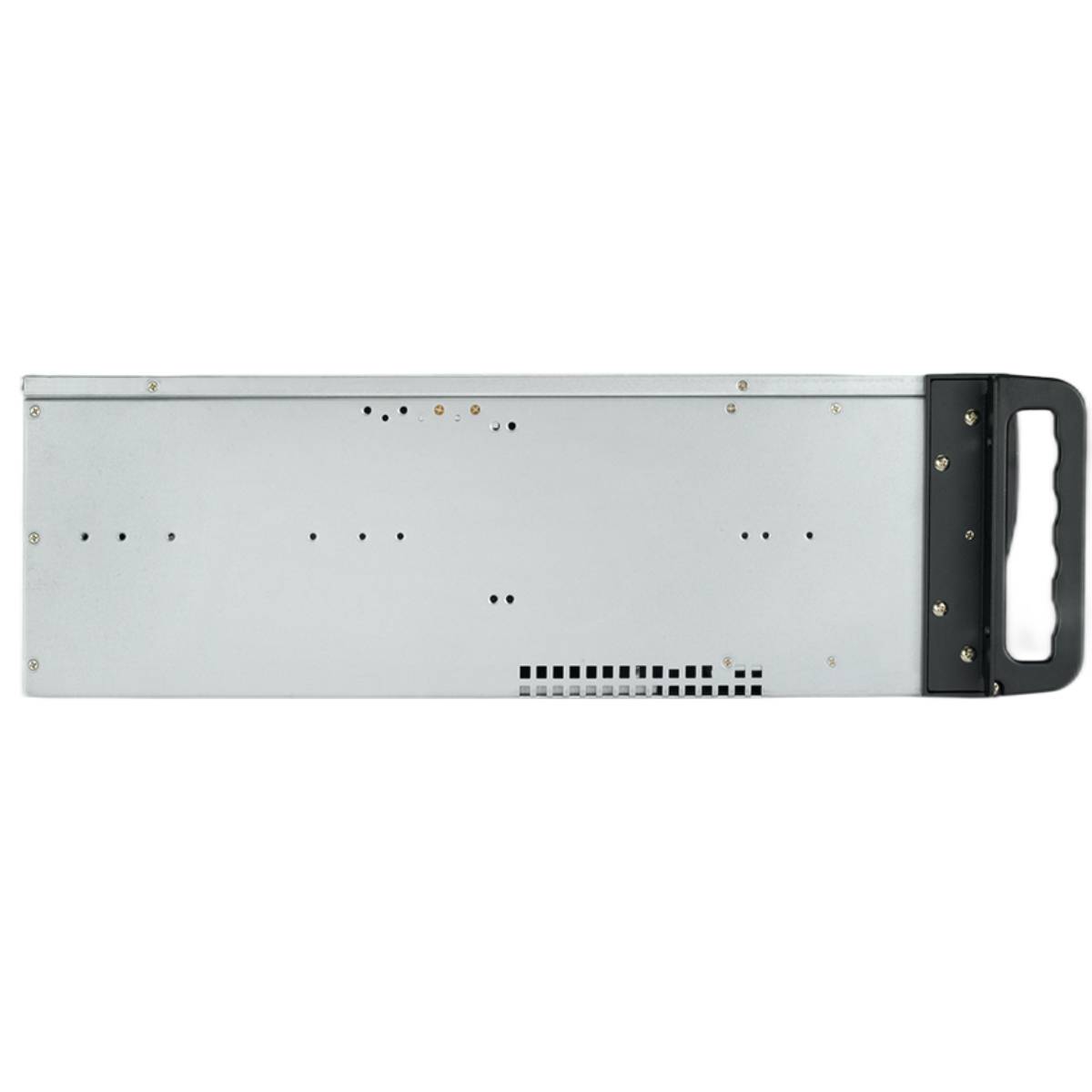

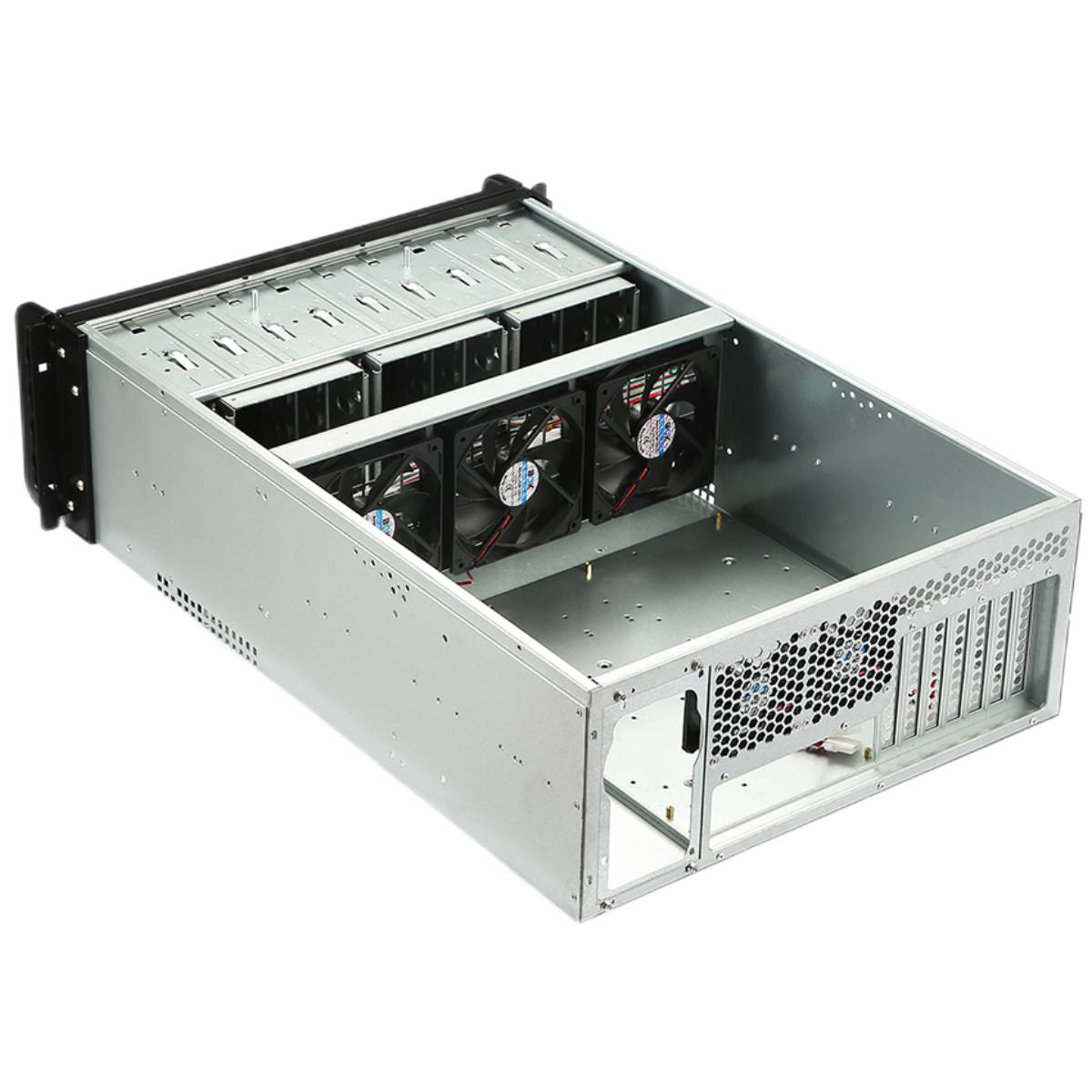

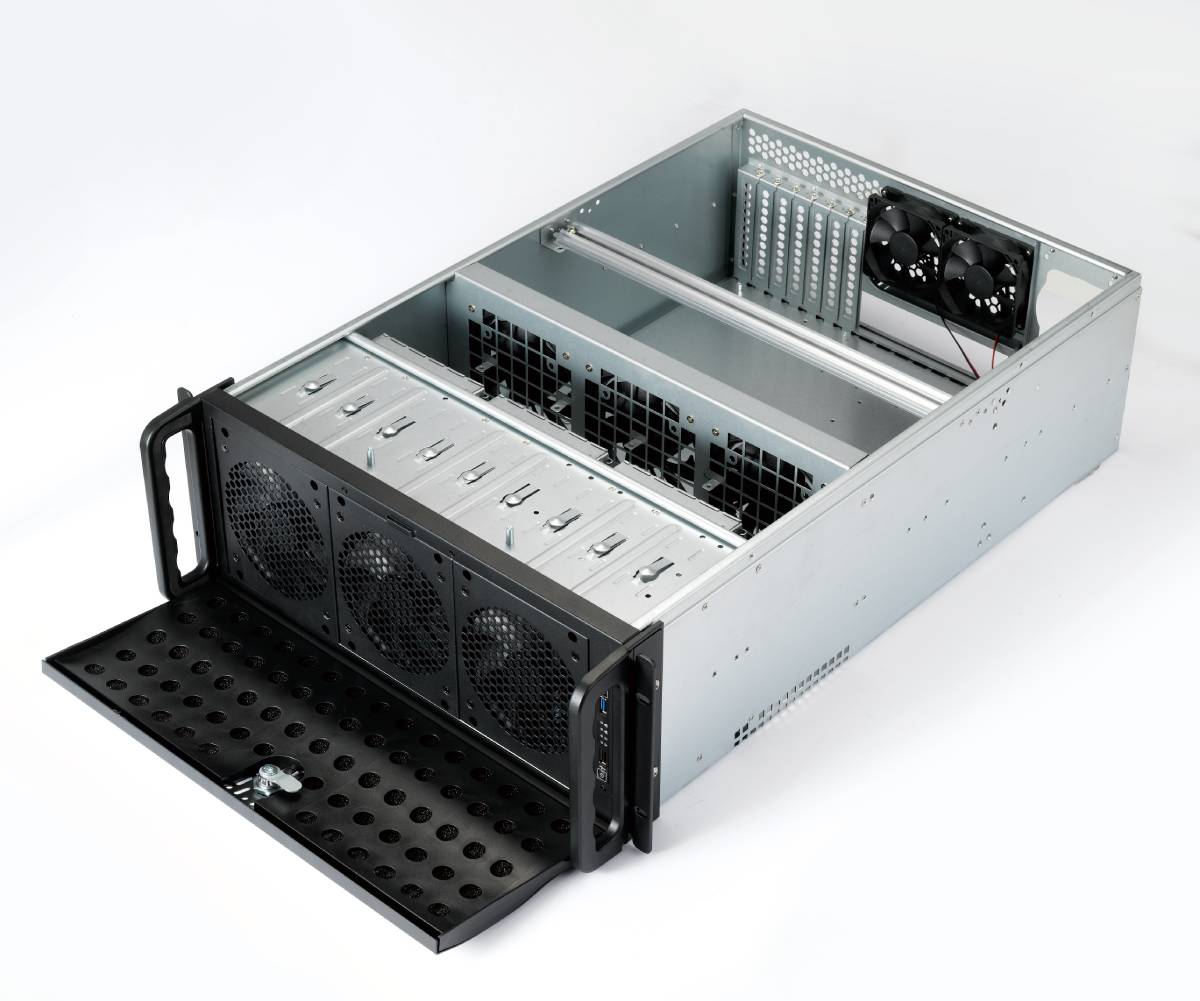

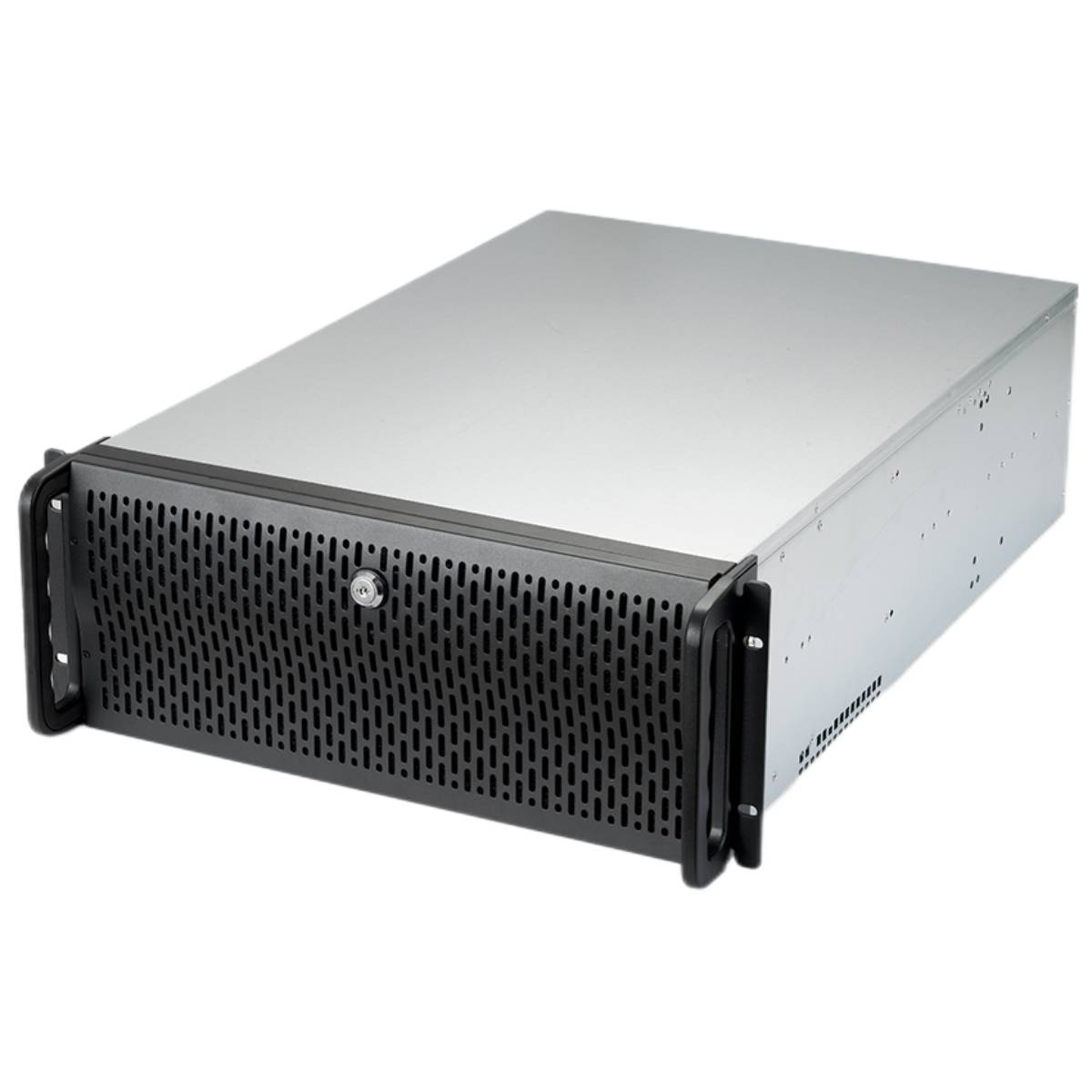

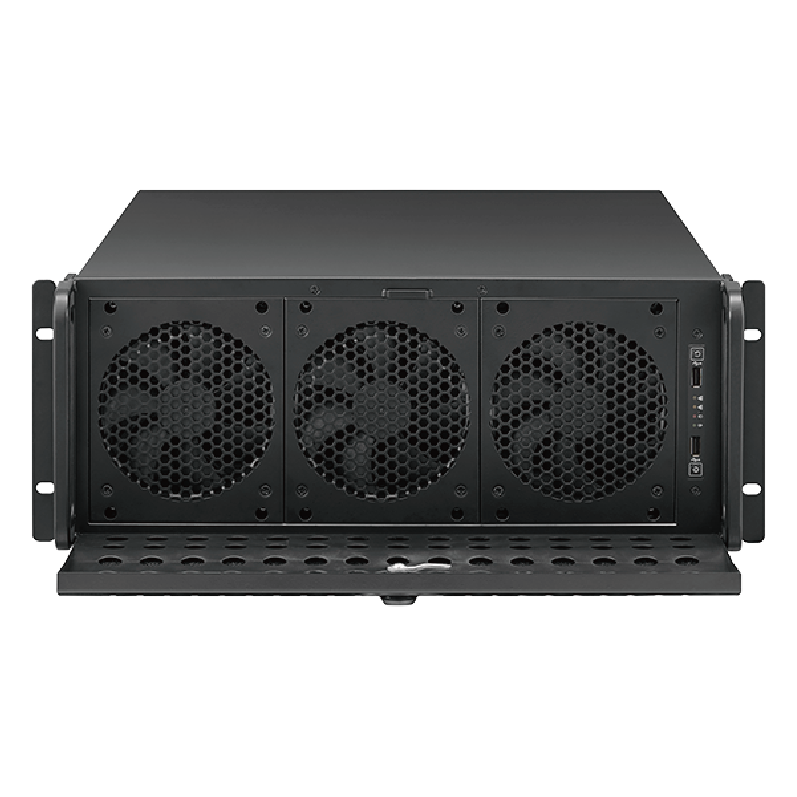

YCC-L4500
Instructions
.jpg)
.jpg)
specification
| Model Name | YCC-4500 |
| Form Factor | 4U |
| Material | 1.0 mm SGCC |
| Motherboard | E-ATX (12" x 13") and below |
| Drive Bay(Internal) | 3.5" x 15 |
| Power Supply | ATX PS2, Mini-Redundant |
| Cooling system |
Front: 12cm fan x 3
Middle: 12cm fan x 3 Rear: 8cm fan x 2 |
| Expansion Slot |
7
|
| Front I/O Port | USB 2.0 x 2 |
| Indicators | Power LED x 1 + HDD LED x 1 + LAN LED x 2 |
| Control lights Key | Power switch x 1 + Reset switch x1 |
|
Dimension
|
635 x 427 x 178mm (D x W x H)
|
